Honeywell GC-715N24 Manuale utente

GC-715N24

GC-715P24

MEMO

Control Products Business Unit

18F, Kukje Center Building, 191,

Hangangro-2ga, Yongsan-gu,

Seoul 140-702, Korea

Tel : 82-2-799-6109

Fax : 82-2-749-6119

E-mail : cctv@honeywell.com

http://www.honeywell.co.kr/cctv

Printed in Korea

G-110821

READ AND RETAIN THIS OPERATION MANUAL

* “BMB

BMBTM

TM” is the Trade Mark of Honeywell, CCTV CoE.

DSP COLOR CAMERA

MEMO

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER(OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PRERSONNEL

Explanation of Graphical Symbols.

This symbol is intended to alert the user to the presence of uninsulated

“dangerous voltage”within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important

operating and maintenance(Servicing) Instructions in the literature

accompanying the appliance.

CAUTIONS FOR SAFE OPERATION !

●Changes or modifications not approved

by manufacturer could void the user’s

authority to operate the equipment.

●To prevent fire or shock hazard, do not

expose this camera to rain or moisture.

●To prevent electric shocks and other

hazards, do not use different from the

specified power source.

●Do not install too hot or cold places,

recommended operation temperature

is -10℃~ 50℃

●Do not expose lens directly to the sun.

CCD may be damaged.

●Do not place the camera to heavy

shocks or vibrations.

●Do not place or install the camera on

an unstable place, stand, tripod, bracket

or table.

That may cause serious injury to

people or damage to appliance.

●Do not attempt to service or repair of

yourself. Please contact all servicing to

qualified service personnel

●In case of installing too close to Monitor,

variation of monitor brightness cause any

hunting of camera in low light mode.

Cautions for safe operation ------------------------------------- 1

About GC-715N/P24 ------------------------------------- 3

Name and function of each section ------------------------------------- 4

Installation ------------------------------------- 5

Adjustment and operation ------------------------------------- 8

Specifications ------------------------------------- 23

Accessory

●C mount adapter

●IRIS JACK for AUTO IRIS LENS

①

②③

④

⑤

⑥⑦ ⑧

①AUTO IRIS lens connector

②AUTO IRIS lens select switch

③Sync. select switch

④Video output connector

⑤Power input connector

⑥Power lamp

⑦DC IRIS level adjustment

(when using DC IRIS lens)

⑧V- PHASE adjustment

(when using LINE LOCK)

Name and function of each section

[unit : mm]

148

GC-715N/P24

Outlines

Honeywell’s GC-715N/P24 is a high sensitivity CCD color camera with high sensitivity

function of the field integration technique.

Features

☞1/3” IT Super HAD CCD ( NTSC: 410,000 / PAL: 470,000 )

☞Outstanding BLC implementation with Honeywell’s BMB(Black Mask BLC) function.

( 3 levels adjustable )

☞CS/C lens mount.

☞Excellent signal-to-noise ratio of more than 50dB.

☞High Sensitivity : Minimum illumination of 0.001lx ( F1.2, 30IRE, SENS On X 128 )

☞2-WAY Auto Iris : Video iris or DC iris lens can be used.

☞External synchronization with LINE LOCK.

☞Auto White Balance : Auto white balance realizes true color reproduction within various

light sources. ( 2,800 ºK~8,000 ºK )

☞Control : Flickerless, Back light compensation , AGC , Manual shutter control,

Maximum Sensitivity select, Auto white Balance/ Indoor/Outdoor/Fluorescent light/ BMB Level

Installation

Mounting a Lens

1. Remove the protective cap in front of the camera.

2. Confirm the mount ring whether it is for C or CS. * Caution1

3. Attach the lens to the lens mount ring.

4. If the lens has an Auto Iris mechanism, connect the iris cable to the Lens connector

(EE/VSD S/W must be set to VSD on the side of the camera)

A. In the case of having no iris amplifier : Set the slide switch to DC (Down side)

B. In the case of having iris amplifier : Set the slide switch VSD (Upper side)

C. Set the S/W on the side of the camera to DC or VSD, too.

☞If using lens that has iris amplifier, “LEVEL” and “ALC” volume of lens must be

adjust carefully. It may cause any hunting.

☞When connecting Auto iris lens, be sure to use the connector to be recommended

by manufacturer. (E4-191, Chuo Musen, Japan)

* Caution 1 : This appliance is set to CS mount default.

If you want to use C mount lens, fix a C adapter ring additionally packed

in the box.

When Auto-Iris Lens is used...

VSD LENS PIN CONFIGURATION

①③

④②

1. POWER(12V) 2. NO CONNECTION

3. VIDEO SIGNAL 4. GND

Set the select switch to VSD

DC IRIS LENS PIN CONFIGURATION

①

③

④②

1. CONTROL- 2. CONTROL+

3. DRIVE+ 4. DRIVE-

Set the select switch to DC

* For the best condition, read lens manual carefully .

* After connecting Auto iris-lens you may need to set flange back focus.

Connection of AC power supply

☞Must be checked the power source from the external power supply before power on.

☞Recommended power source capacity :

AC 24V, more than 500mA

Adjustment and operations

Fig 1. SIDE view Fig 2. REAR view

Configuration

The function of each part

1. Button “1” & “2”

In line lock mode, zero crossing point can be adjusted by pressing these buttons.

In MWB mode, manual white balance can be adjusted by pressing these buttons.

2. Button “3”

In One push lock mode, white balance can be aligned by pressing this button.

When this button is released, white balance is locked.

“10” “11”

LENS VSD

INT

AC24

LEVEL V-PH

VIDEO

“8” “9”

GND

“1” “2”

“3”

“4”

“5”“6”

“7”

UP DOWN

PUSH LOCK

012

Flange back focus adjustment

1. In case of fixed focus lens

a. Loosen the locking ring and set the focus ring of lens to infinity ( ∞).

b. Tune the mount ring to get a clear picture( distance from camera to object is

more than 23m) and fasten the locking ring.

2. In case of zoom lens

a. Loosen the locking ring and set the lens to the maximum telephoto position.

Then turn the focus ring to focus.

☞in the case of Auto iris lens, shoot a comparatively dark object or reduce

the ambient light so that the Iris is fully open.

b. Set the lens to its maximum wide angle position, and set the focus.

c. Repeat step a and b, until the difference between focusing position a and b

is smallest.

D. When the best focusing point is found, fasten the locking ring.

3. Connector “4”

Used for EEPROM data setting in factory.

4. DIP switch “5”

Shipment setting consists of “AGC High”, “AWC”, “SENS”.

Fig 3. Button detail

①“EE/ME” Mode ( Electronic Exposure / Manual Exposure )

If using electronic exposure or a lens with automatic iris, the “EE/ME” switch

has to be set to “EE”. If using a manual lens, you can use the rotary switch

to adjust the shutter speed of the camera manually.

Mode Remark715N24 715P24

0default1/60 sec 1/50 sec

11/120 sec 1/100 sec

21/250 sec

1/500 sec

1/1,000 sec

1/2,000 sec

1/4,000 sec

1/5,000 sec

81/10,000 sec

91/100,000 sec

012

“6” switch

Fig 4. Shutter Speed

in ME mode

OFF

①②③④⑤⑥⑦⑧⑨⑩⑪⑫

WB1

WB2

WB3

BMB

BLC

LEE EE DC

SENS

ME VSD VSD HH1 H0

BMB

L1 L0

AUTO AGC

◆in case of using AUTO iris lens

-. Set “EE/VSD” switch on Side

to “VSD”.

-. Set “EE/VSD” switch on Rear

to “VSD”.

②“EE/VSD” Mode ( Lens type selection )

If using a manual lens,

the “EE/VSD” switch has to be set

to “EE”. If using a lens with automatic

iris, the “EE/VSD” switch has to be set

to “VSD”

③“DC/VSD(AUTO)” Mode ( Auto Iris Lens type selection )

Auto Iris Lens are DC Type or VSD Type.

VSD

◆in case of using DC iris lens.

-. “EE/VSD” switch on side to “VSD”,

“EE/VSD” switch on rear to “DC”.

-. Slowly turn “8” LEVEL on Rear until

the monitor picture appears to be not

too bright or too dark.

VSD(Auto)

Auto

⑤“BMB/SENS” Mode

What is BMB?

-. BMB is the trade mark of Honeywell, that means BLACK MASK BLC. (BMB

BMBTM)

-. It is to improve the weak points of Electronic Iris & BLC.

-. Mask the excessive light by 3 making level and minimize the loss of outlines of Objects

due to strong light.

④“AGC” Mode ( Automatic Gain Control )

Select the AGC mode to high ( gain 32dB) or low ( gain 26dB ).

AGC

When this switch is to “high”, the

maximum AGC is set to 32 dB, and

sensitivity increases automatically when

illumination becomes dark . In AGC high

mode , the integration time of the memory

can be further decreased than AGC low

mode ( 26dB) , and moving object is

displayed more natural. But the noise of

video signal is further increased .

◆BMB(Black Mask BLC) Mode

It can be adjustable to 3 levels according to surrounding condition.

( Factory default : 3Level )

BLACKOO3

DARK GRAYXO2

GRAYOX1

XXOFF

RemarkH0H1LEVEL

< BMB level adjustment >

As higher BMB level, making level is darker.

and around the masked area become lighter.

L1 L0

BMB

SENS H1 H0

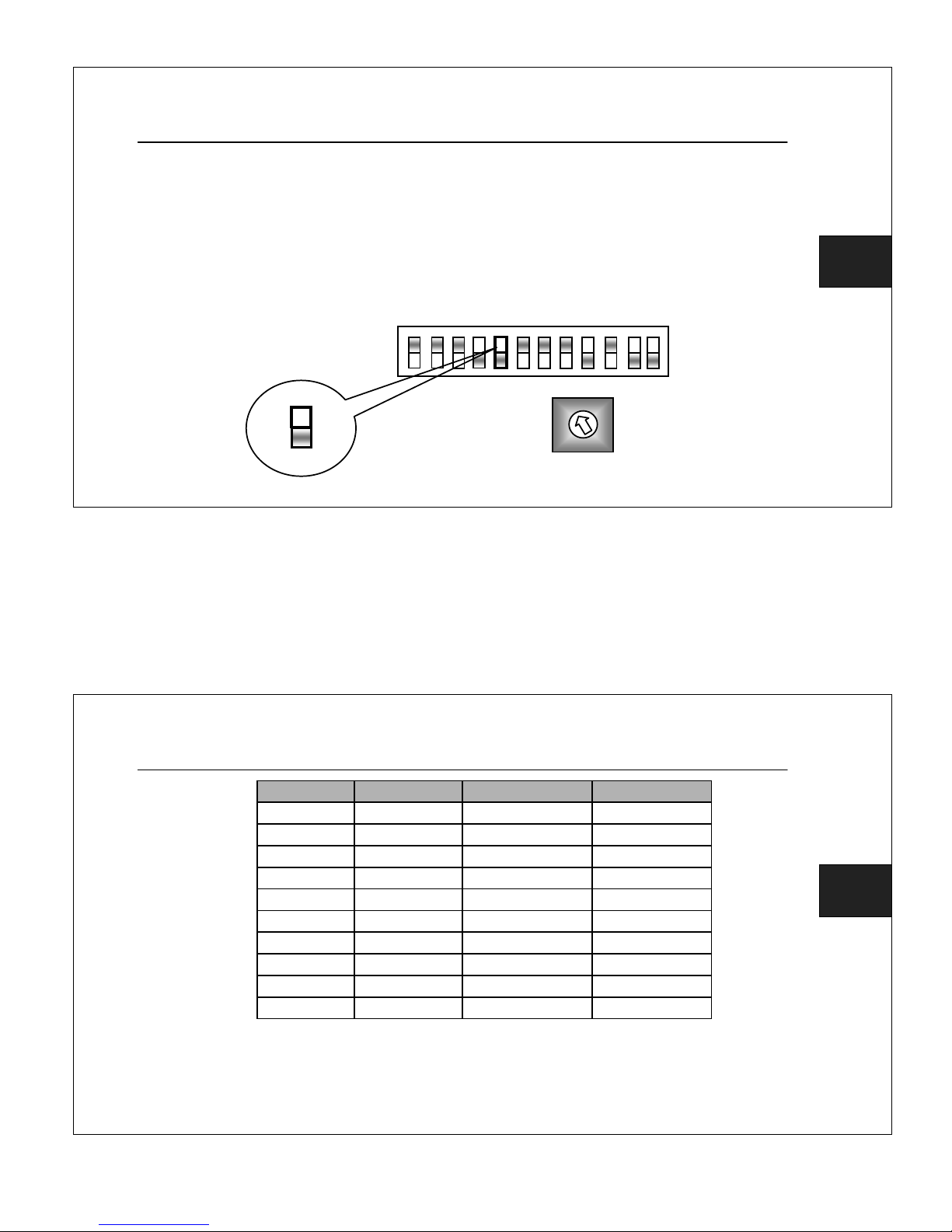

◆SENS( Sensitivity Up mode ) Mode

If the sensitivity ON mode is selected and in low light conditions, the camera

sensitivity is increased by getting picture from the memory.

Maximum sensitivity is selectable out of 9 steps . ( Refer to Fig5 )

Fig 5. Maximum sensitivity setting table

Mode RemarkSetting Fields/sec

X2 301

152

9Default

012

“7” FIELD switch

X10

X16

X32

X64

X128

7.5

3.8

1.9

0.9

0.5

☞In the sensitivity ON mode , sensitivity is automatically controlled within maximum

sensitivity setting value.

☞It is impossible to use BMB and SENS functions simultaneously !!!

To use BMB or SENS, select “BMB/SENS” switch one of two,

To use neither BMB nor SENS, select “BMB” and level “H1,H0” to OFF.

or select “SENS” and set the Rotary switch “7” to “0”.

BMB

SENS

OFF 60

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Honeywell Telecamera di sicurezza

Honeywell

Honeywell HD4VC4HRX Manuale utente

Honeywell

Honeywell HCU484 Manuale utente

Honeywell

Honeywell H3W2GR1 Manuale utente

Honeywell

Honeywell HEIPTZ-2736-WI Manuale utente

Honeywell

Honeywell HD51P Manuale utente

Honeywell

Honeywell HD6A Manuale utente

Honeywell

Honeywell HCCM474M Manuale utente

Honeywell

Honeywell HD45IP Manuale utente

Honeywell

Honeywell PrimaView HD16 Manuale utente

Honeywell

Honeywell HD61X Manuale utente

Honeywell

Honeywell 3 inch dome camera Manuale utente

Honeywell

Honeywell Ultrak CSC100 U Series Manuale utente

Honeywell

Honeywell HCC10 Manuale utente

Honeywell

Honeywell HCCWD484X Manuale utente

Honeywell

Honeywell HDT Manuale utente

Honeywell

Honeywell HD251 Manuale utente

Honeywell

Honeywell HDZP30XD4 Manuale utente

Honeywell

Honeywell 30 Series Manuale utente

Honeywell

Honeywell HD4D3X Manuale utente

Honeywell

Honeywell HD3CHS Manuale utente

Honeywell

Honeywell HD3HRSX Manuale utente

Honeywell

Honeywell HEW2PR1 Manuale utente

Honeywell

Honeywell HD51 Manuale utente

Honeywell

Honeywell HD3UX Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
