Honeywell HCC10 Manuale utente

User Guide

High Resolution

Indoor Box Camera

HCC10

HCC10X

HCC210

HCC210X

Document 800-15952 – Rev A – 09/2013

2www.honeywell.com/security

WARNING

To prevent the risk of fire or

electric shock hazard, do not expose this

camera to rain or moisture.

Information to the User: This equipment has been tested and

found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residen-

tial area is likely to cause harmful interference, in which case the

user will be required to correct the interference at his own

expense.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe A est conforme à la norme

NMB-003 du Canada.

The manufacturer declares that the equipment supplied with this

guide is compliant with the essential requirements of the EMC

Directive 2004/108/EC, the General Product Safety Directive

2001/95/EC and the RoHS Directive 2011/65/EU, conforming to

the requirements of standards EN 55022 for emissions,

EN 50130-4 for immunity, EN 60950-1 for electrical equipment

safety, and EN 50581 for assessment of electrical and electronic

products with respect to the restriction of hazardous substances

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DO NOT OPEN

RISK OF ELECTRIC SHOCK

800-15952 - A - 09/2013 3

Safety Instructions 1

Read Instructions

Read all of the safety and operating instructions before

using the product and retain them for future reference.

Cleaning

Turn off the power and clean with a dry, soft cloth.

Do not use liquid cleaners or aerosol cleaners.

Attachments

Do not use attachments not recommended by the

manufacturer as doing so may result in fire, electric

shock, or serious injury.

Water and Moisture

Do not use this product near water or moisture.

Mounting

Follow the manufacturer’s instructions when mounting

the product. Use only mounting accessories

recommended by the manufacturer.

Power Sources

This product should be operated only from the type of

power source indicated on the marking label. If you are

not sure of the type of power supplied to your facility,

consult your equipment dealer or local power

company.

Ventilation

Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions to ensure

reliable operation of the product and to protect it from

overheating.

Servicing

Do not attempt to service this product yourself. Refer all

servicing to qualified service personnel.

4www.honeywell.com/security

Precautions 1

Operating

Before using the camera, make sure the power supply

and video output are properly connected. When

operating the camera, if any abnormal condition or

malfunction is observed, stop using the camera

immediately and call your equipment dealer.

Handling

Do not disassemble the camera. Never touch the

internal parts of the camera.

Do not drop the camera or subject it to shocks and

vibrations.

When attaching or removing the lens, take care that no

moisture or dust enters the camera body.

Avoid viewing bright objects (such as light fixtures) for

extended periods, or bright vertical and horizontal lines

may appear on the screen.

Installation and storage

Do not point the camera at the sun as this could

damage the camera whether it is operating or not.

Do not install the camera where the temperature could

exceed the allowable range. Make sure the ambient

temperature is less than 104°F (40°C) in installations

intended for long term continuous operation.

Avoid installing or storing the camera in locations where

the camera may be exposed to:

• water/rain

• humidity

• dust

•radiation

• mechanical vibrations

• strong magnetic fields and electrical signals

Daily check

To maintain proper operation for surveillance use,

check the camera output every day for a clear and

focused picture.

800-15952 - A - 09/2013 5

Contents 1

Safety Instructions . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . 4

Features . . . . . . . . . . . . . . . . . . . . 6

Camera Parts Explained . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . 9

Installing the Lens . . . . . . . . . . . . . 9

Connecting the Wiring . . . . . . . . . . . 10

Mounting the Camera. . . . . . . . . . . . 11

Adjusting the Back Focus . . . . . . . . . 11

Menu Description . . . . . . . . . . . . . . . 12

Setup Menu . . . . . . . . . . . . . . . . . 13

About Iris, Shutter, and AGC Settings . . . 13

Lens . . . . . . . . . . . . . . . . . . . . . 14

Shutter/AGC . . . . . . . . . . . . . . . . 14

White Balance. . . . . . . . . . . . . . . . 15

Backlight . . . . . . . . . . . . . . . . . . 17

Picture Adjust . . . . . . . . . . . . . . . . 18

ATR . . . . . . . . . . . . . . . . . . . . . 18

Motion Detection . . . . . . . . . . . . . . 19

Privacy . . . . . . . . . . . . . . . . . . . 20

Day/Night . . . . . . . . . . . . . . . . . . 20

Noise Reduction . . . . . . . . . . . . . . 22

Camera ID. . . . . . . . . . . . . . . . . . 22

Sync . . . . . . . . . . . . . . . . . . . . . 23

Language . . . . . . . . . . . . . . . . . . 24

Camera Reset . . . . . . . . . . . . . . . . 24

Save All/Exit . . . . . . . . . . . . . . . . . 24

Specifications . . . . . . . . . . . . . . . . 25

6www.honeywell.com/security

Features 1

High sensitivity 1/3-inch CCD with on-chip micro

lenses and low-noise digital signal processing circuit

provides sensitivity down to 0.1 lux at F1.2, 50 IRE.

High quality image Horizontal resolution of 600 TVL

(HCC10/HCC10X) or 650 TVL (HCC210/HCC210X).

Digital signal processing with optimization of control

program and image correction algorithm.

BLC/HLC When strong light enters the scene back-

ground (such as from a spotlight or window), backlight

compensation automatically adjusts the video level to

preserve visibility. Highlight compensation masks

bright spots in a scene.

White balance Seven user-selectable white balance

control modes for varying conditions.

Iris function Drive output for video iris and DC iris

lens. Built-in electronic shutter allows eight shutter

speeds up to 1/100000 second. CCD iris function auto-

matically sets picture brightness by changing the

shutter speed of the camera according to the incident

light when using a manual iris lens.

Other functions

•Noisereduction

• Digital wide dynamic range

• 4 motion detection zones

• 8 privacy zones

• Picture adjustment for mirror, brightness, contrast,

sharpness, hue, and gain

• User-definable camera name

• 24 V AC or 12 V DC power source

• C or CS mount lenses

800-15952 - A - 09/2013 7

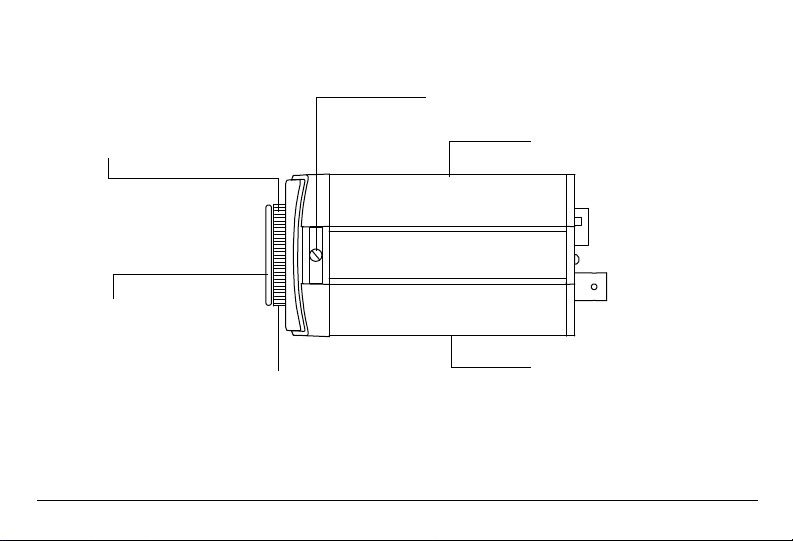

Camera Parts Explained 1

Lens mount

Use when installing the lens. C-mount lens

uses a C-mount adapter. CS-mount lens

does not need a C-mount adapter.

Back Focus screw

Use to adjust the back focus.

Lens mount cap

Use to cap the lens mount

when the lens is not attached.

C-mount adapter

Use to install a C-mount lens.

Remove to install a CS-mount lens.

Turn counterclockwise to remove.

1/4-20 UNC Mounting Hole

Use to install the camera to a tripod.

1/4-20 UNC Mounting Hole

Use to install the camera to a tripod.

8www.honeywell.com/security

VIDEO OUT

PWR

RS-485

ALARM

~ AC 24V ~

– DC 12V +

IN G D/N D-D+

OUT

OSD Menu Control

Video Output

(BNC)

Power LED

Alarm Input, Ground,

D/N, Alarm Output

Power Input

Connect to a 24 V AC or 12 V DC

power source. Do not connect the

power source until all other

connections have been

completed.

RS-485 Ports (D+, D–)

Ground

800-15952 - A - 09/2013 9

Camera Installation 1

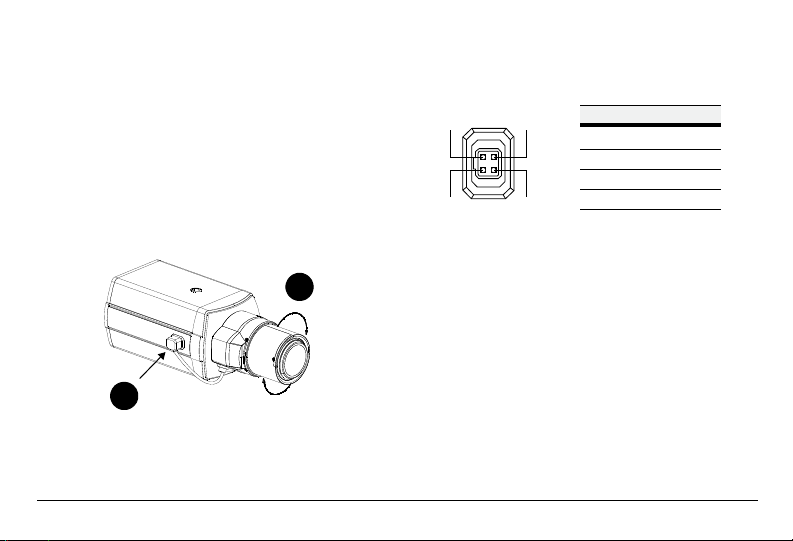

Installing the Lens

1. Remove the lens mount cap from the camera

(if present).

2. Screw the lens clockwise onto the lens mount of

the camera (A). If you are using a C-mount lens,

you will need to attach the C-mount adapter first.

3. Connect the auto-iris drive cable to the 4-pin

interface on the side of the camera (B).

Use a Suitable Lens

• The camera can use CS-mount lenses or C-mount

lenses. C-mount lens require a C-mount adapter.

• Use a suitable lens for the required field of view.

The field of view for different focal length can be

obtained using the following formula:

Pin Signal

1Dampingcoil(–)

2Dampingcoil(+)

3 Drive coil (+)

4 Drive coil (–)

Pin Assignment

10 www.honeywell.com/security

Note Do not attach the C-mount adapter when using

a CS-mount lens.

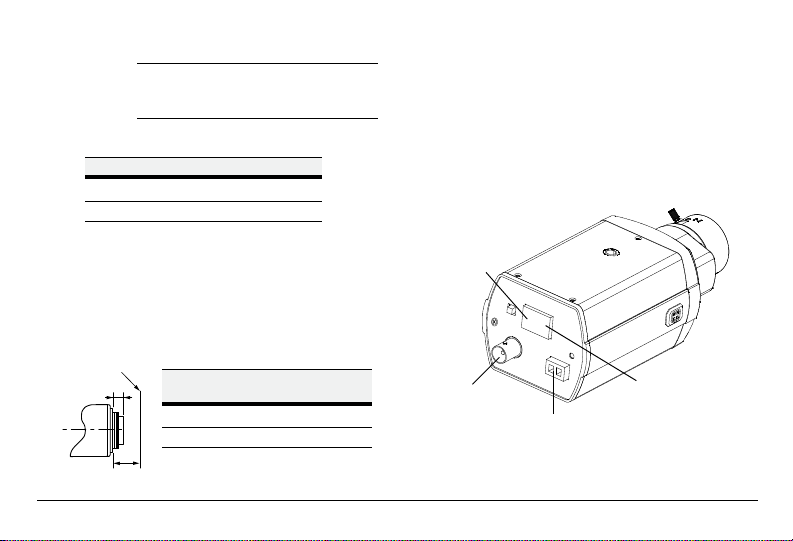

Note In the illustration below, “L” should be as shown

in the table. If “L” exceeds the value in the table,

it may damage the inside of the camera and

make correct mounting impossible.

Connecting the Wiring

Note Do not turn on the power of any connected

equipment until all connections are completed.

1. Connect the power input of the camera to an

external 12 V DC or 24 V AC power supply.

2. Connect the video output of the camera to the

video input of your monitor.

Height of the

area of view

(m) =

A × Distance between camera and object (m)

Focal length of lens (mm)

Width of the

area of view

(m) =

B × Distance between camera and object (m)

Focal length of lens (mm)

Mounted Lens 1/2” Lens 1/3” Lens

A4.83.6

B6.44.8

Lens

Back Focus

(mm)

Distance

“L” (mm)

C-mount * 17.526 < 9

CS-mount ** 12.5 < 4

Lens

Recommended

Focal Point

Back Focus

* With the C-mount adapter attached.

** With the C-mount adapter removed.

Power input

(12 V DC or 24 VAC)

Video output

Alarm I/O

D/N input

RS-485

Altri manuali per HCC10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Honeywell Telecamera di sicurezza

Honeywell

Honeywell HD45IP Manuale utente

Honeywell

Honeywell HZC-855NX Series Manuale utente

Honeywell

Honeywell 2450Cm Series Manuale utente

Honeywell

Honeywell H3D2S2 Manuale utente

Honeywell

Honeywell H4L6GR2 Manuale utente

Honeywell

Honeywell ACUIX Equip series Manuale utente

Honeywell

Honeywell VSD-361P Manuale utente

Honeywell

Honeywell HD70P Manuale utente

Honeywell

Honeywell HZC-755N/P Series Manuale utente

Honeywell

Honeywell HCC474M Manuale utente

Honeywell

Honeywell ACUIX ES Manuale utente

Honeywell

Honeywell HB74H(X) Manuale utente

Honeywell

Honeywell ScanDome III HSDC-252 Series Manuale del proprietario

Honeywell

Honeywell HD3UX Manuale utente

Honeywell

Honeywell 2450Cm Series Manuale utente

Honeywell

Honeywell HCD484E Manuale utente

Honeywell

Honeywell HCC484L Manuale utente

Honeywell

Honeywell HBD2PR1 Manuale utente

Honeywell

Honeywell HCCM474M Manuale utente

Honeywell

Honeywell HD61 Series Manuale utente

Honeywell

Honeywell HEW2PR1 Manuale utente

Honeywell

Honeywell HSGN502 Manuale utente

Honeywell

Honeywell VISTA VBC-800PI Manuale utente

Honeywell

Honeywell HC35WZ2R25 HC35WZ5R30 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
