Honeywell HCS544 Manuale utente

Document 800-01123 – Rev B – 02/08

User Guide

HCS544

Day/Night

Color Camera

HCS544 HCS544X

NTSC PAL

Revisions

Issue Date Revisions

A 01/08 New document

B 02/08 Amended specifications, page 21: changed

power consumption to 3.5 W; added lens

connector; removed ALC.

Document 800-01123 Rev B 3

02/08

Warnings

Installation and servicing should be performed only by

qualified and experienced technicians to conform to all local

codes and to maintain your warranty.

WARNING! 12 VDC/24 VAC models require the use of

CSA Certified/UL Listed Class 2 power

adapters to ensure compliance with

electrical safety standards.

Caution To reduce the risk of fire or shock hazard, do not

expose this camera to rain or moisture.

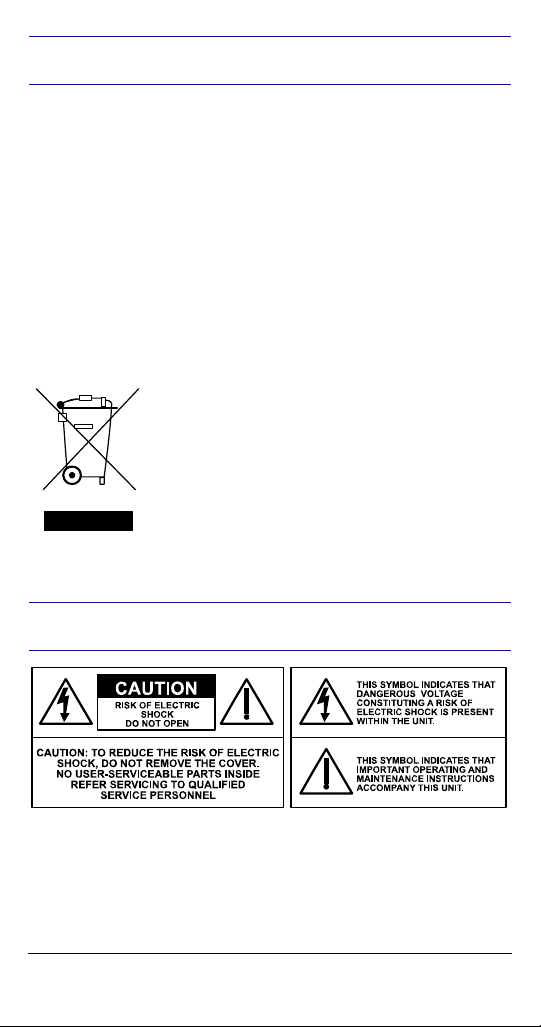

Explanation of Graphical Symbols

WEEE (Waste Electrical and Electronic

Equipment). Correct disposal of this product

(applicable in the European Union and other

European countries with separate collection

systems). This product should be disposed of,

at the end of its useful life, as per applicable

local laws, regulations, and procedures.

FCC Compliance Statement

Information to the user: This equipment has been tested

and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may

cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Caution Changes or modifications not expressly

approved by the party responsible for

compliance could void the user’s authority to

operate the equipment.

This Class A digital apparatus complies with Canadian ICES-

003.

Cet appareil numérique de la Classe A est conforme à la

norme NMB-003 du Canada.

Manufacturer’s Declaration of

Conformance

The manufacturer declares that the equipment supplied with

this guide is compliant with the essential protection

requirements of the EMC direction 89/336/EEC and the Low

Voltage Directive LVD 73/23 EEC, conforming to the

requirements of standards EN 55013 for emissions, EN

50130-4 for immunity, and EN 60065 for Electrical

Equipment safety.

Document 800-01123 Rev B 5

02/08

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . 6

Unpack Everything . . . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Lens . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting the Flange Back Focus . . . . . . . . . . . . 8

Connecting Monitor and Power . . . . . . . . . . . . . . 8

Mounting the Camera . . . . . . . . . . . . . . . . . . . . . 9

Making Final Adjustments . . . . . . . . . . . . . . . . . . 9

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

OSD Menu Controls . . . . . . . . . . . . . . . . . . . 10

SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

SETUP Menu Functions . . . . . . . . . . . . . . . . 12

SPECIAL Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SPECIAL Menu Functions . . . . . . . . . . . . . . . 15

Adding a Camera Title Display . . . . . . . . . . . 16

Sync Control/Line-lock Setup . . . . . . . . . . . . 17

Motion Detection Setup . . . . . . . . . . . . . . . . . 18

Privacy Mode Setup . . . . . . . . . . . . . . . . . . . 19

Warranty and Service . . . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Introduction

The Honeywell HCS544 Day/Night Color Camera is

designed for general surveillance applications and is ideally

suited for low-light indoor environments. An intuitive menu

and Graphical User Interface (GUI) helps you quickly set up

the camera to ensure the best picture quality for your unique

environment. It requires little or no adjustment after initial

installation.

Features

• High resolution 540 TVL 1.3” CCD provides a high

quality picture in low-light conditions

• Digital noise reduction (DNR) minimizes video noise in

low light

• Automatic day/night switching with adjustable threshold

level control

• 12 VDC or 24 VAC operation

Before You Begin

Please read this guide carefully before you install the

HCS544 Day/Night camera. Keep this guide for future

reference.

Unpack Everything

Check that the items received match those listed on the

order form and packing slip. The HCS544 packing box

should include, in addition to this user guide, one HCS544

camera.

If any parts are missing or damaged, contact the dealer you

purchased the camera from or call Honeywell Customer

Service (see the back of this guide for contact information).

Note You will also require a Phillips screwdriver and a

flathead screwdriver to complete the installation.

Document 800-01123 Rev B 7

02/08

Installation

Installing the Lens

The HCS544 Series camera is factory configured for a CS-

mount lens.

Follow Figure 1 to attach a customer supplied lens, screw

the lens !into the front of the camera body ".

Figure 1 CS Mount

Figure 2 Pin Definitions

Setscrew

Pin DC Lens

1CTRL-

2CTRL+

3DRV+

4DRV-

Adjusting the Flange Back Focus

The back focus adjustment is accessible at the front end of

the camera housing to adjust the back focal length or

picture focus.

1. Loosen the setscrews with a Phillips screwdriver.

2. Adjust the focus ring to focus the picture.

3. Retighten the setscrew.

Connecting Monitor and Power

Note Check the power source from the external power

supply before applying power to the camera.

1. Connect the VIDEO connector on the rear of the camera

to the video-in connector on your monitor.

2. Connect the camera to a 12 VDC or 24 VAC power

supply (appropriate to your installation). Use a

screwdriver to first loosen the ~AC24V/DC12V terminal

screws on the terminal block.

Figure 3 Video Connections

Note To ease installation, the terminal block can be

removed. The power connections of the removable

terminal block are not polarity-sensitive. Connect

either power lead to either connector terminal.

ENTER

Power LED

Document 800-01123 Rev B 9

02/08

3. Secure the power leads by retightening the terminal

screws until snug.

4. Plug the power supply into an appropriate power

source. The power LED illuminates to show that the

camera is receiving power. If it does not illuminate,

check the removable terminal block connections and

the power source.

Mounting the Camera

Mounting points are provided on the top and bottom of the

camera and are used to mount the camera on a bracket or

tripod. They are designed to accept standard sized

mounting bolts. The mounting bracket must be capable of

supporting the weight of the camera and its lens.

Caution Some installation codes dictate that the

mounting bracket must be capable of

supporting up to four times the combined weight

of the camera and lens.

Making Final Adjustments

Adjust the focus in your field of view; that is, until you see a

clear image. If necessary, adjust the brightness using the

OSD menu controls (see ”LENS DC/Brightness’ - DC/

BRIGHTNESS or ”AGC (Automatic Gain Control) DC/Brightness’ on

page 12). Confirm the exposure on the monitor screen.

Programming

Use the OSD (On-Screen Display) to program the camera.

OSD Menu Controls

Figure 4 OSD Menu Control

When no buttons are pressed, the menu display turns off

automatically after 70 seconds.

ENTER

ENTER (SET)

Press to access the SETUP

MENU.

Press to enter a screen or

select a menu option.

!, "

Move horizontally to and

between menus and options.

#, $

Move vertically to and between

menus and options.

“%” indicates submenus.

Select the menu, then press

ENTER.

Navigating through the menus

Select RETURN, then press

ENTER, to return to the

previous menu.

Select EXIT, then press ENTER,

to save your changes. Settings

remain in effect when power is

turned off, then on again.
