IP Video Selection Guide

YOUR PARTNER OF CHOICE

IN IP SECURITY

IP Cameras

• Superb image quality, low bandwidth,

reduced storage requirements

• Indoor, outdoor, mini dome, box, PTZs

• 540 TVL, high definition, megapixel

Recording Hardware

• Fusion IV Hybrid DVR

• Rapid Eye Hybrid DVR

• Fusion IV NVR

• MAXPRO®NVR XE

• MAXPRO®NVR SE

• Enterprise System

Software

• MAXPRO®VMS

• Enterprise NVR

• Intelligent Video Analytics

• IDM (Integrated Data Manager)

Matrix Switching Systems

• MAXPRO-Net

• VideoBloX

• VideoBloX Lite

Video Encoders / Decoders

• Single channel encoder

• PCIe decoder

A Complete IP Solution

From our flagship video management platform (MAXPRO®VMS) and robust portfolio of

recording solutions to our IP camera family, which includes high definition cameras, the

Honeywell portfolio of IP security products allows users to integrate a broad range of digital

technology into analogue systems and maximise existing investments. Our Open Technology

Alliance forges strategic relationships with third-party vendors to give you ultimate flexibility

when designing IP security systems, so you can capitalise on our open IP architecture and use

the third-party equipment you already have in place to further control costs and transition to IP

with confidence and ease.

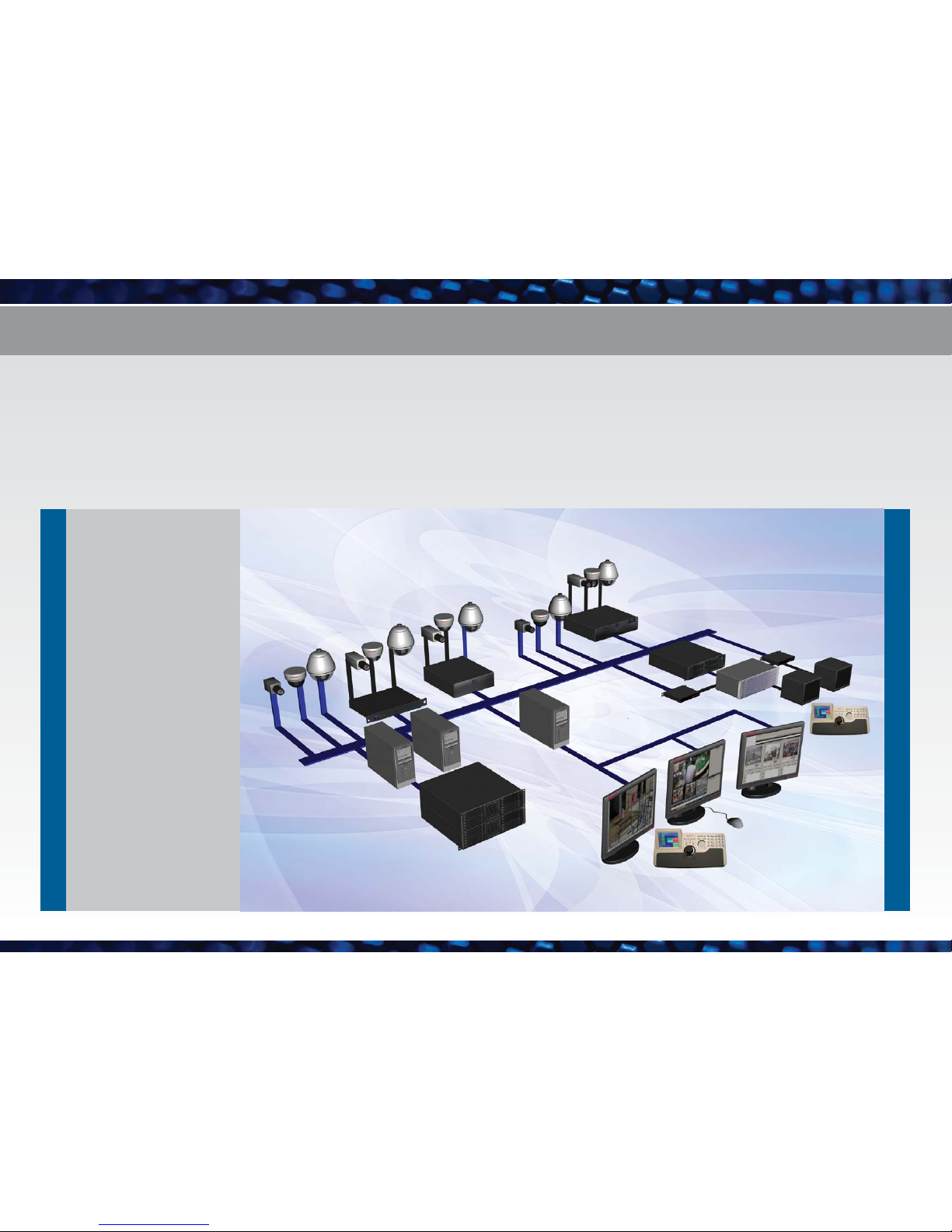

Honeywell IP systems at a glance

Analogue

Cameras

DVR

Encoder

HJK7000

IP Cameras

Analogue &

IP Cameras

Analogue Cameras

IP Cameras

IP Camera Server

Storage

HJK7000

Viewer

DVR

MAXPRO®

VMS Server

Video

Analytics

Server

Encoder Matrix

Systems

3.1 Megapixel Colour 5 Megapixel True Day/Night 720P H.264 True Day/Night

Honeywell Part Number HCX3W HCX5DW2 HCD5MIHX

Resolution 2048 x 1536, 1600 x 1200, 1280 x 1024,

1280 x 720, 1024 x 768

2560 x 1920, 2048 x 1536, 1600 x 1200,

1280 x 1024, 1280 x 720, 1024 x 768 1280 x 720, 800 x 450, 640 x 360, 320 x 180

Video Compression MJPEG H.264 and MJPEG

Frame Rate (PAL)*

Up to 12 fps @ 3.1 MP

20 fps @ 2.0 MP

30 fps @ 1.3 MP

Up to 8 fps @ 5.0 MP

12 fps @ 3.1 MP

20 fps @ 2.0 MP

30 fps @ 1.3 MP

Up to 25 fps

Scanning System Progressive scan

Image Sensor 1/2" CMOS 1/2" CMOS 1/4" CMOS

S/N Ratio >50 dB (AGC off)

Lens Vari-focal Manual Iris (F1.8, 4.0-10 mm) IR Corrected Vari-focal Manual Iris

(F1.8, 4.5-13 mm)

Supports CS mount lenses (Megapixel lens

recommended - not included)

Min. Illumination 0.3 lux colour 0.3 lux colour / 0.05 lux BW 0.25 lux colour/0.15 lux BW @ 30 IRE, F1.3

Digital Slow Shutter 1X – 4X

Privacy Function Multiple exclude zones

Users 3 simultaneous unicast 1 Administrator, 3 Guests

Alarm I/O Yes Yes

Automatic Electronic Shutter (PAL) 1/5-1/10,000 second 1/50-1/24,500 second

Input Voltage 12 VDC/24 VAC, PoE IEEE 802.3 af 24 VAC, PoE IEEE 802.3af

Min. Web Browser Requirements Pentium IV CPU 3.0 GHz or equivalent AMD, 512 MB RAM, AGP graphics card (32 MB RAM) Windows XP, 2000, Internet Explorer 6.x or later

Supported Protocols IPv4, HTTP, TCP UDP, FTP, SMTP, ICMP DHCP, ARP, DNS HTTP, TCP, RTSP, RTP, UDP, ARP, DNS,RTCP, FTP,

ICMP, DHCP, Bonjour, IGMP, Telnet

Power Consumption 2.5 W (max) 2.5 W (max) 5.0 W (max) 24 VAC

3.5 W (max) PoE

Other Video motion detection Video motion detection

PSIA support

Camera tamper detection

Video motion detection

Digital noise reduction

Mounts HBC5WT Wall/ceiling mount bracket HBC5WT Wall/ceiling mount bracket HBC5WT Wall/ceiling mount bracket

IP Box Cameras

*with image cropping

IP Mini Dome Cameras

720P True Day/Night Indoor 720P True Day/Night H.264 Indoor 720P True Day/Night Rugged

Indoor/Outdoor

720P True Day/Night H.264

Rugged Indoor/Outdoor

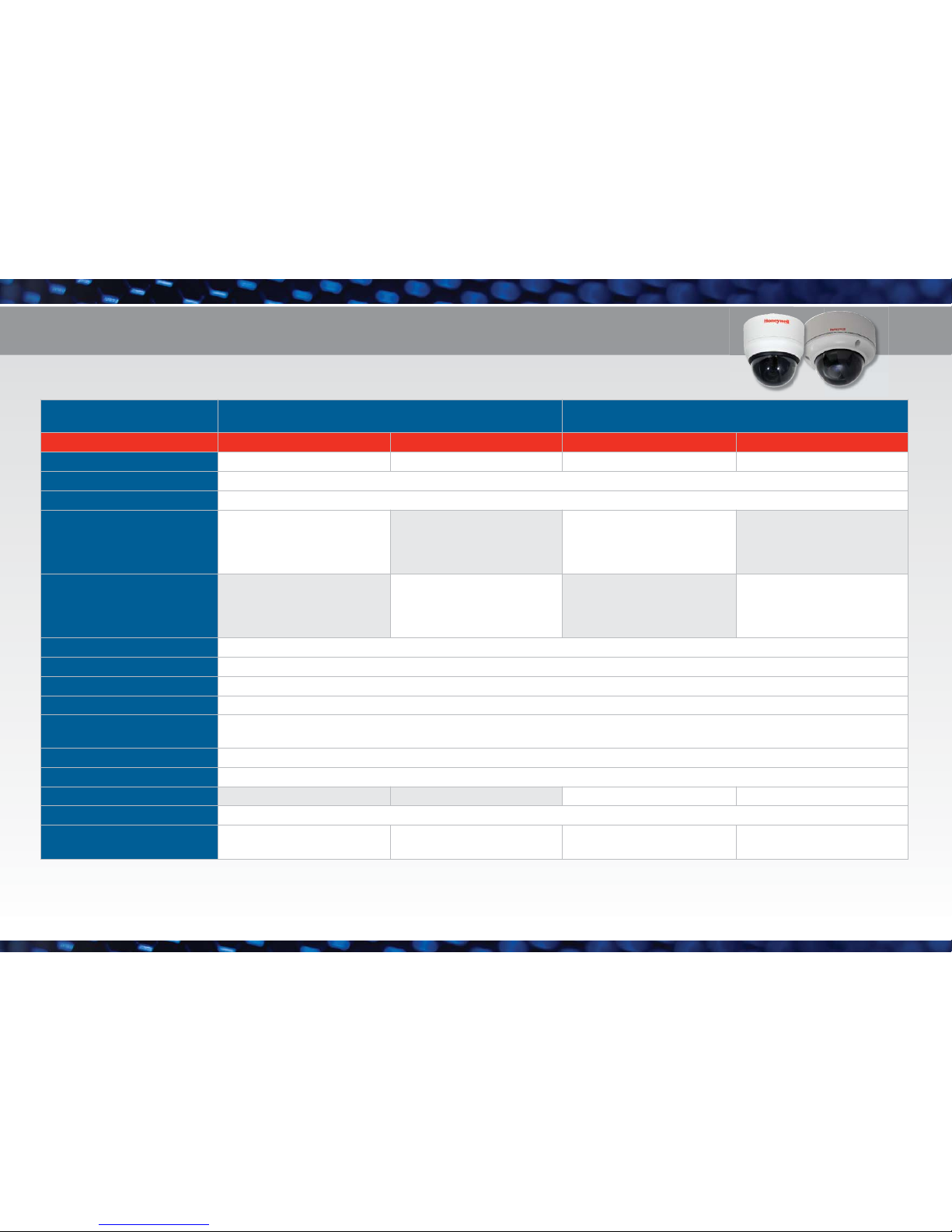

Honeywell Part Number HD3MDIPX HD3MDIHX HD4MDIPX HD4MDIHX

Resolutions (PAL) 1280 x 720, 800 x 450, 640 x 360, 320 x 180

Video Compression MPEG-4 and MJPEG H.264 and MJPEG MPEG-4 and MJPEG H.264 and MJPEG

Frame Rate (PAL) Up to 25 fps

Scanning System Progressive scan

Image Sensor 1/4" CMOS

S/N Ratio >50 dB (AGC off)

Lens Type True Day/Night (TDN), 3.3 mm-12.0 mm Vari-focal Auto Iris, F1.6

Min. Illumination 0.11 lux colour/0.09 lux for BW @ 30 IRE, F1.6, removable IR cut filter

Audio/Two-Way Line in/out

Users 1 Administrator or 1 Guest 1 Administrator, 3 Guests 1 Administrator or 1 Guest 1 Administrator, 3 Guests

Alarm I/O Yes Yes

Automatic Electronic Shutter (PAL) 1/50-1/24,500 second 1/50-1/24,500 second

Input Voltage 24 VAC, PoE IEEE 802.3af, Class 1

Min. Web Browser Requirements Pentium IV CPU 3.0 GHz or equivalent AMD, 512 MB RAM, AGP graphics card (32 MB RAM) Windows®XP 2000, Internet Explorer 6.0 or later

Supported Protocols HTTP, TCP, RTSP, RTP, UDP, ARP, DNS, RTCP, FTP, ICMP, DHCP, Bonjour, IGMP, Telnet

Power Consumption 3.5 W (max)

IP Rating IP 66 IP 66

Construction Polycarbonate Polycarbonate Polycarbonate / Aluminium Polycarbonate / Aluminium

Other

Camera tamper detection

Video motion detection

Digital noise reduction

PSIA support

Camera tamper detection

Video motion detection

Digital noise reduction

Vandal resistant

Camera tamper detection

Video motion detection

Digital noise reduction

PSIA support

Vandal resistant

Camera tamper detection

Video motion detection

Digital noise reduction

Mounts HD3-MK1 Wall/Pendant mount kit HD3-MK1 Wall/Pendant mount kit HD4DIP-PK Pendant mount bracket

HD4DIP-WK Wall mount bracket

HD4DIP-PK Pendant mount bracket

HD4DIP-WK Wall mount bracket

*Actual bitrate is scene and motion dependent.

H.264 Indoor

Fixed IP Mini Domes

H.264 Indoor/Outdoor (Vandal Resistant)

Fixed IP Mini Domes

Honeywell Part Number HD44IPX HD45IPX HD54IPX HD55IPX

Description VGA, Day/Night 720p, Day/Night VGA, Day/Night 720p, Day/Night

Video Compression Dual stream H.264 and MJPEG

Image Sensor 1/4" CMOS

Resolution Frame Rate

640 x 480 25

640 x 360 25

320 x 240 25

320 x 180 25

Bit Rate (Typical)* Storage/Day (GB)

0.84 8.86

0.70 7.39

0.32 3.33

0.25 2.58

Bit Rate (Typical)* Storage/Day (GB) Bit Rate (Typical)* Storage/Day (GB)

0.84 8.86

0.70 7.39

0.32 3.33

0.25 2.58

Bit Rate (Typical)* Storage/Day (GB)

Resolution Frame Rate

1280 x 720 25

800 x 450 25

640 x 360 25

320 x 180 25

Bit Rate (Typical)* Storage/Day (GB) Bit Rate (Typical)* Storage/Day (GB)

1.8 18.98

1.2 12.65

0.6 6.33

0.21 0.89

Bit Rate (Typical)* Storage/Day (GB) Bit Rate (Typical)* Storage/Day (GB)

1.8 18.98

1.2 12.65

0.6 6.33

0.21 0.89

S/N Ratio 50 dB or more (AGC off)

Lens 3.3-12 mm Vari-focal Auto Iris, F1.6

Minimum Illumination 0.25 lux @ 50 IRE, F1.6 0.11 lux @ 30 IRE, F1.6

Input Voltage 24 VAC, PoE IEEE 802.3af, Class 1

Min. Web Browser Requirements Pentium IV CPU 3.1 GHz or equivalent AMD, 1 GB RAM, AGP graphics card (32 MB RAM), Windows®7 (32-bit and 64-bit), Windows®XP and Windows®

Server®2008 R2, Internet Explorer 6.0 or later

Supported Protocols HTTP, TCP, RTSP, RTP, UDP, ARP, DNS, RTCP, FTP, ICMP, DHCP, Bonjour, IGMP, Telnet

Power Consumption 3.5 W

IP Rating IP66 IP66

Other Camera tamper detection. Video motion detection. PSIA Support

Mounts HD3-MK1

(Wall and Pendant)

HD3-MK1

(Wall and Pendant)

HD4DIP-WK HD4DIP-PK

(Wall) (Pendant)

HD4DIP-WK HD4DIP-PK

(Wall) (Pendant)

IP Mini Dome Cameras - Performance Series

IP PTZ Domes - ACUIX™

*(Part numbers will vary according to housing type, acylic and trim colour. See following pages for more information)

Honeywell Part Number Prefix* HDXA…… HDXJ…… HDXF…… HDXG……

Housing Options In Ceiling / Indoor Pendant / Outdoor Pendant / Rugged

Acrylic Options Smoked / Clear

Day / Night True Day / Night True Day / Night True Day / Night

Wide Dynamic Range No 128X 128X 128X

Colour / B&W Colour

Electronic Image Stabilisation (EIS) No No No Yes, up to 12 dB suppression

Lens Type 18X optical zoom, f=4.1mm (wide) to 73.8mm (tele), F1.4 to F3.0 26X optical zoom, f=3.5 mm (wide) to 91.0

mm (tele), F1.6 to F3.8

35X optical zoom, f=3.4 (wide) to 119mm

(tele), F1.4 to F4.2

Horizontal Resolution >470 TVL High Res >530 TVL Super High Res >530 TVL Super High Res >540 TVL Super High Res

Image Sensor 1/4" Ex-view HAD CCD

Digital Zoom 12X (216X total zoom) 12X (216X total zoom) 12X (312X total zoom) 12X (420X total zoom)

Angle of View (H) 48° (wide end) to 2.8° (tele end) 48° (wide end) to 2.8° (tele end) 54.2° (wide end) to 2.2° (tele end) 55.8° (wide end) to 1.7° (tele end)

S/N Ratio >50 dB

Min. Illumination 0.7 lux colour 0.7 lux colour, 0.01 lux B/W 1.0 lux colour, 0.09 lux B/W 0.5 lux colour, 0.05 lux B/W

Privacy Function 32 Dynamic Privacy Zones

Presets per Dome Up to 150 user-defined presets

Preset Tours 16 tours with up to 64 presets per tour

Video Compression MPEG-4 Part 2 (ISO/IEC 14496-2) SP level 0-3

Resolutions (PAL) 4CIF: (704 x 576) 2 CIF: (704 x 288) CIF: (352 x 288)

Frame Rate (PAL) Up to 25 fps

Users 5 simultaneous unicast

Automatic Electronic Shutter 1 - 1/10,000 second 1/2 - 1/30,000 second

Input Voltage 24 VAC @ 50/60 Hz, Class 2 LPS 24 VAC @ 50/60 Hz, Class 2 LPS 24 VAC @ 50/60 Hz, Class 2 LPS 24 VAC @ 50/60 Hz, Class 2 LPS

Moveable IR filter No Yes Yes Yes

Min. Web Browser Requirements Pentium IV CPU 2.4 GHz or equivalent AMD, 512 MB RAM, AGP graphics card 32 MB RAM Windows XP®2000, Internet Explorer 6.0 or later

Supported Protocols IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, FTP, ICMP DHCP, Bonjour, ARP, DNS

IP PTZ Domes - ACUIX™

In-Ceiling

Highlighted part numbers indicate core stocked items

For additional ordering information, visit www.honeywell.com/security/uk or call 08448 000 235.

Digital IP

35X Wide Dynamic/

True Day/Night

with Image

Stabilisation

26X Wide Dynamic/

True Day/Night

18X Wide Dynamic/

True Day/Night

18X Colour In-Ceiling

In-Ceiling

Clear

Smoke

Clear

Smoke

Clear

Smoke

Clear

Smoke

Black

White

Black

White

Black

White

Black

White

Black

White

Black

White

Black

White

Black

White

HDXGPDDCB

HDXGPDDCW

HDXGPDDSB

HDXGPDDSW

HDXFPDDCB

HDXFPDDCW

HDXFPDDSB

HDXFPDDSW

HDXJPDDCB

HDXJPDDCW

HDXJPDDSB

HDXJPDDSW

HDXAPDDCB

HDXAPDDCW

HDXAPDDSB

HDXAPDDSW

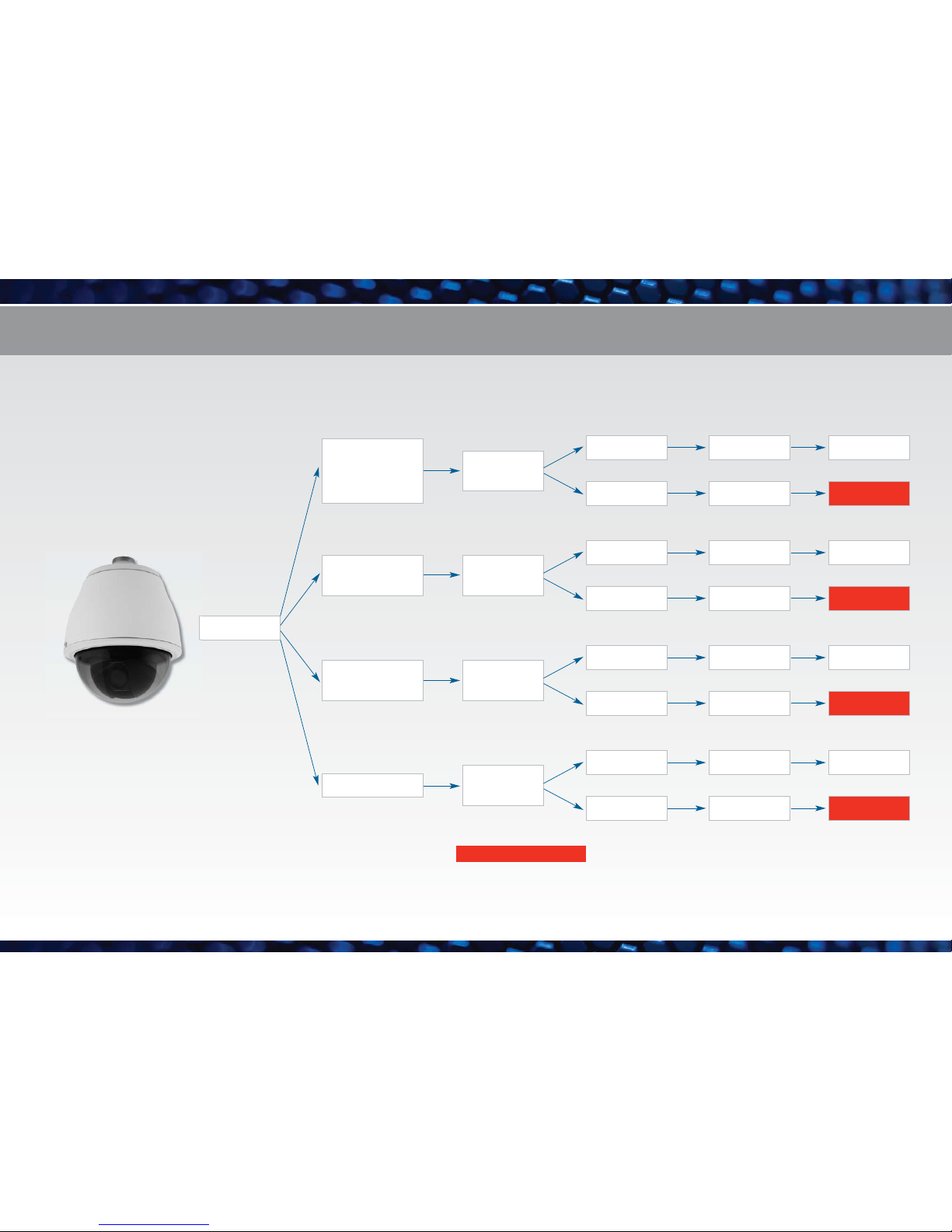

VIDEO TRANSMISSION RESOLUTION HOUSING LOWER DOME TRIM RING PART NUMBER

In-Ceiling

Digital IP

35X Wide Dynamic/

True Day/Night

with Image

Stabilisation

26X Wide Dynamic/

True Day/Night

18X Wide Dynamic/

True Day/Night

18X Colour Indoor Pendant

(Warm Grey)

Indoor Pendant

(Warm Grey)

Indoor Pendant

(Warm Grey)

Indoor Pendant

(Warm Grey)

Clear

Smoke

Clear

Smoke

Clear

Smoke

Clear

Smoke

White

HDXGPPDCW

HDXGPPDSW

HDXFPPDCW

HDXFPPDSW

HDXJPPDCW

HDXJPPDSW

HDXAPPDCW

HDXAPPDSW

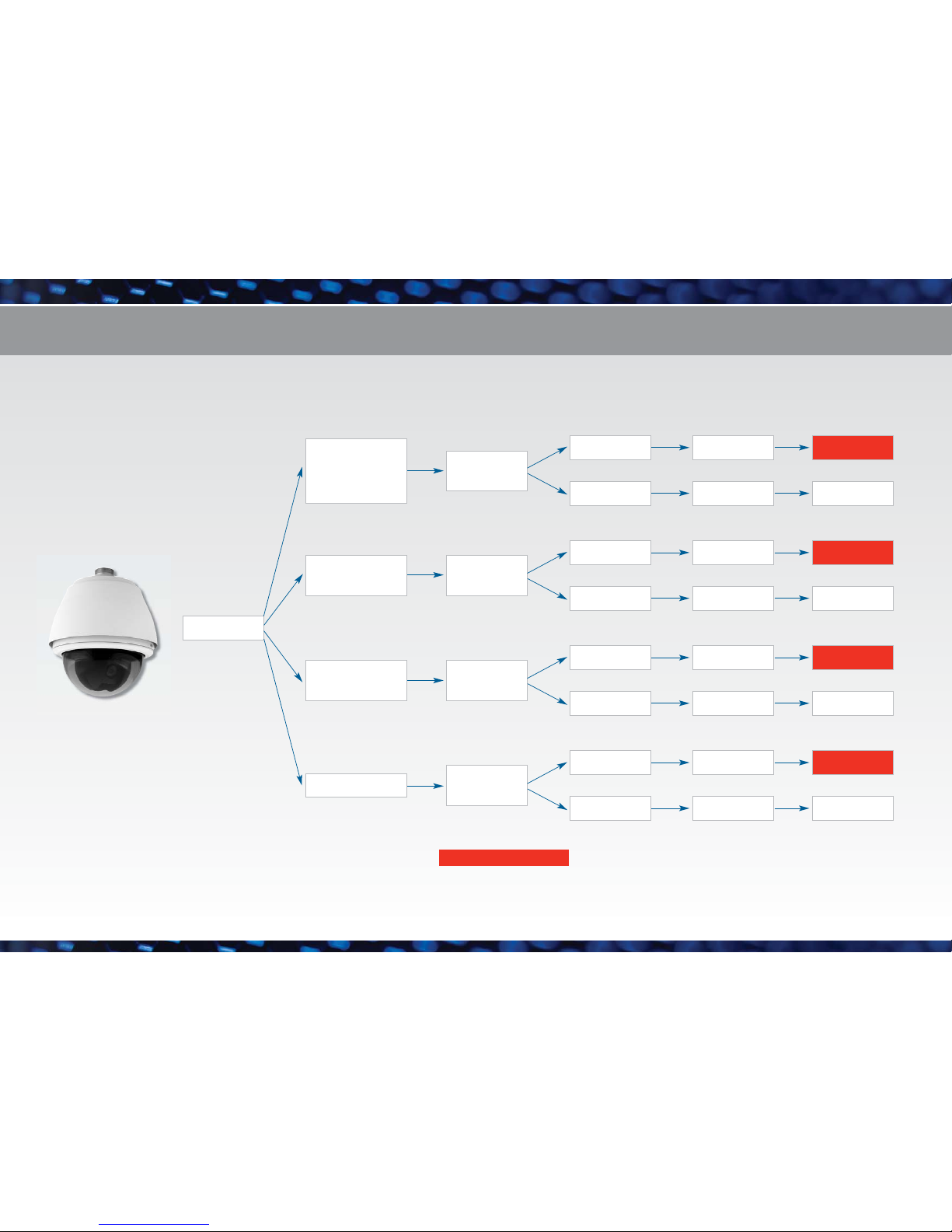

VIDEO TRANSMISSION RESOLUTION HOUSING LOWER DOME TRIM RING PART NUMBER

Indoor Pendant

Highlighted part numbers indicate core stocked items

For additional ordering information, visit www.honeywell.com/security/uk or call 08448 000 235.

IP PTZ Domes - ACUIX™

Indoor Pendant

IP PTZ Domes - ACUIX™

Outdoor Pendant

Digital IP

35X Wide Dynamic/

True Day/Night

with Image

Stabilisation

26X Wide Dynamic/

True Day/Night

18X Wide Dynamic/

True Day/Night

18X Colour Outdoor

Pendant

Outdoor

Pendant

Outdoor

Pendant

Outdoor

Pendant

Clear

Smoke

Clear

Smoke

Clear

Smoke

Clear

Smoke

White

HDXGPWDCW

HDXGPWDSW

HDXFPWDCW

HDXFPWDSW

HDXJPWDCW

HDXJPWDSW

HDXAPWDCW

HDXAPWDSW

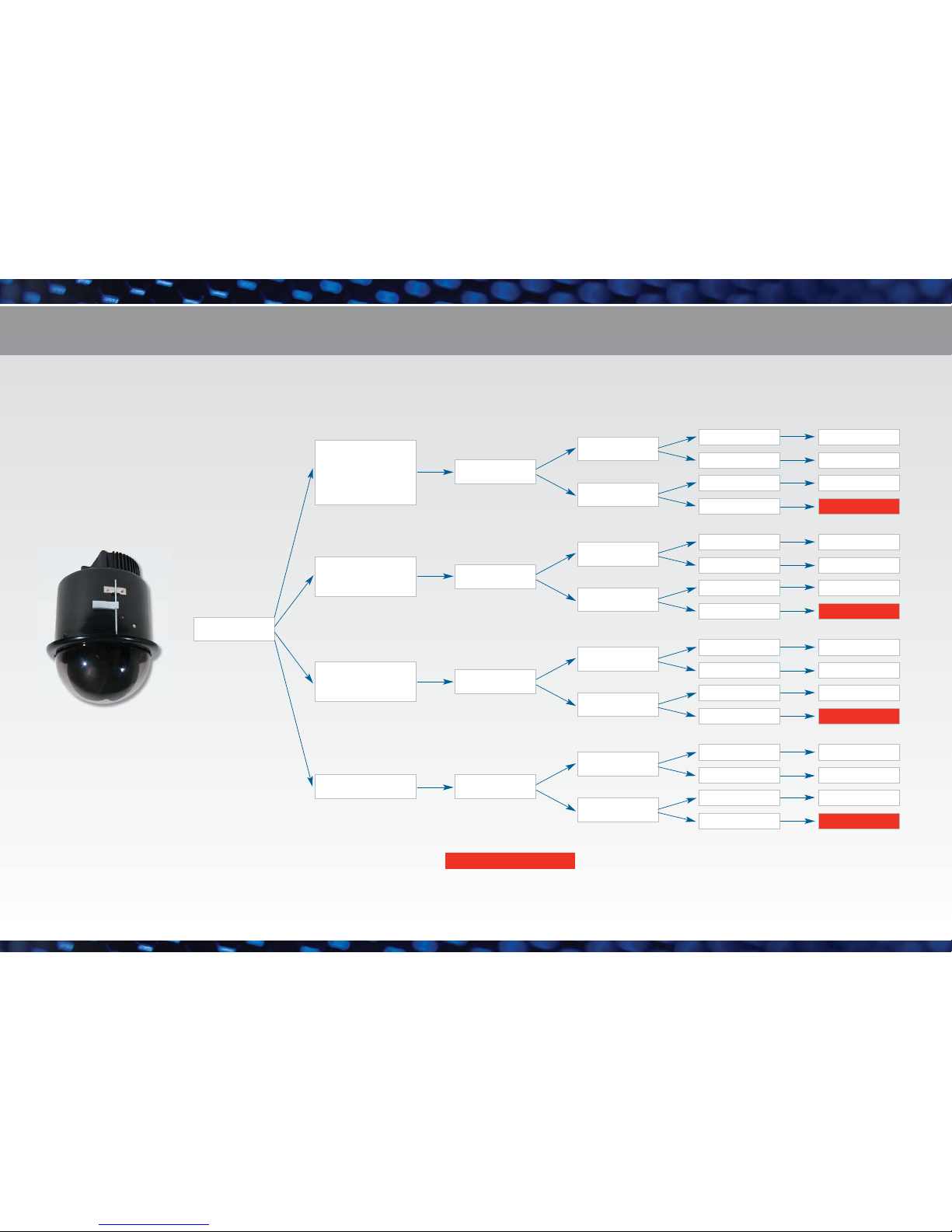

VIDEO TRANSMISSION RESOLUTION HOUSING LOWER DOME TRIM RING PART NUMBER

Outdoor Pendant

Highlighted part numbers indicate core stocked items

For additional ordering information, visit www.honeywell.com/security/uk or call 08448 000 235.

IP PTZ Domes - ACUIX™

Vandal Resistant (Rugged)

Digital IP

35X Wide Dynamic/

True Day/Night

with Image

Stabilisation

26X Wide Dynamic/

True Day/Night

18X Wide Dynamic/

True Day/Night

18X Colour Rugged

Rugged

Clear

Smoke

Clear

Smoke

Clear

Smoke

Clear

Smoke

White

HDXGPRDCW

HDXGPRDSW

HDXFPRDCW

HDXFPRDSW

HDXJPRDCW

HDXJPRDSW

HDXAPRDCW

HDXAPRDSW

VIDEO TRANSMISSION RESOLUTION HOUSING LOWER DOME TRIM RING PART NUMBER

Rugged

Highlighted part numbers indicate core stocked items

For additional ordering information, visit www.honeywell.com/security/uk or call 08448 000 235.

Altri manuali per HCX3W

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Honeywell Telecamera di sicurezza

Honeywell

Honeywell HD4 EQUIP Series Manuale utente

Honeywell

Honeywell HD45IP Manuale utente

Honeywell

Honeywell HC35WZ2R25 HC35WZ5R30 Manuale utente

Honeywell

Honeywell HCC334L Manuale utente

Honeywell

Honeywell HD2FC1 Manuale utente

Honeywell

Honeywell HD28C4HR6 Manuale utente

Honeywell

Honeywell 2450Cm Series Manuale utente

Honeywell

Honeywell HCD92534 Manuale utente

Honeywell

Honeywell HD3UH Manuale utente

Honeywell

Honeywell Performance HED1PR3 Manuale utente

Honeywell

Honeywell GC-715N24 Manuale utente

Honeywell

Honeywell HED2PER3 Manuale utente

Honeywell

Honeywell 2450Cm Series Manuale utente

Honeywell

Honeywell HDZ302D Manuale utente

Honeywell

Honeywell HISD-2201WE-IR Manuale utente

Honeywell

Honeywell HCC484TP Manuale utente

Honeywell

Honeywell HD51P Manuale utente

Honeywell

Honeywell HB273 Manuale utente

Honeywell

Honeywell HD3UX Manuale utente

Honeywell

Honeywell HD4D Series Manuale utente

Honeywell

Honeywell EQUIP HD3MDIHX Manuale utente

Honeywell

Honeywell HC60WB4R2 Manuale utente

Honeywell

Honeywell IPCAM-WOC1 Manuale utente

Honeywell

Honeywell HCBWDHR37 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
