POLYCARBONATE DOME CAMERA
PrimaView®HD16 www.honeywellvideo.com
The HD16 provides the same great aesthetics and durability of the Honeywell
PrimaView Series combined with a 5 to 50 mm Vari-focal Auto Iris lens. With a
low profile designed for in-ceiling or pendant applications, the HD16 provides
installation flexibility. The enclosure converts instantly between a flush or surface
mount and is available with an optional pendant or wall arm mount.
Vandal-resistant and lightweight, the polycarbonate dome is tough enough to
withstand the impact from an 8 lb sledgehammer. And as an extra security
feature, an adjustable dome insert conceals the camera components without
affecting light sensitivity or picture quality. Installation is a snap with the 360
degree camera position.
Market Opportunities
The PrimaView HD16 series is the ultimate solution for virtually any indoor or
outdoor surveillance. These cameras are perfect for locations that require a
camera able to withstand vandal-prone environments and provide long range
views, such as, schools, malls, airports, and freeways. They’re tough, adaptable,
and affordable.
Features
• Polycarbonate housing
• Choose from a wide range of
cameras, including Color, True
Day/Night, Wide Dynamic and Wide
Dynamic True Day/Night
• Spot monitor output
• 12 VDC or 24 VAC with line lock
• Choose from the most popular
transmission media (Coaxial or UTP)
integrated inside the camera
• 5 - 50 mm Vari-focal Auto Iris lens
• Weather sealed for indoor and
outdoor locations—IP66 rated
• Instantly converts to a flush or
surface mount
SPECIFICATIONS
PrimaView®HD16
Operational Image Sensor Number of Pixels
(H x V) Minimum
Illumination Horizontal
Resolution Power
Consumption
Color 1/3” CCD
510 H x 492 V
(standard resolution)
250K total pixels 0.6 lux @F1.7 350 TVL 3.5W
768 H x 494 V
(high resolution)
380K total pixels 0.7 lux @F1.7 480 TVL 3.5W
True
Day/Night 1/3” CCD True
Day/Night
510 H x 492 V
(standard resolution)
250K total pixels 0.2 lux @F1.7 350 TVL 3.5W
768 H x 494 V
(high resolution)
380K total pixels 0.3 lux @F1.7 480 TVL 3.5W
Wide Dynamic 1/3” CCD Wide
Dynamic 768 H x 494 V
380K total pixels 1.0 lux @F1.7 480 TVL 4.5W
Wide Dynamic
True
Day/Night
1/3” CCD Wide
Dynamic TDN 768 H x 494 V
Dynamic TDN
380K total pixels 0.4 lux @F1.7 480 TVL 4.5W
www.honeywellvideo.com
True Day/Night The incorporation of a moving mechanical IR filter within the camera ensures true 24 hour surveillance,
providing high quality color images during the day and similar quality black and white images at night when used with
or without IR lighting.
Wide Dynamic A processing technology that allows a video camera to automatically adjust for environments with
high contrast and changing light conditions. Each frame is processed optimally. For example, in shadowed areas
the exposure is increased and in bright areas the exposure is decreased so that all the details in the scene are
light-corrected in the image.
Wide Dynamic True Day/Night Combine the processing technology of the WDR cameras with the moving mechanical
IR filter to ensure a precise picture in any lighting condition.

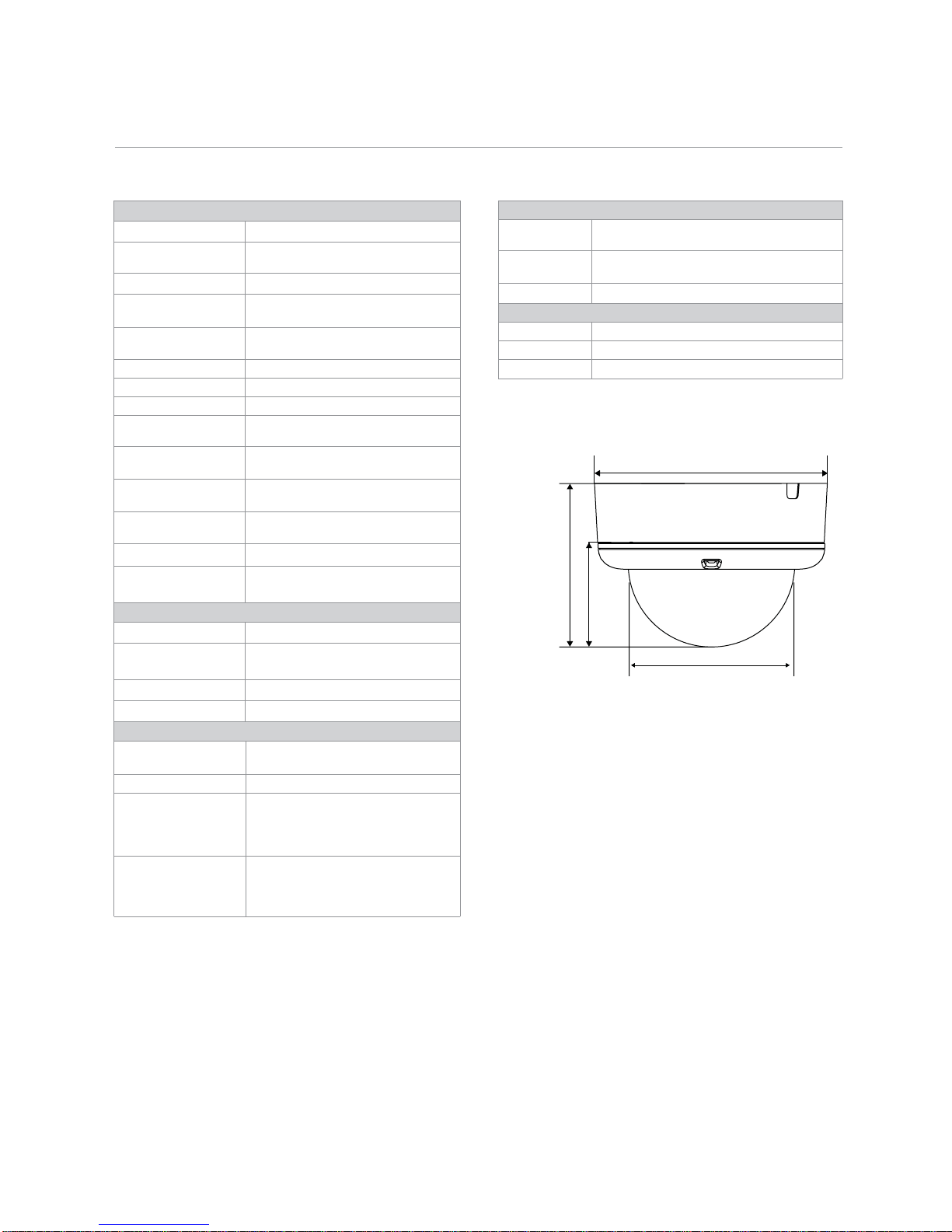

SPECIFICATIONS
PrimaView®HD16 www.honeywellvideo.com
Operational
Video Standard NTSC
Scanning System 525/60 Lines
Image Sensor 1/3" Sony Interline CCD Sensor
Video Output 1.0 Vp-p Coax @ 75 Ohms,
1.0 Vp-p UTP @ 100 Ohms
Sync System 12 VDC: Internal
24 VAC: External (Line Lock)
S/N Ratio Better than 51 dB
Auto Gain Control Off/on switch (4 – 26 dB max)
ALC Auto Iris: DC drive
Automatic Electronic
Shutter 1/60 - 1/100,000
White Balance AWB/ATW/Indoor (3200°K),
Outdoor (6500°K), Push Lock
Dynamic Range
(Wide Dynamic models only) Better than 52 dB
BLC Center window weighted
On/Off, switchable
Lens Type 5-50 mm (F1.7) VFAI CS Mount
Angle of View Tele: 6.9º (D), 5.5º (H) 4.1º (V)
Wide: 63º (D), 48º (H), 35º (V)
Electrical
Input Voltage 24 VAC/12 VDC
Input Range 17 – 28 VAC
11 – 16 VDC
Surge Suppression Internal transformer
Power Consumption 4.5 W (max)
Mechanical
Dimensions
(D x H) 7.5” x 5.3”
(191 mm x 134.5 mm)
Weight 2.0 lb (0.9 kg) max
Construction Housing: Polycarbonate
Dome: Hard coated polycarbonate,
clear dome with insert
Finish: Matte texture, off-white
Connectors Video Output: BNC Connector
(Coax), Tinned Leads (UTP)
Power Input: Tinned leads, (Coax),
2.1 mm Barrel (UTP)
Environmental
Temperature Operating: -13°F to 122°F (-25°C to 50°C)
Storage: -31°F to 140°F (-35°C to 60°C)
Relative
Humidity 0% to 95%, non-condensing
Rated IP66
Regulatory
Emissions FCC, CE (EN55013)
Immunity CE (EN50130-4)
Safety EU: 73/23/EEC LVD, UL 2044
3.4" (86 mm)
5.3" (134 mm)
7.5”(190 mm)
Side View
5.43”(138 mm)

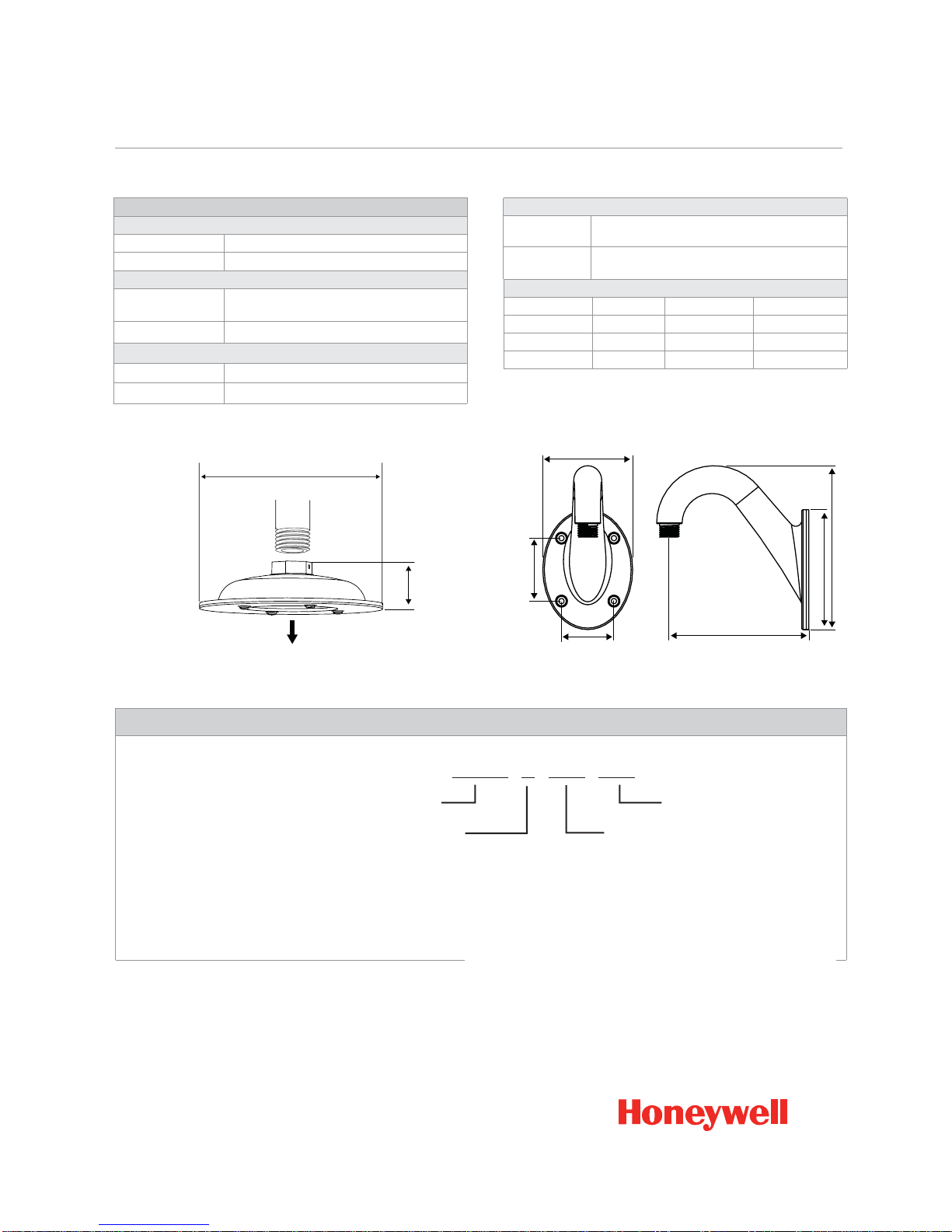

Accessories:
Mounts
HD16-PK Pendant Mount
HD16-WK Wall Mount
Optional Dome Kits
HDRK16T Tinted Dome (reduces light sensitivity
by 54%)
HDRK16C Clear Dome (supplied with unit)
IR Illuminators
LumaView®Series 200 W and 75 W bulb IR illuminator
Puck Series LED IR illuminator
Power Supplies
UL Listed Fused Smart Fused Description
HPTV2404UL HPTV2404 HPTV2404CB 4 A, 4 Output
HPTV2408UL HPTV2408 HPTV2408CB 4 A, 8 Output
HPTV2416UL HPTV2416 HPTV2416CB 8 A, 16 Output
Transformers
HPT2420 24 VAC, 20 VA Class 2 plug-in with thermal
cut-out
HPT12DC500 12 VDC, 500 mA plug-in regulated 2.1 mm
coaxial plug UL Listed/CSA Certified
SPECIFICATIONS
L/HD16/D
March 2007
© 2007 Honeywell International Inc.
PrimaView®HD16 www.honeywellvideo.com
Honeywell Security
Honeywell Video Systems
2700 Blankenbaker Pkwy, Suite 150
Louisville, KY 40299
1.800.796.CCTV
www.honeywell.com
6.14”(156 mm)
1.61”
(41 mm)
(Pipe, not
included)
Mounts to back of HD16
4.72”(120 mm)
2.75”
(70 mm)
3.3”(84 mm)
7.36”(187 mm)
6.3”(160 mm)
8.62”(219 mm)
HD16-PK HD16-WK
Ordering
HOW TO ORDER Model
HD16
Camera Technology
C Color
D True Day/Night
W Wide Dynamic*
DW Wide Dynamic True Day/Night*
Resolution
480 TV Lines
350 TV Lines
Interface
T UTP
C Coax (BNC)
HD16 TDW 480
* Wide Dynamic and Wide Dynamic True Day/Night
available in 480 TV Line configuration only
Note: IR illuminator technology only works with True Day/Night cameras
