5800PIR-OD Wireless Outdoor Motion Sensor – Installation Instructions

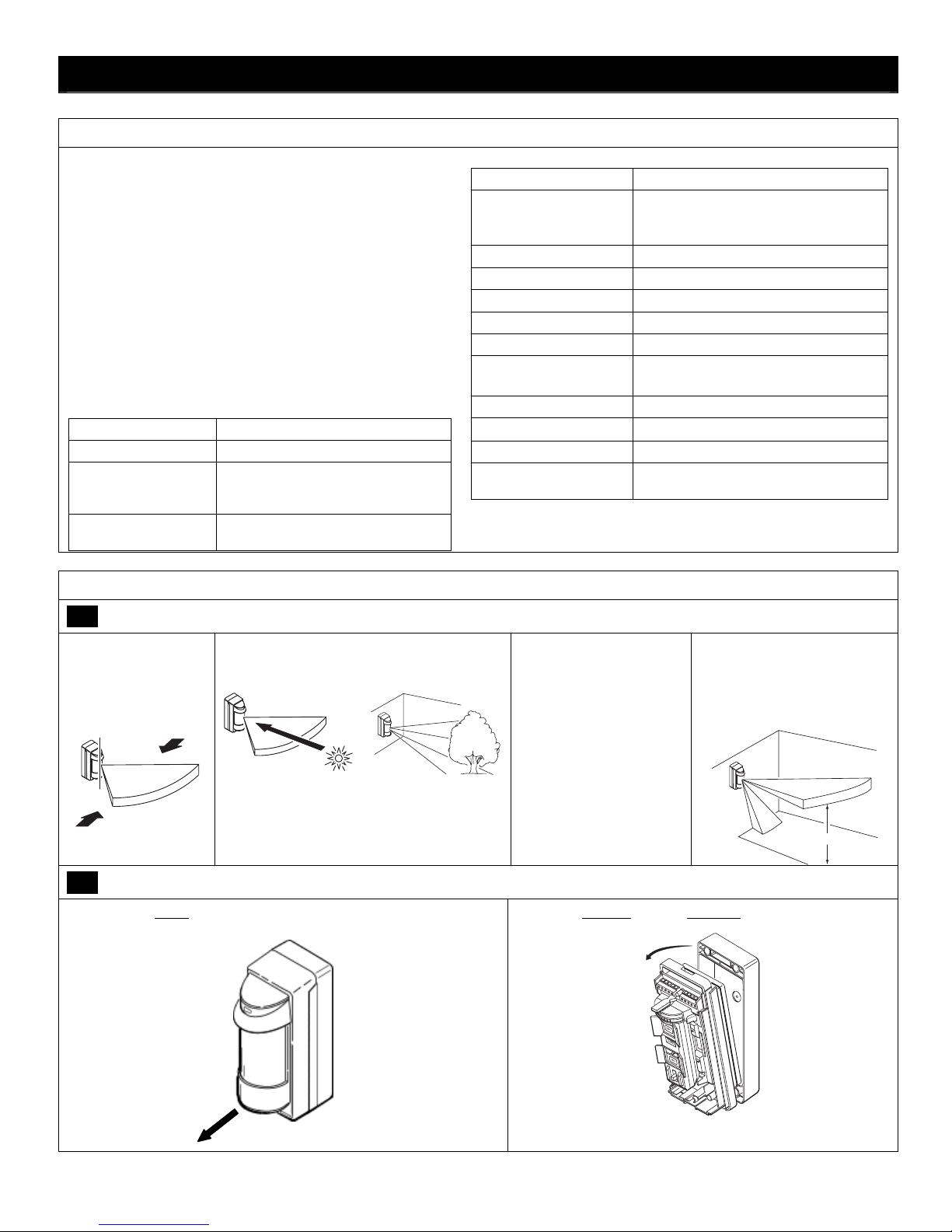

GENERAL INFORMATION

The Honeywell 5800PIR-OD Wireless Outdoor Motion Sensor

(referred to as the 5800PIR-OD) combines the convenience of

wireless technology with a full featured outdoor PIR motion

sensor. The major features are highlighted below:

Immunity to bright light

disturbances from headlights,

sunlight, and other bright

light sources.

Selectable detector

range and angle.

Discriminates both large and

small animals to reduce false

alarms.

Tamper detection.

Battery saving circuit

allows for a 5 or 120

second period of

inactivity before being

reactivated.

SPECIFICATIONS

Detection Method Passive Infrared

Initial Warm Up ~ 2 minutes

Dimensions Height 199mm (7.8 in.)

Width 82mm (3.2 in.)

Depth 120mm (4.7 in.)

Mounting Height 0.8 - 1.2m (2.7 - 4ft) To the center of

lens.

Range Adjustable up to 12m (40ft)

Pattern 90°pattern consisting of 13 zones. This

pattern can be adjusted in 15°incre-

ments from center up to 45°.

Sensitivity 2.0°C at 0.6m/s (3.6°F at 2.0ft/s)

Detection Speed 0.3 - 1.5m/s (1 - 5ft/s)

Operating Voltage 6 VDC (uses 4 lithium 1.5VDC AA cells)

Battery Saving Timer Adjustable 120sec or 5sec

Alarm Period ~ 2.5 seconds

LED Indicator Enabled during a walk test.

Disabled for normal operation.

Weatherproof IP54 compliance

Operating Temperature – 20 to + 50 °C (– 4 to +122°F)

Humidity 95% Max

Accessories (included) Pole mounting kit, screw kit, detection

masking strips.

INSTALLATION (refer to the Component Identification Diagram on page 7)

1 Select the Mounting Position

Avoid strong sunlight into the sensor's field.

Avoid moving or swaying trees and bushes.

Orient the detector

so that intrusion

passes across the

detection field, not

into the sensor.

Allow 110mm (4.4")

above the sensor to

enable opening the cover.

Choose an installation

height of 0.8m to 1.2m

(2.7 to 4ft).

Ensure the sensor can be

mounted on a perpendicular

wall or pole that would make

its detection pattern parallel

to the ground.

Parallel

2 Prepare the Sensor for Mounting

1. Remove the Cover by pulling from bottom.

2. Remove Detector from the Back Box by pulling from top.

– 2 –

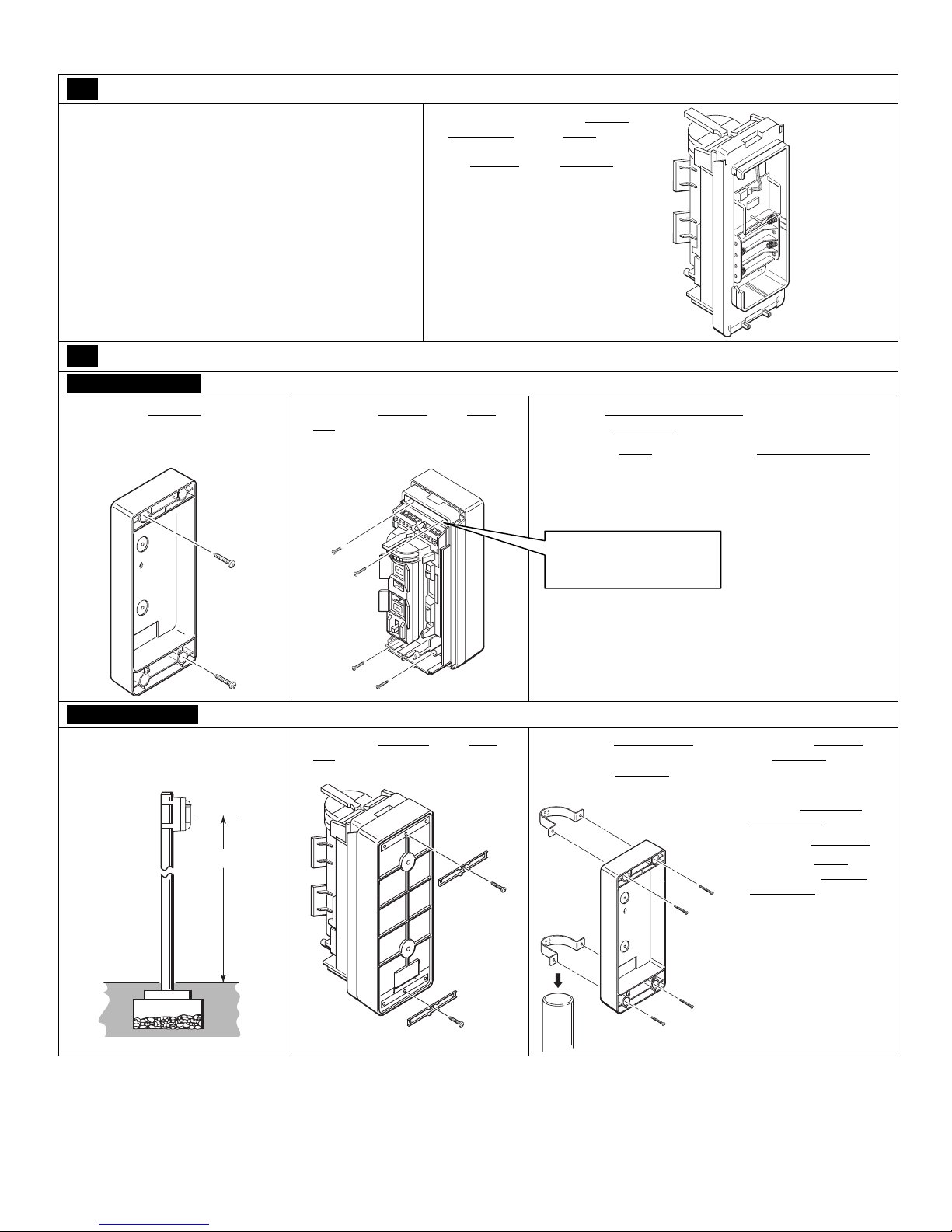

3 Install / Replace the Battery

IMPORTANT:

Use only lithium batteries.

Use four (4) lithium 1.5VDC AA cells. (Energizer L91 or

equivalent.)

Change all four batteries at the same time. Do not mix

weak batteries with new batteries.

Observe polarity.

1. If necessary, loosen the Captive

Lock Screw and lift Cover off.

Then, remove 4 screws that secure

the Detector to the Back Box.

2. Observe the proper polarity and

replace the batteries. Ensure

positive side of battery is pointing

away from the springs.

4 Mount the Sensor

WALL MOUNTING

1. Install the Back Box on the wall

using two M4 x 20 mounting

screws.

2. Secure the Detector to the Back

Box.

3. Fasten with four self tapping

M3 x 14 screws.

4. Perform Settings & Adjustments.

5. Perform a Walk Test.

6. Secure the Cover with the M3 x 10 Captive Lock Screw.

7. Program the control panel.

POLE MOUNTING

1. Use a pole with an outside

diameter of 43-48mm

(1.69-1.89").

2.7- 4ft.

0.8 - 1.2m

2. Attach the Brackets to the Back

Box with two M3 x 8 screws.

3. Using the Pole Brackets

and four M4 x 30 screws,

fasten the Back Box to the

pole.

4. Secure the Detector to

the Back Box and

fasten with four self-

tapping M3 x 14 screws.

5. Perform Settings &

Adjustments.

6. Perform a Walk Test.

7. Secure the Cover with

the M3 x 10 Captive

Lock Screw.

8. Program the control

panel.

You may have to move

aside the sponge packing

to reveal the screw holes.

– 3 –

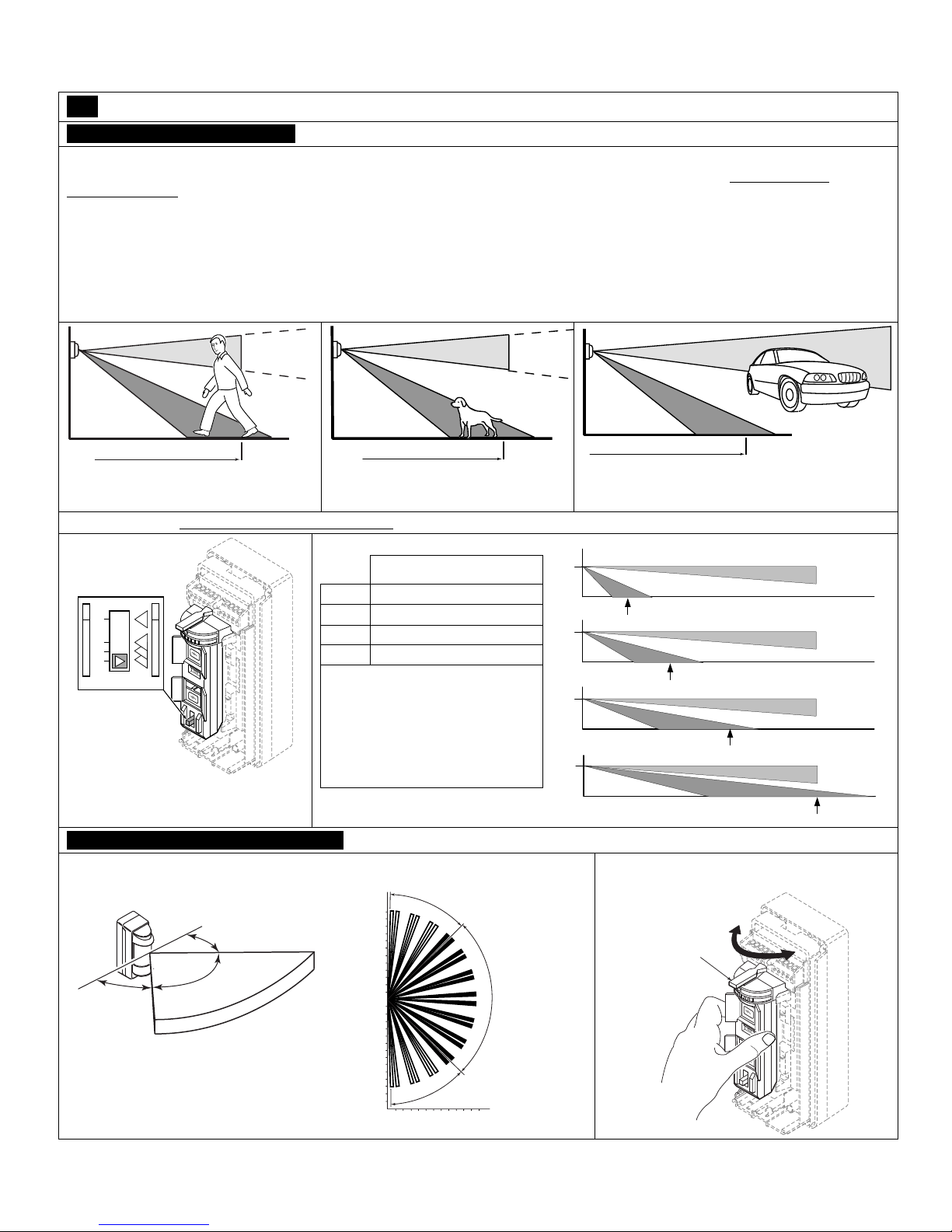

5 Perform Settings & Adjustments

SET THE DETECTION LENGTH

Note: The length of the lower detection area determines the detection length.

The upper detection area stays parallel to the ground at all times. The lower detection area can be adjusted by the Detection Length

Adjustment Switch as shown below.

Detection length is therefore limited by the length of the lower detection area since both upper and lower areas have to be blocked at the same

time to activate the sensor.

IMPORTANT:

This sensor detects temperature differences between the moving object and the background temperature in the detection area to produce a

valid detection.

If the object does not move, the sensor will not detect it.

If there is traffic near the detection area, adjust the detection area length 1.5 to 2.0m (5 to 7ft) back from traffic.

Detection Length

UPPER and LOWER beams are blocked,

detection is made.

Only the LOWER beam is blocked,

detection is not made.

Only the UPPER beam is blocked, detection is not

made.

Press and slide the Detection Length Adjustment Switch to the desired position.

DETECTION LENGTH

D 02.0m (6.7ft)

C 05.0m (16.7ft)

B 08.0m (26.7ft)

A 12.0m (40.0ft)

NOTES:

•This table is based on a motion sensor

height of 1m (3.3ft)

•The height of the motion sensor will

effect the detection length. In addition,

the detection length may vary due to

environmental conditions.

SET THE DETECTION AREA ANLGLE

1. The detection area angle is 90°with 7

fingers as shown.

90o

45o

Top view

012

(m)

45 Adjustable

Active detection

fingers.

45 Adjustable

2. Hold the sensor and turn it to the desired

direction. Each click represents 15°of change.

Adjust to

desired direction

Default Setting

Position A– maximum of 40 ft.

Position B– maximum of 26 ft.

Position C– maximum of 16 ft.

Position D– maximum of 6 ft.

3.3

ft.

3.3

ft.

3.3

ft.

3.3

ft.

10 20 30 40 feet

– 4 –

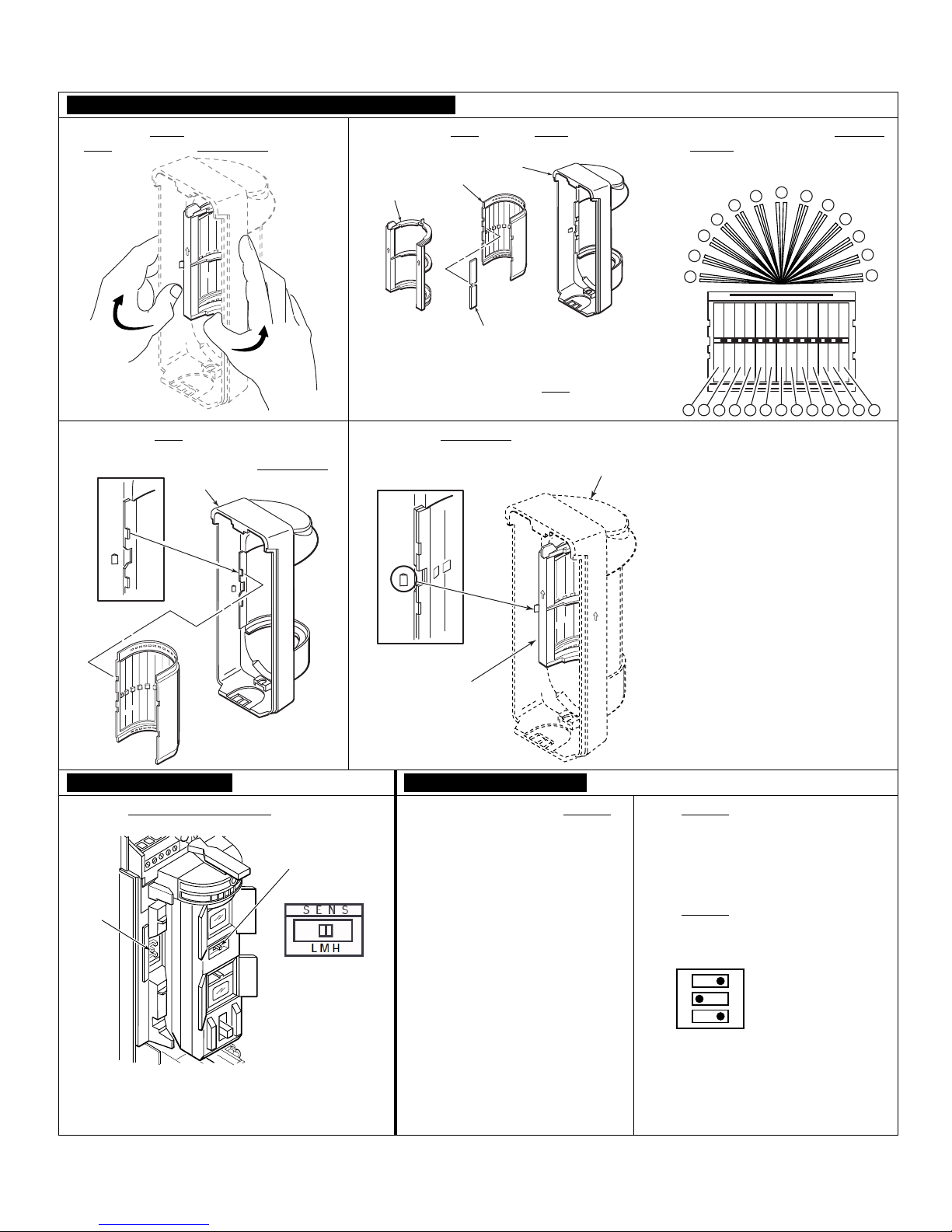

IF NECESSARY, CONFIGURE DETECTION MASKING

1. Spread the Cover and gently press on the

Lens to remove the Lens Holder.

2. Separate the Lens from the Cover.

Cover

Lens

Area Masking

Plate

Lens

Holder

3. Identify the segments on the Lens to be masked.

4. Then apply the adhesive Masking

Strip(s), as necessary, inside the

lens to mask the desired

segments.

113

678

113

2345678910 12

5. Replace the Lens by aligning the 4 cutouts

on the lens to the 4 projections inside the

cover. Snap in place with the Lens Holder.

Cover

Lens

6. Ensure the Lens Holder is held by the left and

right cover prongs and the two tabs are engaged.

Cover

Lens

Holder

SET THE SENSITIVITY SET THE DIP SWITCHES

1. Set the Sensitivity Select Switch to the desired

sensitivity.

Sensitivity

Select Switch

(Low, Med, High)

DIP

Switches

Low Sensitivity - Best to prevent false detections.

High sensitivity - Best detection catches (increased

false detections). Use for applications where you are

tagging video, or need high security awareness.

1. At the DIP switches, set switch 2

for the desired Battery Saving

Timer period.

Note: The alarm output

activations are limited by the timer

selection (5 or 120 seconds). Even

if there are continuous alarm

events, the alarm output operates

only once in the selected timer

period. This period can be set for 5

or 120 seconds.

120s – Default Setting

5s – Used when frequent alarm

transmission is required. Battery

life will be shortened when using

this setting.

2. Set switch 3 for the desired Pulse Count

(selectable for 2 or 4).

Pulse Count of 2 = detection can be

made with as little as two steps.

Pulse Count of 4 = detection can be

made with as little as four steps.

3. Set switch 1 to enable the Walk Test,

then perform the walk test on the next

page.

ON 1. Walk Test

5s 2. Battery Saving Timer

23. Pulse Count

123

OFF

120s

Default Setting

– 5 –

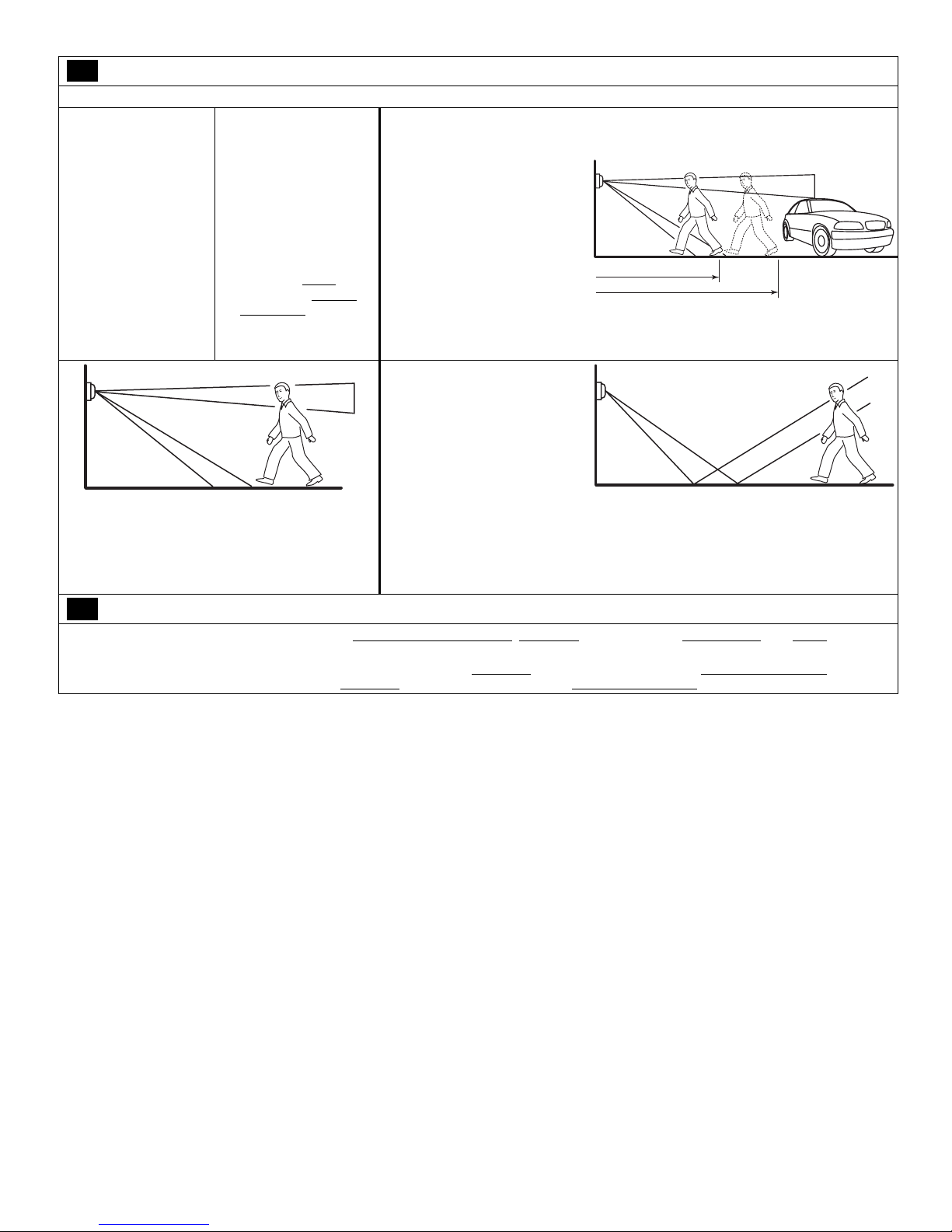

6 Perform a Walk Test

NOTE: With the Walk Test switch set to ON the LED will light when the detector is tripped, and the alarm is generated instantly.

1. Set the walk test

switch (DIP switch

1) to ON. Replace

the cover.

2. Perform a walk test

through the detec-

tion area, and verify

satisfactory results.

3. Allow the detection

area to remain

static, and check for

false or unwanted

detections.

4. If necessary, adjust

the detection area (see

Perform Settings &

Adjustments).

5. Repeat the walk test

through the detection

area, and verify

satisfactory results.

6. Set the walk test DIP

switch 1 to OFF, and

secure the Cover with

the M3 x 10 Captive

Lock Screw.

Notes:

If normal car or people traffic

pass close to the detection

area, adjust the detection

area 1.5 to 2.0m (5 to 7ft)

shorter to reduce false

detections. This also allows

for changes due to environ-

mental thermal conditions.

If the detection length is

adjusted to position "A" [12m

(40ft)], the detection area

may increase when there is a

big temperature difference

between the moving object

and the background.

If this causes a problem, adjust the detection

length to position "B". Then walk test to verify

satisfactory results.

Approx.8m (27ft)

position B

Approx.12m (40ft)

WALK TEST

This sensor has a multi-level

detection pattern (from side

view). A heat source beyond

the detection area may cause

the detector to issue a false

alarm by reflecting off the

ground. Examples include

puddles, wet surfaces, very

smooth asphalt or concrete

surfaces.

If this causes a problem,

adjust the detection length to

position "B". Then perform a

walk test to verify

satisfactory results.

7 Program the Control Panel

Prior to use in the system, you must program the transmitter's serial number, input type (RF Supervised), response type, and loop # (set to 1)

in the control panel. Refer to the control panel’s instructions for further details.

Note: If you are learning the control panel by walking, either use the Walk Test setting or temporally set the Battery Saving Timer to 5 sec.

When the programming is complete ensure the Walk Test switch is set to OFF, and the Battery Saving Timer is set to your desired setting.

– 6 –

TROUBLESHOOTING

SYMPTOM CAUSE REMEDY

Batteries are incorrectly installed or

dead.

Check for correct battery installation, or replace dead batteries.No detection, when walking

through the detection area.

Wiring is faulty or loose. Check all connectors and wiring.

Water in unit. Check for cracks in the housing that would allow water infiltration.

Replace unit.

Transmitter or PIR sensor is faulty. Replace unit.

No detection occasionally, or

poor detection.

Sensitivity is set too low. Try a higher sensitivity setting.

Detection area is not set correctly. Perform a Settings & Adjustments procedure.

Low battery fault indicated

on system keypad display.

Batteries are very low or dead. Replace batteries.

Alarms when no one is

walking through the

detection area.

Sensor is not perpendicular to

ground.

Remount and align sensor so the detection area is parallel to the

ground.

Sensor is detecting moving trees,

bushes, or a strong source of light.

Check for moving trees, or bushes or a strong light source. Perform a

Settings & Adjustments procedure.

Lower detection area is too long. Set Detection Length to a shorter range.

A heat source in the area may be

causing an abrupt temperature

change.

Move or remove the heat source.

Mask the area pointing to the source of heat, or shorten the Detection

Length.

– 7 –

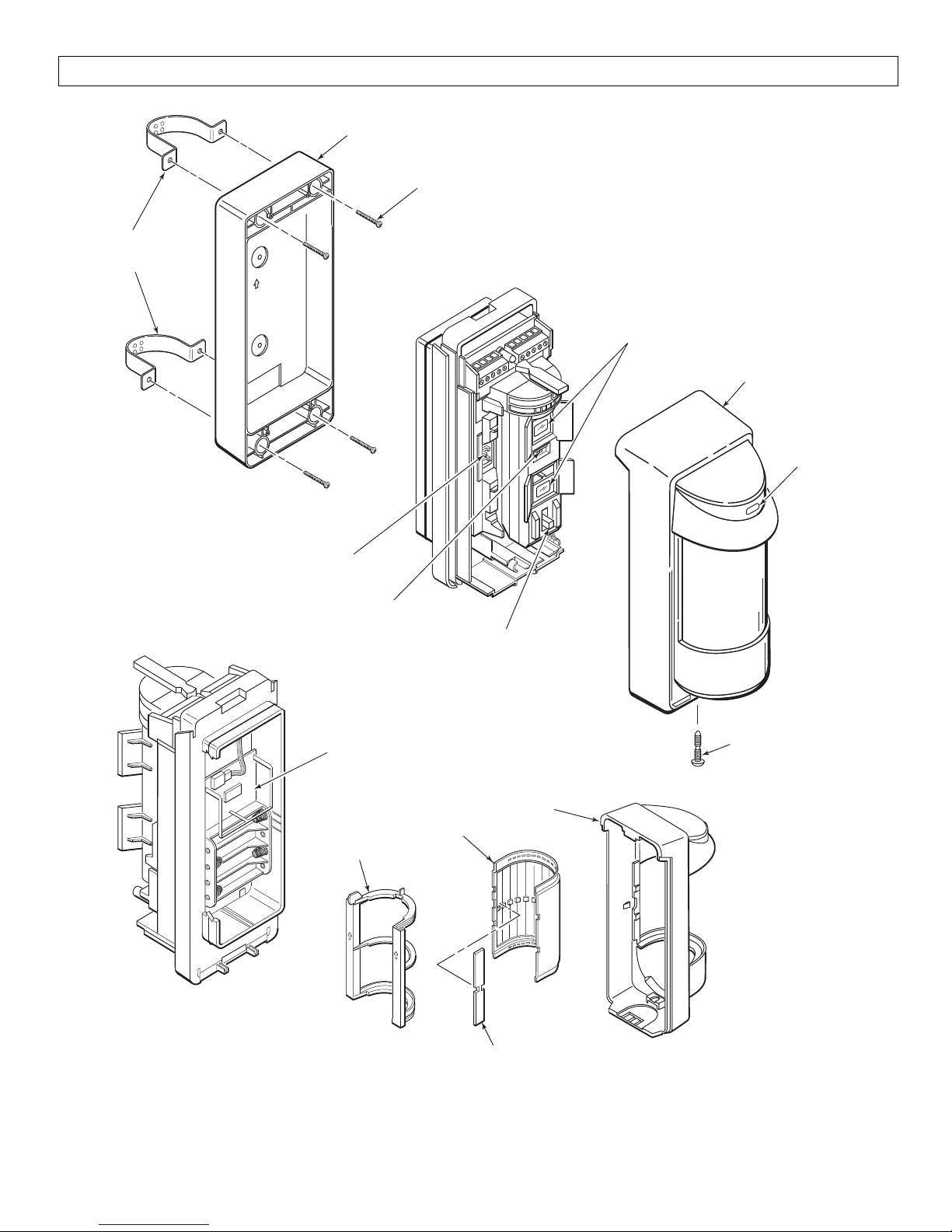

COMPONENT IDENTIFICATION DIAGRAM

Transmitter

Sensor

(Do not touch)

Cover

LED

Indicator

Cover

Lens

Back Box

Use four M4x30 screws if

mounting to pole brackets,

or two M4x20 screws

if mounting to wall.

Captive

Lock Screw

M3 x 10

Masking Strip

(Use as required)

Lens

Holder

DIP Switch

Sensitivity Select

Switch Detection Length

Ajustment Switch

Pole

Bracket

FCC / IC STATEMENT

This device complies with Part 15 of the FCC Rules, and RSS210 of IC.

Operation is subject to the following conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause

undesired operation.

INFORMATION TO USER

Unauthorized changes or modifications could void the user's authority to operate the equipment.

DOCUMENTATION AND ONLINE SUPPORT

For the latest documentation and online support information, please go to:

http://www.security.honeywell.com/hsc/resources/MyWebTech/

WARRANTY

For the latest warranty information, please go to:

http://www.security.honeywell.com/hsc/resources/wa/

2 Corporate Center Drive, Suite 100

P.O. Box 9040

Melville, NY 11747

www.honeywell.com/security

ÊK15009V2>Š

K15009V2 2/10 Rev. A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Honeywell Sensore di sicurezza

Honeywell

Honeywell R4343E Manuale utente

Honeywell

Honeywell Miller Techline HLLR Series Manuale dell'operatore

Honeywell

Honeywell 14506873-001 Manuale utente

Honeywell

Honeywell Lyric W1 Manuale utente

Honeywell

Honeywell IS-215T Manuale utente

Honeywell

Honeywell Sensepoint Manuale utente

Honeywell

Honeywell RAELink3 2.4GHz Manuale utente

Honeywell

Honeywell Eclipse Manuale di istruzioni

Honeywell

Honeywell PEHA MLS Digital Hi-Bay D MLS2001AHBF Manuale di installazione e funzionamento

Honeywell

Honeywell TRADELINE C554A Manuale utente

Honeywell

Honeywell Ex-Or MLS2000DF Manuale di installazione e funzionamento

Honeywell

Honeywell Friedland FGGA03 Series Manuale utente

Honeywell

Honeywell 5800COMBO Manuale utente

Honeywell

Honeywell SiXGB Manuale utente

Honeywell

Honeywell Notifier NRX-TFIX58 Manuale utente

Honeywell

Honeywell Lyric YCHW4000W4004 Guida all'installazione

Honeywell

Honeywell 997 Manuale utente

Honeywell

Honeywell Activ8 BG Manuale utente

Honeywell

Honeywell AreaRAE Plus Manuale utente

Honeywell

Honeywell C7061A Manuale operativo

Honeywell

Honeywell Ex-Or MR2500D Manuale di installazione e funzionamento

Honeywell

Honeywell SiX Series Manuale utente

Honeywell

Honeywell Miller TURBOLITE Edge Manuale di istruzioni

Honeywell

Honeywell C08MS Manuale utente

Manuali Sensore di sicurezza popolari di altre marche

THORLABS

THORLABS PDA10JT Manuale utente

Waeco

Waeco UV-DETECT Manuale utente

Intermatic

Intermatic IOS-DSIMF Manuale utente

urmet domus

urmet domus 1083 Manuale utente

Siemens

Siemens AZL66 Series Manuale utente

BTI

BTI Profiline Multi Finder Manuale utente

Challenger

Challenger SL01 Manuale utente

DMP Electronics

DMP Electronics 1122INT Manuale utente

Rielta

Rielta Ladoga MK-RK Manuale utente

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuale utente

Bosch

Bosch DS835 Manuale utente

DBI SALA

DBI SALA EZ Stop Manuale dell'operatore

Lamptime

Lamptime ST05C Manuale utente

Ubiquiti

Ubiquiti MFI-MSC Manuale utente

Subsite

Subsite 910R Istruzioni per l'installazione

Satel

Satel OPAL Pro Manuale utente

Aleph

Aleph XC-1XTEU Manuale utente

Pima

Pima LARIS QUAD Manuale utente
