Honeywell Ex-Or LS3043DR Manuale utente

QuickSetPro

Programmer

Page 1 of 5

Quick User Guide

(Commissioning LS3100R/RM /RH series switching detectors)

Pointing QSP at detector being programmed

press the download button. The QSP will

communicate with the detector via an IR signal

path and begin to download the settings from the

detector. The QSP should remain pointing at the

detector until a ‘Download Summary’ is displayed

on the screen.

Press ‘ok’ to then view the details.

QuickSetPro

Programmer

Page 2 of 5

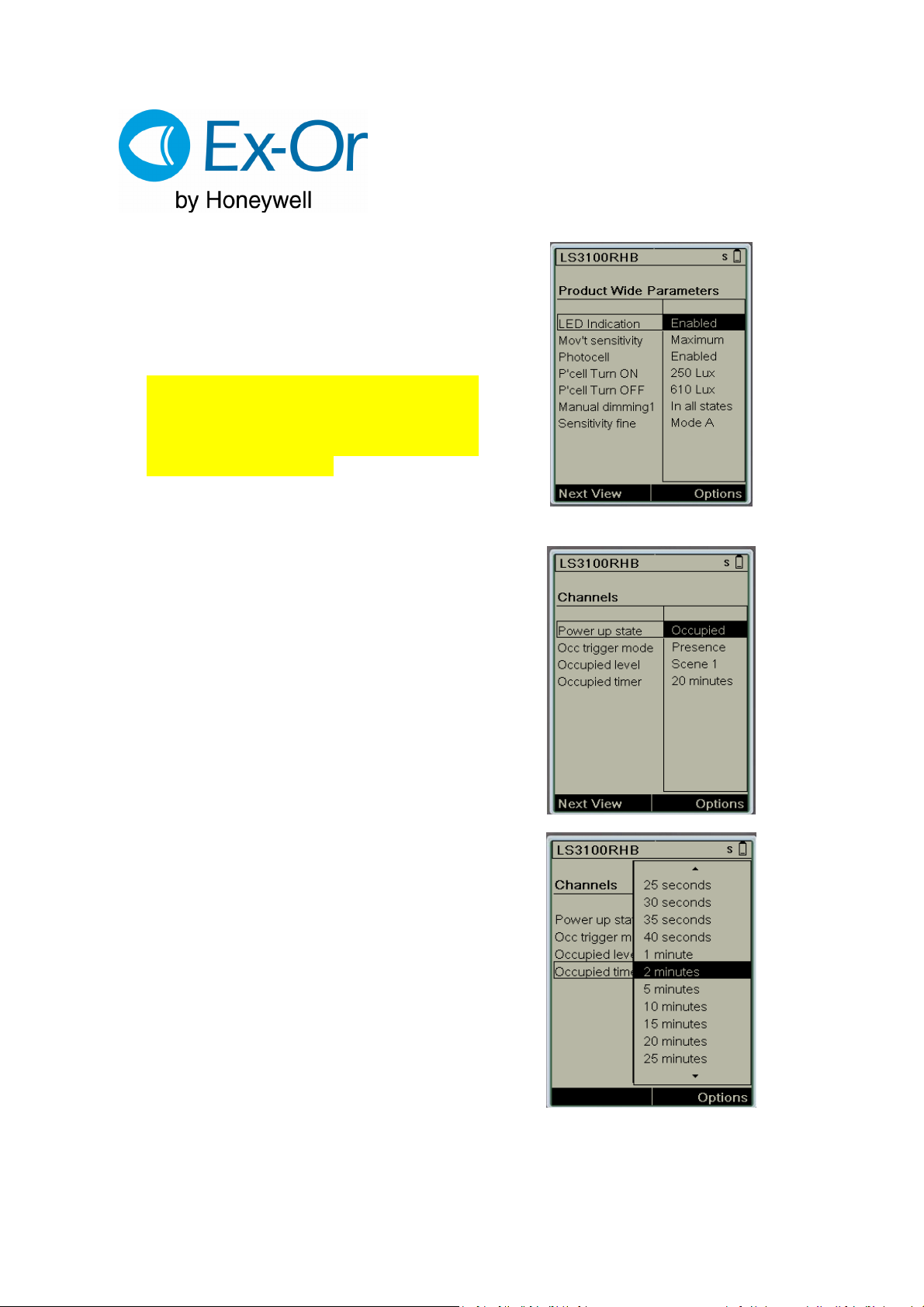

The

next screen details the ‘product wide’

parameters.

Using the Up/Down/Left and Right Keys you can

navigate down the list and make any

amendments to the settings.

On a switching only detector such as the LS3100R

you would set the appropriate light levels for the

detector to switch lights on (P’cell Turn ON) and

off (P’cell Turn OFF) or hold lights off regardless

of occupancy at this screen.

Please be mindful to keep a hysteresis between

the ON & OFF setpoints to prevent ‘hunting’.

Pressing the top left ‘soft key’ navigates you to

the next view – ‘Channels’.

On this screen the occupancy trigger mode (i.e.

presence or absence) and the time out delay can

be accessed for editing

o change the ‘Occupied Timer

’

–

this

is the

time

out period after last occupancy is detected for the

unit to time out to its ‘When Vacant’ state:

Press the ‘Down’ and/or ‘Left’ key until the

‘Occupied Timer’ is boxed and the setting (in this

case the default ’20 mins’) is highlighted.

Press ‘ok’ to bring up options allowed for this

parameter.

Use the ‘Up’ and ‘Down’ keys to navigate the list

until the desired setting (e.g. 2 mins) is

highlighted then ‘Ok’ to select.

QuickSetPro

Programmer

Page 3 of 5

If required select and edit other parameters using

the method described above.

When all changes have been made upload the

new settings into the detectors by pressing the

‘Upload’ key whilst holding the QSP aiming at the

detector (similar to the download function).

Once complete an ‘Uploaded Successfully’

message will be displayed.

The photocell then needs to be calibrated to ensure the detector turns on and off at the correct levels.

This is achieved by following the calibration routine on the following page:

QuickSetPro

Programmer

Page 4 of 5

Set the photocell

Go to the ‘Utilities’

menu by highlighting and

pressing ‘OK’.

hen highlight ‘LightSpot HD

’ and press ‘OK’.

Highlight ‘Photocell Calibration

’ and press ‘OK’.

You can then find out

1) Whether the photocell has been

previously calibrated by highlighting

‘Status’ and pressing ‘OK’ whist

pointing the QSP at the detector in

question.

2) Perform a simple calibration

3) Perform an advanced calibration

QuickSetPro

Programmer

Page 5 of 5

Simple Calibration

Highlight ‘Simple Calibration’ and press ‘OK’.

This brings up the calibration screen. The

luminaires should, at this point, be on at full.

With your Light Meter on t

he working plane set

the actual ‘Lux’ level detailed on the meter into

trhe QSP using the ‘Up’ and ‘Down’ keys. Once

the level is correct press ‘Ok’ to store this into the

detector.
