Honeywell EVOTOUCH CONTROLLER Manuale utente

evotouch

evotouch Controller

Installation

Contents

Preface 2

System Conguration 3

Guided Conﬁg 3

Edit System Conﬁg 3

Factory Reset 3

Edit Zone Conﬁg 3

System Parameters 3

Binding and RF Test 3

Edit System Conguration 4

Boiler demand 4

Outdoor sensor 4

Edit Zone Conguration 4

To edit the zone name 4

To change the application 5

To change the sensor for the zone 5

To edit the application settings 5

Underoor heating setting 6

Min. Max. Setpoint 6

Radiator heating settings 6

Optimisation setting 6

Window function 6

Min. Max. Setpoint 6

Local override 6

Mixing valve settings 7

Pump run time 7

Actuator running time 7

Min ﬂow temp, Max ﬂow temp 7

Min. Max. Setpoint 7

Zone valves options 7

Fail safe 7

Min. Max. Setpoint 7

System Parameters 8

Cycle rate 8

Off temperature 8

Holiday temperature 8

Internal sensor offset 8

Min. boiler on time 8

Binding and RF Test 9

Heat Demand 9

Zone Binding 9

Outdoor Sensor 9

RF Test Heat Demand 9

RF Test Zones 9

RF Test Outdoor 9

Safety information 10

Approvals 10

EMC compliance considerations 10

Product handling 10

Location of device 10

Disclaimer 10

WEEE directive 2002/96/EC

Waste Electrical and Electronic

Equipment directive 10

This extended evotouch Installation Guide provides information

about the installer functions available from the main conguration

menu.

For information about the other installer functions of evotouch

please refer to the printed Installation Guide supplied with

evotouch.

Preface

The System Conguration menu provides access to the Installer

conguration options.

To display the System Conguration menu:

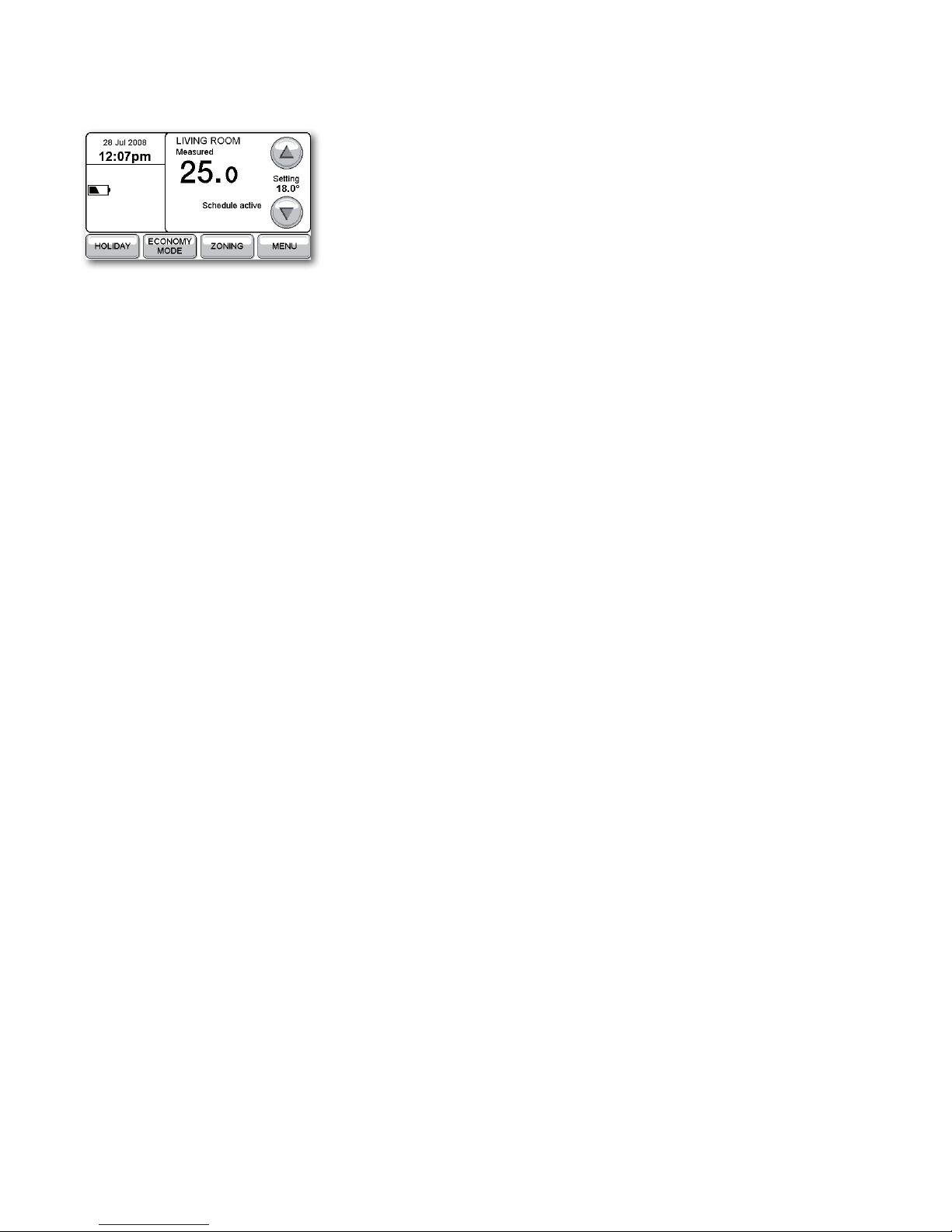

• PressMENU on the home screen for ten seconds.

The following warning will be displayed:

• PressYES to continue.

The System Conguration menu will then be displayed. This

provides the following options:

These are described in greater detail in the following sections.

Guided Cong

Leads you through the essential steps in setting up a system. For

more information see the Installation Guide.

Edit System Cong

See Edit System Conguration, page 4.

Factory Reset

Resets all settings to their factory defaults. The following prompt

is displayed:

• PressYES to continue.

Note: After a factory reset the system conguration is also lost.

Edit Zone Cong

Allows you to edit the name, application, and sensor assigned to

each zone. See Edit Zone Conguration, page 4.

System Parameters

Allows you to set parameters affecting the operation of the whole

system. See System Parameters, page 8.

Binding and RF Test

Allows you to bind or test sensors or actuators throughout the

system. See Binding and RF Test, page 9.

System Conguration

Allows you to edit aspects of the system conguration. It provides

the following options:

Boiler demand

Allows you to specify whether the boiler is a heat demand

device:

Outdoor sensor

Allows you to specify whether there is an outdoor temperature

sensor:

• TospecifyanoutdoorsensorpressOUTDOOR SENSOR.

You will then be prompted to bind the sensor:

• WhenasuccessfulresponsehasbeenreceivedpressDONE.

Edit System Conguration

Edit Zone Conguration

Allows you to edit the name, application, and sensor assigned to

each zone.

You are rst prompted to specify the zone you want to edit:

• Pressthezoneyouwanttoedit.

The following menu shows the zone name, application, and

sensor currently assigned to the zone:

From this screen you have the following options:

To do this Do this

Edit the zone name Press the button

opposite the Zone

Name label

Change the

application

Press the button

opposite the

Application label

Change the sensor Press the button

opposite the Sensor

label

Edit the application

settings

Press NEXT

These options are described in greater detail in the following

sections.

To edit the zone name

• PressthebuttonoppositetheZone Name label.

• EditthenameasrequiredandpressDONE.

To change the application

• PressthebuttonoppositetheApplication label.

The following menu allows you to choose the application:

The currently selected application for the zone is shown

highlighted.

• Presstheappropriateapplicationbutton.

The options are as follows:

Option Description

Underoor

heating

Underoor heating using

an HCE80(R) or HCC80(R)

controller.

Radiator

heating

Radiator control using an

HR80 radiator controller.

Mixing valve Mixing valve control using an

HM80.

Zone valves Zone valve control using an

HC60NG or BDR90.

You will then be prompted to bind the appropriate actuator:

Once the actuator has been successfully bound you are returned

to the Zoning Conguration screen.

To change the sensor for the zone

• PressthebuttonoppositetheSensor label.

The following screen shows the currently selected sensor type:

• PressINTERNAL DEVICE SENSOR to use the internal

temperature sensor in evotouch, in the zone where evotouch

is situated, or EXTRA REMOTE SENSOR to use a remote

sensor.

Note: Only one zone can be controlled by the internal sensor.

Selecting the internal sensor automatically congures all other

zones to use external sensors.

The following screen is then displayed:

• PressDEVICE SENSOR INFORMATION to use the

sensor for information only, or DISTRIBUTE SENSOR

INFORMATION to distribute the information to all actuators in

the zone.

To edit the application settings

• PressNEXT on the Zoning Conguration screen.

The following screen is then displayed:

• PressAPPLICATION SETTING.

The settings available for each of the applications are described

on the following pages.

The following setting is available for the Underoor Heating

application:

Min. Max. Setpoint

This species the minimum and maximum temperature that can

be requested for the zone:

• Usethecontrolstosettheminimumandmaximumsetpoints,

and press DONE.

The following settings are available for the Radiator Heating

application:

Optimisation setting

Allows the HR80 to perform its own optimisation calculation

locallyusingthedesiredsetpoint,measuredtemperature,and

comfort schedule:

Window function

Enables the function built into the HR80 that detects when a

window is open (by measuring a drastic drop in temperature)

and automatically closes the radiator valve for a certain time for

energy saving:

Min. Max. Setpoint

See Min. Max. Setpoint,onthispage.

Local override

Allows the setpoint to be changed at the HR80. This is valid until

the next switching point:

Radiator heating settings

Underoor heating setting

The following settings are available for the Mixing Valve

application:

Pump run time

Pump Run time (or pump overrun) species how long the pump

in the heat source needs to keep running to extract all the heat to

avoid blocking the heat source:

Actuator running time

Speciestheamountoftimetoopen/closetheactuator,inthe

range 0 to 100%.

Min ow temp, Max ow temp

The min/max ow temperature are limits to control the ow

temperature to achieve the target room temperature setpoint and

protect the heating system:

Min. Max. Setpoint

See Min. Max. Setpoint,page6.

Mixing valve settings

Zone valves options

The following options are available for the Zone Valves

application:

Fail safe

Species that the HC60NG/BDR90 output relay should switch

OFF if the RF communication is lost:

Min. Max. Setpoint

See Min. Max. Setpoint,page6.

System Parameters

Allows you to set parameters affecting the operation of the whole

system:

Cycle rate

Species how often the boiler will switch on and off in any given

hour. measured as cycles per hour. A typical cycle rate is 6

cycles per hour, giving a 10 minute cycle length.

Off temperature

Species the temperature that the system will revert to when the

system is turned off, for frost protection.

Holiday temperature

Species the temperature set throughout all zones when the

user selects Holiday mode:

Internal sensor offset

Species the offset of the internal sensor temperature, when the

unit is placed in a location where the measurement needs to be

corrected:

Min. boiler on time

Species a minimum on time for the heat source, to ensure all

the heat is dissipated from the system before shutting off.

Allows you to bind or test sensors or actuators throughout the

system:

Binding will normally be performed with evotouch positioned

beside the actuator or sensor, for convenience.

RF Test is then used to check the communication performance

of all devices in their correct locations.

Heat Demand

Binds to the heat demand device:

Zone Binding

You are rst prompted to specify the zone to bind:

You will then be prompted to bind one representative sensor and

one or more actuators to the selected zone.

Outdoor Sensor

Binds to the outdoor sensor:

RF Test Heat Demand

Tests the boiler heat demand:

RF Test Zones

You are rst prompted to specify the zone to test:

You will then be prompted to perform an RF test to the selected

zone.

RF Test Outdoor

Tests RF communication with the outdoor sensor.

Binding and RF Test
