INSTALLATION INSTRUCTIONS

® U.S. Registered Trademark

69-1716

RTH5100B

Non-programmable Thermostat

The RTH5100B Thermostat provides electronic control of 24 Vac single-

stage heating and cooling systems or 750 mV heating systems.

For assistance with your Honeywell product, please visit

www.honeywell.com/yourhome or call Honeywell Customer Care

toll free at 1-800-468-1502.

Read and Save these Instructions

START HERE

69-1716 2

Contents

Prepare for Installation..................................................3

Follow Important Instructions........................................5

Remove Old Thermostat...............................................6

Follow Special Instructions ...........................................7

Label Old Thermostat Wires.........................................10

Mount New Wallplate to Wall ........................................11

Connect Wires to New Wallplate ..................................15

Install Batteries .............................................................20

Attach New Thermostat to Wallplate.............................21

Configure Installer Setup ..............................................22

Customer Assistance....................................................28

Limited One-Year Warranty ..........................................29

3 69-1716

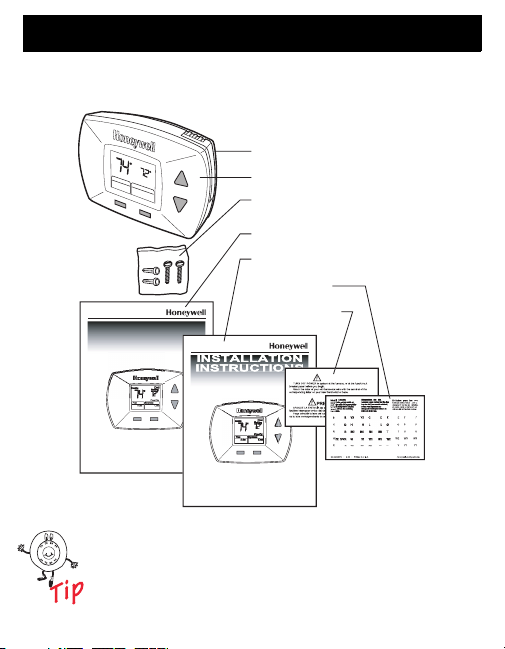

Step 1. Prepare for Installation

1. Check that the following items are included:

If any of the items shown above are missing, call

Honeywell Customer Care at 1-800-468-1502

before returning the thermostat to the store.

CoolOn

Setting

Cool

Inside

Fan

A uto Cool

System

PRESS

OPE

RUC

TIO

A A

TIO

WALLPLATE

THERMOSTAT

M22033

MOUNTING SCREWS (2)

AND WALL ANCHORS (2)

OPERATING INSTRUCTIONS

INSTALLATION INSTRUCTIONS

CAUTION CARD

WIRE LABELS

69-1716 4

Step 1. Prepare for Installation (Cont)

2. Check that you have everything required for

the installation:

• Two AAA alkaline batteries

• No. 2 Phillips screwdriver and standard pocket

screwdriver

• Drill

• Drill bit— use 3/16 in. for drywall; use 7/32 in.

for plaster

• Level (optional)

• Hammer

• Pencil

• Electrical tape

5 69-1716

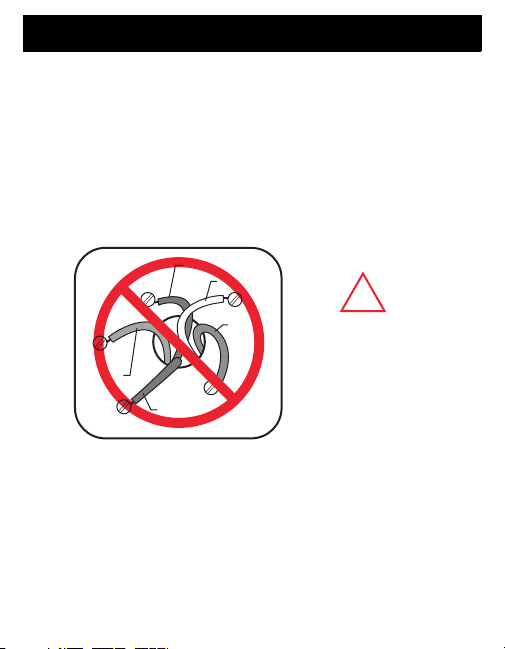

Step 2. Follow Important Instructions

1. Do not connect the wires to the new thermostat

based on wire color because damage can occur to

the heating and/or cooling system.

These Installation Instructions explain later how to

use the enclosed wire labels to correctly mark the

wires connected to your old thermostat.

Step 3. Remove Old Thermostat

M22034

OLD THERMOSTAT

RED

WHITE

YELLOW

ORANGE

GREEN

DO NOT WIRE

NEW THERMOSTAT

BASED ON

WIRE COLOR.

69-1716 6

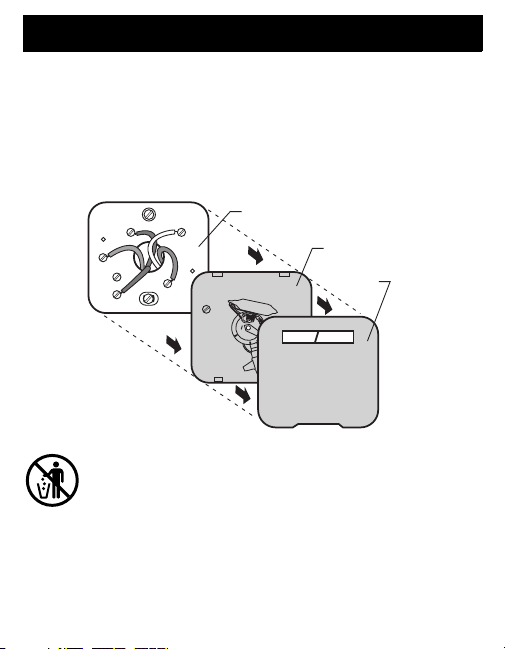

Step 3. Remove Old Thermostat

1. Turn off power at the heating and/or cooling system

or fuse/circuit breaker panel.

2. Remove the cover from the old thermostat.

3. Remove the old thermostat from the wall or

wallplate. Do not remove the wires.

MERCURY NOTICE

If you are replacing a thermostat that contains mercury in a

sealed tube, do not place your old thermostat in the trash.

Contact your local waste management authority for instructions

regarding recycling and the proper disposal of an old thermostat

containing mercury in a sealed tube.

OST

.18

.25 .3

THERMOSTAT

COVER

WALLPLATE

M22036

7 69-1716

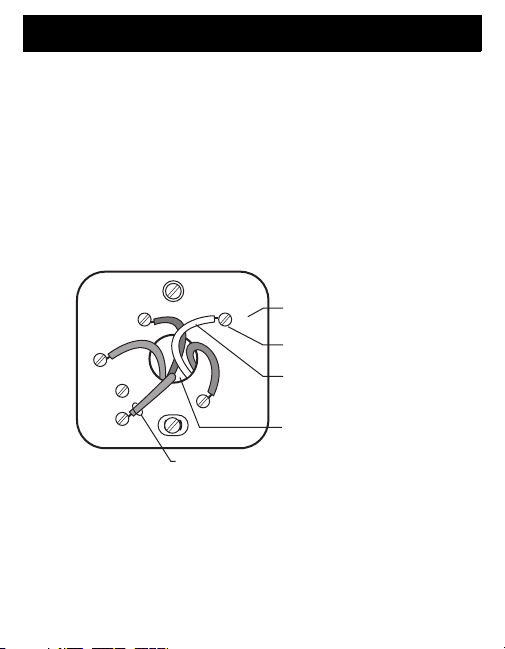

Step 4. Follow Special Instructions

1. If you have C and/or C1 wire(s) connected to your

old thermostat, do not connect them to your new

thermostat.

2. Disconnect the C and/or C1 wire(s). Make sure

they do not touch each other or any other wires.

3. Wrap the bare end of each C and/or C1 wire(s)

with electrical tape.

OST

WIRE HOLE

M22037

DO NOT CONNECT TO NEW THERMOSTAT

WIRE

SCREW

TERMINAL

LETTER

DESIGNATION

69-1716 8

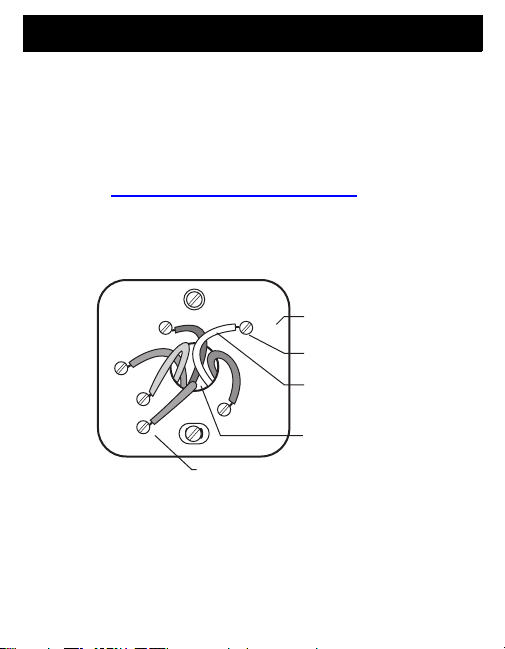

Step 4. Follow Special Instructions (Cont)

4. Most installations have two to five wires connected

to the old thermostat. If six or more wires are

connected to your old thermostat (not counting

the C or C1 wires), do not continue the installation.

You may have purchased the wrong thermostat.

Visit www.honeywell.com/yourhome or call

Honeywell Customer Care at 1-800-468-1502

before returning the thermostat to the store.

OST

WIRE HOLE

M22038

SIX WIRES CONNECTED

WIRE

SCREW

TERMINAL

LETTER

DESIGNATION

9 69-1716

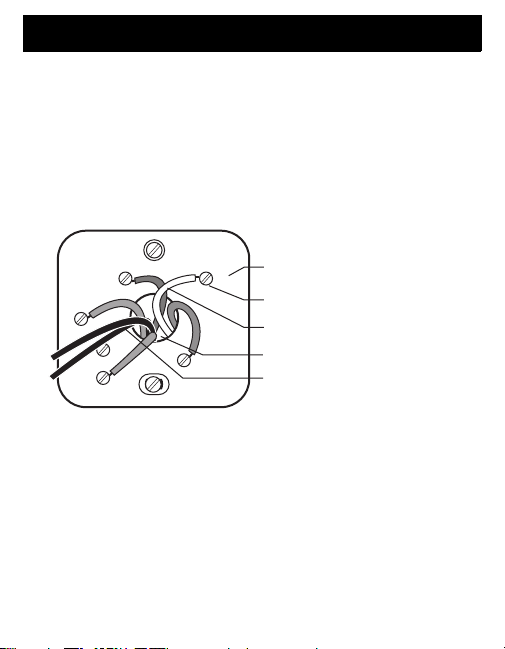

Step 4. Follow Special Instructions (Cont)

5. If you find any wires not connected to your old

thermostat, do not connect them to your new

thermostat.

6. Wrap the end of the wires that are not connected

with electrical tape.

Step 5. Label and Disconnect Wires from Old

Thermostat

OST

WIRE HOLE

WIRES NOT CONNECTED –

DO NOT CONNECT TO

NEW THERMOSTAT M22040

WIRE

SCREW TERMINAL

LETTER DESIGNATION

69-1716 10

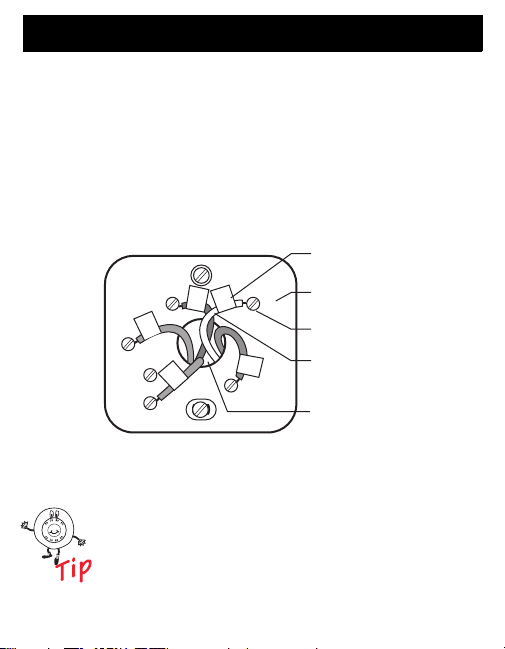

Step 5. Label Old Thermostat Wires

1. As you disconnect each wire, use the enclosed wire

labels to wrap a wire label around each wire that

matches the letter designation. Do not allow the

wires to fall into the wall opening after the wires

are disconnected.

2. Remove any remaining parts of the old thermostat

from the wall.

When connecting the wires to the new

thermostat, refer to the wire labels. Do not

connect wires to your new thermostat based

on the color of the wire.

OST

WIRE HOLE

M22039

WIRE

SCREW

TERMINAL

LETTER

DESIGNATION

WIRE LABEL
