Honeywell EXWJ400 Manuale utente
- 1 -
EXWJ400
USER GUIDE BOOK
Explosion proof Washer Pump
- 2 -
Important Safety Instructions
1. Install and use this system after reading these instruction thoroughly.
2. Keep these instructions.
3. Install in accordance with the manufacture’s instruction.
4. Take care of all Cautions and Warnings.
5. Use stainless steel hardware to fasten the mount to outdoor surfaces.
6. A readily accessible disconnect device shall be incorporated in the building installation
wiring.
7. Only use replacement parts recommended by Honeywell.
8. The maximum ambient temperature range is -20℃to 60℃.
RISK O F ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER(OR BACK).
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PRERSONNEL
Explanation of Graphical Symbols.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance(Servicing) Instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF IGNITION DO NOT OPEN WHEN AN EXPLOSIVE
GAS ATMOSPHERE MAY BE PRESENT
WARNING: To reduce the risk of ignition of Hazardous Atmospheres, disconnect
the equipment from the supply circuit before opening.
- 3 -

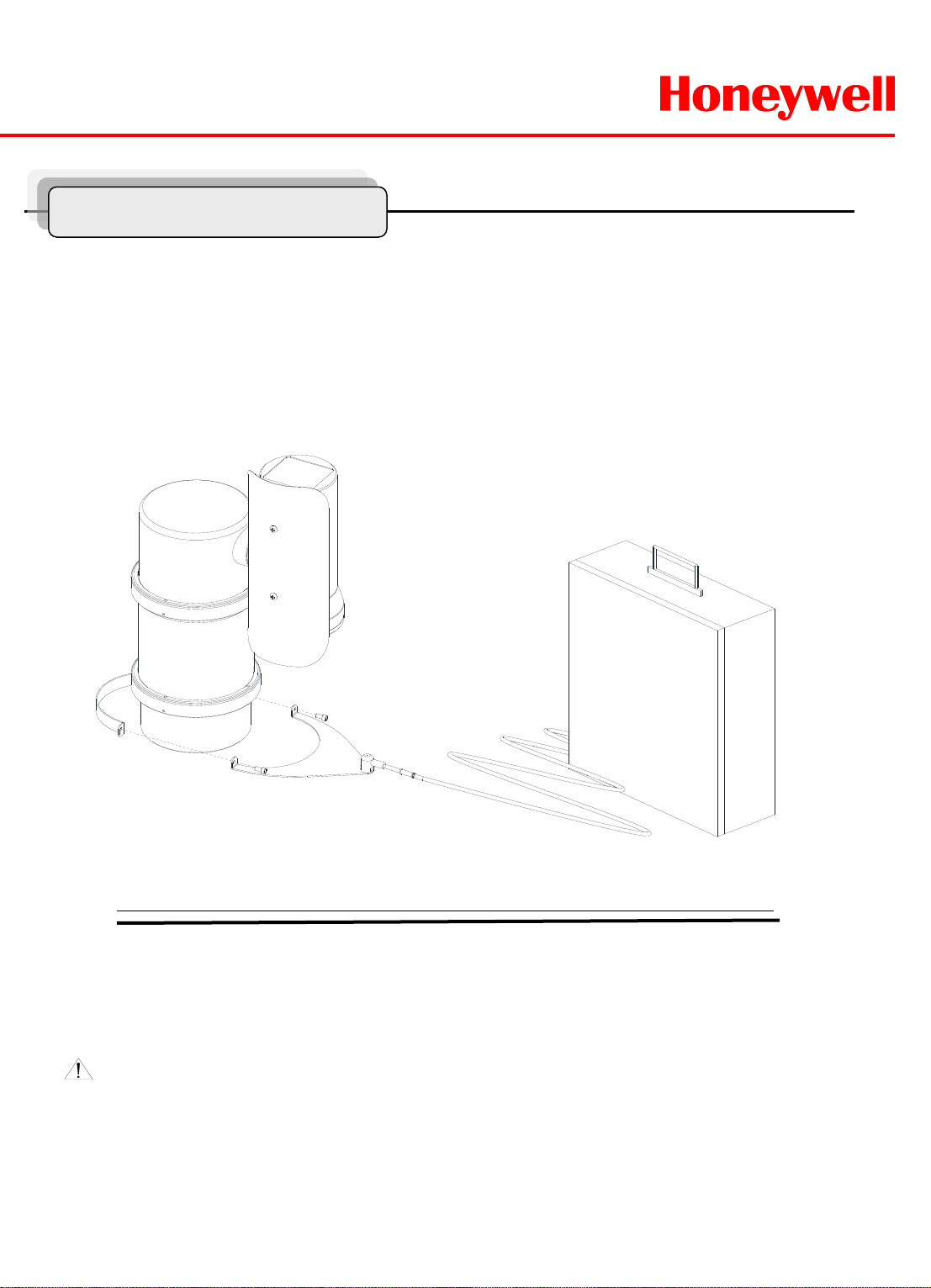

Methods of Installation
WARNING: Gross weight of this system is about 12kg.
It is recommended you to wear proper non-slip gloves during installation.
This system can be installed in a standard as below Figure1.
If you wish to install another method, you must do it after discussing with a
manufacture. And please refer to 7page for wiring cable connection with the
NEXPTZ Camera Series which can be applied.
Figure1.
Standard Method of Installation with
NEXPTZ camera Series
EXWJ400
NEXPTZ Camera
- 4 -

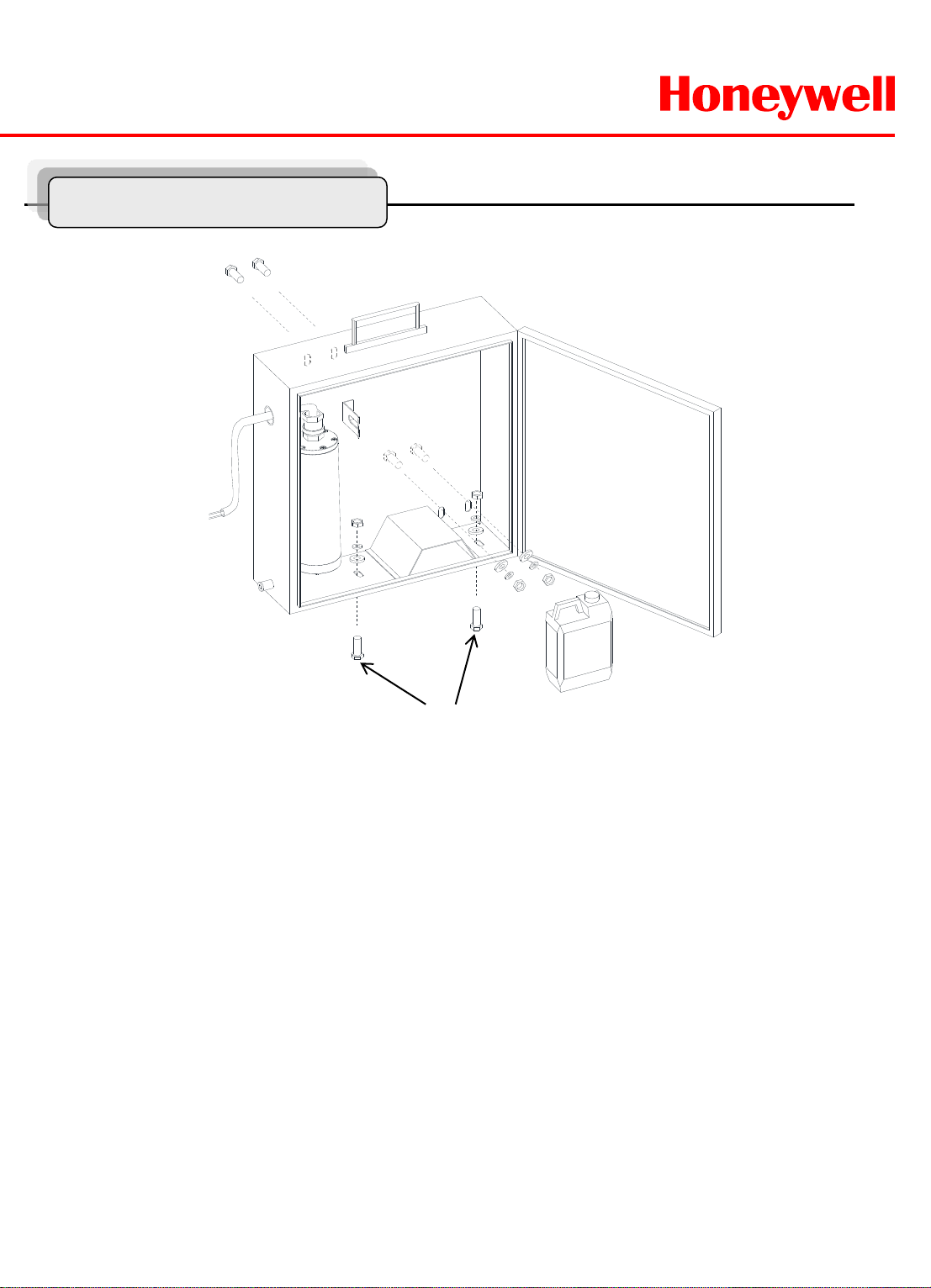

Standard Method of Installation
Figure2.
To install this system, please refer to Figure2 and do the following steps.
1. Fix this system with M8 x L30mm stainless steel bolts(①for installation on the wall or ②for installation on
the floor), Nuts and flat/Spring washers which are supplied.
* The install bolts location of ①can be selected as the install environment of up or down location.
2. ③Open the capacity of water tank and inject water* until 4L and fit to the case.
Methods of Installation
* The liquid shall be used an antifreeze to endure below zero temperature -20℃~ 0℃.
③
①
②
①
- 5 -

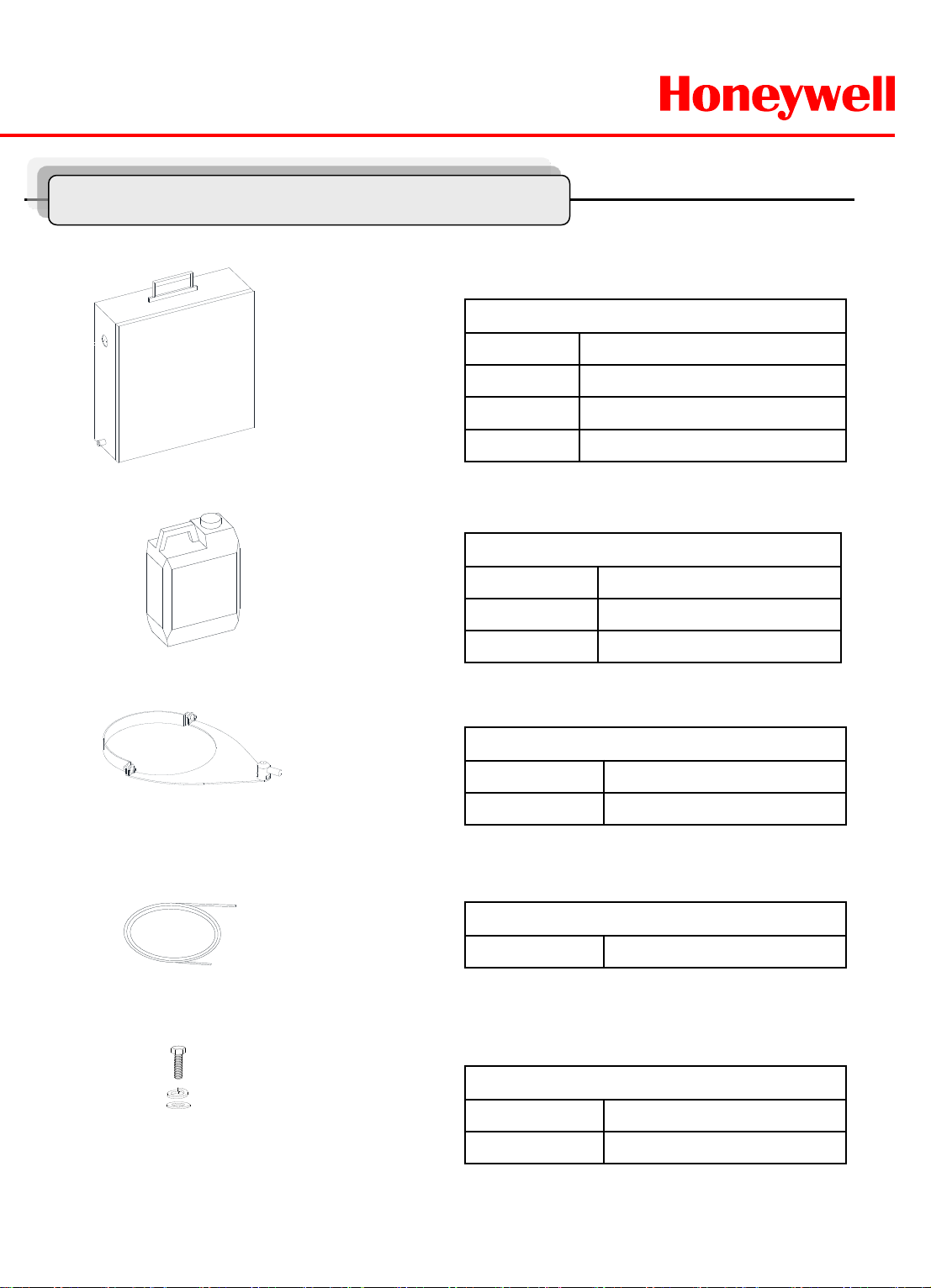

Components and Specification
a. Case
b. Washer tank
a. Water Jet Case
Water Jet Case
Material
SUS316
Thickness
1.2mm
Size
350(W) x 340(H) x120(D) (mm)
Weight
6.8kg
Washer Tank
Material
PE
Size
260(W)x 192(H) x106(D) (mm)
Water Capacity
4.0L
b . Washer Tank
c . Nozzle
Nozzle
Material
SUS316
Angle
Ø 1.0(Spread Aangle:0°)
c. Nozzle bracket
d. Tube
Tube
Size
Ø1/4”cm X 10m
d. Tube
e. Bolt/Nut/Washers
e. Tube
Bolts, Nuts, Washers
Size
M8mm X 30mm
Quantity
6EA
- 6 -

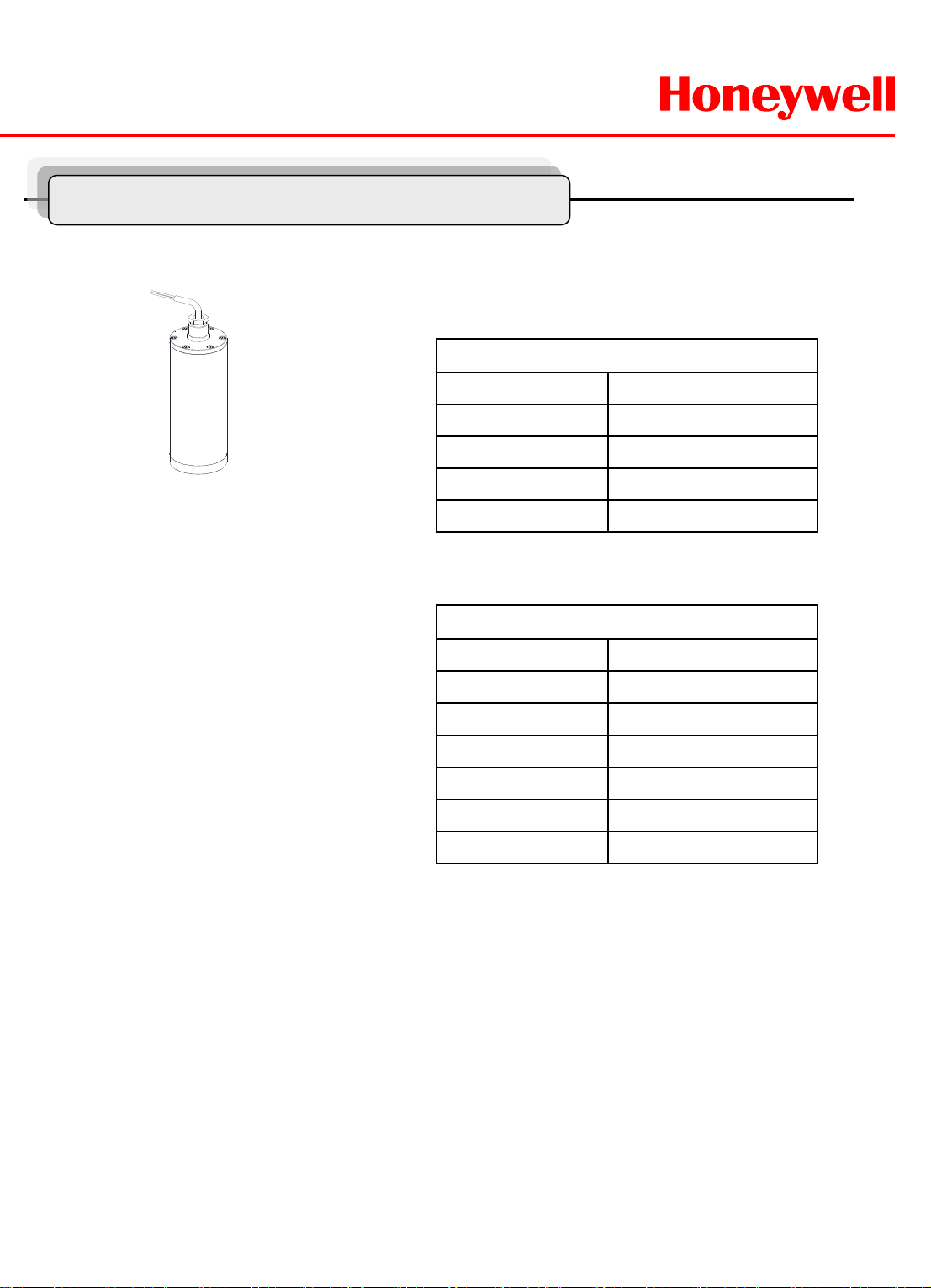

Components and Specification
<Key Feature>
•IECEx Grade Exd IIC T6 IP66.
•For use in variety of harsh and/or
hazardous environments, including marine
environment.
•Specialized for High Speed EXPTZ Series.
•Easy to installation.
•Easy to clean any dried dust on the glass.
f. Pump motor & housing
f. Pump Motor & Explosive proof Housing
Explosive proof Housing
Material
AL6061
Thickness
12mm
Size
Ø 65mm x 188 (L)
Weight
1.0kg
IECEx Grade
Exd IIC T6
IP Grade
IP66
Operating Temp
-20℃~ 60℃
* The liquid shall be used an antifreeze to endure below zero
temperature -20℃~ 0℃.
Pump Motor
Rated Voltage
DC12
Input
20W
Maximum Current
1.6A
Maximum Capacity
1.2 ℓ/min(20GPH)
Maximum Head
14 m
- 7 -
POWER
AC110 or 220V
BNC
MAIN MONITOR
DATA1 DATA2
+ - -+ + -
REAR
FRONT
KEYBOARD CONTROLLER
HTX-5000
REAR
DATA 2 DATA 1 DC 12V
RS 485
1 DOME 2
IN OUT DVR RS 232C
ALARM/DVR
DC 12V
SLAVE
RS 485 +
-(Alram out B)
COM
N/O
RS 485
DVR
Check Valve
Pump
Motor
+
GND
Input Power DC 12V
+
GND
NEXPTZ Series
EXWJ400

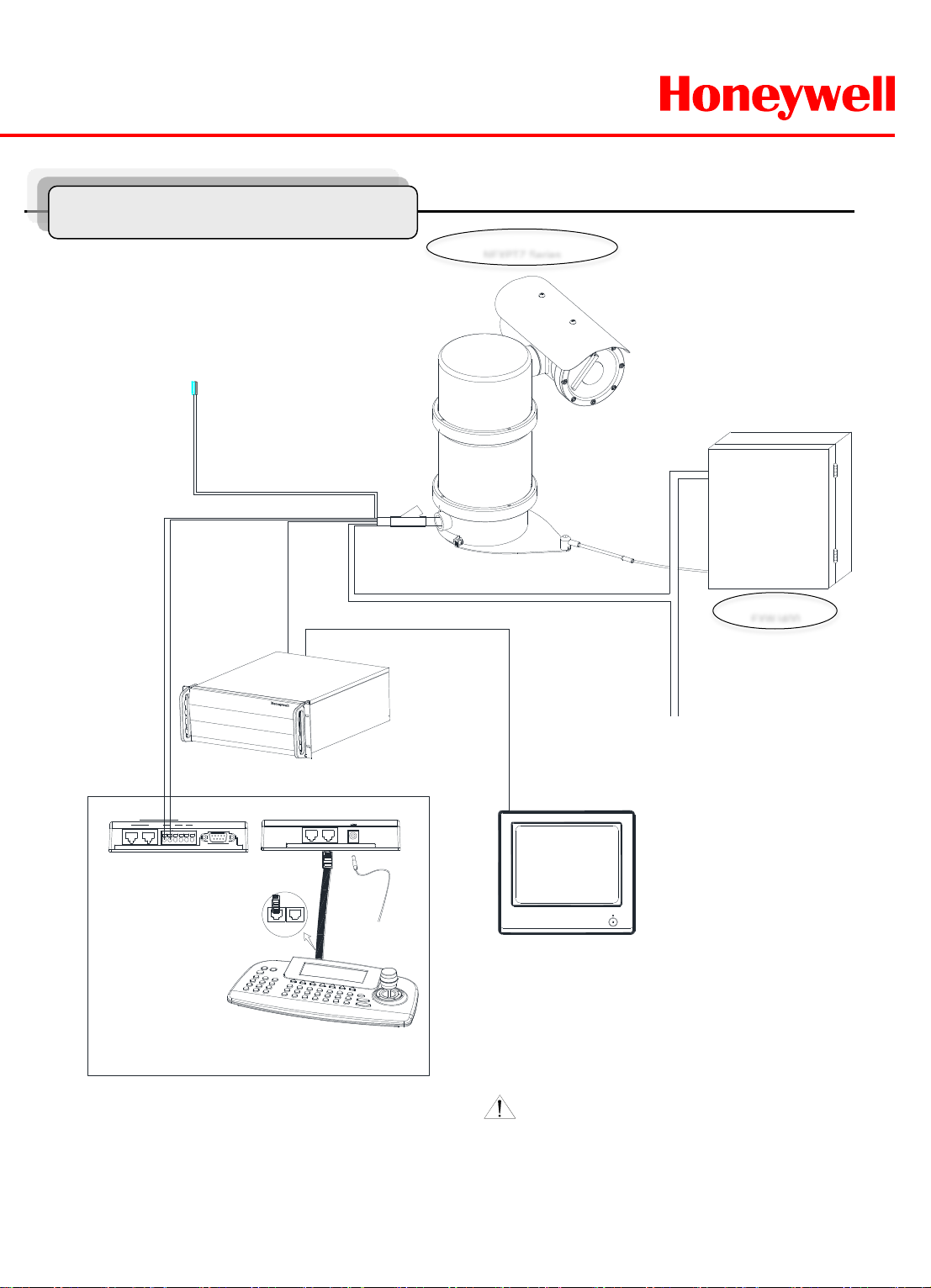

EXWJ400 Schematic
CAUTION
1) If EXWJ400 is applied to NEXPTZ, the alarm-out(B)
can’t be used.
2) It is recommended that the water-Jet tank should be
located on equal or lower (under 12m) level than the
nozzle location.
- 8 -

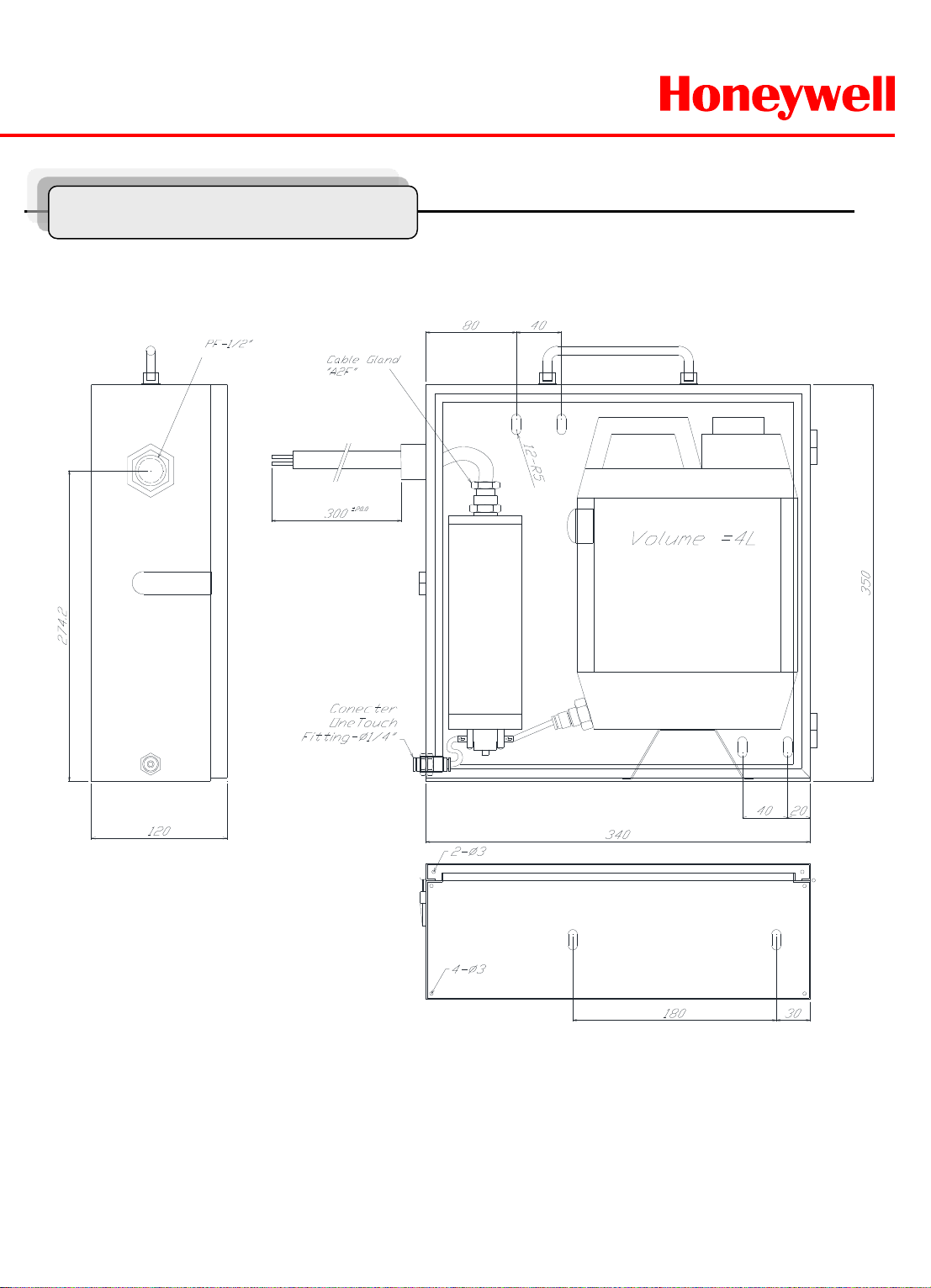

EXWJ400 Drawing
- 9 -
Water jet
①Set washing position
-.Move the window face to nozzle
by using pan/tile and save the
position on preset 59.
②Press and button.
(88+ Preset) at Pelco Protocol
- Set the specific position to wash
front window toward the nozzle on
preset 59.
-Run washing and wiping.
4
Check water level in
the tank
periodically.
Operating
[ Do following step to operate water jet function ]
1. Save the location of nozzle position (washing) on Preset 59.
* First of all, The NEXPTZ pan/tilt direction should be decided and saved that window glass of camera housing toward nozzle
of water jet on preset 59.
2. Push The [4+On] button on HTX-5000 Keyboard.
* Push the 88+preset button at Pelco protocol.
Result : 1) Pan/Tilt’s moving to nozzle position (location Preset 59 )
2) Auto-Stop after Spray water & Wiping ( 3 sec, 6 Wiping )
3) Pan/Tilt’s moving back to the previous position
Honeywell Security Group.
Honeywell Co., Ltd.
Address : 5F, Sangam IT Tower, B4 - 4block, 1590 Sangam-dong
Mapo-gu, Seoul 121-835, Republic of Korea
TEL : +82 2 799 6114 / 6395
FAX : +82 2 792 9011/ 799 6188
Printed in Korea
