Hoover Acenta Manuale utente

AACCEENNTTAA

ggeenneerraattiioonnffuuttuurree

English GB

Italiano IT

Français FR

Deutsch DE

Español ES

 GR

Vlaams/Nederlands

BE/NL

ČESKY CZ

Slovenski SL

uusseerriinnssttrruuccttiioonnss

acenta_final.qxd 22/2/05 12:27 PM Page 1

a) b)

acenta_final.qxd 22/2/05 12:27 PM Page 2

acenta_final.qxd 22/2/05 12:27 PM Page 3

7* 8*

acenta_final.qxd 22/2/05 12:27 PM Page 4

9* 10

acenta_final.qxd 22/2/05 12:27 PM Page 5

acenta_final.qxd 22/2/05 12:27 PM Page 6

This product must be assembled and

operated in accordance with these

instructions and used only for domestic

cleaning to remove dry dirt and dust

from household carpets and flooring.

The accessory kit can be used to remove

dirt and dust from furniture and fabrics.

ELECTRICAL

REQUIREMENTS

WARNING! ELECTRICITY CAN BE

EXTREMELY DANGEROUS.

This appliance is double insulated and

must not be earthed.

IMPORTANT: The wires in the mains lead

are coloured in accordance with the

following code:

• Blue – Neutral

• Brown – Live

SAFETY REMINDERS

User´s manual. This cleaner should only

be used for its intended

purpose as described in these

instructions. Ensure that these are fully

understood before operating this

appliance.

Replace the paper bag or clean the

EcoBox™ frequently when picking up

material such as powder or fine dust or

when cleaning new carpets.

DO NOT use your cleaner out of doors or

on any wet surface or for wet

pickup.

DO NOT pick up hard or sharp objects,

matches, hot ashes, cigarette ends or

other similar items.

PLEASE READ THESE

INSTRUCTIONS THOROUGHLY

Static electricity. Some carpets can

cause a small build up of static

electricity. Any static discharge is

not hazardous to health.

Only use attachments

recommended or supplied by

Hoover.

DO NOT pick up flammable liquids

such as cleaning fluids, petrol, etc.,

or their vapours.

Aerosol sprays may be flammable.

DO NOT spray near the cleaner.

Supply cord. DO NOT remove the

plug by pulling on the supply cord.

If the supply cord/plug is damaged,

the cleaner must be repaired by an

authorised HOOVER Service

Engineer to avoid a safety hazard.

Faults. DO NOT continue to use

your cleaner if it appears to be

faulty or the supply cord is

damaged.

After use. Switch the cleaner off

and remove the plug from the

electricity supply. Always switch off

and remove the plug before

cleaning the appliance or

attempting any maintenance work.

Hoover Service. To ensure the

continued safe and efficient

operation of this appliance, we

recommend that any servicing or

repairs are only carried out by an

authorised HOOVER Service

Engineer.

acenta_final.qxd 22/2/05 12:27 PM Page 7

HANDLE ASSEMBLY (1)

The handle must be assembled to the

cleaner before use, unless being used

with the shoulder strap - see (6).

1. Remove hand-screw from handle.

2. Slide handle over top of cleaner.

3. Tighten hand-screw.

CORD STORAGE (2)

a) Wind cord around hooks.

Secure cord with integrated clip.

b) Undo integrated clip.

Turn both hooks inwards as shown

to release cord.

ACCESSORIES (3)*

a) Shoulder strap *

b) Flexible hose *

c) Extension tube

d) Furniture nozzle

e) Crevice tool

f) Dusting brush *

NOZZLES (3)*

g) Carpet & Floor nozzle: press pedal to

bring brushes in contact with hard

floor.

h) Delicate Floor nozzle*: for wooden

floors and all delicate floors.

i) Turbonozzle*: especially for carpets.

l) Electric Power nozzle*: for deep

cleaning of large areas of carpet.

CONTROLS (4)*

a) ON / OFF switch

Push to switch on.

Push again to switch off.

b) Power control*

Slide to the right to increase.

Slide to the left to decrease.

POWER NOZZLE (5)*

When using Electric Power nozzle*

insert nozzle electric plug into socket on

back of cleaner (behind control panel).

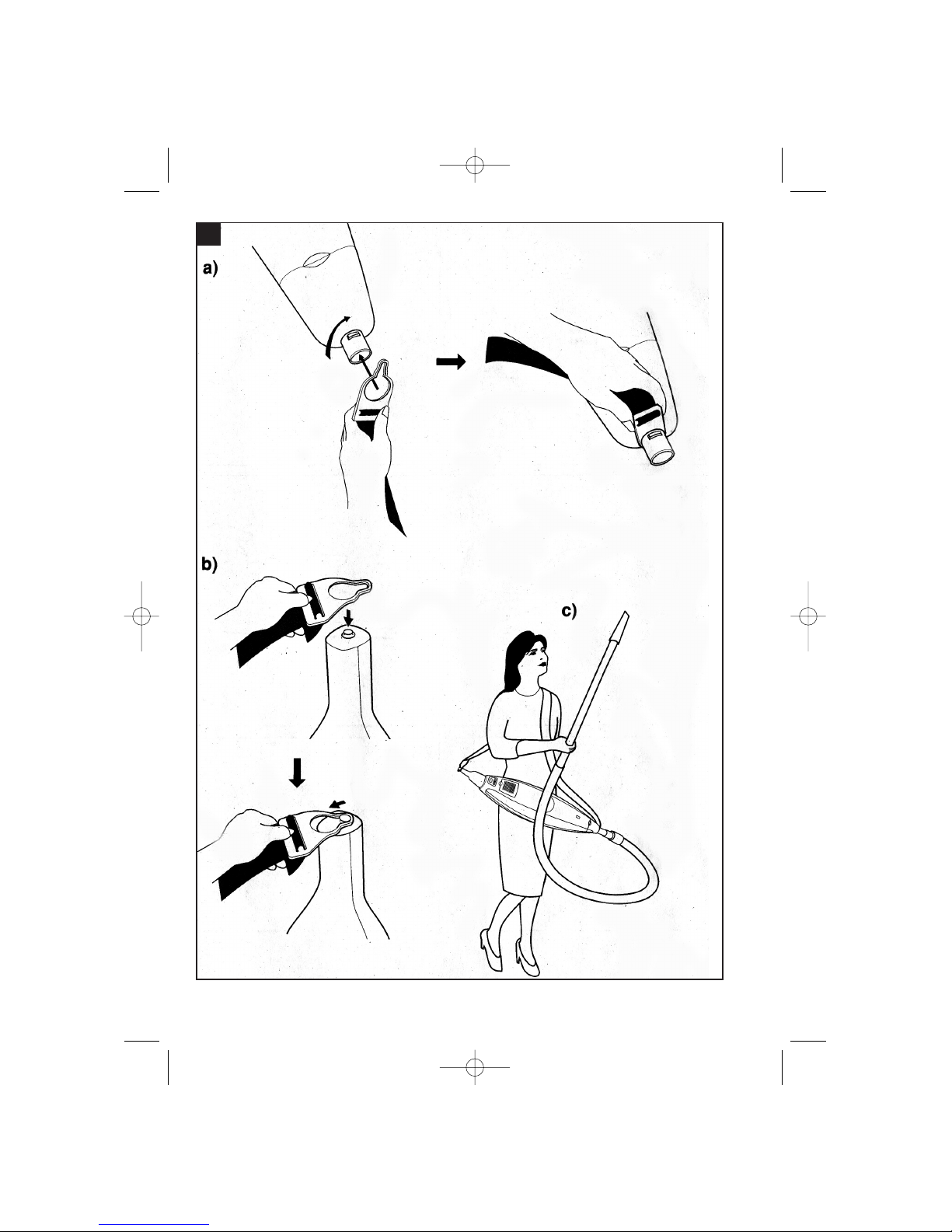

SHOULDER STRAP (6)*

a) With nozzle removed, slide one end

of shoulder strap over tube at base

of cleaner. Slide the strap end past

the locking tab and rotate as shown.

Refit with accessories depending on

use.

b) With main handle removed - see (1)

clip other end of the shoulder strap

to top of stub handle.

c) Carry the cleaner over the shoulder

as shown.

* Feature varies according to model

acenta_final.qxd 22/2/05 12:27 PM Page 8

CHANGING THE EXHAUST

FILTER (11)

a) Lift off filter cover.

b) Peel off filter.

c) Fit new filter and replace cover.

EMPTYING THE EcoBox™

(8)*(9)*

The EcoBox™ check indicator will show

red when the EcoBox™ needs emptying.

For true EcoBox™ check indication the

power control must be set to maximum

(fully to the right).

To empty the EcoBox™:

1. Remove bag door.

2. Lift EcoBox™ out of cleaner.

3. Open and empty EcoBox™.

4. Re-assemble EcoBox™.

5. Replace assembled EcoBox™ in

cleaner (reverse of 2).

6. Locate tabs on bag door. Close bag

door.

DO NOT use the cleaner without

EcoBox™ in place.

ECOBOX™ FILTER

MAINTENANCE

The pre-motor and the exhaust filter

should be washed every month. Please

refer to your user manual to find how to

access the filters.

To maintain best performance please

follow these simple steps:

1. Rinse both filters under hand warm

water do not scrub the filters.

2. Remove excess water with a dry

cloth and leave to air dry for 24

hours or until fully dry.

After completing the washing operations,

return the EcoBox™ and filters to their

original positions in the cleaner.

* Feature varies according to model

CHANGING THE PAPER

BAG (7)*

The bag check indicator will show red

when the bag needs replacing.

For true bag check indication the power

control* must be set to maximum (fully

to the right).

DO NOT overfill the bag.

To change the bag:

1. Lay the cleaner on a flat surface.

2. Remove bag door.

3. Remove bag by pulling bag collar

from hose inlet using tab as shown.

The bag will self-seal.

4. Fit new bag by first folding back the

bag corners and sealing flap as

shown.

5. Locate bag collar in front of tabs in

bag housing as shown, then push

collar over hose inlet until it `clicks´

into place.

6. Locate tabs on bag door as shown

and close bag door.

DO NOT use cleaner without bag in

place.

Hoover recommend that

new filters are fitted

after five full bags have

been removed.

CHANGING THE

pre-motor FILTER (10)

With paper bag removed lift the filter

from the bag housing.

Fit the new filter and replace the paper

bag.

IMPORTANT: Switch cleaner

off and remove plug from

electricity supply before

changing paper bag, emptying

the EcoBox™ or removing

any filters.

acenta_final.qxd 22/2/05 12:27 PM Page 9
