Hoover HECH 616 X Manuale utente

Cooker hood

Instruction Manual

HECH 616 X

HECH 916 X

CONTENT

1……………………………………….……….Notice

2………….…………………………………….Feature

3……………….……………………………….Installation

4…………………….………………………….Notice of installation

5………………………….…………………….Safety Warning

6……………………………….……………….Use

7…………………………………….…….……Maintenance

8…………………………………..…………... Troubleshooting

9…………………………………..…….......... Service Centre

(1) NOTICE

1. Thank you for choosing our cooker hood. Please read the

instruction manual carefully before use.

2. The installation work must be undertaken by a qualified and

competent fitter.

3. The manufacturer disclaims all liability for any damage or injury

caused as a result of not following instructions for installation

contained in the following text.

The cooker hood is used on 220/240v, 50Hz.

(2) FEATURE

1. The cooker hood uses high quality materials, and is made with a

streamlined design.

2. Equipped with a large power low noise electric motor and

centrifugal leaf, it produces strong suction, low noise, non stick

grease filter and easy to clean.

3. Special wind tunnel construction and oil collector design, free dirt

will be absorbed in a second.

(3) INSTALLATION

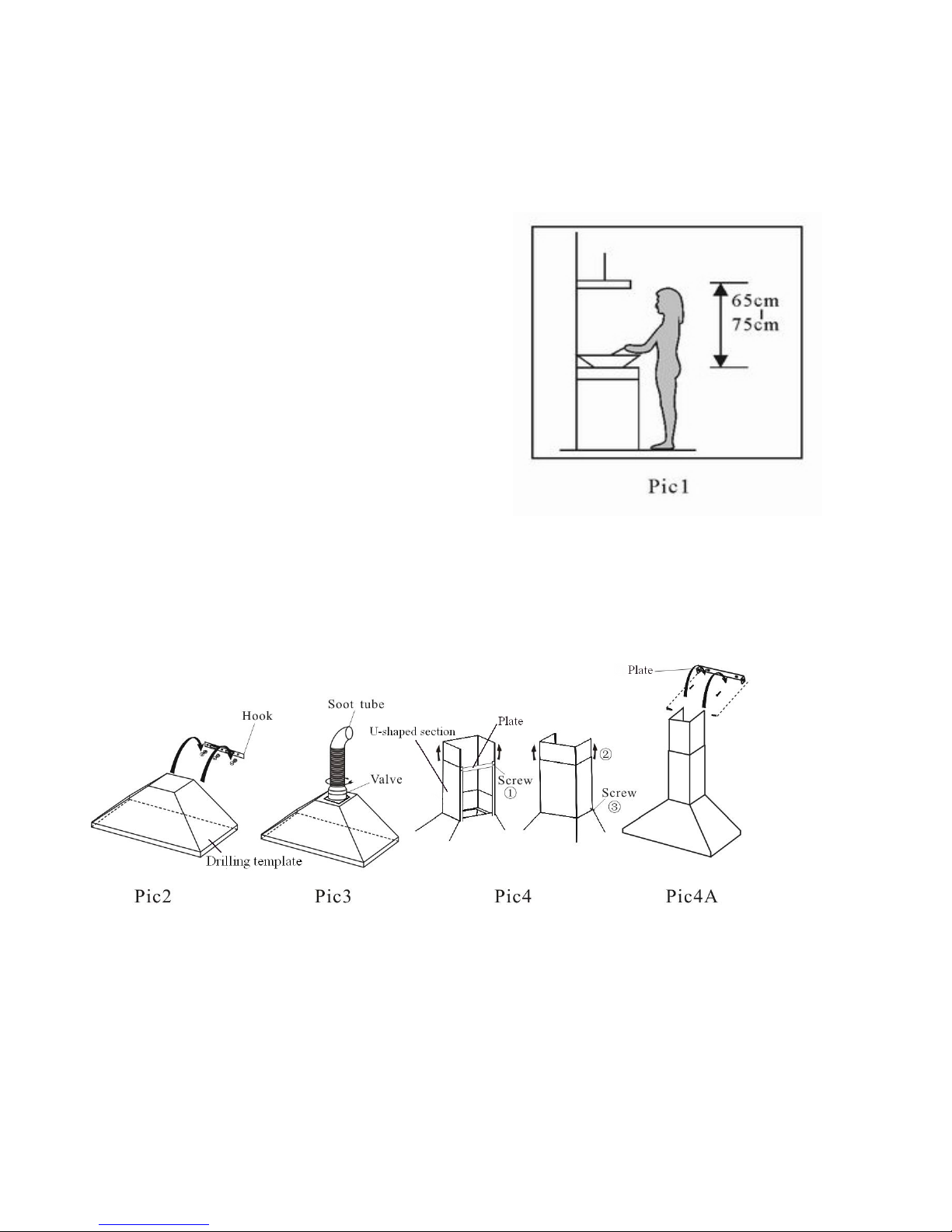

3.1 The cooker hoods should be placed

at a distance of 65-75cm from the

cooking surface for best effect. See

pic1.

3.2 To install onto the wall every 100mm

drill 3 holes of Ø8mm on a suitable

place in line with the hook on the hood.

3.3 Insert expended screws into the

holes.

3.4 Fix the hook on the wall, put Drilling

template on the hook. See pic2.

3.5 Add the soot tube to the one way

valve, and put it outdoor. See pic3.

3.6 Calculate the final height of the U-shaped section, pull out the inside U-

shaped section to a suitable height. (See pic4). Finally, drill 2 holes of

Ø8mm on a suitable place in line with the 2nd plate. Repeat 3.3. Put the

inside U-shaped on the 2nd plate and tighten the two screws (see pic4A).

(4)

NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean to avoid

suction of the remaining bits of broken wood and dust.

2. It cannot share the same air ventilation tube with other appliance

such as gas tube, warmer tube, and hot wind tube.

3. The bending of ventilation tube should be≥120°, parallel or above

the start point and should be connected to the external wall.

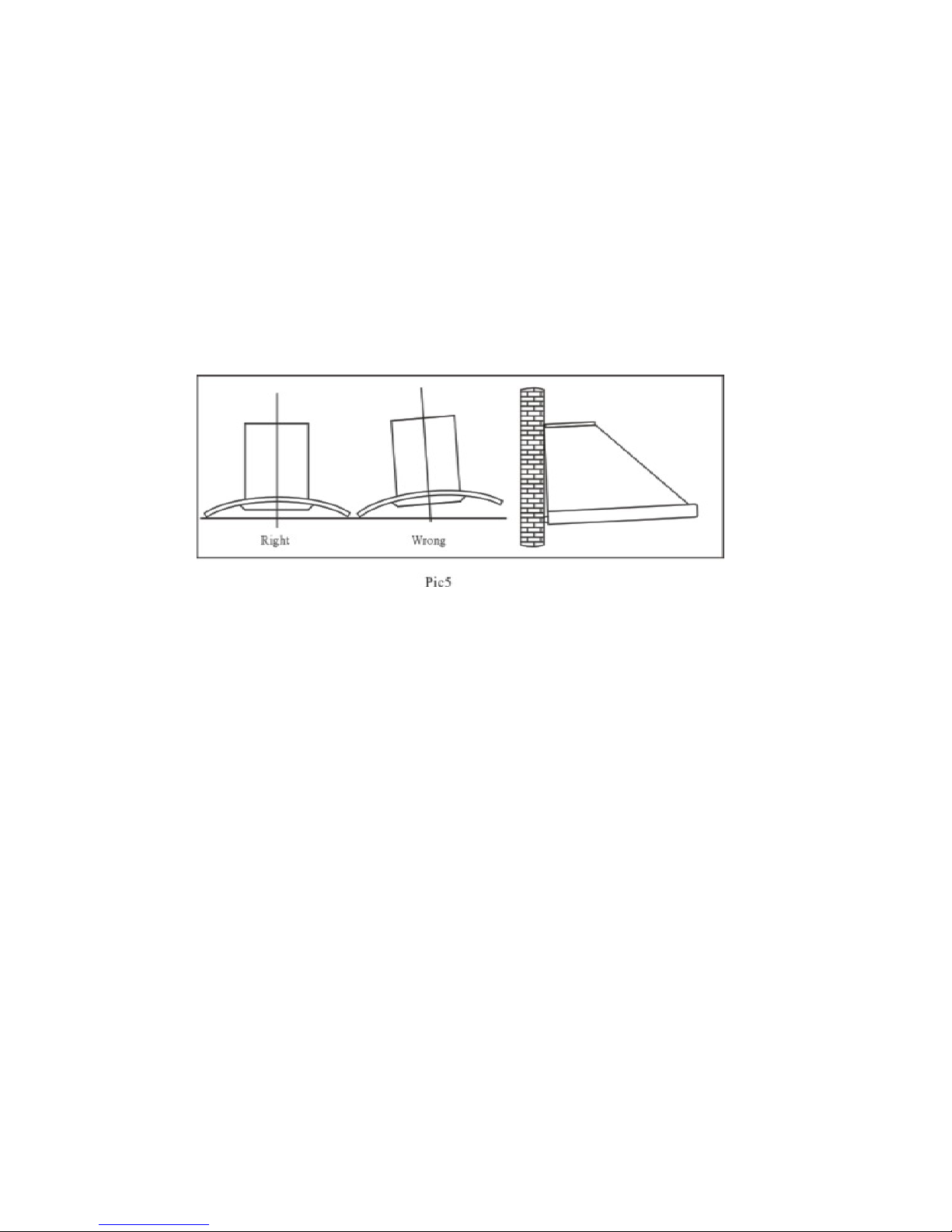

4. After installation, make sure that the extractor is level to avoid

grease collection at one end.

(5) SAFETY WARNING

•Never let the children operate the machine

•The cooker hood is for home use only, not suitable for barbecue,

Roast shop and other commercial purpose.

•Please ask the technical person to do the assembling.

•The cooker hood and its filter mesh should be clean regularly in

order to keep in good working order.

•Before cleaning, please switch the power off at the main supply.

•Clean the cooker hood according to the instruction manual and

keep the cooker hood from the danger of burning.

•If there is any fault with the appliance, please call the service

department to arrange a service engineer.

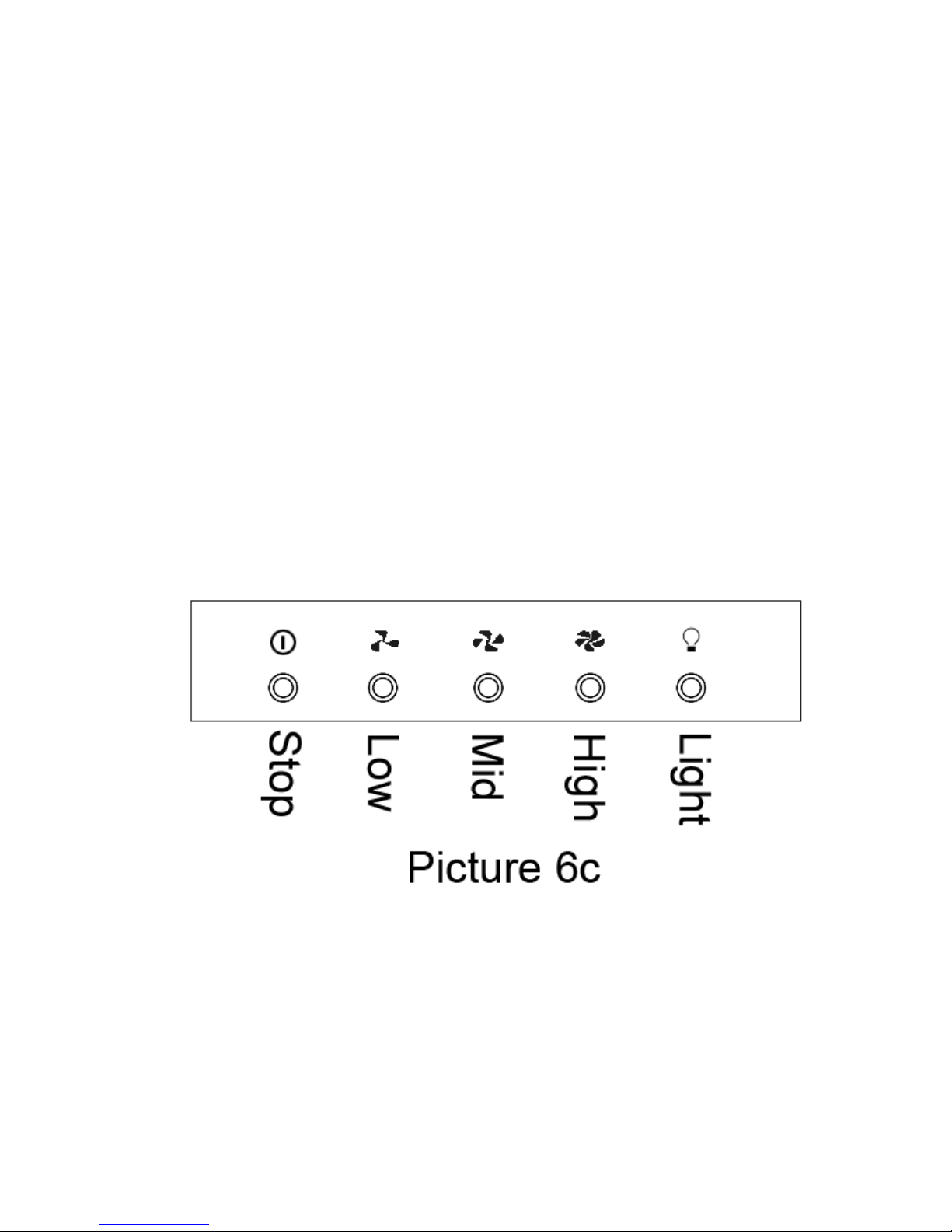

(6) USE – (Speed adjustment. See pictures)

Push button

1. Push stop button, and the motor will stop.

2. Push the Low button, the buzzer will buzz once, and the motor runs

at low speed.

3. Push the Mid button, the buzzer will buzz once, and the motor runs

at mid speed.

4. Push the High button, the buzzer will buzz once, and the motor runs

at high speed.

5. Push the light button and the two lights will come on. Push it again

and the light will turn off.

(7) MAINTENANCE

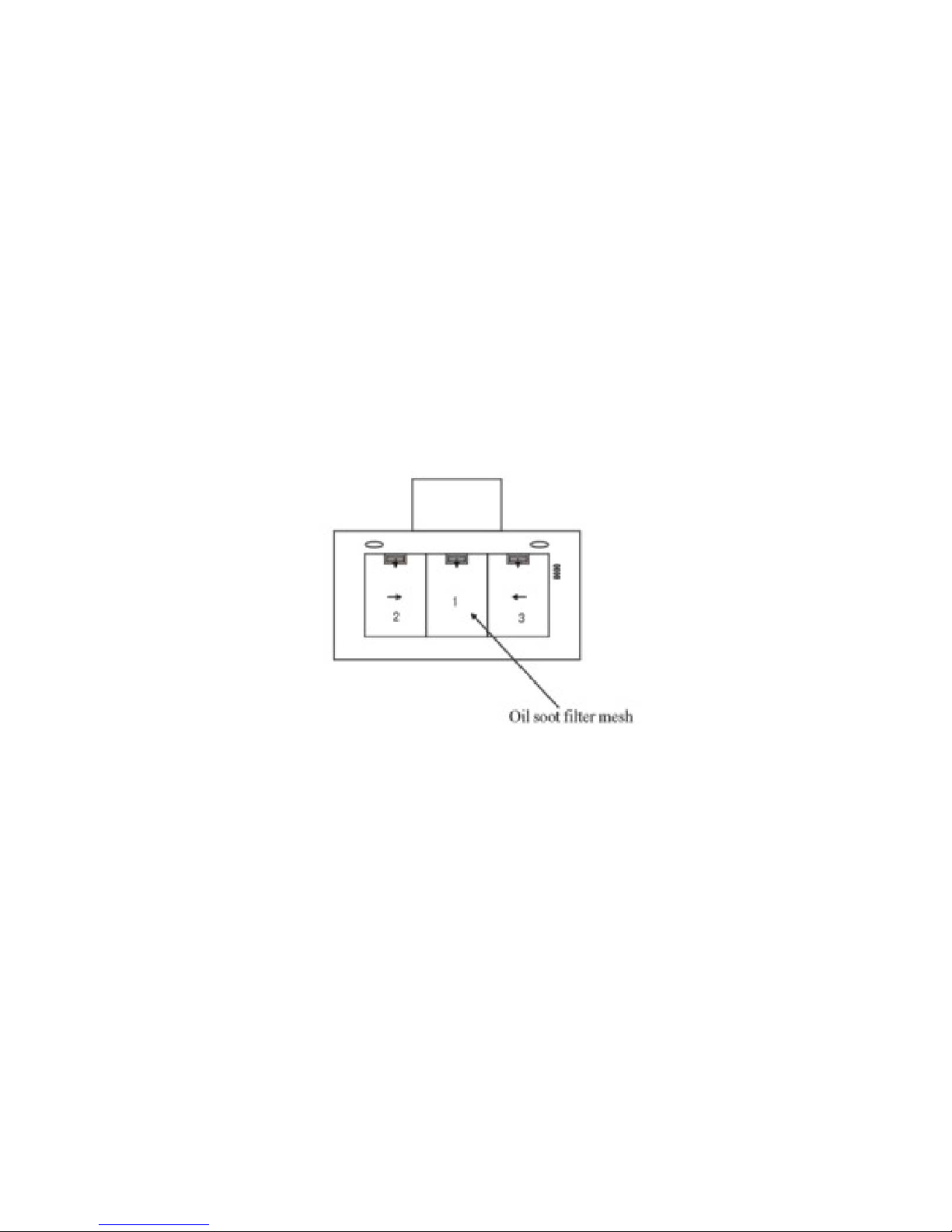

7.1 The cleaning of the carbon grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not

use the corrosive detergent on it. Keeping this filter clean will keep the

appliance running correctly. Please strictly follow the guidelines below.

Method 1: Put the mesh into 40-50 c clean water, pour on detergent,

and soak for 2-3 mins. Wear gloves and clean with a soft brush.

Please do not apply too much pressure, as the mesh is delicate and

will damage easy.

Method 2: If instructed to do so, it can be put into a dishwasher, set the

temperature at around 60 degrees.

7.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period of

time, the cooker hood should be cleaned with hot water plus non

corrosive detergent every two months.

B. Please do not use abrasive detergent for it will damage the body.

C. Keep the motor and other spare parts free from water, as this will

cause damage to the appliance.

D. Before cleaning the appliance please remember to cut off power

E. The carbon filter shouldn’t be exposed to heat.

F. Please don’t tear open the fixed bar around the carbon filter

G. If the plug or cord is damaged, please replace it with special soft

cord.

(8) TROUBLESHOOTING

Fault Cause Solution

The leaf blocked Get rid of the

blocking

The capacitor damaged Replace capacitor

The motor jammed bearing

damaged

Replace motor

Light on, but motor

does not work

The internal with of motor off

or a bad smell from the motor

Replace motor

Beside the above mentioned, check the following:

Light damaged Replace lights

Light does not

work, motor does

not work Power cord looses Connect the wires as

per the electric

diagram

One way valve and the air

ventilation entrance are

not tightly sealed

Take down the one

way valve and seal

with glue

Oil leakage

Leakage from the

connection of U-shaped

section and cover

Take U-shaped section

down and seal with

soap or paint

The leaf damaged and

causes shaking

Replace the leaf

The motor is not tightly

hanged

Lock the motor tightly

Shake of the body

The body is not tightly

hanged

Fixed the body tightly

The distance between the

body and the gas top too

long

Readjust the distanceInsufficient suction

Too much ventilation from

open doors or windows

Choose a new place

and resemble the

machine

The fixing screw not tight

enough

Tighten the hanging

screw and make it

horizontal

The machine

inclines

The hanging screw not

tight enough

Tighten the hanging

screw and make it

horizontal

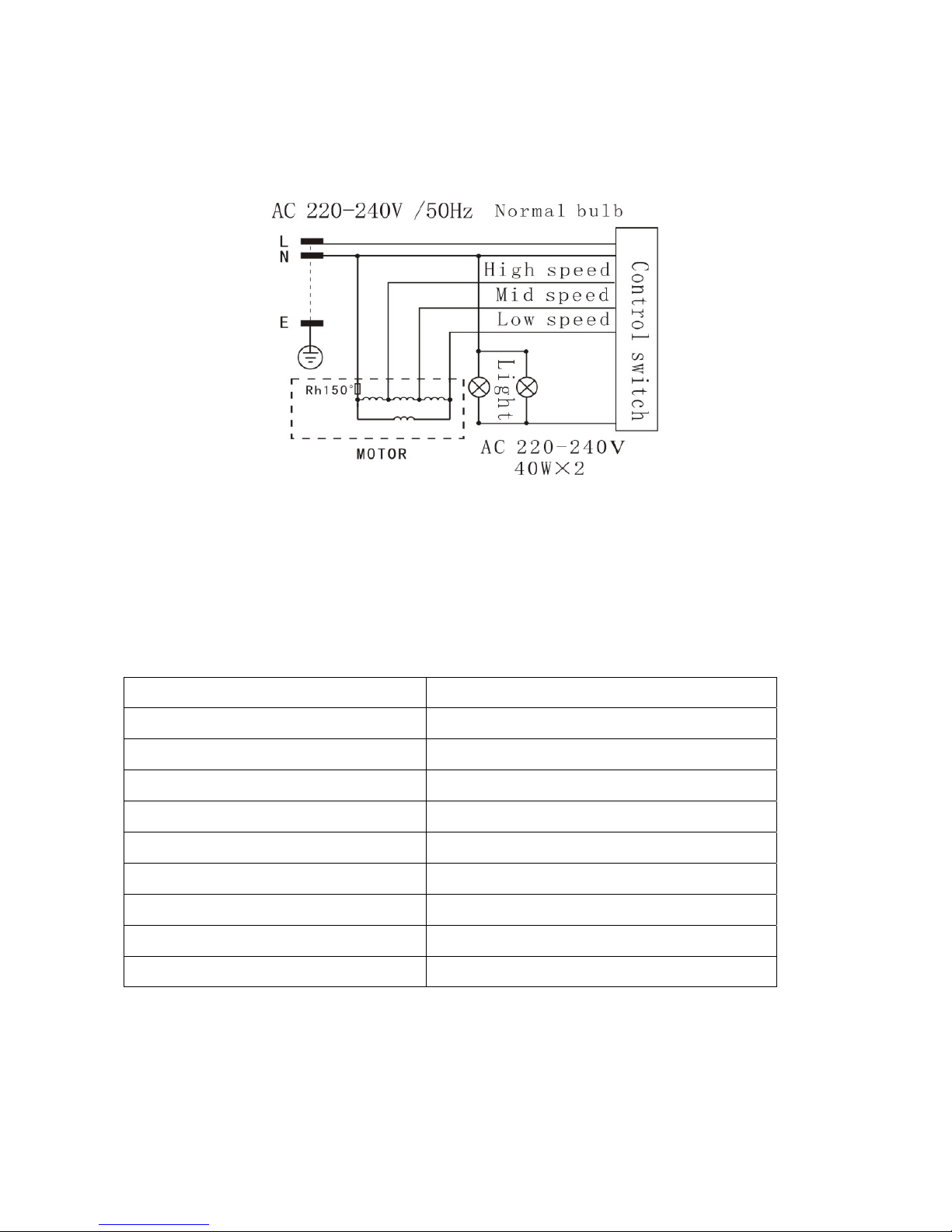

Electrical Diagram

Main Parameters

Rated Input 220V-240V, 50Hz

Rated Power 220W

Lighting Power 40W X 2

Motor Power 140W

Drive Mode Single Motor

Speed Speed I Speed II Speed III

Air tube diameter 150MM

Air output ≥6.6m3/min

Air pressure ≥250Pa

Noise ≤64Db(A)

(9) SERVICE CENTRE

Before calling the Service Centre

If the hood is not working, we recommend that:

- you check the troubleshooting on chapter 8.

- you check that the cooker hood is properly plugged into the power

supply

If the cause of the fault cannot be detected:

disconnect the hood from the mains, do not touch the hood and call

the after sales service.

Before calling the Service Centre remember to make a note of the

serial number on the serial number specifications plate

The hood is supplied with a guarantee certificate that ensures that it

will be repaired free of charge at the Service Centre.

This appliance is marked according to the European

directive 2002/96/EC on Waste Electrical and Electronic

Equipment (WEEE).

By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be

treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic

equipment

Disposal must be carried out in accordance with local environmental

regulations for waste disposal.

For more detailed information about treatment, recovery and recycling

of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.
