EK3 User Manual
Welcome to join HORWIN family! We will guide you to understand
every function of EK3 electric motorcycle and use EK3 electric
motorcycle correctly and safely. To ensure your safety, please read
this manual carefully before riding and ensure that you always comply
with the following requirements:
Fully understand information in this manual, including but not limited
to relevant instructions, precautions and warning information.
Fully understand the operation and emergency measures for EK3
electric motorcycle.
Pay attention to warning labels of EK3 electric motorcycle.
HORWIN will not assume any responsibility arising from
unauthorized modification, failure to use original accessories, or
installation of components that affect the performance and safety of
the motorcycle.
Please contact HORWIN Customer Service Center at Email:
Should you have any problem on this motorcycle. we will always at
your service. Wish you a safe and happy journey!
2
Safety Instructions
Please read this product manual carefully, and please do not use this
product until you have known the characteristics of the electric
two-wheeled motorcycle.
Please abide by traffic rules, do not retrograde or run red lights and do
not use mobile phone while riding the motorcycle.
Please don't use third-party accessories or disassemble, crack and
modify the motorcycle without authorization, otherwise the losses
arising therefrom will be borne by you, and you will lose the right to
enjoy our warranty service.
Due to the continuous improvement of the product, the vehicle you
purchased may be slightly different from the vehicle described in this
manual, and the actual motorcycle shall prevail. If you are unclear
about the use, repair and installation of this vehicle, please contact our
dealer.
For the safety of you and others, please read the following
instructions carefully:
The rider should abide by traffic rules and pay attention to the traffic
safety.
Before riding the motorcycle, please carefully read the Product
Manual and carefully check whether all parts are in good condition, so
as to guarantee the traffic safety. If any problems are found, please
contact the dealer in time.
To ensure your safety, please wear safety helmet, gloves and other
protective equipment when driving motorcycles. Please don't wear
loose clothes, otherwise you will be uncomfortable and unsafe when
driving the motorcycle.
3
Please make sure that you are in good health and not tired, so that you
can control the vehicle in a good state. Please don't ride the
motorcycle after taking drugs, medicines and drinking alcohol.
This motorcycle can resist rain and snow, but can't excessively wade
into the water. When the water level exceeds 20 cm, if the motorcycle
wades into water, all electrical components and lines may be
short-circuited!
Please obey the traffic rules, and slow down the electric motorcycle
when the weather is rainy or snowy or the road is slippery. When
braking the motorcycle, the braking distance should be increased to
ensure safety.
Please do not disassemble the components and parts by yourself.
Do not park the electric motorcycle on the hall, escape stair,
passageway or safety exit;
Please do not charge or park the electric motorcycle in the residential
building. When charging an electric motorcycle, the electric
motorcycle should be kept away from combustibles and the charging
time should not be too long.
Product Overview
Thank you for purchasing the EK3 electric two-wheeled motorcycle,
which is hereinafter referred to as EK3.
Schematic Diagram of Body and Components:
4
Description of Parts
Left Side
①Headlamp ②Rearview mirror ③Left combination switch
④Saddle ⑤Tail lamp ⑥Rear fender ⑦Middle stand
⑧Side stand ⑨Front fender ⑩Front shock absorber
⑪Storage box (inbuilt USB)
5
Right Side
①Throttle ②Right combination switch ③Ignition lock
④Steering lamp ⑤Footboard ⑥Rear shock absorber
⑦Rear armrest ⑧Reflector ⑨Rear fork decorative cover
Instrument and Combination Switch
6
1. Left turn signal
Turn on the left turn signal lamp, the indicator flashes.
2. Right turn signal
Turn on the right turn signal lamp, the indicator flashes.
3. Current display bar
Display the current real-time current of the controller.
4. Speed per hour
Display current speed.
5. Parking light
Indicates that the vehicle has entered a state ready to ride. Rotate the
speed control handle to move the vehicle forward.
6. Gear display
Display the current gear
The top speed in the first gear is 45KM/H
The top speed in the second gear is 75KM/H
The top speed in the third gear is 95KM/H
7. Low battery indicator
When the power is less than 20%, the indicator lights up
7
8. OBD icon
When a fault occurs, this icon will light up
9. Single mileage
Display the single mileage
10. Total mileage
Display the total mileage
11. Battery Indicator
Display the current battery status in percentage,up to 100%.
12. High beam
The indicator will light up when the high beam is turned on.
13. Double flashing indicator
Press the double-flash switch, then the left and right turn signals will
light up and the icon will light up.
14. Cruise Control
The vehicle keeps running at the current speed. After pressing the
cruise control button or accelerating/braking the motorcycle, the
cruise control state can be released.
8
15. Reverse Display
Press and hold the reverse button, the vehicle enters reverse mode. Th
en turn the throttle, the vehicle goes backward.
16. Sliding Screen
When the distance between the electronic key and the vehicle is less
than 1.2 meters, swipe the screen to the right, start the motorcycle,
swipe the screen to the left and stop the motorcycle.

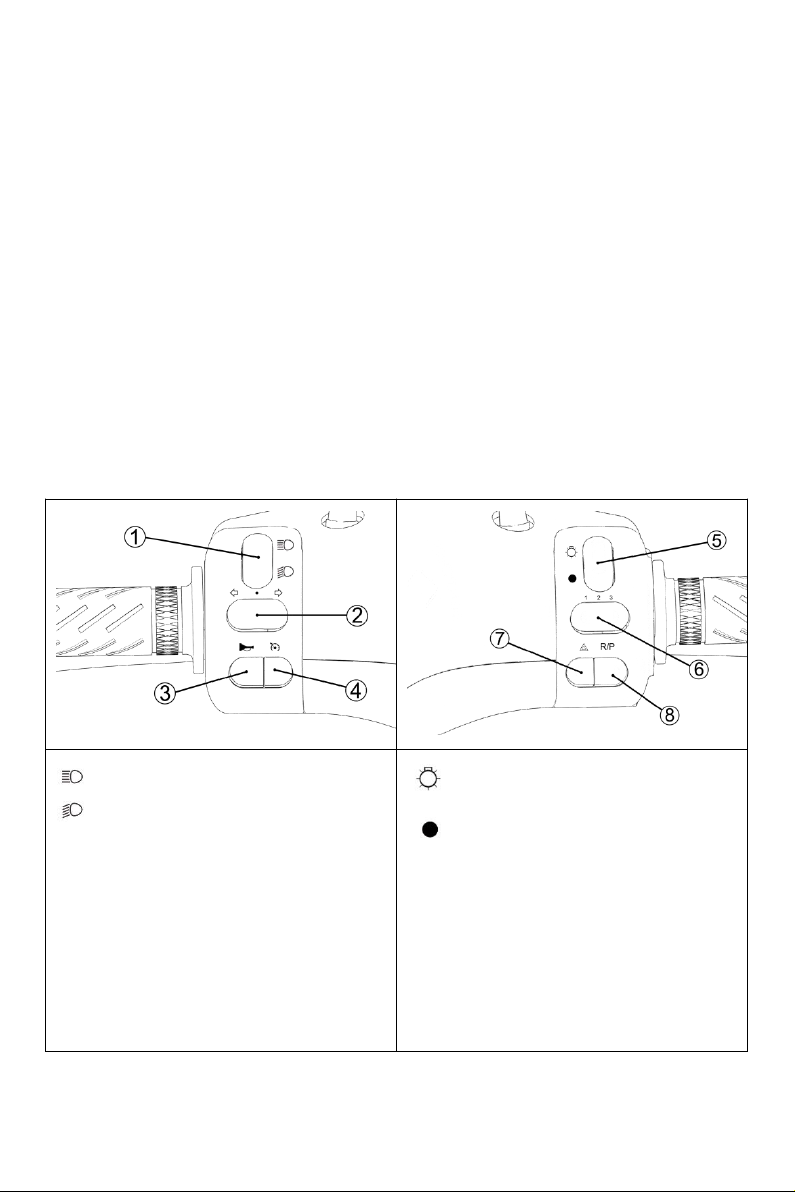

Schematic Diagram of Combination Switch
Left hand combination
switch
①High/low beam
Turn the switch upward, the light
is high beam; Turn the switch
downward, the light is low beam
Right hand combination
switch
⑤Motorcycle lamp switch
Turn the button to the lower side,
all the lamps are turned off
Turn the button to the upper side,
the headlamp is turned on.
9
②Steering lamp
Turn the switch to the left to turn
on the left turn signal;
Turn the switch to the left to turn
on the left turn signal;
Turn the switch to the middle
position to reset the switch, and
turn off the left/right turn signal.
⑥Gear mode
Press the left, middle and right
buttons to adjust the gear
③Horn
After pressing the horn button,
the horn rings; after releasing the
horn button, the horn stops
ringing.
⑦Warning Lamp(double
flash)
Press the button, then the left and
right turn signals flash
④Cruise Control
Press the button to keep the
motorcycle running at the current
speed
To release this state, press this
button again or accelerate/brake
the motorcycle.
⑧Start\ reverse switch
Click the button to enter the
Ready state
Press the button to enter the
reverse mode, and release the
button to enter the forward mode
