7

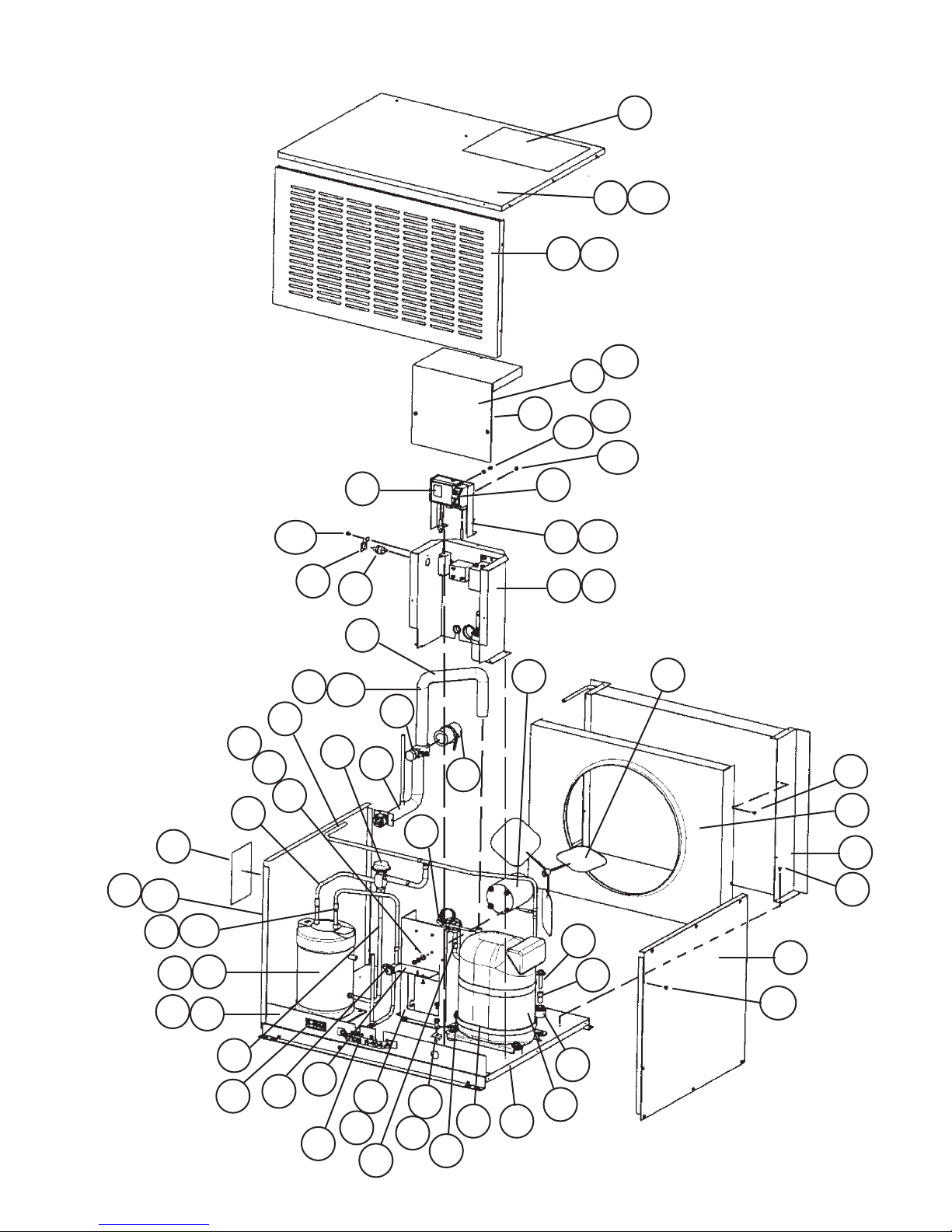

Title: A. Condensing Unit Model: SRC-10H
Index
No. Description
Material or
Model Number Part Number
Required Number
P-0
B Control Box Assembly 2A3332A01 1
B1 T2 Screw 4×8 SS 7P32-0408 4
1 Unit Base 2A3167G01 1
2 Front Frame 3A3181-01 1
2a T2 Screw 4×8 SS 7P32-0408 3
3 Condenser (URC-7F) 2A1613-01 1
3a T2 Screw 4×8 SS 7P32-0408 2
4 Shroud GS 2A1603-01 1
4a T2 Screw 4×8 SS 7P32-0408 4
5 Compressor RS80C2E-
CAV-219
4A3494-01 1
5a Grommet 027-0073-00 434403-01 4
5b Spacer 027-0072-02 434404-01 4
5c Bolt Assembly 8×45 437889-01 4
6 Crankcase Heater 018-0038-00 434186-01 1
7 Receiver Tank #6813 RR MN 437652-01 1
7a T2 Screw 4×8 SS 7P32-0408 3
8 Fan Motor Bracket GS 3A1443-01 1
8a Hex Head Bolt w/ Washer (LF) 5×12 SS 7B0230512 4
9 Fan Motor 63 Watt GEHI
5KCP84DFK156S 4A3201-01 1
9a Flat Washer M8 SS
No. 8-32 UNC
7W22-0800 4
9b Split Lock Washer SS
No. 8-32 UNC
7L22I0832 4
9c Hex Nut SS
No. 8-32 UNC
7N22I0832 4
10 Fan Blade T03Y14-1429
31CWD
4A1493-01 1
11 C.P. Regulator Y1093-LAC-
4-210
4A0229-03 1
12 Copper Tube (A)-Low Side 3A3178G01 1
12a T2 Screw 4×8 SS 7P32-0408 4
13 Insulation Tubing L=470 mm
5/8×1/4
7762-1630 1
14 Insulation Tubing L=280 mm
5/8×1/4
7762-1630 1
15 Insulation Tubing L=75 mm
Split
1 1/8×3/8
7762-2943 1
16 Copper Tube (A)-High Side 2A3160G01 1
17 Copper Tube (B)-High Side 3A3176G01 1
17a T2 Screw 4×8 SS 7P32-0408 4
18 Copper Tube (C)-High Side 3A3174-01 1
19 Copper Tube (D)-High Side 3A3173-01 1
Title: A. Condensing Unit Model: SRC-10H
Index
No. Description
Material or
Model Number Part Number
Required Number
P-0

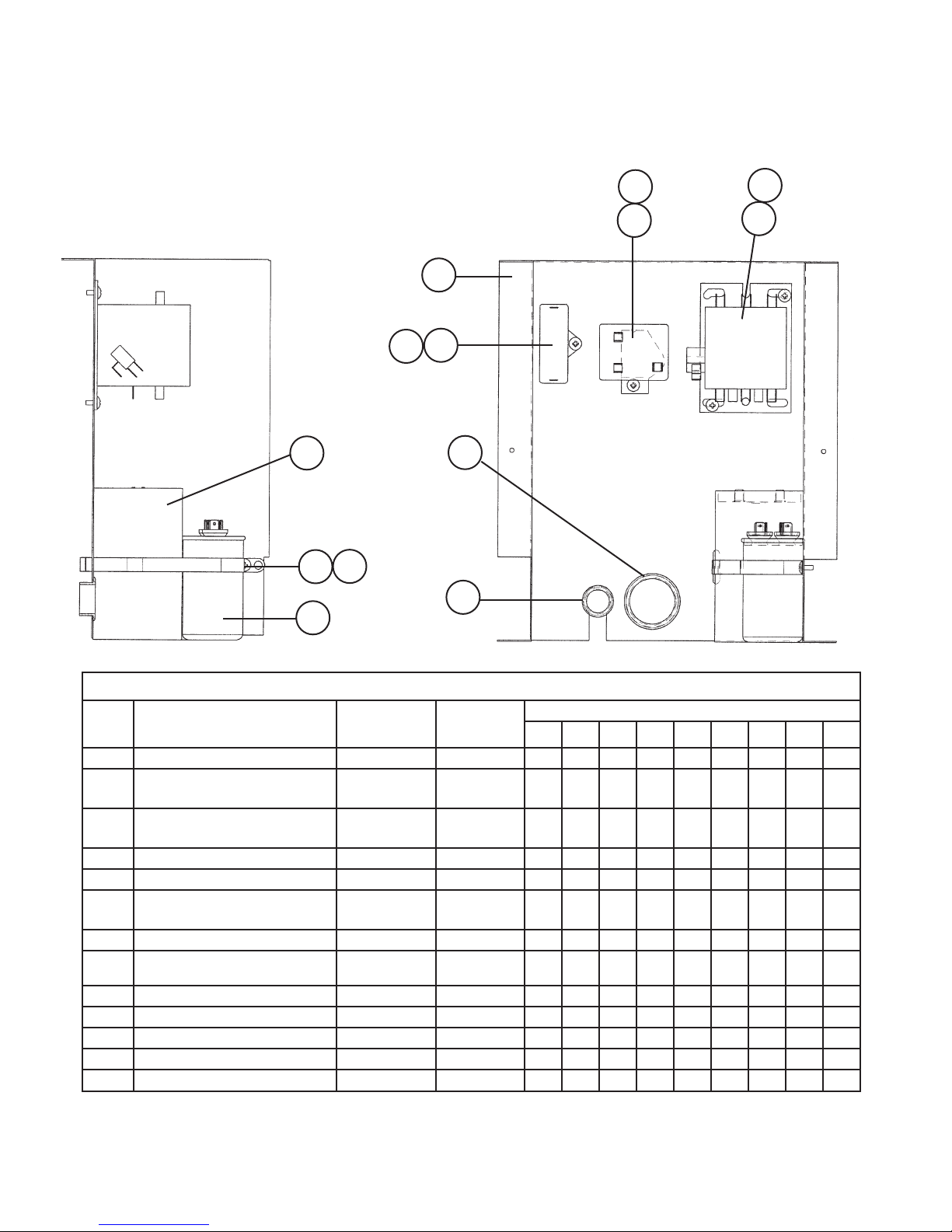

20 Copper Tube Pressure Switch 4A3456G01 1
21 Pressure Switch Bracket (A) GS 434938-01 1
21a T2 Screw 4×8 SS 7P32-0408 1
22 Pressure Switch ACB-2UB04 433441-05 1
23 Control Box Cover 3A3182-01 1
23a T2 Screw 4×8 SS 7P32-0408 3
24 Square Washer Brass 433537-02 1
25 Screw Grounding 433304-02 1
26 Service Valve Bracket 4A3661-01 1
27 Pressure Switch Bracket (B) 4A3518-01 1
27a T2 Screw 4×8 SS 7P32-0408 2
28 Low Pressure Switch 4A3496-01 1
28a Cheese Head Screw Zinc M5×7 4A3496F01 2
28b Tooth Washer Zinc M5 4A3496F02 2
29 Low Pressure Switch P20BA-40C 4A3497-01 1
29a Truss Head Screw 6-32×5/16 7C31I0632 2
30 Louver Panel GS 2A1598-01 1
30a T2 Screw 4×8 SS 7P32-0408 4
31 Side Panel-(L) 2A3162-01 1
31a T2 Screw 4×8 SS 7P32-0408 3
32 Side Panel-(R) 2A3163-01 1
32a T2 Screw 4×8 SS 7P32-0408 3
33 Top Panel 2A3164-01 1
33a T2 Screw 4×8 SS 7P32-0408 9
34 Cable Tie CV-200 8911-0200 3
35 Bushing OCB-750 428394-01 1
36 Label - R404A 4A0960-01 1
37 Caution Tape - 404A
Refrigerant
L=250 4A1535L01 1
38 Instruction Sheet 3A3175-01 1
39 Nameplate 3A3177-01 1
40 Wiring Label 3A3179-01 1
41 Suction Line Shutoff Valve 4A3490-01 1
42 Liquid Line Shutoff Valve 4A3491-01 1
