Hoshizaki F-2000MWH Scheda tecnica

NO: 71207

F-2000MWH(-C)

MODEL

PARTS LIST

HOSHIZAKI

MODULAR ICEMAKER

ISSUED: MAY 20, 2002

REVISED: JUNE 3, 2002

L-0 July 2001

M-0 March 2002

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

G.S = Galvanized steel

S.S = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

(Note) - = Part deleted.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part

skipped. So, "K" indicates "2000". (interchangeable).

Ex.2 L-0 o = New part for "x"

"L" is the next in alphabetical in the same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

F-2000MWH(-C) A. ICE FLAKER ASSEMBLY L-0, M-0

MODEL: F-2000MWH(-C) TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0 M-0

B EVAPORATOR ASSEMBLY

(F-2000MWH) 327024A01 1 1

EVAPORATOR ASSEMBLY

(F-2000MWH-C) 327024A02 1 1

C REFRIGERATION UNIT - 108794A01 1 -

- 1A0673A01 1

D WATER CIRCUIT

ASSEMBLY

(HS-0115) 1A0734A01 1 1

E CHUTE ASSEMBLY (HS-0116) 2A1705A01 1 1

F SPOUT ASSEMBLY (HS-0117) 216221A01 1 1

G CONTROL BOX

ASSEMBLY

- 227632A03 1 1

TRUSS HEAD SCREW 4X8 7C31-0408 3 3

H FAN MOTOR ASSEMBLY - 340331A01 1 1

TRUSS HEAD SCREW 4X8 7C31-0408 4 4

J LABEL LOCATION (F-2000MWH) 227619A01 1 -

(F-2000MWH) 227619A09 1

LABEL LOCATION (F-2000MWH-C) 227619A05 1 -

(F-2000MWH-C) 227619A10 1

1 CHASSIS GS 227656G01 1 1

2 REAR PANEL GS 227655G01 1 1

FT SCREW 4X8 7F31-0408 5 5

HEX HEAD BOLT

W/WASHER

5X12, SS 7B0230512 2 2

3 JUNCTION BOX COVER GS 433410-01 1 1

T2 SCREW 4X8 7P31-0408 1 1

4 WASHER BRASS 433537-02 1 1

5 SCREW - GROUNDING BRASS 433304-02 1 1

6 SIDE FRAME (R) GS 340321G01 1 1

FT SCREW 4X8 7F31-0408 2 2

TRUSS HEAD SCREW 4X8 7C31-0408 2 2

7 SIDE FRAME

(

)

GS 340324G01 1 1

MODEL: F-2000MWH(-C) TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0 M-0

8 FRONT FRAME GS 340318-01 1 1

FT SCREW 4X8 7F31-0408 2 2

9 BRACKET -

RESERVOIR

GS 227638G01 1 1

T2 SCREW 4X8 7P31-0408 4 4

10 DRAIN PAN SS 219358G01 1 1

HEX HEAD BOLT SS, 8X12 7B02-0812 2 2

11 SOCKET HEAD HEX.

BOLT

SS, 10xP1.5 420600-02 3 3

SPRING WASHER SS, M5 7L22-1000 3 3

12 GEAR MOTOR

BARRIER

GS 3A1639-01 1 1

TRUSS HEAD SCREW 4X8, SS 7C32-0408 2 2

FLAT PLASTIC

WASHER

M4 7W27-0400 2 2

13 STRAP GS 340433-01 1 1

T3 SCREW 5X12 7G31-0512 1 1

14 RING PA 431736-01 1 1

15 "O" RING G95 7616-G095 1 1

16 THUMBSCREW SS, ABS 415949G03 3 3

17 PACKING EPDM 327040-01 1 1

18 STRAP SS 327041G02 1 1

19 STRAP SS 327042-04 1 1

20 DRIP GUIDE SS 3A1628-01 1 1

WING NUT M6, SS 7E12-0600 2 2

21 SIDE PANEL (L) SS 2A2076G01 1 1

TRUSS HEAD SCREW SS, 4X8 7C32-0408 1 1

22 SIDE PANEL (R) SS 2A2077G01 1 1

TRUSS HEAD SCREW SS, 4X8 7C32-0408 1 1

MODEL: F-2000MWH(-C) TITLE:A. ICE FLAKER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0 M-0

23 TOP PANEL SS 2A2074-01 1 1

24 FRONT PANEL SS 2A2075-01 1 1

25 LOUVER (B) PP 1A0547-01 1 1

26 PUSH RETAINER - 4A2414-01 3 3

27 CLAMP - 4A0337-12 3 3

28 BUSHING SB-1500-21 420470-06 4 4

29 WIRE SADDLE VWS4218-C 4A0338-01 4 4

30 WIRE SADDLE VWS42105-C 4A0338-04 9 9

31 BUSHING SR-34-2 420472-05 1 1

32 AIR FILTER (A) - 2A2062G01 1 1

F-2000MWH(-C) B. EVAPORATOR ASSEMBLY L-0, M-0

MODEL: F-2000MWH(-C) TITLE:B. EVAPORATOR ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0 M-0

1 GEAR MOTOR MGZ2400UL-

150E

2U0129-01 1 1

2 COUPLING SS 420372-01

1 1

3 HOUSING - 206509G02

1 1

HEX HEAD BOLT SS, 8X25 7B02-0825 6 6

WASHER SS, M8 7W22-0800 6 6

SPLIT LOCK WASHER SS, M8 7L22-0800 6 6

4 "O" RING G90 7616-G090

1 1

5 MECHANICAL SEAL HK9A-MN 432493-01

1 1

6 AUGER SS 223322G02

1 1

7 EVAPORATOR - 228196G01

1 1

SOCKET HEAD CAP

SCREW

SS, 10X20 7S12-1020 4 4

SPLIT LOCK WASHER SS, M10 7L22-1000 4 4

8 EXTRUDING HEAD -

95F

(F-2000MWH) 216407G01

1 1

EXTRUDING HEAD -

95N

(F-2000MWH-C) 2A1594G01 1 1

9 SOCKET HEAD CAP

SCREW

SS, M10x15 429121-02 3 3

10 WASHER SS 425277-01

3 3

11 CUTTER (F-2000MWH) 327026-01 2 2

CUTTER (F-2000MWH-C) 328292-01 1 1

HEX HEAD BOLT SS, 10X35 7B02-1035 1 1

SPLIT LOCK WASHER SS, M10 7L22-1000 1 1

12 DOWEL PIN SS 713S-0526

1 1

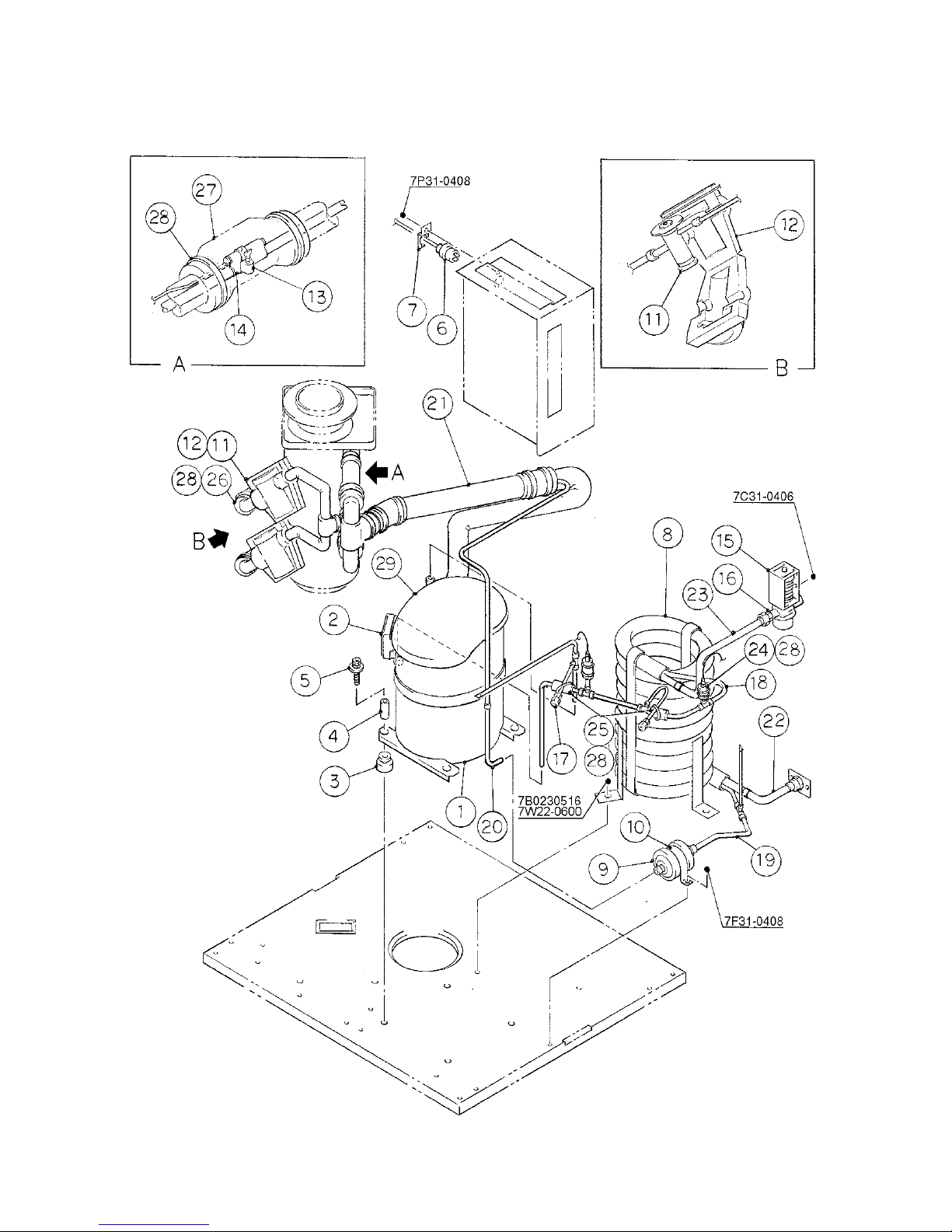

F-2000MWH(-C) C. REFRIGERATION UNIT L-0
