Hoshizaki F-330BAH Manuale utente
Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Model
F-330BAH(-C)
Self-Contained Flaker
Hoshizaki America, Inc.
Number:
Issued: 9-27-2007
Revised: 10-23-2007
PARTS LIST
71268
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Ice Flaker Assembly .......................................................................................................... 5
B. Refrigeration Circuit .......................................................................................................... 9
C. Water Circuit ................................................................................................................... 11
D. Control Box Assembly ..................................................................................................... 13
E. Door Assembly ................................................................................................................ 15
F. Label Location ................................................................................................................. 16
G. Front Panel ..................................................................................................................... 18
H. Fan Motor Assembly ....................................................................................................... 19
J. Ice Making Unit ................................................................................................................ 20
K. Evaporator Assembly ...................................................................................................... 21
L. Accessories & Packaging ................................................................................................ 23
2
Auxiliary Codes
F-330BAH S-0 April 2007
S-1 October 2007
F-330BAH-C S-1 TBD 2007
Auxiliary Code Breakdown
K-0
Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.
Designates signicant part changes within the same year for this model. Base is 0 and this number
advances for each change.
Example: P-1
"P" indicates 2004.
"1" indicates the rst signicant part change for 2004.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered
separately.
3
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrauoroethylene = Teon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
4

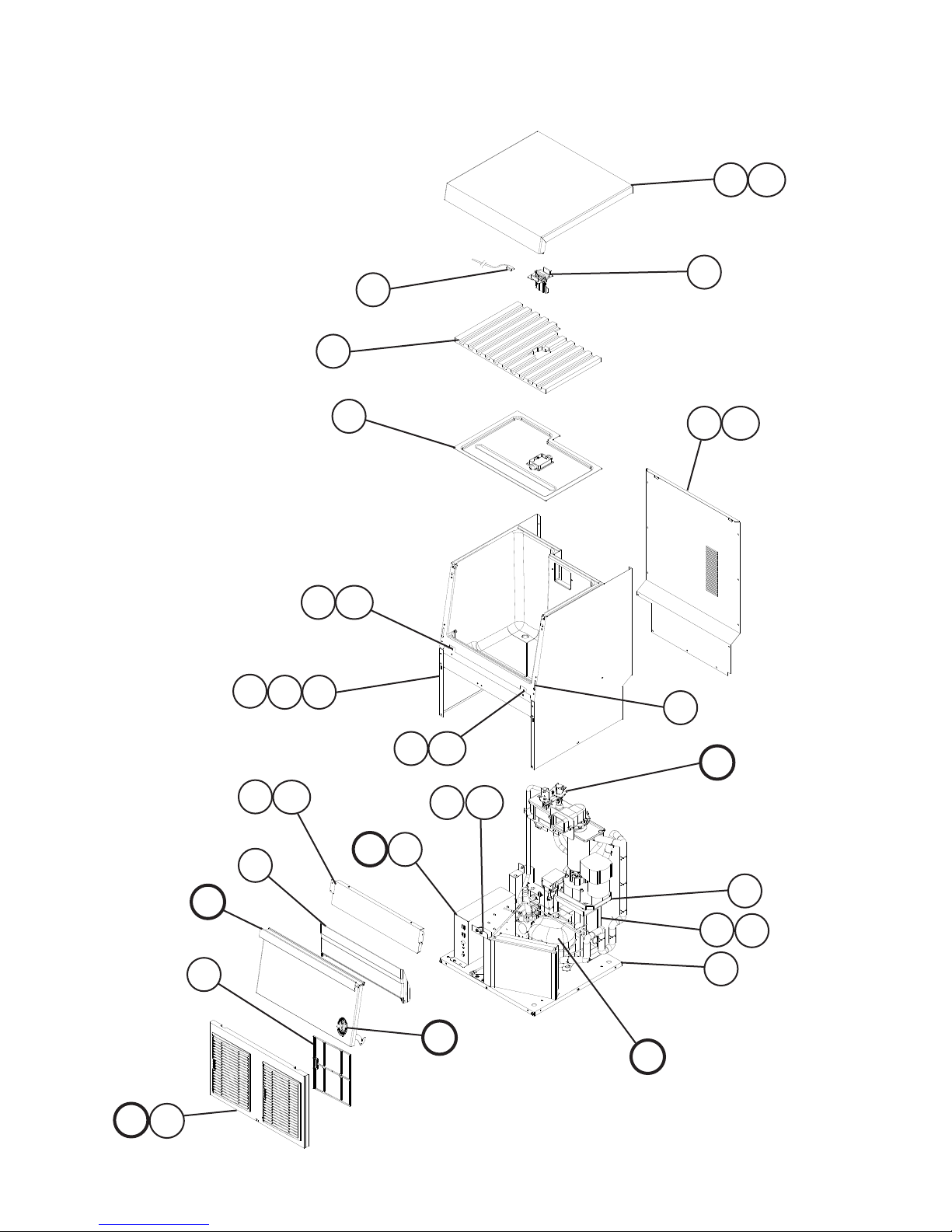

A. Ice Flaker Assembly
1/2
F-330BAH(-C)
S-0, S-1
1
B
C
DD1
E
F
3
GG1
5a 5b
4a
4
5
15a
15
18
19
21
20
22a
22
23
16 16a
17 17a
11
24
26 26a
25 25a
5

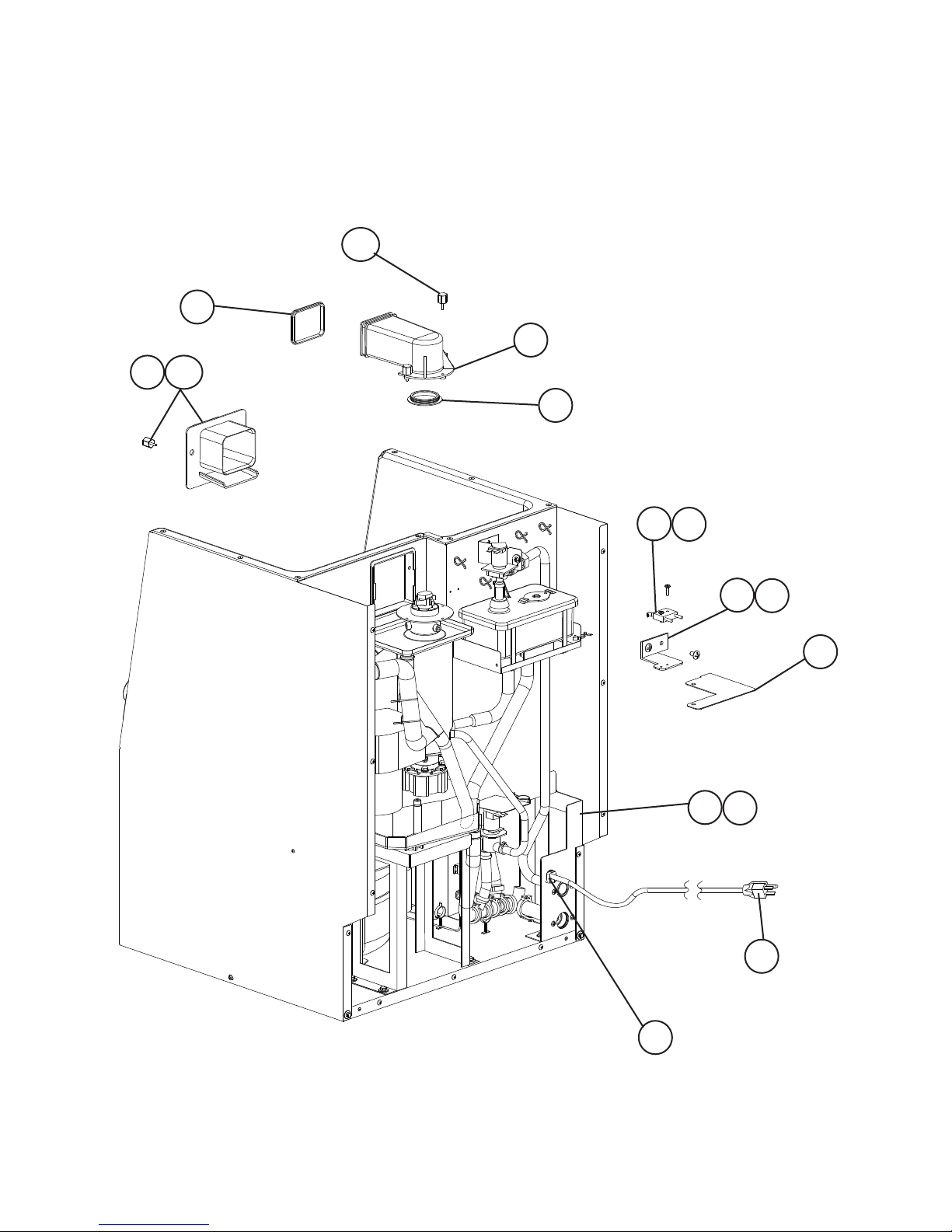

A. Ice Flaker Assembly
2/2
F-330BAH(-C)
S-0, S-1
6a
6
7a
7
8
9
10
12
13 13a
14
2a
2
27
9a
6
Title: A. Ice Flaker Assembly Model: F-330BAH(-C)
Index
No. Description
Material or
Model Number Part Number
Required Number
S-0 S-1
B Refrigeration Circuit F-330BAH 1A1300A01 1 1
F-330BAH-C 1A1300A02 1
C Water Circuit - 1A1301A01 1 1
D Control Box Assembly - 2A4075A01 1 -
2A4464A01 1
D1 Truss Head Screw 4×8 7C31-0408 3 3
E Door Assembly - 3A4357A01 1 1
F Label Location F-330BAH 2A4063A01 1 1
F-330BAH-C 2A4063A02 1
G Front Panel - 3A4295G01 1 1
G1 Truss Head Screw 4×8, SS 7C32-0408 1 1
1 Base - 3A4296G01 1 1
2 Rear Frame - 2A4073-01 1 1
2a Truss Head Screw 5×10 7B0230510 3 3
3 Drain Pan - 323765G01 1 1
4 Bracket-Gear Motor - 3A4304G01 1 1
4a Hex Head Bolt w/Washer (LF) 6×12 7B0230612 4 4
5 Body Assembly - 3A4308G01 1 1
5a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 4 4
5b Truss Head Screw 4×8, SS 7C32-0408 8 8
6 Bracket-Switch - 4A4228-01 1 1
6a Truss Head Screw 4×8 7C31-0408 2 2
7 Microswitch (Safety Switch) - 4A2832-01 1 1
7a Pan Head Screw 3×12 60NEGI-05 2 2
8 Packing - 427151-01 1 1
9 Spout - 208791-02 1 1
9a Thumbscrew - 415949G11 3 3
10 Lever - 4A4191-01 1 1
11 Air Filter B - 2A2063G01 1 1
12 Spout Packing (A) - 453663-01 1 1
13 Spout (B) - 232654-03 1 1
13a Thumbscrew - 415949G11 2 2
14 Bushing SR-6N3-4 420472-02 1 1
15 Rear Panel - 1A1305-01 1 1
15a T2 Screw 4×8 7P31-0408 11 11
16 Front Frame (Low) - 3A4293-01 1 1
16a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 4 4
17 Front Frame - 3A4310G01 1 1
17a Truss Head Screw 4×8, SS 7C32-0408 4 4
18 Upper Panel - 1A1303-01 1 1
19 Actuator Assembly - 350301A02 1 1
20 Bin Control (Reed Switch) - 453861-02 1 1
21 Top Insulation - 1A1304-01 1 1
22 Top Panel - 1A1307-01 1 1
22a Truss Head Screw 4×8, SS 7C32-0408 2 2
23 Slope - 2A4259-01 1 1
7
Title: A. Ice Flaker Assembly Model: F-330BAH(-C)
Index
No. Description
Material or
Model Number Part Number
Required Number
S-0 S-1
24 Hinge Guide - 3A4159-01 2 2
25 Hinge (L) - 4A4192-01 1 1
25a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 2 2
26 Hinge (R) - 4A4192-02 1 1
26a Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 2 2
27 Power Supply Cord - 4A1773-01 1 1
8
B. Refrigeration Circuit
F-330BAH(-C)
S-0, S-1
1a
11b
6a
6
35
4
8
77a
11
12
13
14
15
17
J
J1 J2
H1
H
18
19
10 20
16
2
9
9
Title: B. Refrigeration Circuit Model: F-330BAH(-C)
Index
No. Description
Material Or
Model Number Part Number
Required Number
S-0 S-1
H Fan Motor Assembly - 3A4287A01 1 1
H1 Hex Head Bolt w/Washer (LF) 5×10, SS 7B0230510 2 2
J Ice Making Unit F-330BAH 3A4286A01 1 1
F-330BAH-C 3A4286A02 1
J1 Split Lock Washer M8, SS 7L22-0800 3 3
J2 Socket Hex Head Bolt 8×95, SS 7S12-0895 3 3
1 Compressor - 4A4185-01 1 1
1a Rubber Grommet - 4A1452-01 4 4
1b Bolt M6 468180-01 4 4
2 Cable Tie CV-200 7920-0010 2 2
3 Terminal Cover (Includes Clip) 4A2141-01 1 1
4 Starting Relay - 4A4232-01 1 1
5 Start Capacitor - 4A2134-04 1 1
6 Condenser - 3A4309-01 1 1
6a T2 Screw 4×8 7P31-0408 2 2
7 Shroud - 3A4303-01 1 1
7a T2 Screw 4×8 7P31-0408 4 4
8 Reducer - 421904-17 1 -
9 Tie T30RSF 436156-01 2 2
10 Drier - 445655-04 1 1
11 Heat Exchanger (Includes
capillary tube)
- 2A4069G01 1 1
12 Copper Tube-High Side
(Includes item 18: 463180-01)
- 3A4290G01 1 1
13 Process Tube Assemby
(Includes item 19: 457729-01)
- 4A4231G01 1 1
14 Insulation Tube L=145 7762-1030 1 1
15 Insulation Tube L=350 7762-1030 1 1
16 Insulation Tube L=40 7762-1030 2 2
17 Cable Tie CV-150 7920-0001 8 8
18 Pressure Switch (Included in
item 12: 3A4290G01)
- 463180-01 1 1
19 Access Valve (Included in
item 13: 4A4231G01)
- 457729-01 1 1
20 Nylon Tie PLWP3H-TL 8911-0301 1 -
10
