Hoshizaki F-450BAE Manuale utente

NO.NO. U2KF-1467U2KF-1467

ISSUED: AUG. 30, 1993ISSUED: AUG. 30, 1993

FINAL: DEC. 2, 2003FINAL: DEC. 2, 2003

HOSHIZAKIHOSHIZAKI

SELF-CONTAINED FLAKERSELF-CONTAINED FLAKER

PARTS LISTPARTS LIST

MODELMODEL

F-450BAEF-450BAE

C-1C-1 SEP.SEP. 19931993

D-0D-0 JAN.JAN. 19941994

D-1D-1 SEP.SEP. 19941994

E-0E-0 JAN.JAN. 19951995

E-1E-1 APR.APR. 19951995

F-0F-0 DEC.DEC. 19951995

G-0G-0 DEC.DEC. 19961996

H-0H-0 DEC.DEC. 19971997

H-1H-1 FEB.FEB. 19981998

FINALFINAL

MATERIAL ABBREVIATIONS

PLASTIC

ABS =Acrylonitrile-butadien-styrene

AC =Polyacetal

EVA =Ethylene vinyl acetate

PA =Polyamide = Nylon

PC =Polycarbonate

PE =Polyethylene

PES =Polyester

PETP =Polyethylene terephthalate = Tetlon

PF =Phenol-formaldehyde

PP =Polypropyleneoride

PS =Polystyrene

PTFE =Polytetrafluoroethylene = Teflon

PUR =Polyurethane

PVC =Polyvinyl chloride

RUBBER

EPDM =EP rubber

NBR =Nitrile butadiene rubber

NR =Natural rubber

SI.R =Silicone rubber

SY.R =Synthetic rubber

STEEL

G.S =Galvanized steel

S.S =Stainless steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding year.

"K" is the tenth in alphabetical order with "I" skipped.

So, "K" indicates "2000".

Ex.2 A-1

"A" is the first in alphabetical order.

So, "A" indicates "2001".

Ex.3 A-2

Each time a part is changed in a year, this number advances.

(Note) = Part deleted.

X = Part deleted and replaced by "O" part.

O = New part for "X" in the same auxiliary code.

FASTENER ABBREVIATION LIST

ST Phillips Truss Head Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1 Phillips Truss Head Tapping Screw (Correspond to Type A)

T2 Phillips Truss Head Tapping Screw (Correspond to Type B)

T3 Phillips Truss Head Tapping Screw (Correspond to Type C)

FT Phillips Truss Head Tapping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

WT External Tooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. ST0308S (Phillips Truss Head Machine Screw,

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except the list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

MODEL

F-450BAE

TITLE

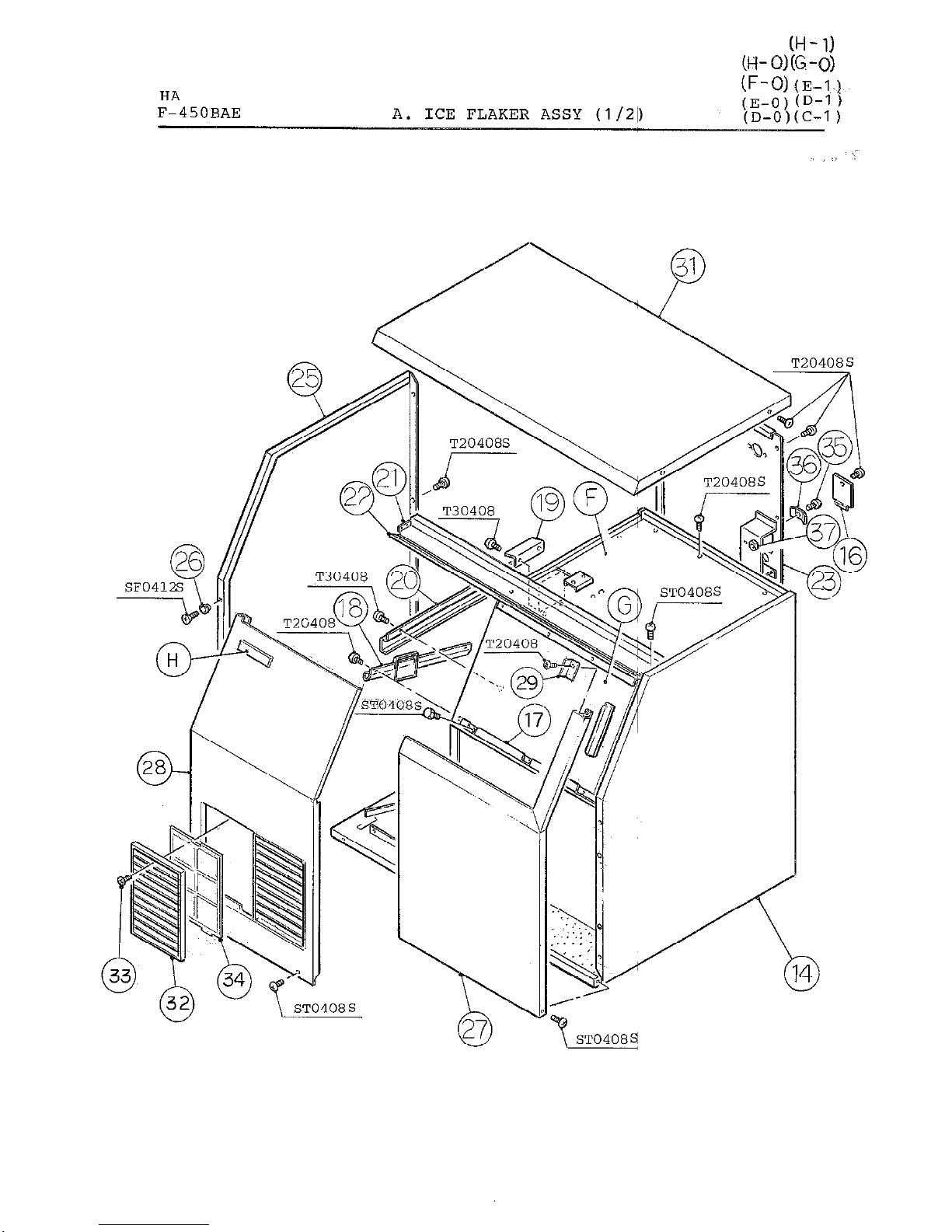

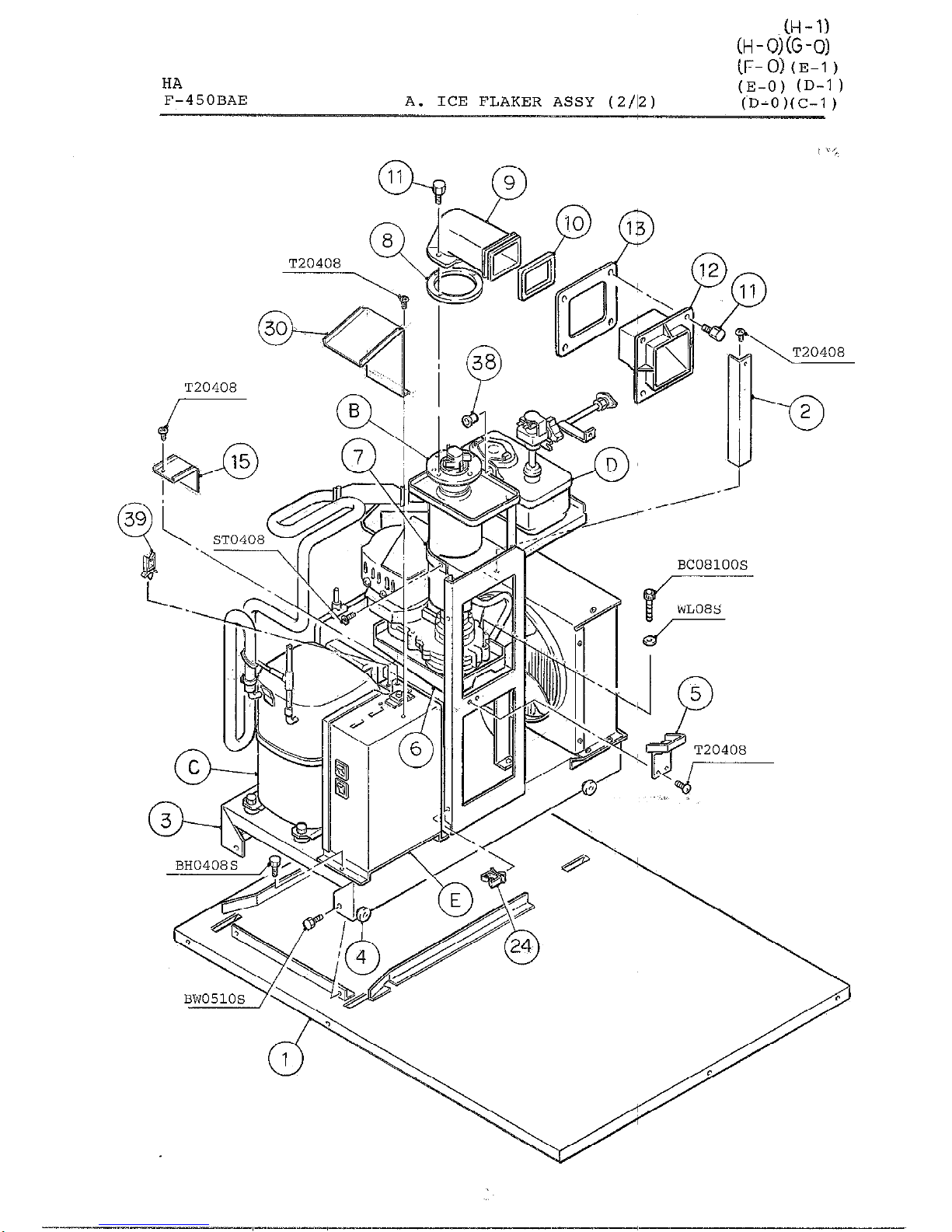

A. ICE FLAKER ASSY

INDEX DESCRIPTION

MATERIAL OR

PART

REQ'D NUMBER

NO.

MODEL

NUMBER

C-1

D-0D-1

E-0E-1

F-0

G-0

H-0

H-1

BEVAPORATOR ASSY -324229A01 1x 1

-324229A02 o 1 1

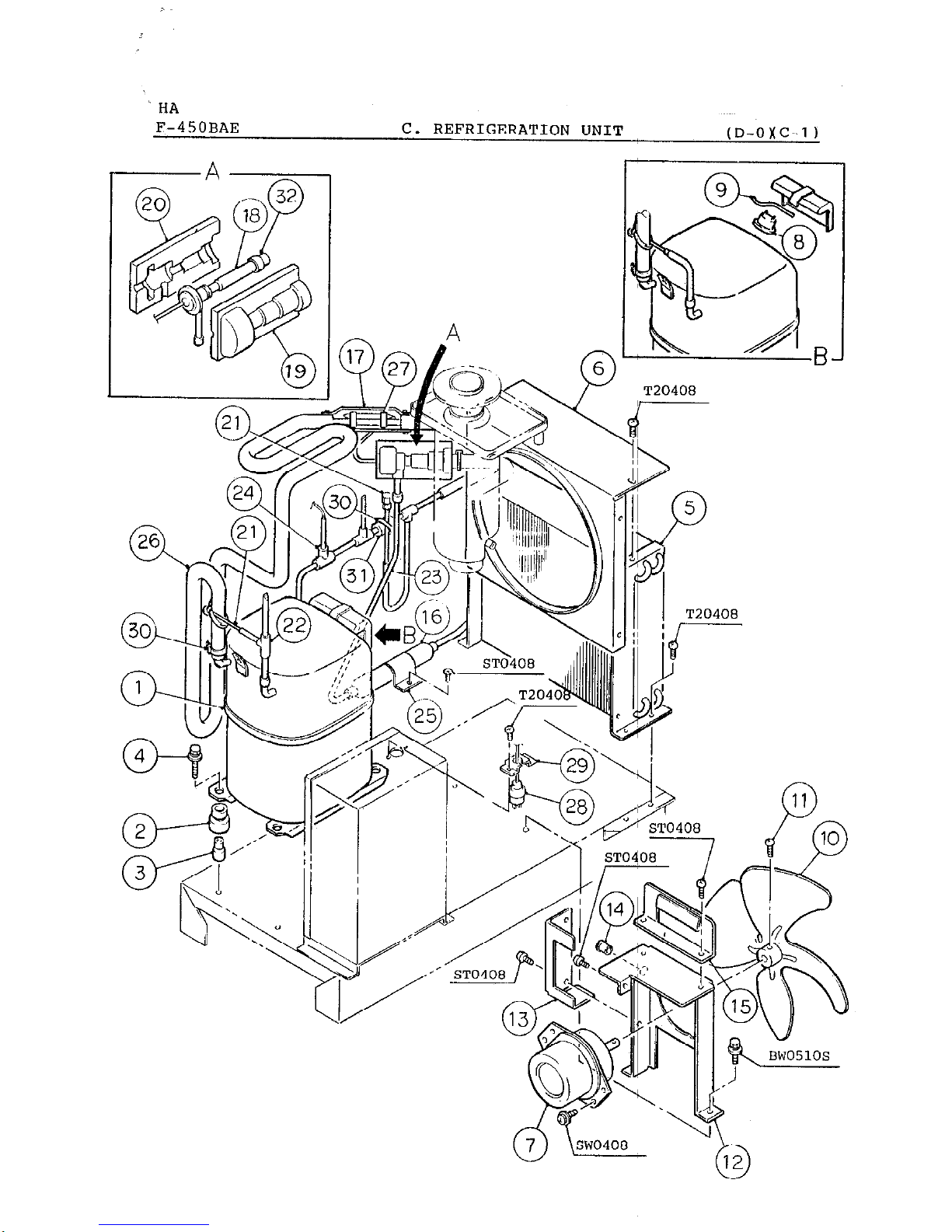

CREFRIGERATION UNIT -104744A04 1111

DWATER CIRCUIT ASSY -104746A03 1111

ECONTROL BOX ASSY -214080A01 1111

FCOVER ASSY -BIN TOP -324283A01 1111

GSLIDING DOOR -324243A01 1111

HLABEL LOCATION -219418A01 1

-219418A03 x 1

-219418A04 o 1 1

1BASE G.S 324176G01 1111

2FRAME -WATER TANK G.S 438776-02 1111

3CHASSIS (A) G.S 213988G05 1111

4ROLLER DR-28-B2 423406-02 4444

5REFLECTOR (C) S.S 437018G01 1111

6DRAIN PAN ABS 323765G01 1111

7BAND -EVAPORATOR G.S 437019-01 1111

8PACKING -CYLINDER EPDM 427151-01 1111

9SPOUT PC 208791-01 1111

10 PACKING (A) -SPOUT EPDM 427152-01 1111

11 THUMBSCREW S.S, ABS 415949G03 7777

12 SPOUT (B) ABS 208792-01 1111

13 PACKING (B) -SPOUT EPDM 427153-01 1111

14 BIN -FOAMED -104747G03 1111

15 BARRIER -CONNECTOR G.S 439328-01 1111

16 JUNCTION BOX COVER G.S 438314-01 1111

17 REFLECTOR (A) S.S 324240-01 1111

18 REFLECTOR (B) S.S 324241G01 1111

19 REFLECTOR (D) S.S 437558-01 1111

20 BARRIER -POWER CORD G.S 437040-01 1111

21 FRAME S.S 324242-01 1111

MODEL

F-450BAE

TITLE

A. ICE FLAKER ASSY

INDEX DESCRIPTION

MATERIAL OR

PART

REQ'D NUMBER

NO.

MODEL

NUMBER

C-1

D-0D-1

E-0E-1

F-0

G-0

H-0

H-1

22 EDGING CE-010-S425931-05 111

23 REAR PANEL G.S 437137G02 111

24 WIRE SADDLE WS-2NS 427007-02 666

25 SIDE PANEL (L) S.S 214059-01 111

26 COLLAR S.S 4H0171-01 666

27 FRONT PANEL (R) S.S 106534G01 111

28 FRONT PANEL (L) S.S 106535G01 111

29 STOPPER S.S 441175-01 111

30 BARRIER (B) -CONNECTOR G.S 441044-01 111

31 TOP PANEL S.S 214064G01 111

32 LOUVER (C) PP 103122-01 22x 2

PP 103122-03 o 2

33 TAPPING SCREW ( BLACK) STEEL,4x8 433954-01 2222

34 AIR FILTER (C) PP 208284G012222

35 SCREW -GROUNDING BRASS 433304-02 111

36 SQUARE WASHER BRASS 433537-02 111

37 BUSHING SR-7K-2420472-02 111

38 BUSHING SR-30-1420472-03 111

39 WIRE SADDLE WS-4NS 427007-04 222

MODEL

F-450BAE

TITLE

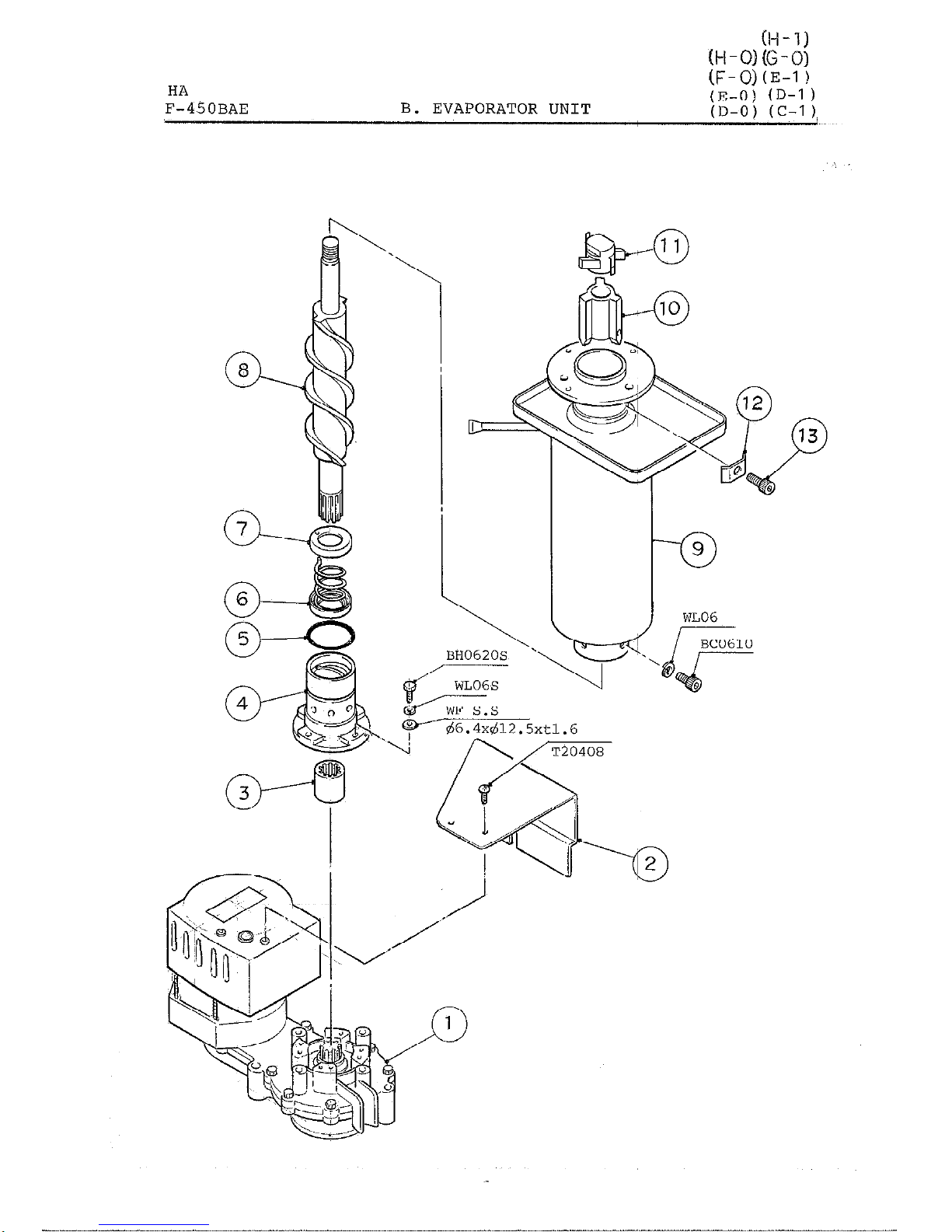

B. EVAPORATOR ASSY

INDEX DESCRIPTION

MATERIAL OR

PART

REQ'D NUMBER

NO.

MODEL

NUMBER

C-1

D-0D-1

E-0E-1

F-0

G-0

H-0

H-1

1GEAR MOTOR TC1125,

120V 80W

2U0105-01 x 1

TC1148,

120V 80W

2U0146-01 o 1 x 1

TC1185,

120V 80W

2U0147-01 o 1

2BARRIER -GEAR MOTOR G.S 324226-01 111

3COUPLING -SPLINE S.S 418316-01 111

4HOUSING -206013G03 111

5"O" RING G40 7616-G040 111

6MECHANICAL SEAL HK9A-MS 432491-01 111

7RING (B) S.S 432494-01 111

8AUGER S.S 327144G01 11x 1

S.S 341447G01 o 1

9EVAPORATOR -324231G01 111

10 EXTRUDING HEAD / 45F S.S 327140G01 111

11 CUTTER S.S 427137-01 111

12 WASHER S.S 427138-01 333

13 SOCKET HEAD CAP SCREW S.S,M8x14 429121-01 333
