Hoshizaki F-800MAH Manuale utente
NO.
NOV.29, 2001
ISSUED: 71199
PARTS LIST
HOSHIZAKI
MODULAR FLAKER
MODEL
F-800MAH(-C)
F-800MWH(-C)
APR.22, 1999REVISED:
2
HA
F-800MAH L-0 APRIL,2001
F-800MAH-C L-0
F-800MWH L-0 MAY,2001
F-800MWH-C L-0 MAY,2001
3
HA MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitritrile-butadiene-styrene
AC = Polyacetal
EVA = Ethylenevinylacetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate =Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene=Teflon
PUR = Polyurethane
PVC = Polyvinylchloride
RUBBER
VN = Vinyl Nitrile
EPDM = EPrubber
NBR = Nitrilebutadienerubber
NR = Naturalrubber
NP = Neoprene
SI.R = Siliconerubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.
year. x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by"o"(interchangeable)
skipped. So, "K" indicates "2000". part.
Ex.2 L-0 o = New part for "x" in the
"L" is the next in alphabetical same auxiliary code.
order.So, "L" indicates "2001".
Ex.3 L-1Each time a partis changednon-interchangeably
in a year, this number advances.
4
HA

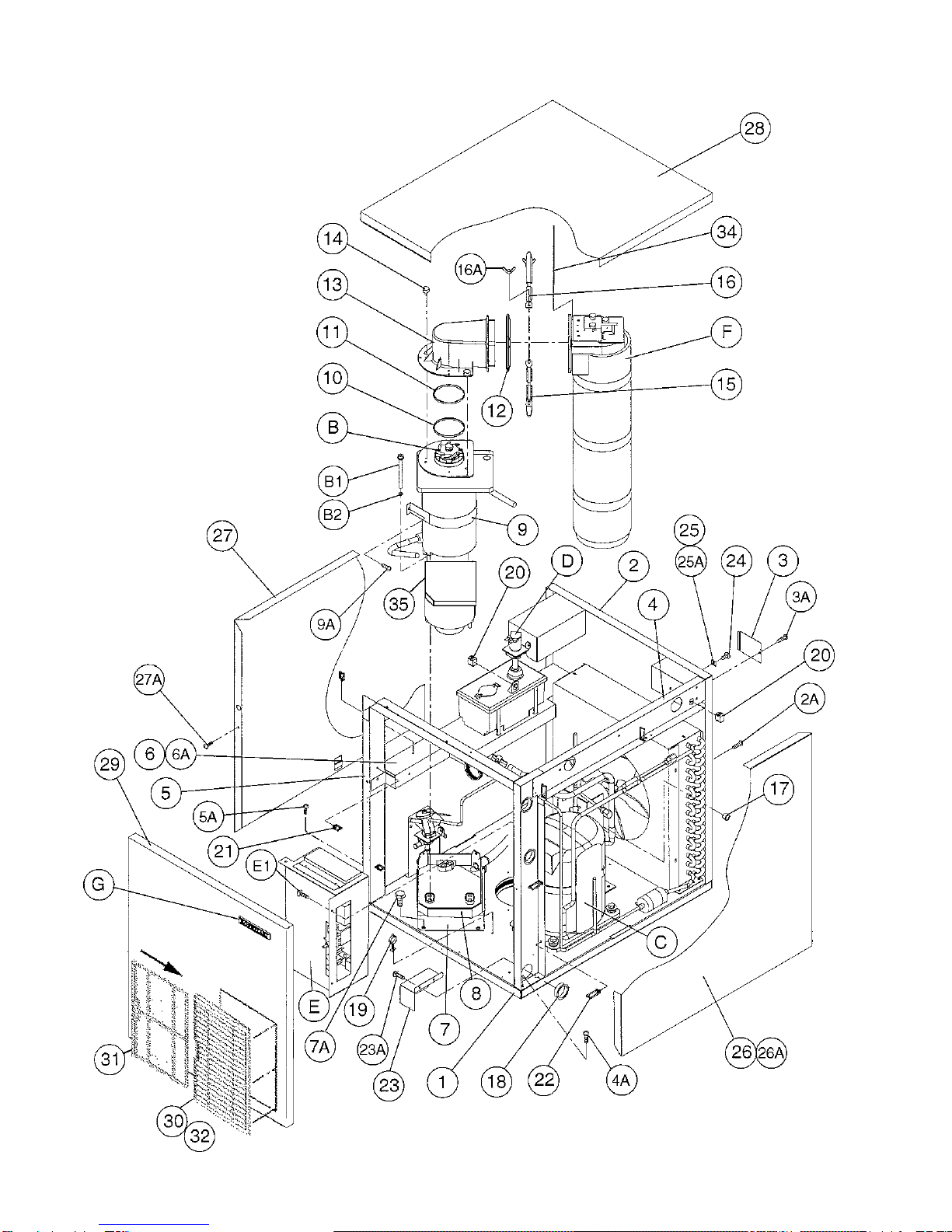

F-800MAH(-C) A. ICE FLAKERASSEMBLY L-0
5
HA
MODEL: F-800MAH TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-0
B ICE MAKING UNIT - 3A0962A01 1
B1 SOCKET HEAD HEX BOLT 8X95, SS 7S12-0895 3
B2 SPRING WASHER 8, SS 7L22-0800 3
C REFRIGERATION UNIT - 2A1000A02 1
D WATER CIRCUIT - 2A0968A01 1
E CONTROL BOX ASSEMBLY - 2A1045A05 1
E1 TRUSS HEAD SCREW 4X8 7C31-0408 3
F CHUTE ASSEMBLY - 2A0941A02 1
G LABEL LOCATION - 2A2081A01 1
6
HA
MODEL: F-800MAH-C TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-0
B ICE MAKING UNIT - 3A0962A02 1
B1 SOCKET HEAD HEX BOLT 8X95, SS 7S12-0895 3
B2 SPRING WASHER 8, SS 7L22-0800 3
C REFRIGERATION UNIT - 2A1000A02 1
D WATER CIRCUIT - 2A0968A01 1
E CONTROL BOX ASSEMBLY - 2A1045A05 1
E1 TRUSS HEAD SCREW 4X8 7C31-0408 3
F CHUTE ASSEMBLY - 2A0941A02 1
G LABEL LOCATION - 2A2081A02 1
7
HA
MODEL: F-800MAH(-C) TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-0
1 CHASSIS GS 2A1176G01 1
2 REAR PANEL GS 2A0322G02 1
2A T2 SCREW 4X8 7P31-0408 4
3 JUNCTION BOX COVER GS 433410-01 1
3A T2 SCREW 4X8 7P31-0408 1
4 SIDE FRAME (R) GS 2A1047G01 1
4A TRUSS HEAD SCREW 4X8 7C31-0408 2
5 FRONT FRAME GS 3A0324G01 1
5A TRUSS HEAD SCREW 4X8 7C31-0408 2
6 RESERVOIR BRACKET GS 2A1060-01 1
6A T2 SCREW 4X8 7P31-0408 4
7 BRACKET – GEAR MOTOR GS 3A0396G01 1
7A HEX BOLT 8X12, SS 7B02-0812 2
8 DRAIN PAN ABS 323765G02 1
9 STRAP GS 4A1474-01 1
9A T3 SCREW 5X12 7G31-0512 2
10 RING PA 432661-02 1
11 “O” RING G70 7616-G070 1
12 PACKING-SPOUT EPDM 321037-01 1
13 SPOUT PC 104797-01 1
14 THUMBSCREW SS, ABS 415949G04 3
15 STRAP SS 321038G02 1
16 STRAP SS 328703-02 1
16A WING NUT 6, SS 7E12-0600 2
17 BUSHING SB-1500-21 420470-09 1
18 BUSHING SB-1500-21 420470-06 3
19 CLAMP WS75-75-C 4A0337-12 3
20 BUSHING SR-30-1 420472-03 2
21 WIRE SADDLE LWS-2NS 4A0338-02 5
22 WIRE SADDLE LWS-4NS 4A0338-04 4
8
HA
MODEL: F-800MAH(-C) TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-0
23 BARRIER GS 4A0688-01 1
23A TRUSS HEAD SCREW 4X8 7C31-0408 2
24 SCREW-GROUNDING BRASS 433304-02 1
25 SQUARE WASHER BRASS 433537-02 1
25A TRUSS HEAD SCREW 4X8 7C31-0408 1
26 SIDE PANEL (RIGHT) SS 2A2070G01 1
26A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
27 SIDE PANEL (LEFT) SS 2A2069G01 1
27A TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
28 TOP PANEL SS 2A2064-01 1
29 FRONT PANEL SS 2A2068-01 1
30 LOUVER (A) PP 1A0547-01 1
31 AIR FILTER (A) - 2A2062G01 1
32 PUSH RETAINER - 4A2414-01 3
33 CABLE TIE CV-150 7920-0003 1
34 BRACKET-CHUTE SS 4A1712-01 1
35 BARRIER – GEAR MOTOR GS 3A1823-01 1
9
HA
F-800MWH(-C) A. ICE FLAKERASSEMBLY L-0
10
HA
MODEL: F-800MWH TITLE:A. ICE FLAKER ASSEMBLY
INDEX
NO.
DESCRIPTION
MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER L-0
B ICE MAKING UNIT - 3A0962A01 1
B1 SOCKET HEAD HEX BOLT 8X95, SS 7S12-0895 3
B2 SPRING WASHER 8, SS 7L22-0800 3
C REFRIGERATION UNIT - 2A1024A02 1
D WATER CIRCUIT - 2A0968A01 1
E CONTROL BOX ASSEMBLY - 2A1045A06 1
E1 TRUSS HEAD SCREW 4X8 7C31-0408 3
F CHUTE ASSEMBLY - 2A0941A02 1
G LABEL LOCATION - 2A2081A03 1
