Hoshizaki KM-1200MAE Manuale utente

NO.

ISSUED:

MODEL

HOSHIZAKI

MODULAR CRESCENT CUBER

(FINAL) PARTS LIST

KM-1200MAE

KM-1200MWE

KM-1200MRE

APRIL 12, 1993

MAY 31, 2000

71079

REVISED:

KM-1200MAE

C-0 May, 1993

C-1 July, 1993

D-0 Dec., 1993

D-1 Aug., 1994

E-0 Dec., 1994

E-1 April, 1995

F-1 Dec, 1995

F-2 Sept., 1996

-0 March, 1997

-1 June, 1997

H-0 Dec., 1997

H-2 June, 1998

H-3 Oct., 1998

J-0 Dec., 1998

KM-1200MWE

C-0 July, 1993

D-1 Jan., 1994

D-2 Aug. 1994

E-0 Feb., 1995

E-1 April, 1995

F-0 May, 1996

F-1 July, 1996

F-2 Nov., 1996

-0 April, 1997

-1 Sept., 1997

H-0 Jan., 1998

H-1 May, 1998

H-2 July, 1998

J-0 Dec., 1998

KM-1200MRE

C-0 March, 1993

C-1 Aug., 1993

D-0 Dec., 1993

D-1 July, 1994

E-0 Jan., 1995

E-1 April, 1995

F-1 Dec., 1995

F-2 Sept., 1996

-0 Dec., 1996

-1 July, 1997

H-0 Dec., 1997

H-1 May, 1998

H-2 July, 1998

H-3 Nov., 1998

J-1 Jan., 1999

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

P FE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990" or "2000".

o = New part for "x"

Ex.2 A-1 in the same auxiliary

code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2

Each time a part is changed non-interchangeably

in a year, this number advances.

FASTENER ABBREVIATION LIST

S Phillips russ Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

1 Phillips russ Head apping Screw (Correspond to ype A)

2 Phillips russ Head apping Screw (Correspond to ype B)

3 Phillips russ Head apping Screw (Correspond to ype C)

F Phillips russ Head apping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

W External ooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. S 0308S (Phillips russ Head Machine Screw

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except toe list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

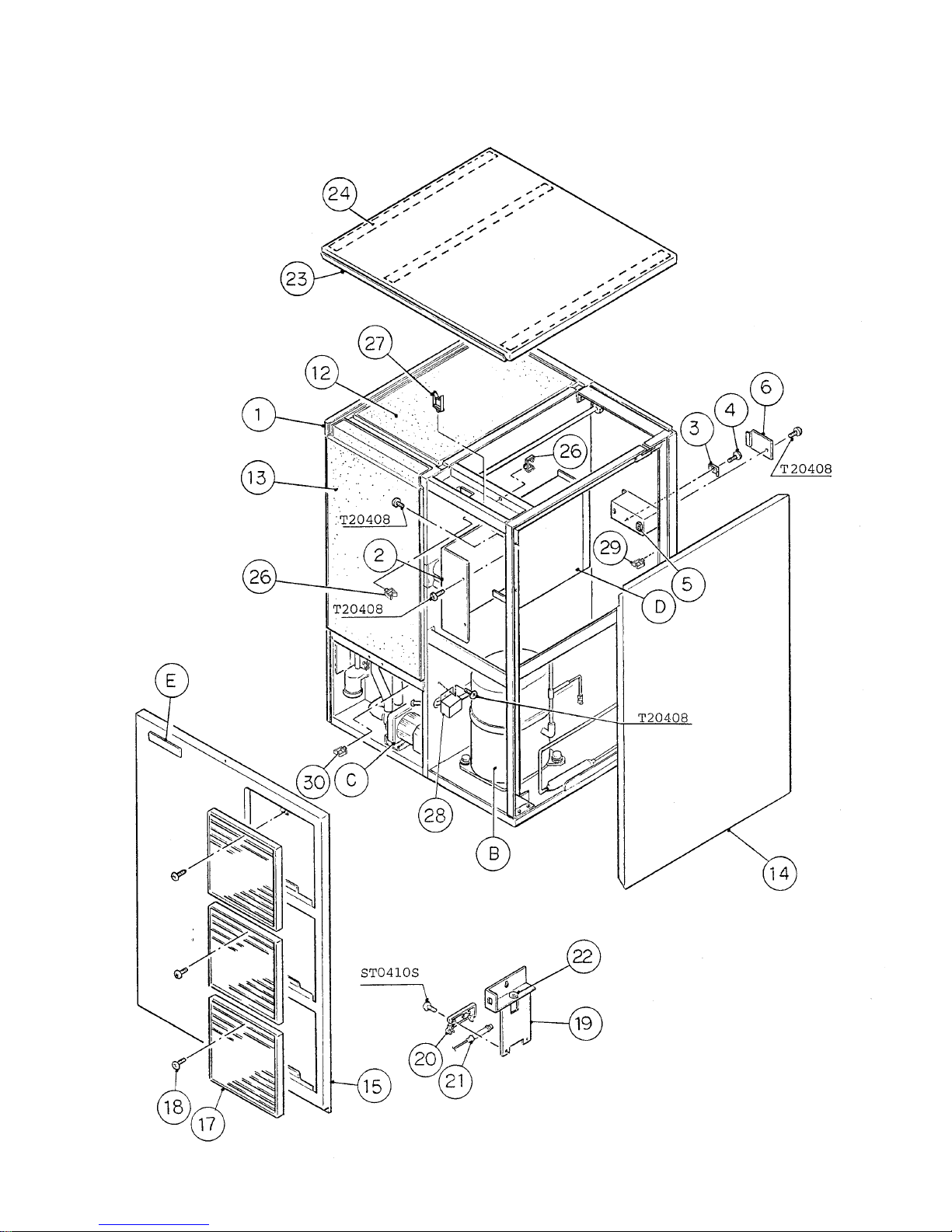

KM-1200MAE A. ICE CUBER ASSEMBLY C-0

KM-1200MAE A. ICE CUBER ASSEMBLY C-1, D-0, D-1, E-0, E-1, F-1, F-2

G-0, F-1, H-0, H-2, H-3, J-0

MODEL: KM-1200MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER C-0 C-1 D-0 D-1

E-0

E-1 F-1

F-2

G-0

G-1

H-0

H-2

H-3 J-0

B REFRIGERATION CIRCUIT - 106337A02 1 1 x1

- 2A0382A01 o1 1 -

- 2A0382A02 111111

C WATER CIRCUIT - 105060A03 1 1 1 -

- 1A0094A01 1 x1

- 1A0094A02 o1 1 1 1 -

- 1A0094A04 1 1

D CONTROL BOX ASSEMBLY - 219071A10 11111111-

- 219071A13 1 1

ELABELLOCATION - 330639A0111111111-

- 330639A02 1 1

1 EVAP. CASE - 105124G04 1111x1

- 105124G05 o1 1 1 1 -

- 105124G06 1 1

2CONTROLBOXCOVER GS 3A0174-011111111111

3FRAME(F) GS 324093-011111111111

4SQUAREWASHER BRASS 433537-021111111111

5SCREW-GROUNDING BRASS 433304-021111111111

6BUSHING SR-34-2 420472-051111111111

7JUNCTIONBOXCOVER GS 433410-031111111x1

GS 433410-01 o1 1 1

8 CLAMP NO.249 427902-03 6 -

9 CLAMP NO. 248 427902-04 3 -

10 CONDUIT COPPER 435081-01 1 -

11 CLAMP GS 435124-01 1 -

12 SEPARATOR SS 322687-01 1 -

13 TOP INSULATION ABS, PE 322714G01 1111111111

14 FRONT INSULATION ABS,PE 322711G01 1111111111

15SIDEPANEL(R) SS 212688G011111111111

MODEL: KM-1200MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER C-0 C-1 D-0 D-1

E-0

E-1 F-1

F-2

G-0

G-1

H-0 H-2

H-3

J-0

16 TOP PANEL (323836A01),

212687-011111111111

17 GASKET PVC 427014-04 3 3 3 3 3 3 3 3 3 3

18 EDGING EE-12 435297-01 1 -

19LOUVER(B) ABS 103121-033333333333

20 TAPPING SCREW ( BLACK) STEEL,4x8 433954-01 3 3 3 3 3 3 3 3 3 3

21AIRFILTER(B) ABS 208283G033333333333

22 CLAMP NO.4253 427902-05 1 -

23 BULB HOLDER SS 322815G02 1 1 1 1 1 1 1 1 1 1

24 BULB HOLDER ABS 328919-01 1 1 1 1 1 1 1 1 1 1

25 SPACER PE 443545-01 1 1 1 1 1 1 1 1 1 1

26 CAPILLARY RING EPDM 425307-01 1 1 1 1 1 1 1 1 1 1

27FRONTPANEL SS 212685-011111111111

28WIRESADDLE VWS4274-C4A0338-03 355555555

29WIRESADDLE VWS4218-C4A0338-01 622222222

30BARRIER GS 3A0235-01 11111111

31 WIRE SADDLE VWS4218-C 4A0338-01 2 2 x2

VWS4238-C 4A0338-02 o1 1 1 1 1 1 1
