Hoshizaki KM-150BAF Manuale utente

ISSUED: 71144

APRIL3,2002

JUNE11, 1997

NO.

REVISED:

HOSHIZAKI

SELF-CONTAINED CRESCENT

CUBER

MODELS

KM-150BAF

KM-150BWF

PARTS LIST

Auxiliary Codes

KM-150BAF G-0 JUNE 1997

H-0 DEC. 1997

H-1 APRIL 1998

H-2 JULY 1998

J-0 DEC. 1998

K-0 DEC. 1999

L-0 DEC. 2000

L-1 SEPT.2001

M-0 DEC. 2001

KM-150BWF H-2 JULY 1998

H-3 NOV. 1998

J-0 JAN. 1999

K-0 MARCH 2000

L-1 MARCH 2001

L-0 JULY 2001

M-0 FEB. 2002

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Syntheticrubber

EPH = Epichlorohydrin

STEEL

G.S = Galvanized steel

S.S = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0 (Note) - = Part deleted.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part

skipped. So, "K" indicates "2000". (interchangeable).

Ex.2 L-0 o = New part for "x"

"L" is the next in alphabetical in the same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1Each time a part is changed non-interchangeably

in a year, this number advances.

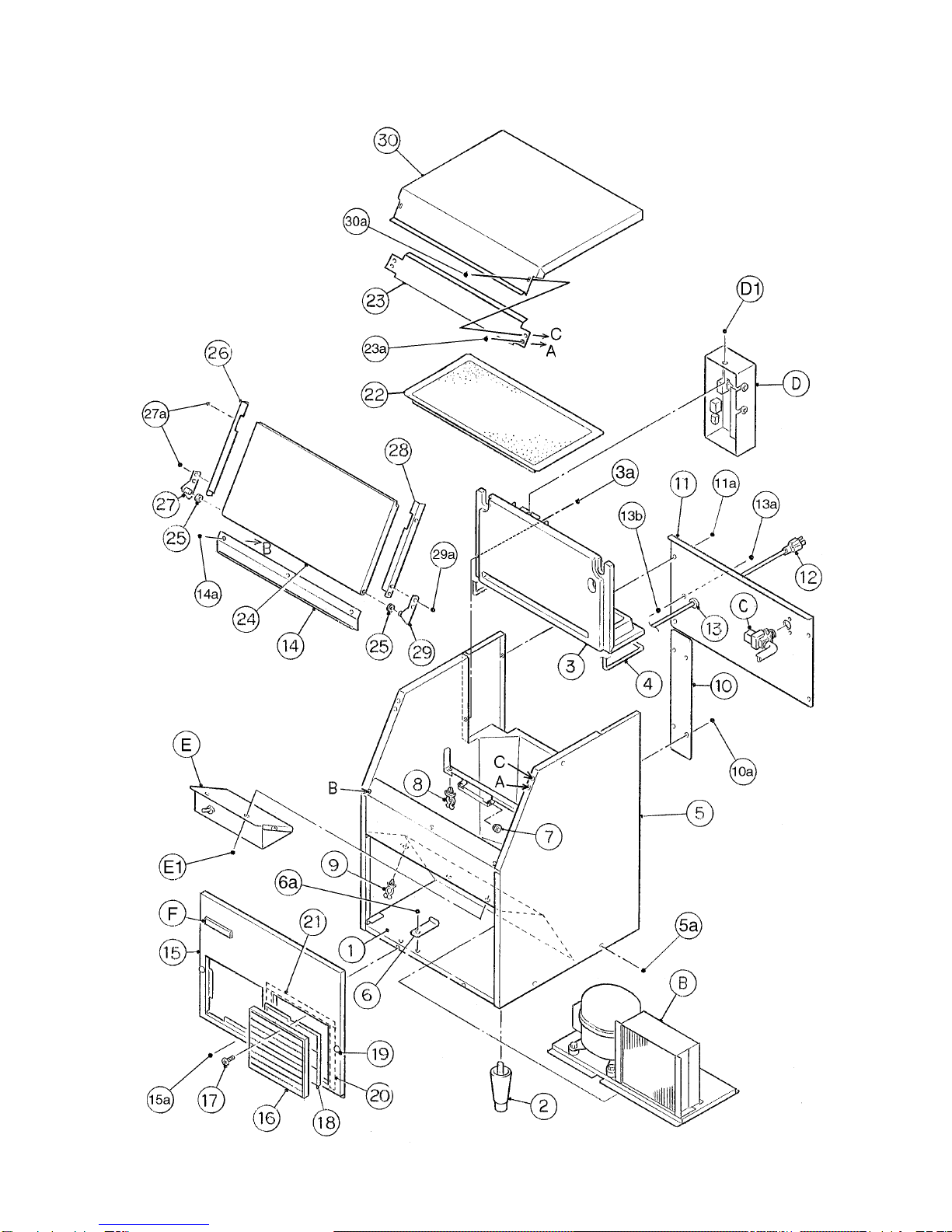

KM-150BAF A. ICE CUBER ASSEMBLY G-0

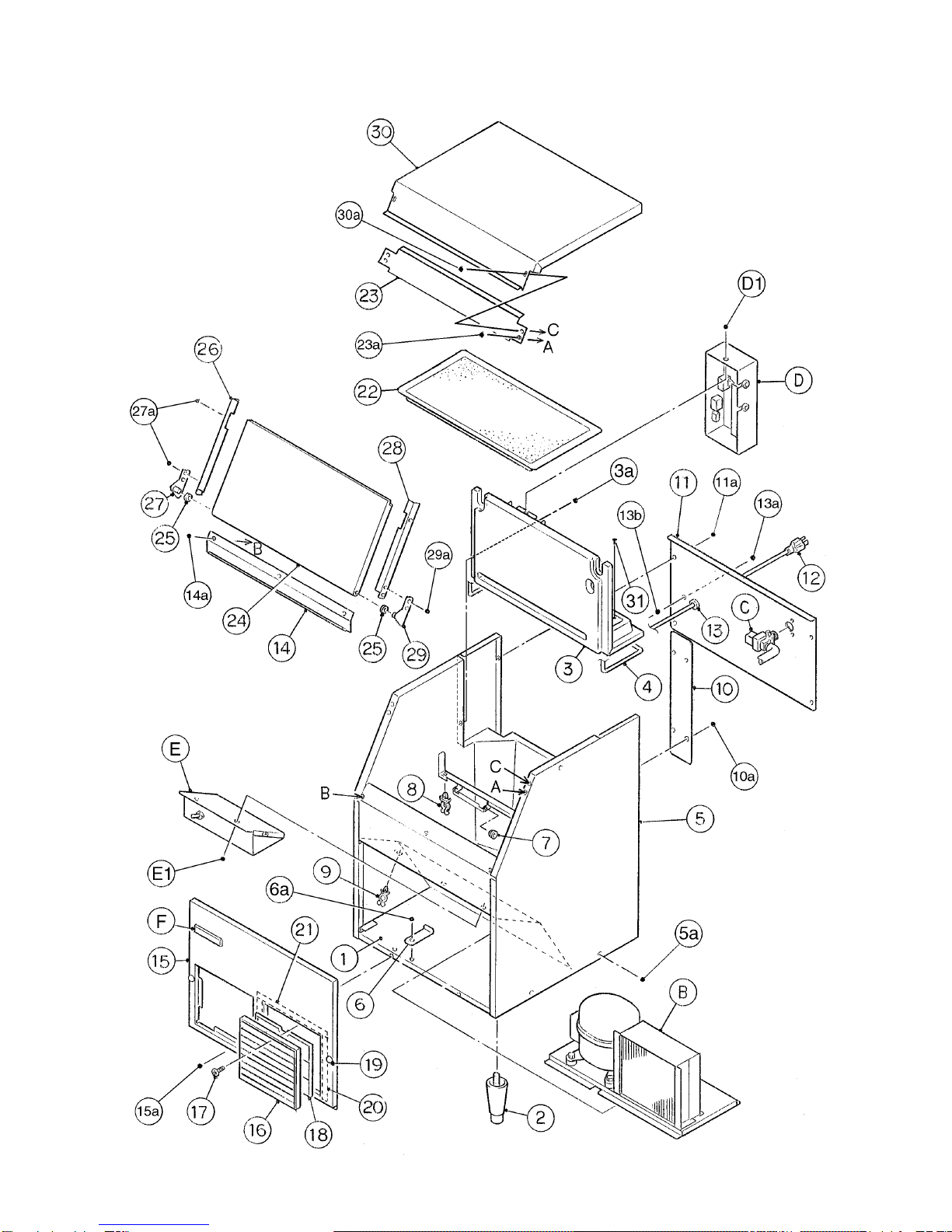

KM-150BAF A. ICE CUBER ASSEMBLY H-0, H-1, H-2,

J-0,K-0,L-0

KM-150BAF A. ICE CUBER ASSEMBLY L-1, M-0

MODEL: KM-150BAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER G-0

H-0

H-1 H-2 J-0 K-0 L-0 L-1

M-0

B REFRIGERATION CIRCUIT - 108445A01 1 1 1 1 1 1 -

- 1A0591A01 1

C WATER CIRCUIT - 108446A01 1 1 1 1 1 1 1

- 338868A01 1 -D CONTROL BOX ASSY (A)

- 338868A02 1 1 1 1 1 1

D1 T2 SCREW 4X8 7P31-0408 1 1 1 1 1 1 1

E CONTROL BOX ASSY (B) - 226318A01 1 1 1 1 1 1 -

- 226318A03 1

E1 T2 SCREW 4X8 7P31-0408 2 2 2 2 2 2 2

- 3A0809A01 1 -F LABEL LOCATION

- 3A0809A02 1 1 1 1 1 -

- 3A0809A03 1

1 BASE - 108448G01 1 1 1 1 1 1 -

- 108448G02 1

2 LEG - 4A1181-01 4 4 4 4 4 4 4

3 PANEL - REAR - 226469G01 1 1 1 1 1 1 1

3a TRUSS HEAD SCREW 4X25, SS 7C32-0425 4 4 4 4 4 4 5

4 GASKET L=1260 4A0753L01 1 1 1 1 1 1 1

5 BODY - INSULATION - 108444G01 1 1 1 1 1 1 1

5a T2 SCREW 4X8, SS 7P32-0408 4 4 4 4 4 4 4

6 STOPPER GS 452825-01 1 1 1 1 1 1 1

6a T2 SCREW 4X8,SS 7P32-0408 1 1 1 1 1 1 1

7 CAPILLARY RING EP RUBBER 425307-01 2 2 2 2 2 2 2

8 CLAMP WS50-25-C 4A0337-07 2 2 2 2 2 2 2

9 CLAMP WS75-25-C 4A0337-10 2 2 2 2 2 2 1

10 REAR PANEL (B) GS 452641-01 1 1 1 1 1 1 1

10a T2 SCREW 4X8, SS 7P32-0408 4 4 4 4 4 4 x4

4X8, ZINC 7P31-0408 o4

MODEL: KM-150BAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER G-0 H-0

H-1

H-2 J-0 K-0 L-0 L-1

M-0

11 REAR PANEL (A) GS 226306-01 1111111

11aT2SCREW 4X8,SS 7P32-0408666666x6

4X8, ZINC 7P31-0408 o6

12 POWER SUPPLY CORD AEC-30 440894-01 1 1 1 x1

- 4A1773-01 o1 1 1 1

13 BUSHING SR-7K-2 420472-02 1111111

13a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1111111

13b HEX NUT 4, SS 7N12-0400 1111111

SS 338861-01 1 x114 FRONT COVER (B)

SS 338861-02 o1 1111x1

SS 338861-01 o1

14aT2SCREW 4X8,SS 7P32-04083333333

15 FRONT PANEL GS 226307-01 1111111

15a TRUSS HEAD SCREW 4x8, SS 7C32-0408 3333333

16 LOUVER ABS 103344-08 2222222

17 TAPPING SCREW (BLACK) STEEL 433954-01 2222222

18 AIR FILTER (A) ABS 208840G03 1111111

19 CUSHION SJ-5027 4A1178-01 2222222

20 INSULATION (D) PE FOAM 452649-01 2222222

21 INSULATION (A) PE FOAM 452694-01 1111111

22 INSULATION - TOP PS 338859G01 1111111

23 SUPPORT - TOP PANEL SS 453877-01 1111111

23a FLAT HEAD SCREW 4X12, SS 7C22-0412 2222222

24 DOOR PE 226305G01 1111111

25 COLLAR AC 431496-01 2222222

SS 339026-01 1 x126 FRONT COVER (L)

SS 339026-02 o1 1111x1

SS 339026-01 o1

MODEL: KM-150BAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER G-0 H-0

H-1

H-2J-0K-0L-0L-1

M-0

27 HINGE (L) SS 452824G01 1 1 1 1 1 1 1

27a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3 3 3 3 3 3 3

28 FRONT COVER (R) SS 338860-01 1 x1

SS 338860-02 o1 1 1 1 1 x1

SS 338860-01 o1

29 HINGE (R) SS 452640G01 1 1 1 1 1 1 1

29a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3 3 3 3 3 3 3

30 TOP PANEL SS 108449-01 1 x1

SS 108449-02 o1 1 1 1 1 x1

SS 108449-01 o1

30a TRUSS HEAD SCREW 4X8, SS 7C32-0408 4 4 4 4 4 4 2

31 T2 SCREW 4X8, SS 7P32-0408 - 1 1 1 1 1 1

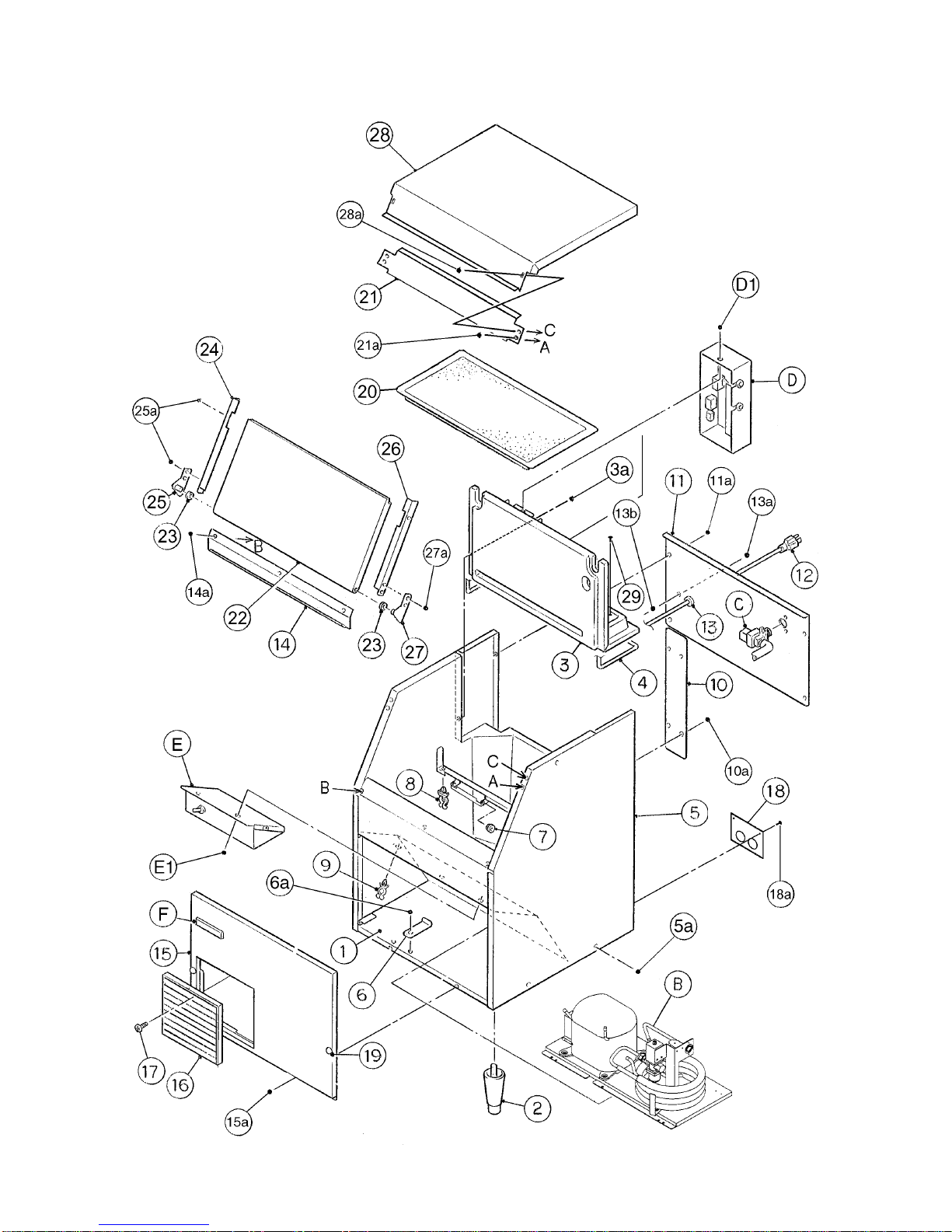

KM-150BWF A. ICE CUBER ASSEMBLY H-2, H-3, J-0, K-0
