SLIM-LINE MOD LAR CRESCENT C BER

Warranty

Valid in United States, Canada, Puerto Rico, & U.S.Territories. Contact factory for warranty in

other countries.

Three Year - Parts & Labor on entire machine.

Five Year - Parts & Labor on: Evaporator

Five Year - Parts on: Compressor, air-cooled condenser coil.

KM-461M_H

Item #

Project:

Qty:

Hoshizaki reserves the right to change specifications without notice.

KM-461M_H

22 x 273/8 x 305/16

*AutoCad available on KCL

•Up to 452 lbs. of ice production per 24 hours

•Durable stainless steel exterior

•Individual crescent cube

•Protected by HoshiGuard antimicrobial agent

•CycleSaver®Design

•EverChec ®alert system

•Stainless steel evaporator

•Mount two units side-by-side, in only 44" of floor space, for 904 lbs. per 24 hours

•Removable air filters (Air-cooled models only)

•R-404A Refrigerant

•Complies with California Energy Commission guidelines (CEC)

* The KM-461MRH is ENERGY STAR certified.

KM-461MAH

Air-Cooled

Shown on an optional

B-300

KM-461MRH

Remote Air-Cooled

B-500

B-700

B-900

B-800

B-300

Also availabl on Larg Bins:

B-1150SS

B-1300SS

B-1500SS

B-1650SS

Hoshizaki

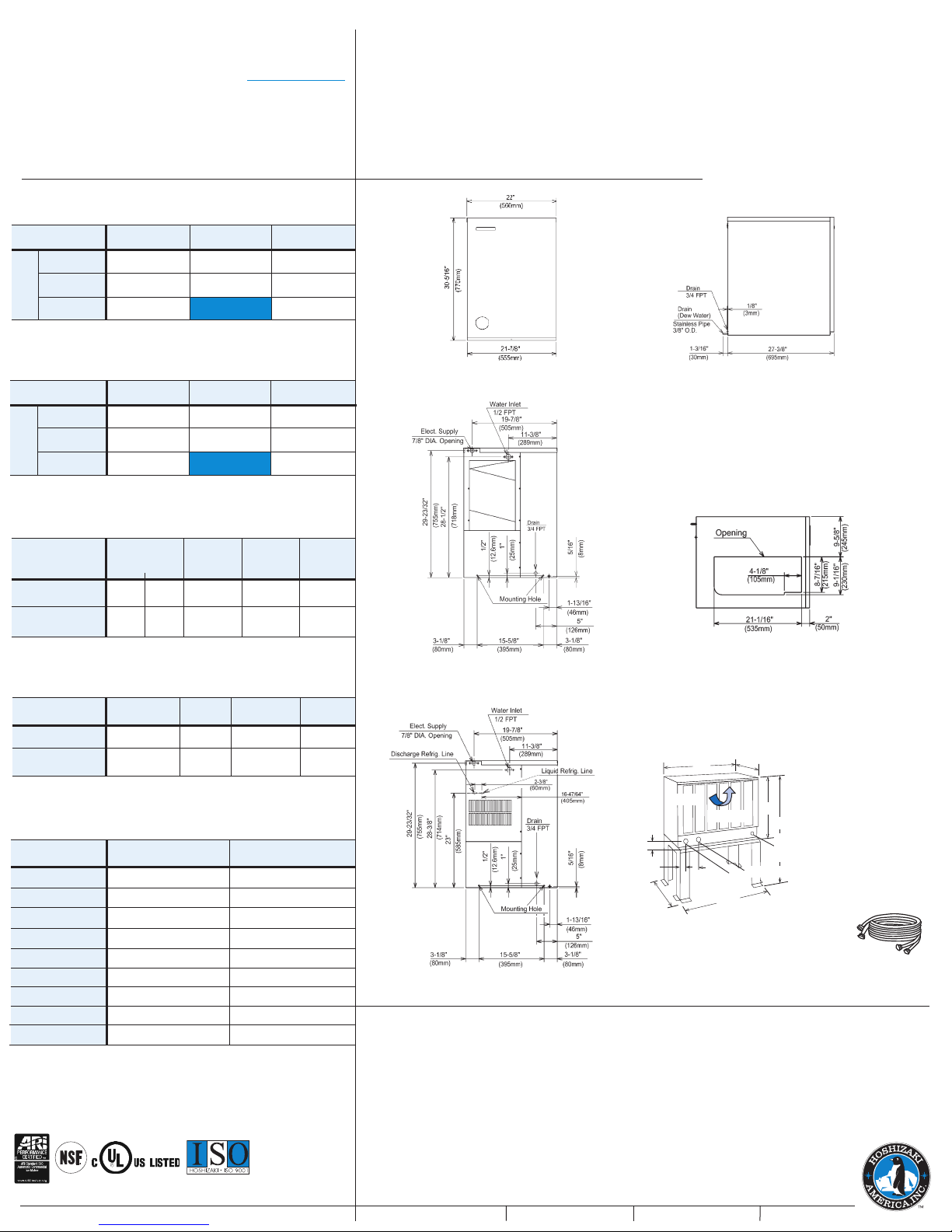

DIMENSIONS

WxDxH

©HOSHIZAKI AMERICA, INC.

KM-461M_H

SLIM-LINE MOD LAR CRESCENT C BER

TILITY CONS MPTION

AIR-COOLED

Model Number

70˚

50˚ 70˚

452

90˚

80˚

90˚

Ice Production

Per Cycle

KWH per

100 LBS.

Potable

Water

Gal. per

100 lbs.

Lbs. Cubes

Air Temp˚ F.

Water Temp˚ F.

SPECIFICATIONS

Model Number Condenser Amperage Min. Circuit

Ampacity Shipping

Weight

6.3 18.0

438

434

409

398

368

349

10 480

389

90/70

Condenser

Water

Gal. per

100 lbs.

N/A

O P E R AT I N G L I M I T S

• Ambient Temp Range 45 - 100˚F

• Water Temp Range 45 - 90˚F

• Water Pressure 10 - 113psig

• Voltage Range 104 - 127V

ELECTRICAL&PL MBING/KM-461M_H

• 115/60/1

• 20 Amp ax Fuse/HACR Breaker Size

• 1/2” OD copper or equivalent independent potable water supply

• 3/4” FPT independent drain connection

SERVICE

• Panels easily removed and all components

accessible for service.

• Removable/cleanable air filters

(Air-cooled model only)

618 Hwy. 74 S., Peachtree City, GA 30269 TEL 1-800-438-6087 FAX 1-800-345-1325 www.hoshizaki.com Printed in .S.A.

KM-461M_H

22 x 273/8 x 305/16

KM-461MAH

12.0 20 175 lbs.

Air-Cooled

KM-461MAH

STORAGE BINS

Model Number Application Capacity ARI-Rated Capacity

B-500 500 lbs. 360 lbs.

B-700 700 lbs. 550 lbs.

B-800 800 lbs. 600 lbs.

B-900 900 lbs. 660 lbs.

B-1150 1150 lbs. N/A

B-1300 1275 lbs. N/A

B-1500 1500 lbs. N/A

B-300 300 lbs. 260 lbs.

FRONT IEW SIDE IEW

ICE DROP ZONE

AIR-COOLED UNIT

REMOTE AIR-COOLED

70˚

50˚ 70˚

446

90˚

80˚

90˚

Air Temp˚ F.

Water Temp˚ F.

435

431

412

399

373

359

396

KM-461MRH 6.0 18.0

10.4 480 N/A

12.1 20 175 lbs.

Remote

Air-Cooled

KM-461MRH

REMOTE AIR-COOLED UNIT

15 3/4

32 13/16

URC-5F

Air Flow

Liquid Refrigerant

Line

Discharge Line

Electrical

Conduit

Access

Pre-Charged Tubing Kits

(Sold Separately)

20’ R404-2046-2

35’ R404-3546-2

RC-5F Remote Condenser (Sold Separately)

For Use with K -461 RH

Voltage supply for the RC Remote

Condenser is supplied from the Ice Maker.

No additional circuit is required.

C O N D E N S I N G N I T

• Ambient Temp Range -20 - +122˚F

• Voltage Range 104 - 127V

• Air-cooled

• Remote Air-cooled

21/2

13/4

18 1/8

B-1650 1605 lbs. N/A
