Hoshizaki KML-250MAH Manuale utente

NO.

SEPT. 18, 2001

ISSUED:

71192

HOSHIZAKI

MODULAR CRESCENT CUBER

MODEL

KML-250MAH

KML-250MWH

PARTS LIST

SEPT. 25, 2001

ISSUED:

KML-250MAH L-0 May 2001

KML-250MWH L-0 October 2001

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitritrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" (interchangeable)

skipped. So, "K" indicates "2000". part.

Ex.2 L-0 o = New part for "x" in the

"L" is the next in alphabetical same auxiliary code.

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably

in a year, this number advances.

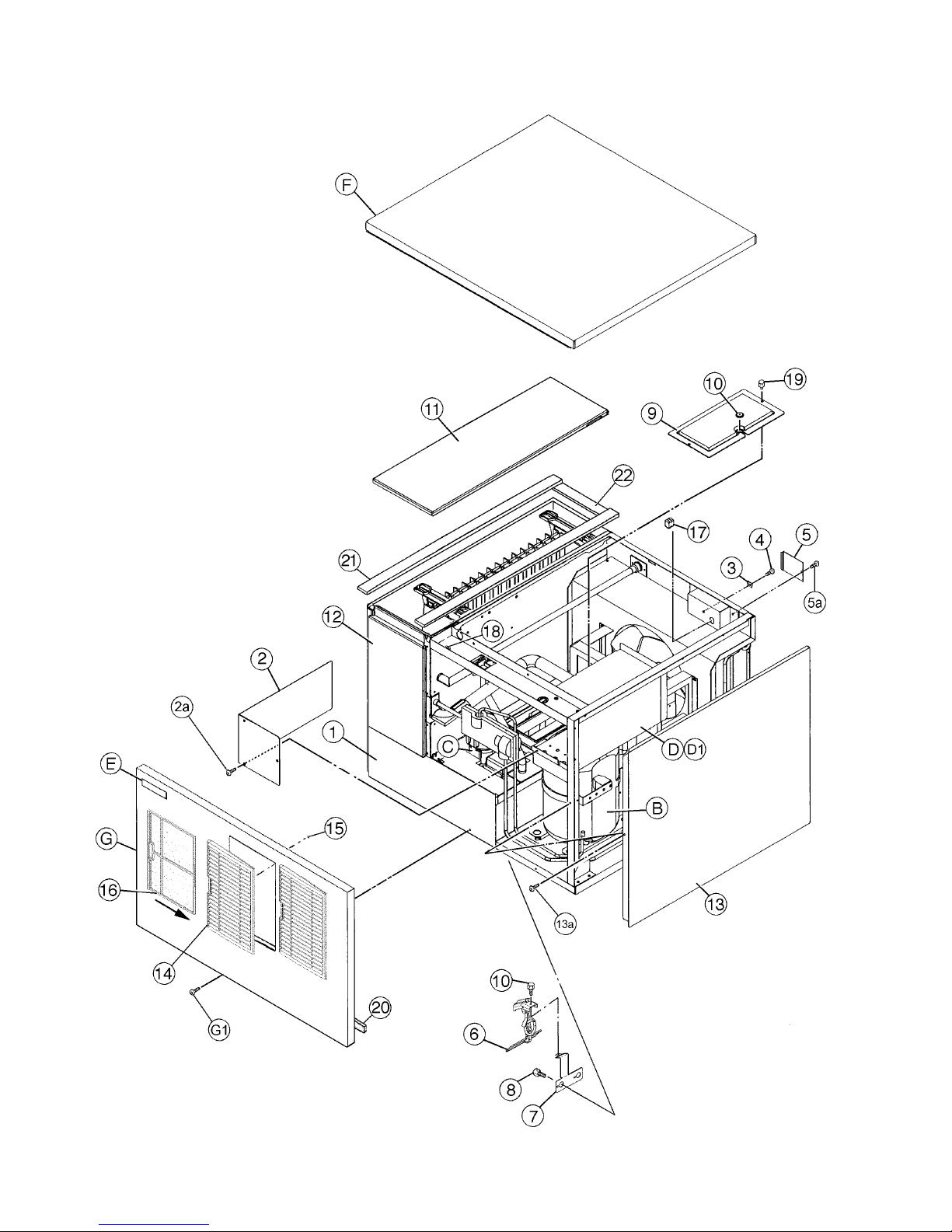

KML-250MAH A. ICE CUBER ASSEMBLY L-0

MODEL: KML-250MAH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

B REFRIGERATION CIRCUIT - 1A0604A01 1

C WATER CIRCUIT - 1A0438A01 1

D CONT. BOX ASSEMBLY - 2A2291A01 1

D1 T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A2043A01 1

F TOP PANEL ASSEMBLY - 3A1862A01 1

G FRONT PANEL - 3A1859A01 1

G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

1 EVAPORATOR CASE - 2A2238G01 1

2 CONTROL BOX COVER GS 3A1828-01 1

2a T2 SCREW 4X8 7P31-0408 3

3 SQUARE WASHER BRASS 433537-02 1

4 SCREW - GROUNDING BRASS 433304-02 1

5 JUNCTION BOX COVER GS 433410-01 1

5a T2 SCREW 4X8 7P31-0408 1

6 BIN SWITCH - 4A2430-01 1

7 BRACKET (L) - 3A1433-01 1

8 THUMBSCREW SS, ABS 415949G09 2

9 BIN CONTROL COVER GS 3A0664G01 1

10 THUMBSCREW - 4H3270G01 1

11 TOP INSULATION PP 215730G01 1

12 FRONT INSULATION PP 2A0664G01 1

13 SIDE PANEL (R) SS 2A2111G01 1

13a T2 SCREW 4X8, SS 7P32-0408 1

14 LOUVER (B) ABS 1A0548-01 2

15 PUSH RETAINER - 4A2414-01 6

16 AIR FILTER (B) ABS 2A2063G01 2

17 BUSHING SR-34-2 420472-03 1

18 WIRE SADDLE VWS4238-C 4A0338-02 2

19 THUMBSCREW SS, ABS 415949G04 2

MODEL: KML-250MAH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

20 GASKET L=762 4A0808L02 1

21 GASKET L=655 4A0808L02 2

22 GASKET L=190 4A0808L02 1

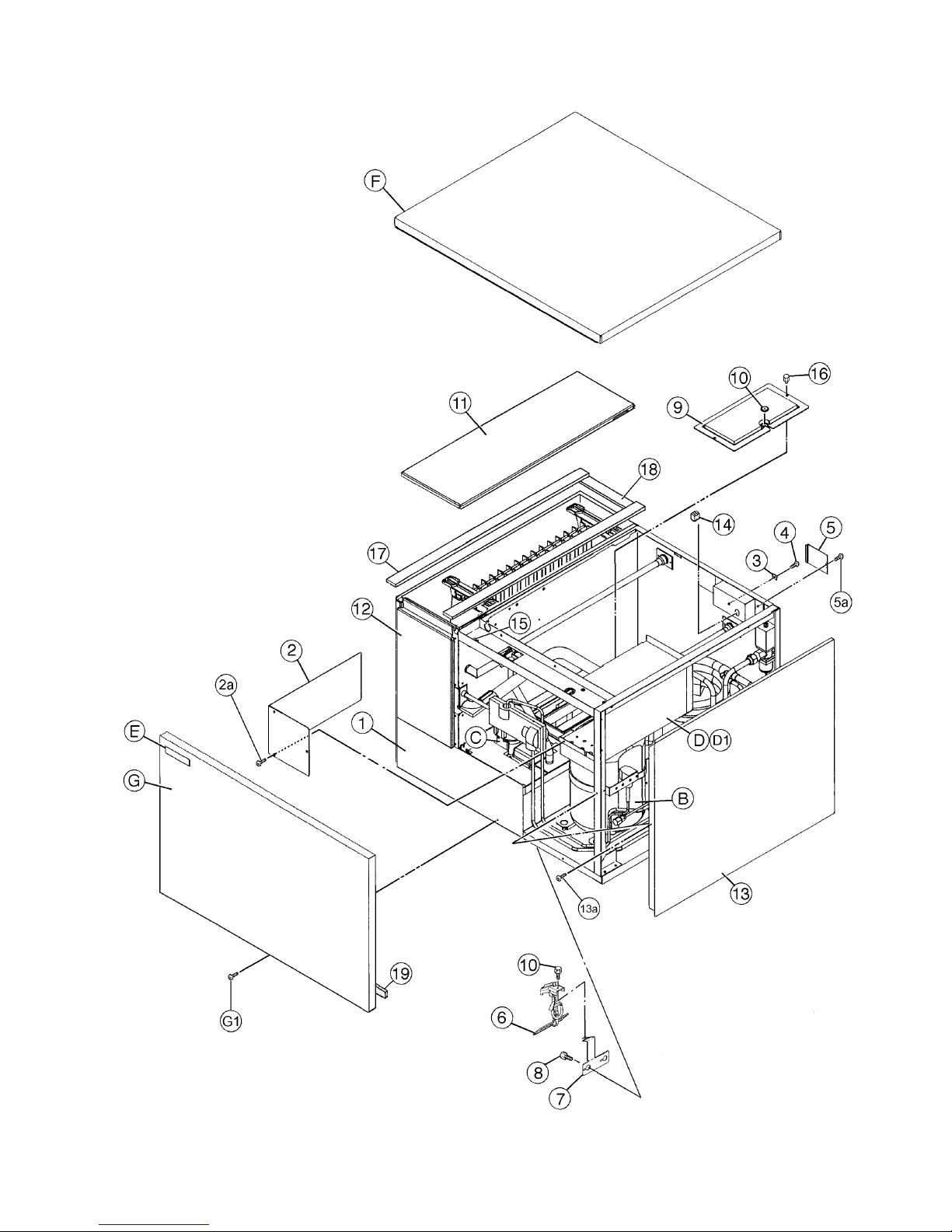

KML-250MWH A. ICE CUBER ASSEMBLY L-0

MODEL: KML-250MWH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER L-0

B REFRIGERATION CIRCUIT - 1A0634A01 1

C WATER CIRCUIT - 1A0438A01 1

D CONTROL BOX ASSEMBLY - 2A2291A01 1

D1 T2 SCREW 4X8 7P31-0408 3

E LABEL LOCATION - 3A1988A01 1

F TOP PANEL ASSEMBLY - 3A1862A01 1

G FRONT PANEL - 3A1859A02 1

G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 2

1 EVAPORATOR CASE - 2A2238G01 1

2 CONTROL BOX COVER GS 3A1828-01 1

2a T2 SCREW 4X8 7C31-0408 3

3 SQUARE WASHER BRASS 433537-02 1

4 SCREW - GROUNDING BRASS 433304-02 1

5 JUNCTION BOX COVER GS 433410-01 1

5a T2 SCREW 4X8 7C31-0408 1

6 BIN SWITCH - 4A2430-01 1

7 BRACKET (L) - 3A1433-01 1

8 THUMBSCREW SS, ABS 415949G09 2

9 BIN CONTROL COVER GS 3A0664G01 1

10 THUMBSCREW - 4H3270G01 1

11 TOP INSULATION PP 215730G01 1

12 FRONT INSULATION PP 2A0664G01 1

13 SIDE PANEL (R) SS 2A2111G01 1

13a T2 SCREW 4X8, SS 7P32-0408 1

14 BUSHING SR-30-1 420472-03 1

15 WIRE SADDLE VWS4238-C 4A0338-02 2

16 THUMBSCREW SS, ABS 415949G04 2

17 GASKET L=655 4A0808L02 2

18 GASKET L=190 4A0808L02 1

19 GASKET L=762 4A0808L02 1

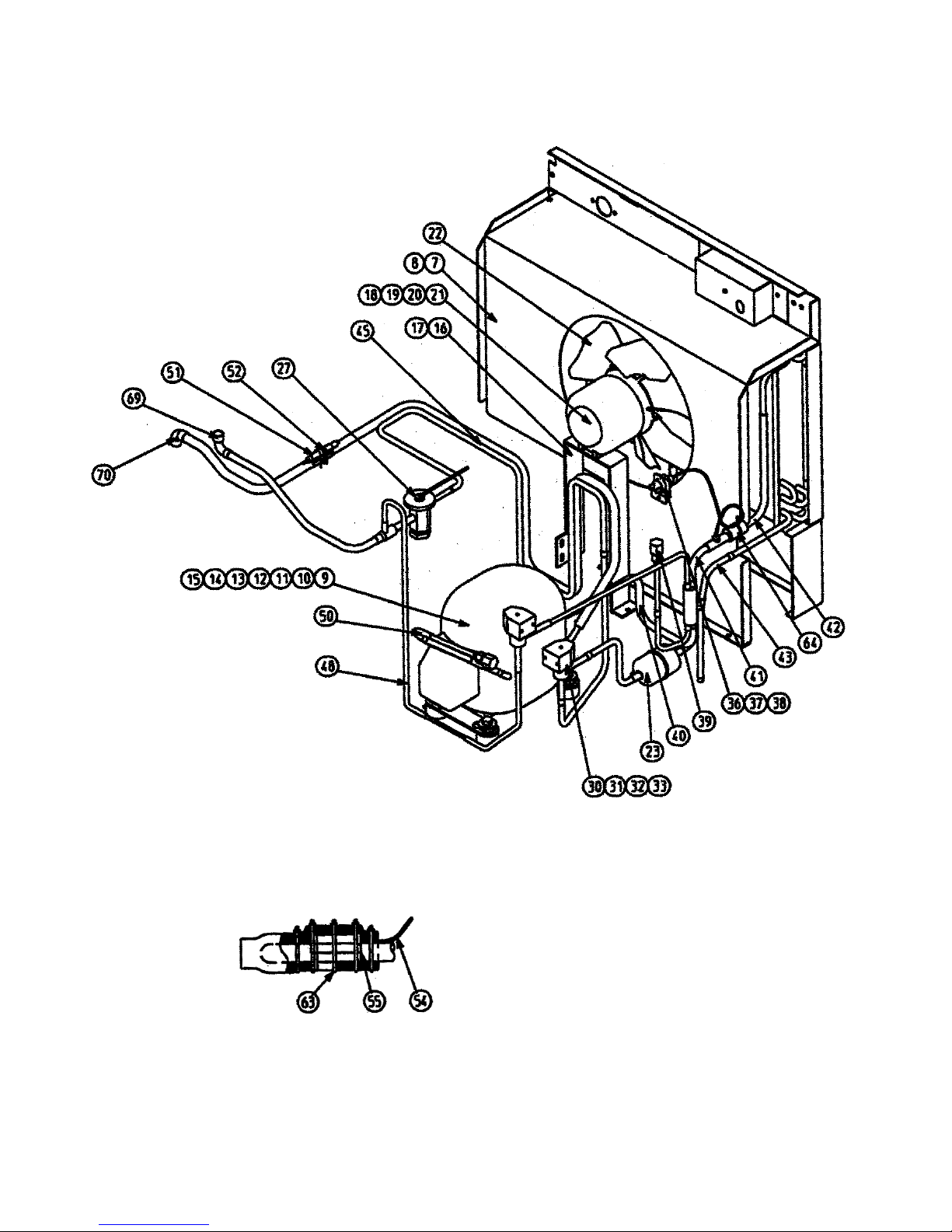

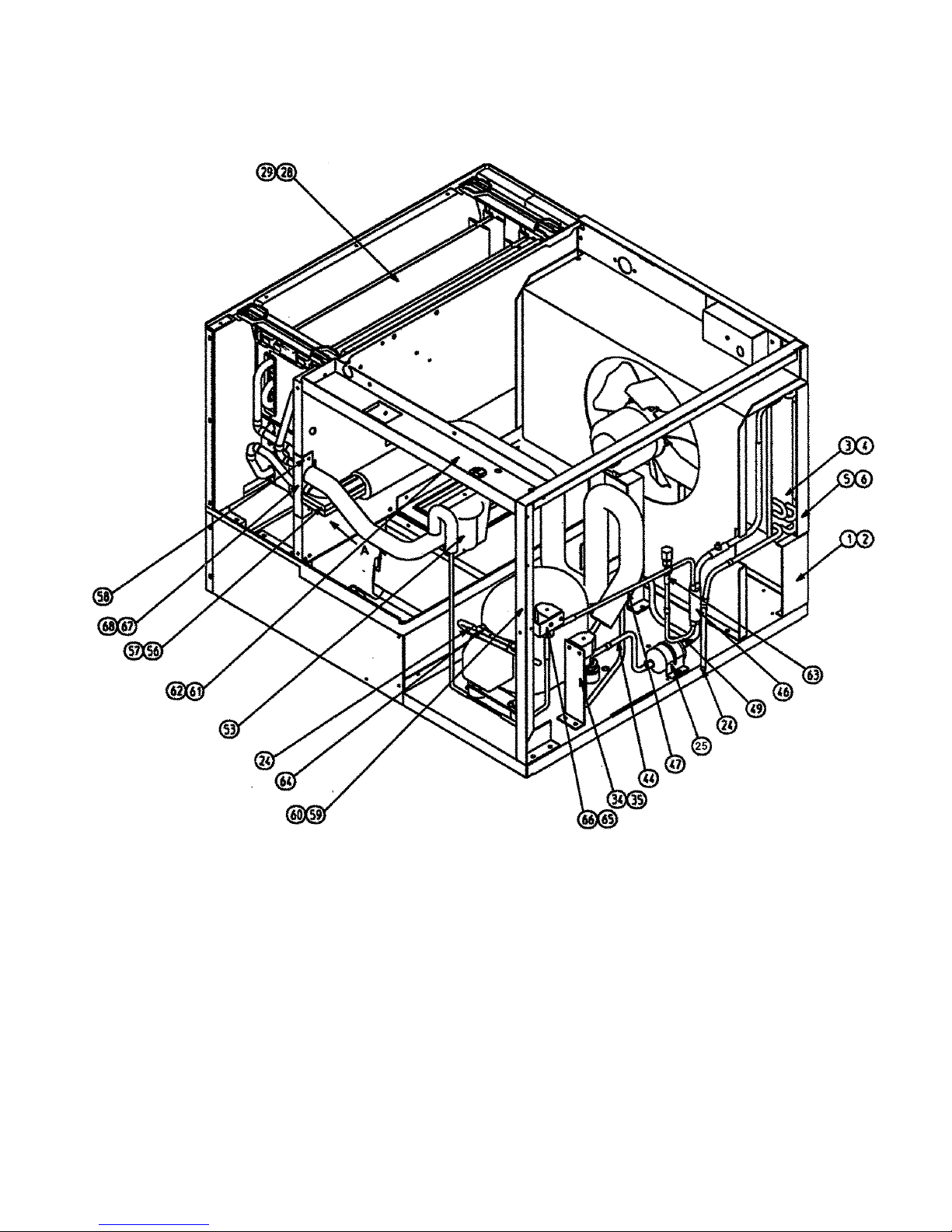

KML-250MAH B. REFRIGERATION CIRCUIT (1/2) L-0

KML-250MAH B. REFRIGERATION CIRCUIT (2/2) L-0

DETAILED THERMISTOR ATTACHMENT
