Host Liberator extractorVAC Guida

Safety Instructions

When using electrical equipment, basic precautions

should always be followed, including the following:

Warning—to reduce the risk of fire, electric shock, or injury:

















































    





Liberator®extractorVAC®Safety & Maintenance Instructions

Save these instructions.

Read all instructions before using this machine.

Grounding Instructions



         

          









     

           

           



            







         

           

 



         







             



 



GROUNDED OUTLET BOXES

(A)

GROUNDING PIN

(B) (C)

METAL

SCREW

ADAPTER

TAB FOR

GROUNDING

SCREW

Machine Maintenance







Breaking in New Brushes







   



Handle locking

knobs

Lift grip

Bagless hopper

Velcro

skirt

Gear case cover plate

Filter housing

latch

Vacuum hose

Pigtail twist lock

for power cord

Motor filter & vents

Brush guard/

end cover plate

Crevice tool

Filter housing

latch

Power switch

control panel

Spring lock button

Brush power

switch (black)

Vacuum power

switch (white)

Filter light

Switch Control Panel

Operating handle

Power cord

Velcro strap

for power cord

Back cover plate

    

     

  

Using/Cleaning the 3-Piece Fine Particle Filter

or HEPA-type Filter

 

  





3-Piece Fine Particle Filter



























HEPA-type Filter

 

  



 

 







 













 

 

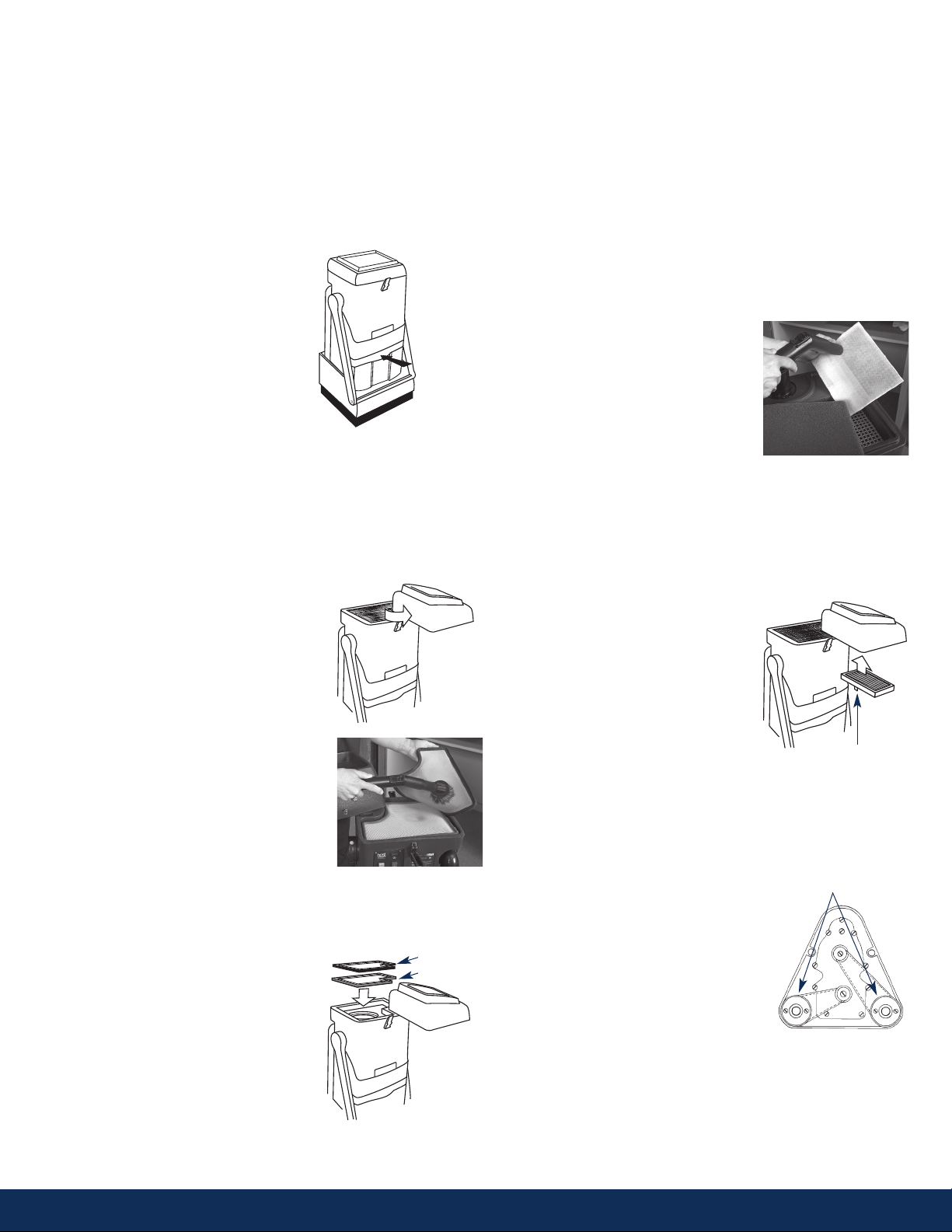

Replacing Belts

















 





Insert the HEPA-type filter

in the filter housing with

the small tab facing you.

Machine Maintenance, cont’d.

Emptying the Bagless Hopper

 







  



   

 

























 



Cleaning Primary & Secondary Filters

When the Filter Light Comes On

































 







 



















Push hopper

firmly into

hopper guides

to insure a

snug seal.

Unlatch filter

housing and

swing to the

side.

The burnt

orange primary

filter is inserted

first, followed by

the black

secondary filter.

Black

Burnt orange

Large pulley flange

& screws for flange

HOST, Liberator, extractorVAC and PREP are registered trademarks of Racine Industries, Inc., Racine, Wisconsin USA.

M50265(B)

Racine Industries, Inc. (800) 558-9439

1405 Sixteenth Street (262) 637-4491

P.O. Box 1648 FAX (262) 637-0558

Racine, WI 53401 USA www.hostdry.com

Machine Maintenance, cont’d.

Cleaning the Motor Vents & Filter





 



 



















 



Cleaning & Rotating Brushes

    



Cleaning the Interior of the Liberator

  





































































Troubleshooting

Loss of Suction Power











   

If Liberator Does Not Run

 









 











 

 

Remove and

clean filter

Vacuum

vents

Remove the separator assembly

to clean the vacuum cone.

Vacuum shoe

HOST, Liberator, extractorVAC and PREP are registered trademarks of Racine Internation al, LLC. Racine, Wisconsin USA.

Racine International, LLC.
