Hotpoint Ariston 47553 Istruzioni per l'uso e l'installazione

Indesit Company UK Ltd

Service

Information

WASHING

MACHINES

Models Comm.

Covered Code

LED

ARXXL105EU 47553

ARXXL105IT 51215

DIGIT

ARXXF125EU 49055

5407388 Issue 1 Oct. 2007

2 of 28

Service Manual UK

Indesit

Company

English

SAFETY NOTES & GENERAL SERVICING ADVICE

1. This manual is NOT intended as a comprehensive repair/maintenance guide to the appliance.

2. It should ONLY be used by suitably qualified persons having technical competence applicable

product knowledge and suitable tools and test equipment.

3. Servicing of electrical appliances must be undertaken with the appliance disconnected (unplugged)

from the electrical supply.

4. Servicing must be preceded by Earth Continuity and Insulation Resistance checks.

5. Personal safety precautions must be taken to protect against accidents caused by sharp edges on

metal and plastic parts.

6. After servicing the appliance must be rechecked for Electrical Safety. In the case of appliances

which are connected to a water supply (i.e.: Washing Machines, Dishwashers & Food Centres etc.)

checks must be made for leaks from seals gaskets and pipe work and rectification carried out where

necessary.

7. Itcanbedangeroustoattempt 'DIY' repairs /maintenance on complex equipmentandtheCompany

recommends that any problem with the appliance is referred to its own Service Organisation.

8. WhilsttheCompany hasendeavouredtoensurethe accuracyof the datawithin this publicationthey

cannot hold themselves responsible for any inconvenience or loss occasioned by any error within.

SERIAL NUMBER / INDUSTRIAL CODE EXPLANATION

Serial Number Example

3 10 02 0895

Four remaining digits = Build number that day 895th built

Third two digits = Day of manufacture 2nd of month

Second two digits = Month of manufacture October

First digit = Year of manufacture 2003

Industrial Code Example

37 24455 0010

Last four digits = 0000 original production.

Second five digits = COMMERCIAL CODE*

First two digits = Factory of origin

* Vital for correct model information and system identification

Other numbers denote major production changes

3 of 28

Indesit Company

Service Manual UK English

INDEX

Safety & Servicing Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Manufacturing Serial Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Development History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 6

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Demo Mode - ARXXF125EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Controls Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Option Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wiring Diagrams

LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Digit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wiring Connection Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wiring Diagram Legend. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Power Module Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Error Codes & Possible Causes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Dismantling Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 26

4 of 28

Service Manual UK

Indesit

Company

English

SPECIFICATIONS

Models Covered LED Display models - ARXXL105EU, ARXXL105IT

DIGIT Display - ARXXF125EU

Colour White

Country of Origin Great Britain

Electrical Supply 220 - 240 Volt AC @ 50 Hz Fuse 13 amp

Energy Energy Class: A+ @ 6 kg

Washing Performance Class: A+

Spin Efficiency Class: B

Energy Consumption 1.02 kWh / Cycle @ 60°C Cotton

Water Consumption 55 Litres @ 60°C Cotton

Wash Load 6.0 kg Cottons

Washing & Drying Load 5.0 kg Cottons

Spin Speed ARXXL105EU - 1000 rpm

ARXXL105IT - 1000 rpm

ARXXF125EU - 1200 rpm

Control PCB 220/240 Volt 50/60 Hz Type Merloni EVO 2

Water Supply Cold Valve - Coil Resistance 3.8 KΩ

Max Pressure = 1 Mpa (10bar)

Minimum Pressure = 0.05 Mpa (0.5bar)

Wash Heater 1800 Watts @ 230 volts Resistance 30 Ω approx.

Thermistor NTC Resistance: 20 KΩ@ 20°C

Pump 2 Pole Synchronous

220 / 240 Volt 25 Watt, Resistance = 162 Ω

Door Lock P.T.C. Solenoid with emergency door release

Torque Settings Upper Balance Weight = 24 Nm

Lower Balance Weight = 24 Nm

• Make sure that you allow enough space for the machine. Select a space at least

60 cm wide, 60 cm deep and 85 cm high. Also leave enough space to open the door fully, so that

you can load and unload it easily.

• Where possible, the machine should be positioned on a solid floor to minimise vibration.

• Take care when you move the machine not to rip any floor coverings.

Levelling

The machine will be noisy if the two front feet are not adjusted so that the machine stands firm and

level.

• The machine should be levelled from side to side and from front to back.

Dimensions Height 850 mm Width 595 mm

Depth 580 mm Weight 72 kg Packed approx. 73.5 kg

5 of 28

Indesit Company

Service Manual UK English

CONTROLS

LED MODEL

DIGIT MODEL

ON-OFF / SELECTING A PROGRAMME

The machine is switched on by pressing the ON-OFF button.

All the indicator lights will light up for a few seconds.

Turn the programme selector dial to the to the desired programme.

Load the laundry and detergent.

Select the Option you require, a time will be indicated in the display window.

Press the Start / Cancel button.

A beep will be heard followed by a CLUNK from the door lock Solenoid as it locks the door, at this

stage the door locked indicator symbol will light.

On-Off

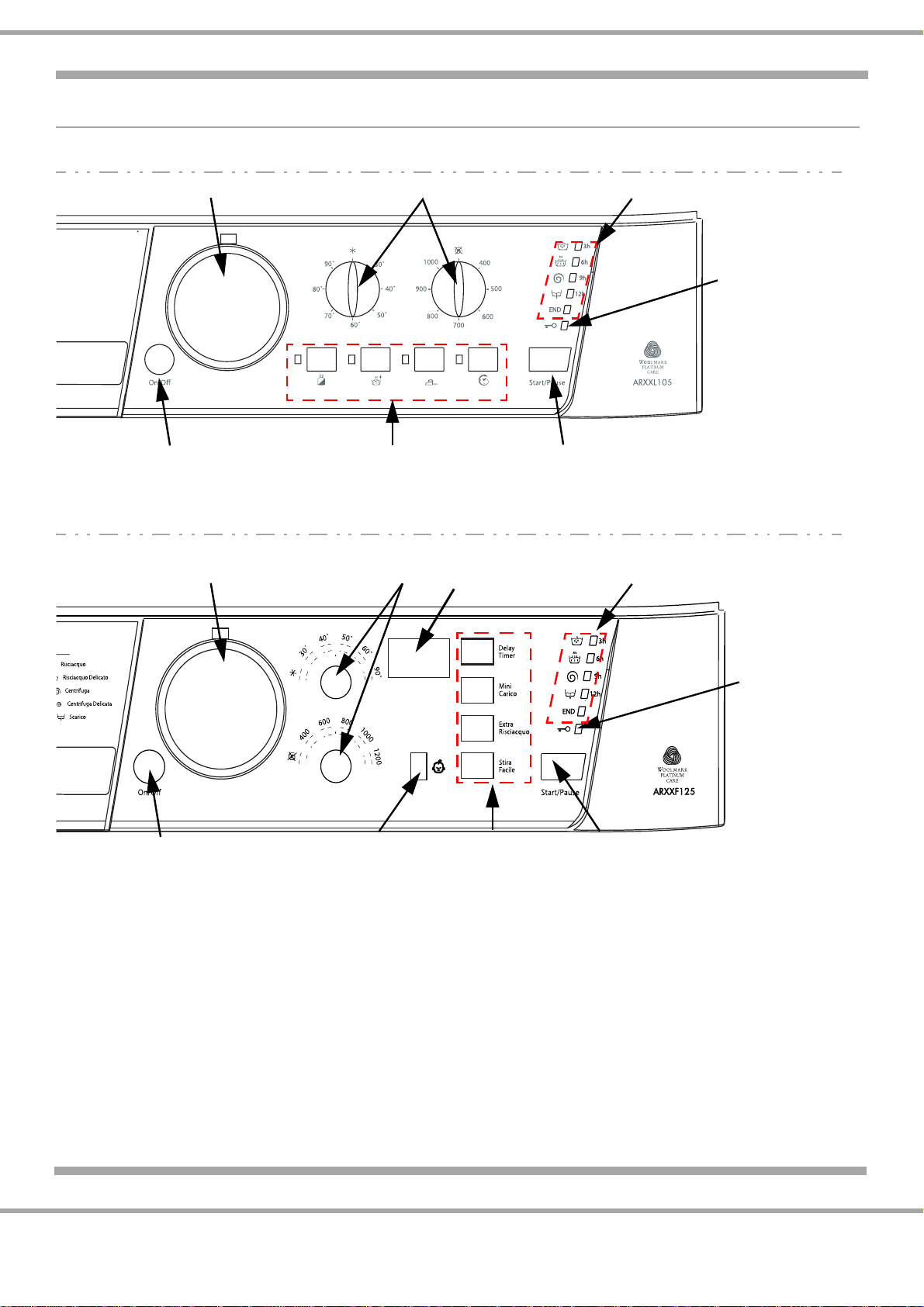

Programme Selector Dial Variable Controls Progress Indicator Lights

Door Locked

Symbol

On-Off

Programme Selector Dial Variable Progress Indicator Lights

Door Locked

Symbol

Option Buttons Start/Pause

Child Lock

Controls Digital

Display

Option Buttons Start/Pause

6 of 28

Service Manual UK

Indesit

Company

English

TO STOP OR CHANGE A PROGRAMME

Press the ON-OFF button for approximately 3 seconds

Select PUMP OUT on the programme dial.

Switch on and re-start

When the machine has finished emptying.

Press the ON-OFF button

Select a new programme and re-start

NOTE: If you cancel a HOT wash or Dry programme, take care when removing the laundry, it may still

be VERY HOT.

PROGRESS INDICATOR LIGHTS

These lights will light up when you choose a programme, to indicate the progress of the selected

programme.

When started, the first light in the cycle will stay lit and as the programme progresses, successive

lights will come on until the programme finishes.

DOOR LOCKED INDICATOR LIGHT

The 'Door Locked' indicator light will come on when you press the START / PAUSE button and will stay

lit throughout the programme. When the programme has finished the indicator light will go out and you

can then open the door, a double CLUNK noise will be heard from the door lock Solenoid at this point.

If the door is not closed properly prior to starting a programme the door lock solenoid will 'CLUNK'

approximately 5 times followed by a flashing DOOR indication in the display window, every 5 seconds

from then onwards there will be an audible beep.

Push the door closed and press START / PAUSE button to commence the cycle.

CHILD LOCK - Model ARXXF125

To set the Child Lock, start the programme required then press and hold the Child Lock button for

2 seconds. At this point a red LED will illuminate on the button - Child Lock function is now active.

To Remove Child Lock - Press and hold the Child Lock button down for 2 seconds.

NOTE: - The Child Lock option will need to be removed before another programme can be selected.

7 of 28

Indesit Company

Service Manual UK English

OPTIONS

Options are selected by pressing the button and confirmed by illumination an orange LED situated in

the button.

If an option is not available with a programme, the LED will flash and a bleeping noise will be heard

when pressing the button.

MINI LOAD

For washing a smaller load.

In addition to reducing actual washing time, this option will reduce water and energy consumption by

up to 50%.

NOTE: - You can reduce the amount of detergent you use with this programme.

EXTRA RINSE

For large wash loads and items for young children or people with sensitive skin.

This option adds a rinse.

EASY IRON

To reduce creasing to a minimum and save you ironing time.

TIME DELAY

With this option you can delay the start time of the programme between 1 and 24 hours.

TIME DELAY

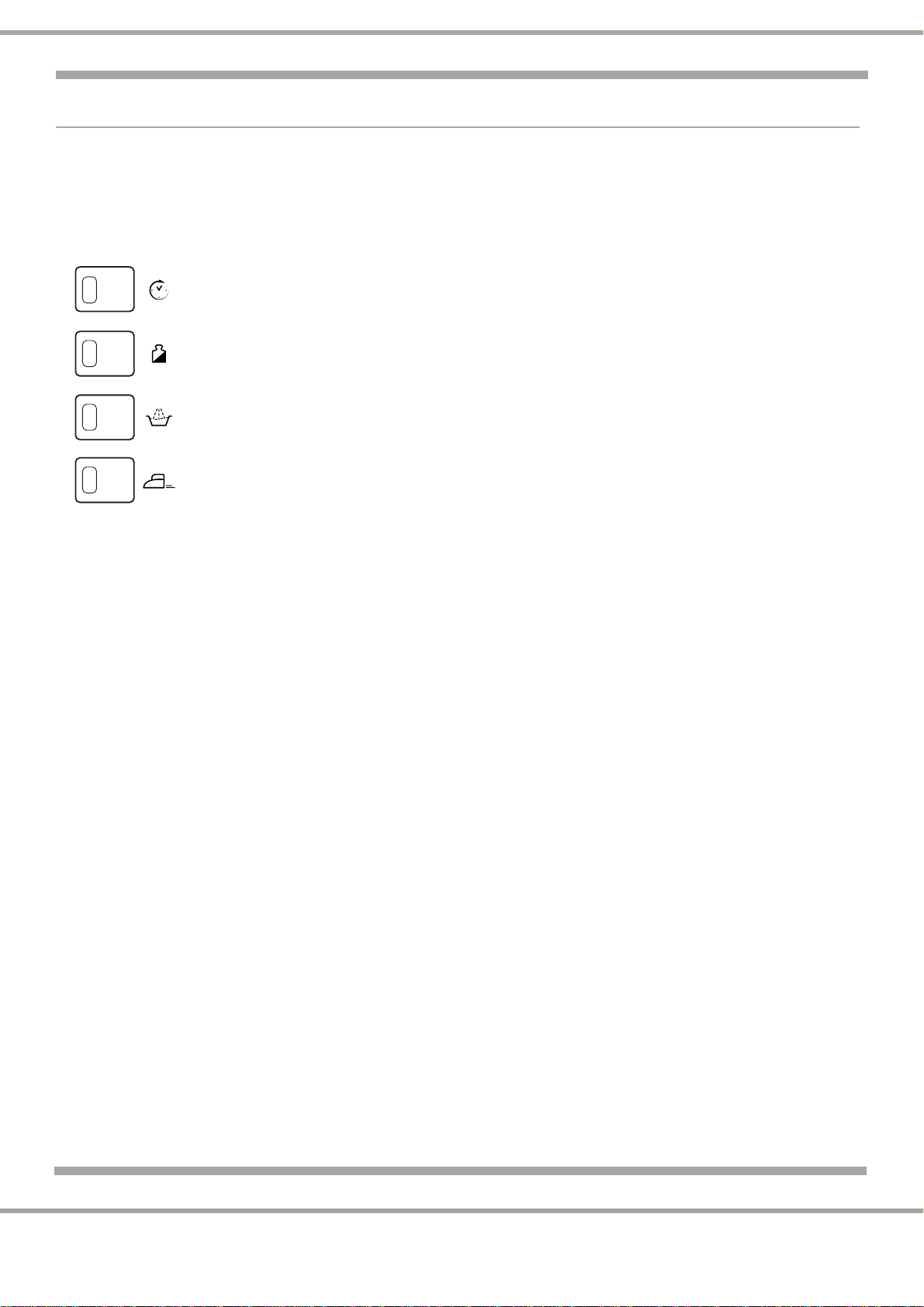

MINI LOAD - MINI CARICO

EXTRA RINSE - EXTRA RISCIACQUO

EASY IRON - STIRA FACILE

8 of 28

Service Manual UK

Indesit

Company

English

DEMO MODE - ARXXF125EU

To Activate Demo Mode

Press and hold the following buttons simultaneously: -

ON/OFF BUTTON

EASY IRON

START / PAUSE

To De-select Demo Mode

Press and hold the following buttons simultaneously: -

ON/OFF BUTTON

START / PAUSE

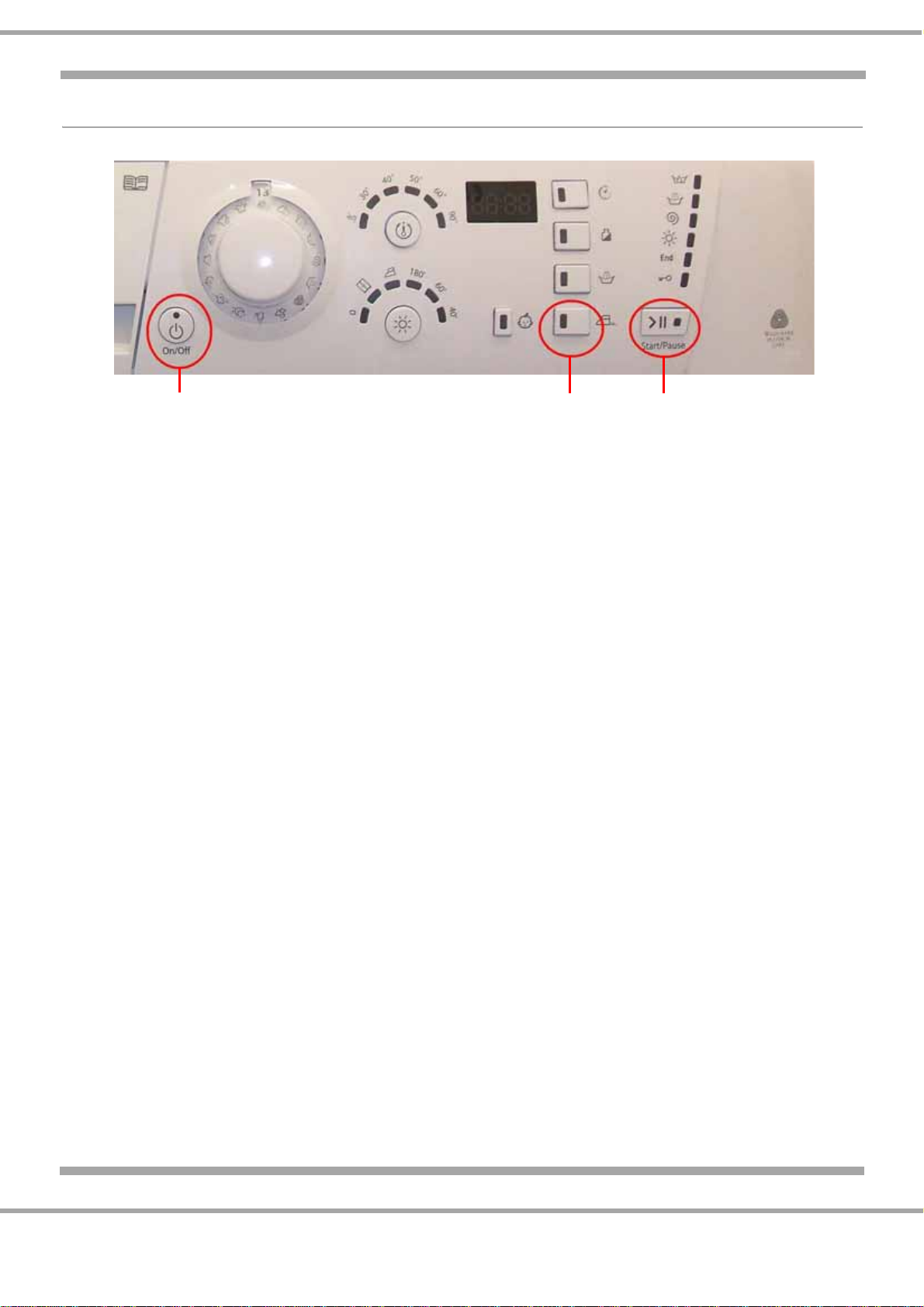

On/Off Easy Iron Start/Pause

9 of 28

Indesit Company

Service Manual UK English

CONTROLS INFORMATION

A single control board located at the back of the machine contains all the circuitry to control the

machine and interfaces with the programme selector, option buttons and LEDs located on the console

panel. The control board has an access port to the rear of the machine.

Programmes are selected by turning the rotary switch to one of the 16 positions. Special options can

be selected by pressing the appropriate buttons and the programme process followed by LEDs.

The machine is switched on using the On/Off button and selected programmes started by pressing the

Start/Cancel button.

Automatic Features

Auto Half Load

Auto half load adjusts the amount of water in the wash load depending on the absorbency of garments

in the wash load.

Fabric Conditioner Dispensing

Dispensing of fabric conditioner is achieved by energising both the Pre-Wash and Main Wash cold

valves.

Out of Balance Protection

The machine has an inbuilt feature to prevent spinning with an unbalanced load. A calculation via the

motor tacho and control board detects the current drawn by the motor during distribution.

Before each spin, the controls senses the load within the drum and if the load is calculated to be out of

balance the machine will not automatically spin to the full speed.

There are two levels of out of balance, level 1 @ 480 grammes and level 2 @ 1030 grammes.

If the out of balance is below level 1 the machine will spin at full speed, if between level 1 and level 2

the machine will spin at the reduced speed of 600 rpm and above level 2 spin at reduced speed of 400

rpm. There are 15 attempts at level 1 with 57 attempts in total, this being the same for both cotton and

synthetic spins.

The wool spin has one level of out of balance @ 1.8 kg. The controls will make three attempts to

achieve a balance, if after three attempts a balance is not achieved; the spin is reduced to a speed of

90 rpm.

10 of 28

Service Manual UK

Indesit

Company

English

OPTION AVAILABILITY

SPECIAL PROGRAMME DESCRIPTIONS

FRESH UP (15 MIN)

Load: 1.5 kg

Cycle duration: 15 minutes

Extra fast wash programme with the same performance of a 30º wash

SANITARY

Load: 6.5 kg

Cycle duration: 3.5 Hours

90º programme that can use bleach together with the perfect rinse to remove Bacteria

NIGHT CYCLE - Temperature 40°C - Spin 800 rpm

Load: 4.0 kg

Cycle duration: 4.0 Hours

This cycle is very silent and ideal to use at night due to the minimum use of the drain pump

and reduced drum action with the added advantage of lower energy consumption. At the end of

the cycle the washing will be suspended in water avoiding the main noise created during the

final phase.

BABY - Temperature 40°C - Spin 800 rpm

Load: 2.0 kg

Cycle duration: 1 Hour 50 minutes

This cycle will remove all residue of detergent from the clothes to cut down the risk of allergic

reactions on delicate skin. It is also designed to reduce bacteria by using more water.

PROGRAMME

NUMBER PROGRAMME

DESCRIPTION HALF

LOAD EXTRA

RINSE EASY

IRON TIME

DELAY

1 COTTON 60º YES YES YES YES

2COTTON COLOURFAST 40º YES YES YES YES

3ACRYLICS 60º YES YES YES YES

4DELICATE 40º YES YES YES YES

5FRESHUP * * *YES

6SANITARY 90º YES YES * YES

7 NIGHT CYCLE 40º YES YES * YES

8 BABY CYCLE 40º YES YES * YES

9SILKS 30º YES YES YES YES

10 WOOL 40º YES YES * YES

A HIGH RINSE YES YES YES YES

B Delicate Rinse * * * YES

C Long Spin * * * YES

D Short Spin

E DRAIN

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hotpoint Ariston Rondella

Hotpoint Ariston

Hotpoint Ariston ECOT6L 1091 Manuale utente

Hotpoint Ariston

Hotpoint Ariston RZ 1047 W Manuale utente

Hotpoint Ariston

Hotpoint Ariston Aqualtis AQ8F 29 U H Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQUALTIS PWAQ82L29 Manuale utente

Hotpoint Ariston

Hotpoint Ariston RPG 846 Manuale utente

Hotpoint Ariston

Hotpoint Ariston ECOT7F 1291 Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQ104D 49 Manuale utente

Hotpoint Ariston

Hotpoint Ariston WMSF 622 Manuale utente

Hotpoint Ariston

Hotpoint Ariston AWM 129 Manuale utente

Hotpoint Ariston

Hotpoint Ariston RSG 845 J Manuale utente

Hotpoint Ariston

Hotpoint Ariston RSG 703 Manuale utente

Hotpoint Ariston

Hotpoint Ariston ARXD 169 Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ105D 69D Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ103F 49 Manuale utente

Hotpoint Ariston

Hotpoint Ariston ARXL 85 Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ105F 29D Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ9F 49 U Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQ7L 05 U Manuale utente

Hotpoint Ariston

Hotpoint Ariston ECO6D 1291 Manuale utente

Hotpoint Ariston

Hotpoint Ariston ECO7F 129 Manuale utente

Hotpoint Ariston

Hotpoint Ariston AQUALTIS AQ113D 697 Manuale utente

Hotpoint Ariston

Hotpoint Ariston FMF 723 Manuale utente

Hotpoint Ariston

Hotpoint Ariston AWM 1081 Manuale utente

Hotpoint Ariston

Hotpoint Ariston AVTL 109 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
