Instructions for Installation and Use

60cm Gas Cooker

To the Installer:

Before installation, fill in the product details on the back cover of this book.

The information can be found on the rating plate.

To the User:

You must read the instructions prior to installing and using the appliance and

then retain them for future reference.

PA E

Introduction 3

For Your Safety 4

Clock and Minute Minder Operation 6

Hotplate 8

Grill 10

Main Oven 1

Main Oven Cooking Charts 14

The “Slow Cook” Setting 16

Top Oven 17

Top Oven Cooking Charts 18

Care and Cleaning 0

Something Wrong with your cooker?

Installation Instructions 3

Service Information Back Cover

Contents

To help you make the best use of your cooker, PLEASE READ THIS BOOKLET

CAREFULLY.

Your new cooker is guaranteed and will give lasting service.

The guarantee is only applicable if the cooker has been installed in accordance

with the Installation Instructions.

The cooker is designed specifically for domestic use and responsibility will not

be accepted for use in any other installation.

When first using the cooker ensure that the room is well ventilated (e.g. open a

window or use an extractor fan) and that persons who may be sensitive to the

odour avoid any fumes. It is suggested that any pets be removed from the room

until the smell has ceased. This odour is due to any temporary finish and also

any moisture absorbed by the insulation.

Our policy is one of continual improvement in design and development,

therefore strict accuracy of illustrations and descriptions cannot be

guaranteed.

This appliance conforms to the following EEC Directive:

Gas Appliances

90/396/EEC

Low Voltage Equipment

73/ 3/EEC

93/68/EEC

Electromagnetic Compatibility

89/336/EEC

9 /31/EEC

93/68/EEC

Introduction

Please read the precautions below before using your cooker.

ALWAYS . . .

ALWAYS make sure you understand the controls before using the cooker.

ALWAYS check that all controls on the cooker are turned off after use.

ALWAYS stand back when opening an oven door to allow heat to disperse.

ALWAYS use dry, good quality oven gloves when removing items from the ovens.

ALWAYS take care when removing items from the top oven/grill when the main

oven is on, as the contents may be hot.

ALWAYS keep the oven and grill doors closed when the cooker is not in use.

ALWAYS place pans centrally over the hotplate burners and position them so

that the handles cannot accidentally be caught or knocked or become

heated by other burners.

ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can

cause a fire.

ALWAYS allow the cooker to cool before cleaning.

ALWAYS follow the basic principles of food handling and hygiene to prevent the

possibility of bacterial growth.

ALWAYS keep ventilation slots clear of obstructions.

ALWAYS turn off the electricity supply before cleaning or replacing an oven

lamp.

ALWAYS refer servicing to CORGI registered appliance service engineers.

For your Safety

NEVER . . .

NEVER leave children unsupervised where the cooker is installed as all

surfaces will get hot during and after use.

NEVER allow anyone to sit or stand on any part of the cooker.

NEVER store items that children may attempt to reach above the cooker.

NEVER heat up unopened food containers as pressure can build up causing the

container to burst.

NEVER

store chemicals, food stuffs, pressurised containers in or on the

cooker,

or in cabinets immediately above or next to the cooker.

NEVER fill a deep fat frying pan more than 1/3full of oil, and never use a lid.

DO NOT LEAVE UNATTENDED WHILE COOKING.

NEVER place flammable or plastic items on or near the hotplate.

NEVER use proprietary spillage collectors on the hotplate.

NEVER use the cooker as a room heater.

NEVER dry clothes or place other times over or near to the hotplate or

oven/grill doors.

NEVER wear garments with long flowing sleeves whilst cooking.

NOTE: The use of a gas cooking appliance results in the production of heat and

moisture in the room in which it is installed. Always ensure that the kitchen is

well ventilated; keep natural ventilation holes open or install a mechanical

ventilation device (mechanical extractor hood).

In particular when using the grill or more than one hotplate burner, open a

window if a mechanical ventilation device is not operating.

For your Safety

Clock/Minute Minder Operation

CLOCKFACE

The timer incorporates a 4 hour clock.

SYMBOLS

A ‘Bell’ symbol will light up when you select a Minute Minder Period

and will remain lit for the period set.

At the end of the Minute Minder Period, the timer will emit an

audible tone and the ‘Bell’ symbol will flash.

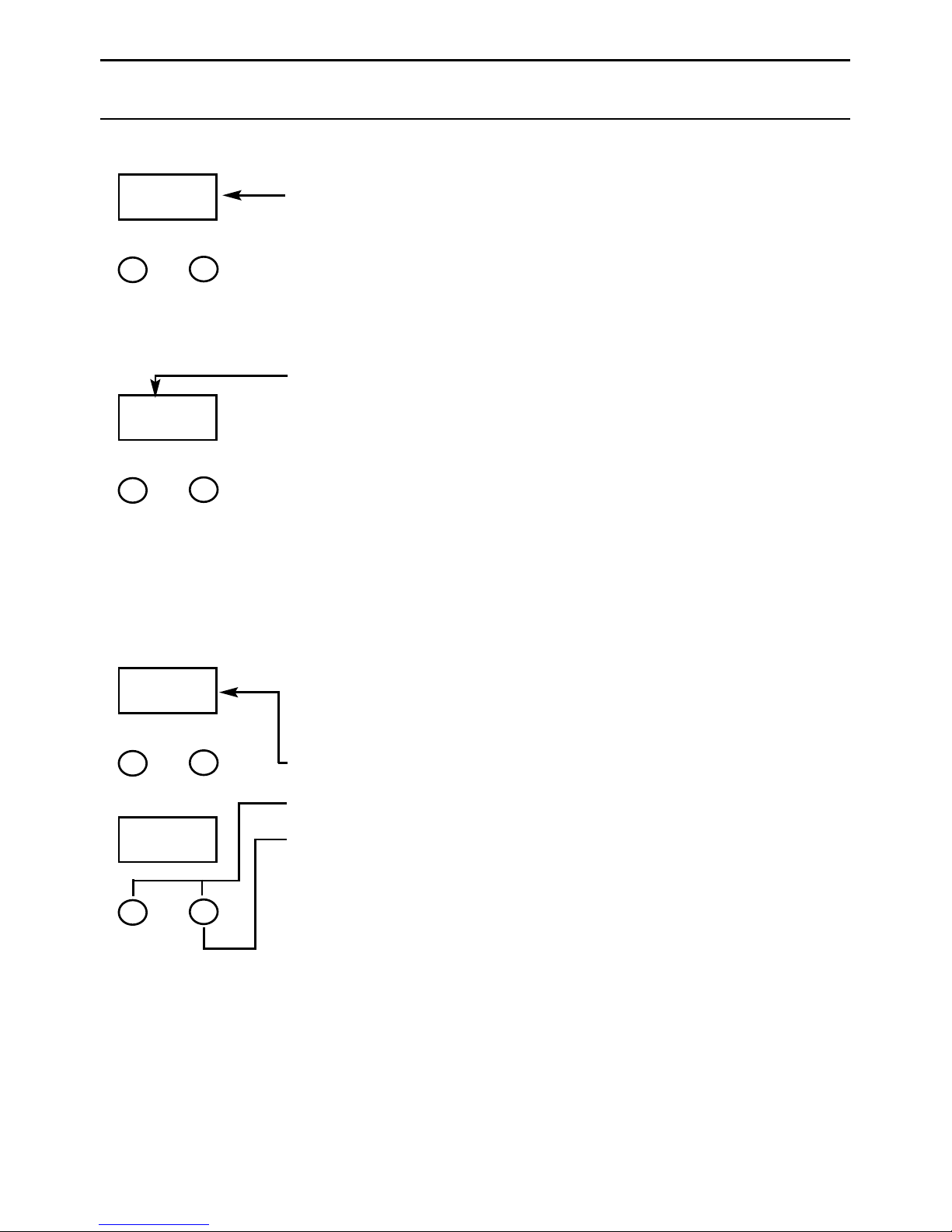

SETTIN THE TIME OF DAY

Step 1 Make sure all oven controls are turned off.

Step 2 Check the electricity supply to the cooker is turned on.

Step 3 When switched on, the display will flash 0.00

Step 4 Press and release both buttons simultaneously.

Step 5 Press the ‘+’ button to set the Time of Day.

The Time of Day can be adjusted, by using the ‘+’ button

to increase the time setting or the ‘-’ button to

decrease the time setting.

The Time of Day is set if no adjustments are made

within 10 seconds.

THE TIME OF DAY IS NOW SET.

To change the time of day repeat Steps 4 & 5 above.

0.00

Minute

Minder

0.00

Clock/Minute Minder Operation

Here you can set a time period of up to 10 hours, that will count

down. When it reaches zero, the timer will emit an audible tone.

For Example: If you set 0 minutes, the audible tone will occur 0

minutes later.

SETTIN THE MINUTE MINDER

Step 1 Ensure the time of day is set correctly.

Step 2 Press and release the ‘+’ button.

NNoottee:: SStteepp 33 mmuusstt bbee ssttaarrtteedd wwiitthhiinn 1100 sseeccoonnddss,,

ootthheerrwwiissee yyoouu mmuusstt rreeppeeaatt SStteepp 22..

Step 3 Press the ‘+’ button to set the required time period.

A ‘Bell’ symbol will light up.

The time period can be adjusted, by using the ‘+’ button

to increase the time period or the ‘-’ button to

decrease the time period.

Release all buttons, the timer display will show the remaining time

period. The ‘Bell’ symbol will remain lit to signify that a time period

has been set.

At the end of the set time an audible tone will be heard and the

‘Bell’ symbol will flash.

Step 4 To cancel the audible tone press the ‘+’ button.

To cancel the minute minder period press the ‘-’ button

until 0.00 is displayed in the window then release the button.

If at any time the display shows flashing zero’s, it is likely that the

electricity supply has been interrupted.

Reset the timer to the correct time of day.

NNoottee:: TThhee TTiimmeerr ddiissppllaayy wwiillll sshhooww tthhee mmiinnuuttee mmiinnddeerr

ppeerriioodd aass ffoolllloowwss::

Any period up to 99 minutes and 50 seconds -

The display shows MINUTES and SECONDS (10s intervals)

eg. 19 minutes 50 seconds

Any period between 100 minutes (1 hour 40 minutes) and up

to 10 hours -

The display shows HOURS and MINUTES

eg. 1 hour 41 minutes

0.00

19.50

1.41

0.00

The hotplate lid is fitted with a safety device which cuts off the gas supply to

the hotplate burners unless the lid is fully open. Do not use the safety device as

a means of controlling the hotplate burners.

The hotplate has two high speed burners and two simmering burners which will

accommodate pans between 100mm (4”) and 40mm (91/”) diameter. All pans

should be positioned centrally over the burners.

TO USE THE HOTPLATE

1. Remove any items or spillage from the top of the lid and then raise it

to its fully open position.

. Press the ignition button and then push in and turn the control knob

of the chosen burner anti-clockwise to the large flame symbol.

Continue to press the ignition button until the sparks light the gas.

3. Turn the control knob anti-clockwise to reduce the heat input.

Only turn the control knob between the large flame symbol and the

small flame symbol when adjusting the setting.

4. To turn off, turn the control knob fully clockwise to the symbol OO.

DO NOT use the hotplate unless all pan supports are in position.

DO NOT use mis-shapen pans which may be unstable.

DO NOT use round base woks directly on the pan supports.

DO NOT use the glass lid as a working surface.

Each burner is fitted with a spark ignitor for lighting the gas. To ensure rapid

lighting of the burners every time they are used, the ignitors must be kept clean

and dry. Remove any food spillage or cleaning materials from the ignitor using a

small nylon brush such as a tooth brush. Access to the ignitor can be achieved by

lifting off the loose burner parts carefully when the burners are cool.

When the hotplate burner bodies and caps are removed for cleaning, be careful

not to drop any food particles or cleaning materials into the burner bases, to

avoid the possibility of blocking the gas jets.

If aluminium based pans are used, a silvery deposit may appear on the top

edge of the pan support fingers. See ‘Care and Cleaning’ section for cleaning

information.

Hotplate

SAFETY REQUIREMENTS FOR DEEP FAT FRYIN

1. Never fill chip pans more than one third full with oil or fat.

. Never leave oil or fat unattended during the heating or cooling period.

3. Never heat fat or fry with a lid on the pan.

4. Always dry food thoroughly before frying, and lower it slowly into the

hot oil or fat. Frozen foods in particular will cause frothing and

spitting if added too quickly.

5. Always keep the outside of the pan clean and free from streaks of oil

or fat.

HOW TO DEAL WITH A FAT FIRE

1. Do not move the pan.

. Turn off the hotplate burners.

3. Smother the flames with a fire blanket or damp cloth to extinguish

the fire.

Do not use water or a fire extinguisher as the force of it may spread

the burning fat or oil over the edge of the pan.

4. Leave the pan for at least 60 minutes before moving it.

Hotplate

ABC

CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE RILL IS USED.

YOUN CHILDREN SHOULD BE KEPT AWAY.

The grill is fitted with a safety device that will cut off the gas supply to the

burner if the flame is extinguished for any reason. Each time the grill is used,

the safety device has to be activated by pushing and holding in the control knob

for 3 seconds after the gas has lit.

A gentle flow of air will be blown from underneath the control panel when the

grill or top oven is in use. If the fan fails to blow air when the grill is in use, you

should contact your service engineer immediately.

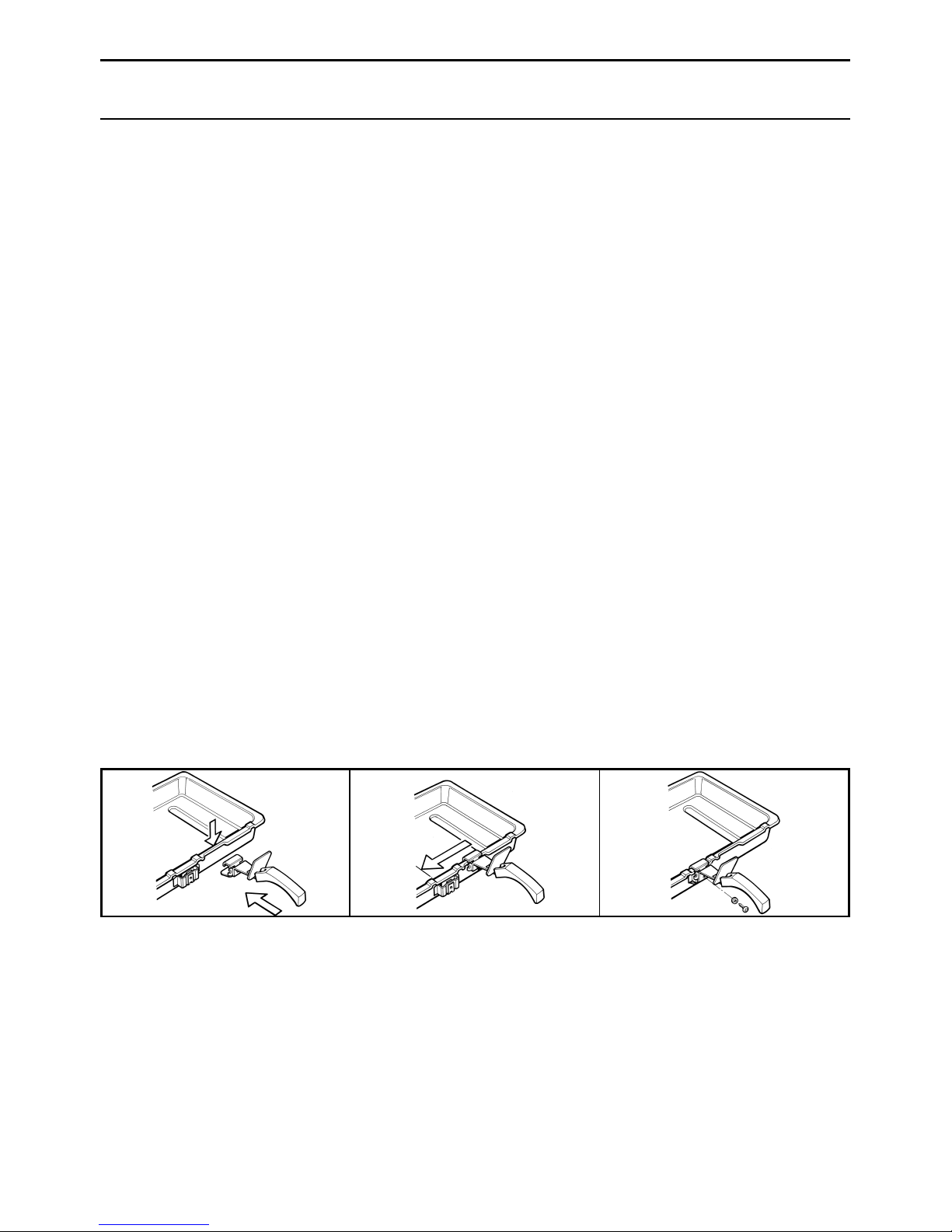

RILL PAN AND HANDLE

The grill pan handle is detachable from the pan to facilitate cleaning and

storage. The handle can be fixed as follows :

1. Remove the screw and washer from the grill pan bracket.

. Tilt the handle over the recess. (A)

3. Slide the handle towards the centre of the pan. (B)

4. Locate the handle over the bracket. (C)

For a fixed handle, replace the screw and washer and ensure they are fully

tightened.

If a detachable handle is required, do not replace the screw and washer.

Warning : Ensure when using the grill pan handle in the detachable manner it is

centralised and secure.

The grill pan can be stored in the top compartment with the handle attached by

placing the shelf in the middle or lower position and tilting the grill pan over the

rear edge of the shelf.

rill

Questo manuale è adatto per i seguenti modelli

Altri manuali Hotpoint Fornello

Hotpoint

Hotpoint HDM67G0CMBLPG Manuale utente

Hotpoint

Hotpoint C367E Manuale utente

Hotpoint

Hotpoint EW48G Manuale utente

Hotpoint

Hotpoint 51TCW Manuale utente

Hotpoint

Hotpoint H151EWH Manuale utente

Hotpoint

Hotpoint HAGL60K Manuale utente

Hotpoint

Hotpoint EDC51 Manuale utente

Hotpoint

Hotpoint H151EWH Manuale utente

Hotpoint

Hotpoint CP 87SEA /HA S Manuale utente

Hotpoint

Hotpoint HUG 52K Manuale utente

Hotpoint

Hotpoint C35SP6R/HA Manuale utente

Hotpoint

Hotpoint HD5G00KCW/UK Manuale utente

Hotpoint

Hotpoint CH 10456 GF S Manuale utente

Hotpoint

Hotpoint HDM67I9H2CB/U Manuale utente

Hotpoint

Hotpoint HDM67G9C2CB/UK Manuale utente

Hotpoint

Hotpoint 6501 Manuale utente

Hotpoint

Hotpoint HDM67G0CCB/UK Manuale utente

Hotpoint

Hotpoint CH60IPK Manuale utente

Hotpoint

Hotpoint HUI 62 TP Manuale utente

Hotpoint

Hotpoint HDM67I9H2CX/UK Manuale utente

Hotpoint

Hotpoint EW22 Manuale utente

Hotpoint

Hotpoint CP 65 SP2/HA S Manuale utente

Hotpoint

Hotpoint double oven cookers Manuale utente

Hotpoint

Hotpoint EG22 Guida rapida

Manuali Fornello popolari di altre marche

Modena

Modena FC 7645 SGM Manuale del proprietario

Electrolux

Electrolux Insight EKG6049 Manuale utente

Stanley

Stanley Donard 60 Manuale utente

Bartscher

Bartscher 201TC Manuale utente

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuale utente

Siemens

Siemens HK9P00020U Manuale utente

Creda

Creda S150E Guida

Creda

Creda HB48309 Manuale utente

Bosch

Bosch HCE743220F Manuale utente

Tricity Bendix

Tricity Bendix SE545P Manuale utente

NEFF

NEFF E1461A2/01 Manuale utente

Zanussi

Zanussi ZCM 700 X Manuale utente

Smeg

Smeg SNL61MA9 Manuale utente

RiverGrille

RiverGrille TF2002501-RG Manuale utente

Vollrath

Vollrath 69504F Manuale utente

Tricity Bendix

Tricity Bendix CSIE500 Manuale utente

AEG

AEG Competence 5731 V Manuale utente

Euromaid

Euromaid ES60 Manuale utente
