Hotpoint HDA1000 series Manuale utente

HDA1000

HDA1100

HDA2000

HDA2020

HDA2030

HDA2220

HDA3220

HDA3230

HDA3420

HDA3430

Dishwashers

Owner’s Manual

Part No. 165D4700P158 Pub. No. 39-5241-1 8-97 CG

Congratulations!

You Are Now Part of the Hotpoint Family.

Welcome to the Hotpoint family. We’re

proud of our quality products and we are

committed to providing dependable service.

You’ll see it in this easy-to-use Owner’s

Manual and you’ll hear it in the friendly

voices of our customer service department.

Best of all, you’ll experience these values

each time you use your dishwasher. That’s

important, because your new dishwasher will

be part of your family for many years. And we

hope you will be part of ours for a long time

to come.

We thank you for buying Hotpoint. We

appreciate your purchase, and hope you will

continue to rely on us whenever you need

quality appliances for your home.

Important!

Fill out and return the Consumer Product

Ownership Registration card that is packed

with this product. If you cannot find it,

please send in the duplicate card printed in

the back of this manual.

Write the model and serial

numbers here.

#You can find them on the tub wall just

inside the door.

Staple sales slip or cancelled check

here.

Proof of the original purchase date is

needed to obtain service under the

warranty.

Hotpoint&You,

AService Partnership.

Inside you will find many

helpful hints on how to use and

maintain your dishwasher

properly. Just a little preventive

care on your part can save you a

great deal of time and money

over the life of your dishwasher.

Read this Manual

Ask any Hotpointappliance owner and they

will tell you we stand behind our products

with unmatched quality service. However,

did you know that most questions result

from simple problems that you can easily

fix yourself in just a few minutes? This

Owner’s Manual can tell you how.

You’ll find many answers to

common problems here.

If you review our chart of

Troubleshooting Tips first,

you may not need to call for

service at all.

Review the Section on

Troubleshooting Tips

If you do need service, you can

relax knowing help is only a

phone call away. A list of toll-free

customer service numbers is

included in the back section.

Or you can always call the

GE Answer Center®at

800.626.2000, 24 hours a day,

7 days a week.

If You Need Service

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Safety Information . . . . . . .4–7

Operating Instructions

Control Panel . . . . . . . . . . . . . . .8

Control Settings . . . . . . . . . . . . .9

Dial Cycles . . . . . . . . . . . . .10, 11

Using the Dishwasher . . . .12, 13

Loading the

Dishwasher Racks . . . . . . .14, 15

Care and Cleaning . . . . . . .16, 17

Optional Accessories . . . . . . . .18

Troubleshooting Tips

Before You

Call For Service . . . . . . . . .19–24

Customer Service

Product Registration . . . . . . . .29

Warranty . . . . . . . . . . . . . . . . .31

Service Telephone

Numbers . . . . . . . . . .Back Cover

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be

followed to minimize the risk of fire, explosion, electric

shock, or to prevent property damage, personal injury,

or loss of life.

Under certain conditions hydrogen gas may be produced in

a water heater that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two weeks or more, prevent

the possibility of damage or injury by turning on all hot water

faucets and allow them to run for several minutes. Do this before

using any electrical appliance which is connected to the hot water

system. This simple procedure will allow any built-up hydrogen gas

to escape. Since the gas is flammable, do not smoke or use an open

flame or appliance during this process.

WATER HEATER SAFETY

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Use your dishwasher only for its intended purpose as

described in this Owner’s Manual.

This dishwasher must be properly installed and located in

accordancewith theInstallation Instructionsbefore itis used.

If you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by calling us toll-free

at the GE Answer Center®

, 800.626.2000.

■Connect to a grounded

metal, permanent wiring

system; or run an equipment-

grounding conductor with

the circuit conductors and

connect to the equipment-

grounding terminal or lead

of the appliance.

■Improper connection of the

equipment-grounding

conductor can result in a risk

of electric shock. Check with

a qualified electrician or

service representative if you

are in doubt whether the

appliance is properly

grounded.

■Dispose of discarded

appliances and shipping or

packing material properly.

■Do not attempt to repair or

replace any part of your

dishwasher unless it is

specifically recommended in

this manual. All other

servicing should be referred

to a qualified technician.

■To minimize the possibility of

electric shock, disconnect

this appliance from the

power supply before

attempting any maintenance.

NOTE:

Turning the

dishwasher off does not

disconnect the appliance

from the power supply. We

recommend having a

qualified technician service

your appliance.

PROPER INSTALLATION

AND MAINTENANCE

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

DO NOT…

■Do not tamper with controls.

■Do not abuse, sit on, or stand

on the door or dish rack of

the dishwasher.

■Do not discard a dishwasher

without first removing the

door of the washing

compartment.

■Do not store or use

combustible materials,

gasoline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

■Do not allow children to play

inside, on or with this

appliance or any discarded

appliance.

WARNING!

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

WHEN USINGYOUR DISHWASHER

■Use only powder or liquid

detergents or wetting agents

recommended for use in a

dishwasher, and keep them

out of the reach of children.

■Locate sharp items so that

they are not likely to damage

the door seal.

■Load sharp knives with the

handles up to reduce the risk

of cut-type injuries.

■Do not wash plastic items

unless marked

dishwasher

safe

or the equivalent. For

plastic items not so marked,

check the manufacturer’s

recommendations.

■Do not touch the heating

element during or

immediately after use.

■Do not operate your

dishwasher unless all

enclosure panels are properly

in place.

■Close supervision is necessary

if this appliance is used by or

near children.

■Load light plastic items so

they will not become

dislodged and drop to the

bottom of the dishwasher—

they might come into contact

with the heating element and

be damaged.

Read and follow

this Safety Information carefully.

SAVE THESE INSTRUCTIONS

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

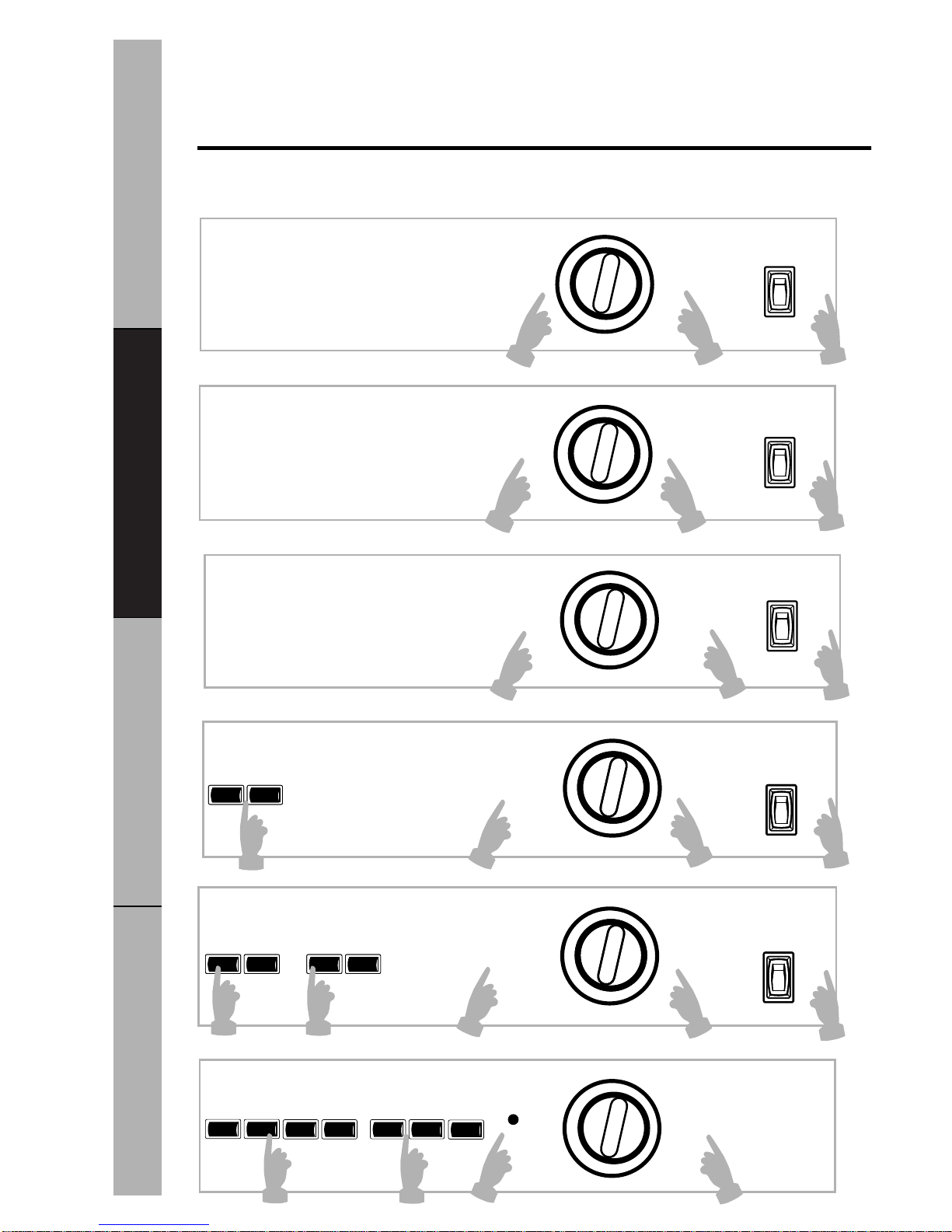

About the dishwasher control panel.

You can locate your model number on the tub wall just inside the door.

Throughout this manual, features and appearance may vary from your model.

OFF ON

OFF

HEATED

DRY

OFF

DRYING OFF

HEATED

DRY

HEAVY WASH

NORMAL WASH

WATER SAVER

RINSE & HOLD (HEATED DRY OFF)

OFF ON

RINSE & HOLD

OFF

HEATED

DRY

NORMAL

WASH

POTS

& PANS

OFF

WATER SAVER

PLATE WARMER

(HEATED DRY OFF)

OFF

HEATED

DRY

(HEATED DRY ON)

NORMAL

WASH

OFF ON

RINSE & HOLD (HEATED DRY OFF)

OFF

HEATED

DRY

NORMAL

WASH

POTS

& PANS

OFF ON WATER SAVER

RINSE & HOLD (HEATED DRY OFF)

OFF

HEATED

DRY

(HEATED DRY ON)

NORMAL

WASH

cycle

selector energy saver

options

HI TEMP WASH

ON OFF

PLATE WARMER

HOURS

DELAY

OFF

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

NORMAL

WASH

POTS

& PANS

(HEATED DRY ON)

ENERGY

SAVER

DELAYED

START

WATER

SAVER

LIGHT

WASH HI TEMP

WASH HEATED

DRY 6

123

Model HDA1000

Models HDA2000, HDA2020 and HDA2030

Model HDA2220

Models HDA3220 and HDA3230

Models HDA3420 and HDA3430

123

OFF

DRYING

OFF

HEATED

DRY

NORMAL WASH

SHORT WASH

RINSE & HOLD (HEATED DRY OFF)

Model HDA1100

Energy Options

HI TEMP Provides extra heat for best performance. It is used

WASH ON/ best with heavily-soiled dishes.

HI TEMP WASH

HI TEMP Turns

HI TEMP WASH

off.

WASH OFF

HEATED DRY/ Turns the heating element on for fast drying. This

HEATED DRY ON option will extend the time of your wash cycle.

HEATED DRY OFF Turns

HEATED DRY

off

Dishes air dry naturally

and energy is saved.

ENERGY SAVER Turns all options off.

Customer ServiceTroubleshooting TipsOperating InstructionsSafety Information

Control Settings

Cycles

POTS & PANS/ For heavily soiled dishes or cookware with dried-on

HEAVY WASH or baked-on soils. Everyday dishes may be included.

This cycle will not remove burned-on foods.

NORMAL WASH For loads of everyday dishes, glasses and cookware

with medium soils.

NOTE:

Many dishes have lighter

soil than normal. Choosing a cycle other than

NORMAL WASH

will save energy and water.

SHORT WASH For quickly washing loads of everyday dishes with

medium soils that have not dried on, such as loads

consisting mostly of glasses.

LIGHT WASH/ For dishes with light soils.

WATER SAVER

RINSE & HOLD For rinsing partial loads that will be washed later.

Do not use detergent.

PLATE WARMER For warming clean dishes and serving plates. This

cycle will take approximately 32 minutes.

■Make sure the Dial is at the

OFF

position.

Start

Slowly turn the Dial to the

START

position. Don’t

turn it past the

START

position, or you could

accidentally miss a rinse. There is a time delay between

start-up and water fill so you will not hear any wash

action right away.

■Latch the door.

Safety InformationOperating InstructionsTroubleshooting TipsCustomer Service

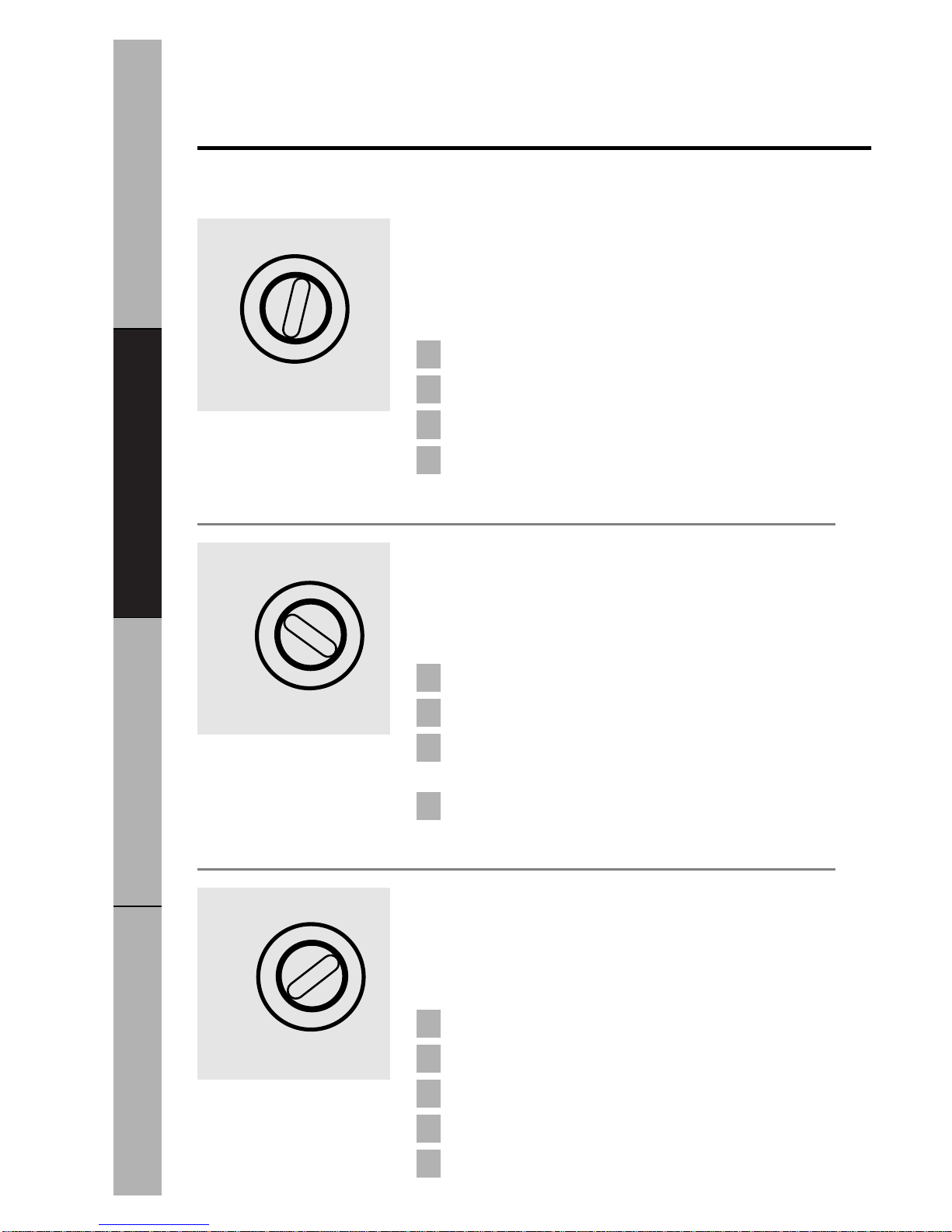

About the dial cycles.

Rinse & Hold

(HDA1100, HDA2000, HDA2020, HDA2030,

HDA2220, HDA3220, HDA3230, HDA3420 and HDA3430 only)

For rinsing partial loads that will be washed later.

Do not

use detergent.

Make sure

ENERGY SAVER / HEATED DRY OFF

is selected.

Be sure the door is unlatched.

Slowly turn the Dial to

RINSE & HOLD.

Latch the door to start the cycle.

OFF ON

WATER SAVER

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

Plate Warmer

(HDA2220, HDA3220, HDA3230, HDA3420 and

HDA3430 only)

For warming clean dishes and serving plates. This cycle

will take approximately 32 minutes.

Load clean dishware to be warmed.

Select

HEATED DRY / HEATEDDRY ON.

Be sure the door is unlatched.

Slowly turn the Dial to

PLATE WARMER.

Latch the door to start the cycle.

OFF ON

WATER

SAVER

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

Start Delay

(HDA3420 and HDA3430 only)

The

HOURS DELAY

will allow you to delay the start

time of any cycle not on the Dial automatically for up

to 6 hours.

Be sure the door is unlatched.

Select the wash cycle and option you want.

Slowly turn the Dial to desired time. The

DELAYED

START

light will come on.

Latch the door to start the cycle.

HOURS

DELAY

OFF

RINSE & HOLD

PLATE WARMER

(HEATED DRY OFF)

(HEATED DRY ON)

START

Altri manuali per HDA1000 series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hotpoint Lavastoviglie

Hotpoint

Hotpoint GSM1800NWW Istruzioni per il montaggio

Hotpoint

Hotpoint LFT 321 Manuale utente

Hotpoint

Hotpoint FDUD 51110 ULTIMA Manuale utente

Hotpoint

Hotpoint Ultima FDW85 Istruzioni per l'uso e l'installazione

Hotpoint

Hotpoint FDFSM 31011 FUTURA Manuale utente

Hotpoint

Hotpoint BF41 Manuale utente

Hotpoint

Hotpoint LSTB 6B00 Manuale utente

Hotpoint

Hotpoint D C 27 Manuale utente

Hotpoint

Hotpoint LST 53977 Manuale utente

Hotpoint

Hotpoint LFK 7M124 Manuale utente

Hotpoint

Hotpoint LTF 11M132 Manuale utente

Hotpoint

Hotpoint HDA750 Istruzioni per l'installazione

Hotpoint

Hotpoint HDA489M Istruzioni per l'installazione

Hotpoint

Hotpoint LTB 4M116 Manuale utente

Hotpoint

Hotpoint LFB 5B019 Manuale utente

Hotpoint

Hotpoint BFZ 680 Manuale utente

Hotpoint

Hotpoint FDEF 33121 EXPERIENCE Manuale utente

Hotpoint

Hotpoint FDM550P Istruzioni per l'uso e l'installazione

Hotpoint

Hotpoint FDEB 31010 EXPERIENCE Manuale utente

Hotpoint

Hotpoint HDA2000VBB Guida utente

Hotpoint

Hotpoint HDA 477 Manuale utente

Hotpoint

Hotpoint HDA999M Istruzioni per l'installazione

Hotpoint

Hotpoint LFF 8M116 Manuale utente

Hotpoint

Hotpoint HDA1000 series Manuale utente

Manuali Lavastoviglie popolari di altre marche

Electrolux

Electrolux ESI5211LOX Manuale utente

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente

Siemens

Siemens SN 56N591 Manuale utente
