Hotpoint HDA2000G Manuale

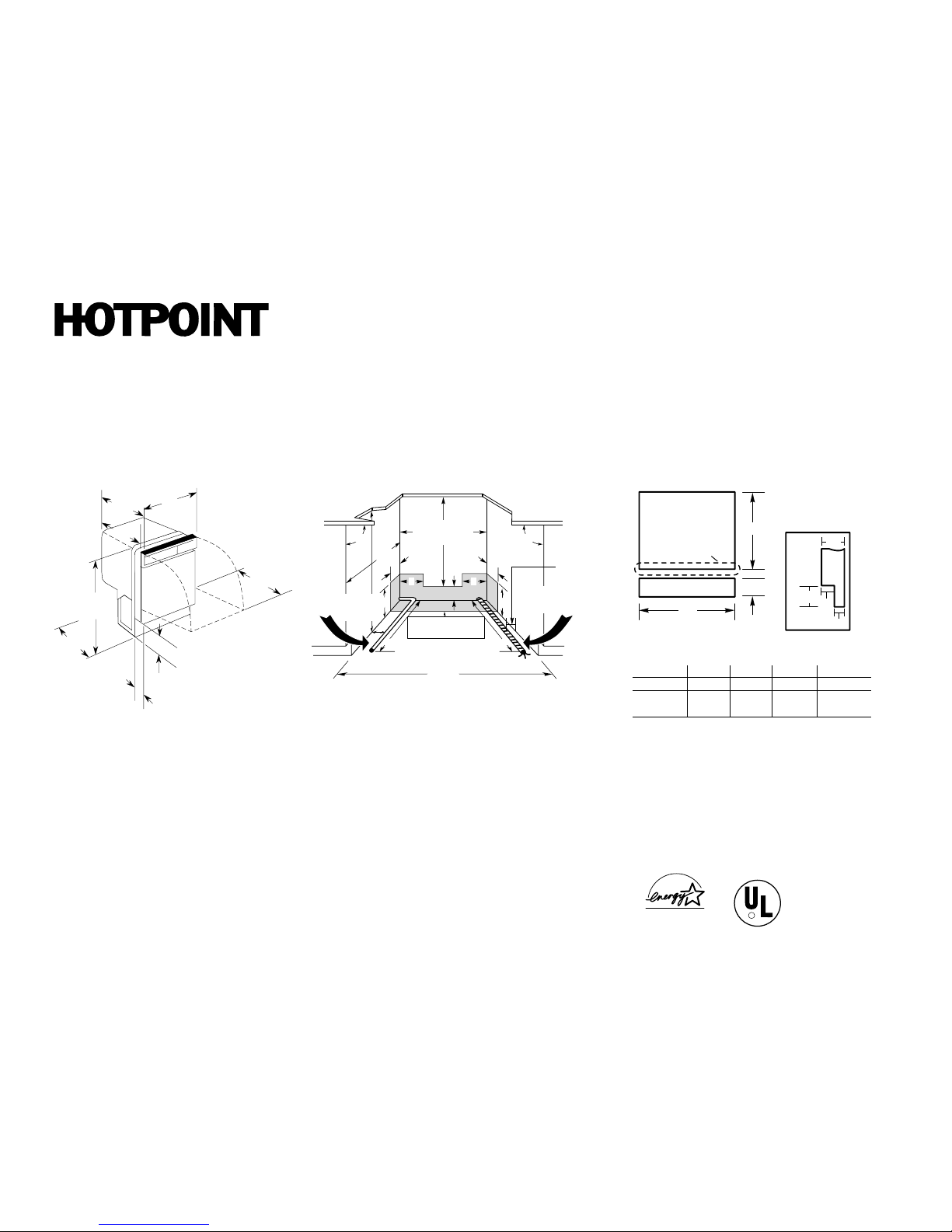

Specification Created 1/02

HDA2000G - Hotpoint Built-In Dishwasher

Dishwasher Dimensions (in inches) Wood Insert Cut-Out

Dimensions (in inches)

Installation Information

(in inches)

Note: Dishwasher must not be installed more than 10' from sink

for proper drainage. All plumbing and electrical work must be in

accordance with local codes. Dishwasher includes drain hose

and leveling legs.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

Electrical Rating

Voltage AC.......................................................120

Hertz ..................................................................60

Total connected load amperage.......................8.6

Calrod®heater watts.......................................500

For use on adequately wired 120-volt, 15-amp

circuit having 2-wire service with a separate

ground wire. This appliance must be grounded

for safe operation.

Listed by

Underwriters

Laboratories

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34-1/2±1/4"

Underside

of countertop

to floor

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

25-3/4

MAX.

21-1/2

3-1/4 4 (Adjustable)

34 MIN.

adj.to 35

24-3/4

23-3/8*

Access insert

Detail D

Panel Thickness

Door insert

Front

Panel

1-1/2 1/2

1/4

3/4

Panel

Models/Kits A B C Thickness

GPF325 Kit 18-7/8”23-9/16”3-11/16”1/4”

3-3/4”to

GPF375 Kit 18-15/16”23-5/8”* 4-1/4”** 3/4”

*Bottom of panel must be notched 1-1/2" x 1/2" to clear

access panel. (See illustration above)

**Adjustment required to match adjcent cabinets fronts due to

leveling leg adjustment, 4" nominal.

As an ENERGY STAR

Partner,

GE has determined that this product

meets the ENERGY STAR

guidelines for energy efficiency.

Specification Created 1/02

HDA2000G - Hotpoint Built-In Dishwasher

OFF

HOT

PREWASH

OPTION

HEAVYWASHHEATED

DRY

(HEATEDDRYOFF)

RINSEONLY

DRYING

OFF

NORMALWASH

WATERSAVER

Features and Benefits

•Energy Star Qualified

•2 Wash Levels

•Standard Upper Rack

•Deluxe Lower Rack

•Deluxe Silverware Basket

•Dial Controls (with Rocker)

•4 Cycle / 9 Option Selections: Heavy Wash (Dial), Normal Wash (Dial),

Water Saver (Dial), Rinse Only (Dial); Heated Dry (Rocker), Hi-Temp Wash and

Hot PreWash Option (Dial)

•Rinse Aid Dispenser

•Steel Door

•QuietPower™Motor

•Standard Sound Insulation Package

•Model HDA2000GWW - White on white

•Model HDA2000GBB - Black on black

•Model HDA2000GCC - Bisque on bisque

•Model HDA2000GAA - Almond on almond
