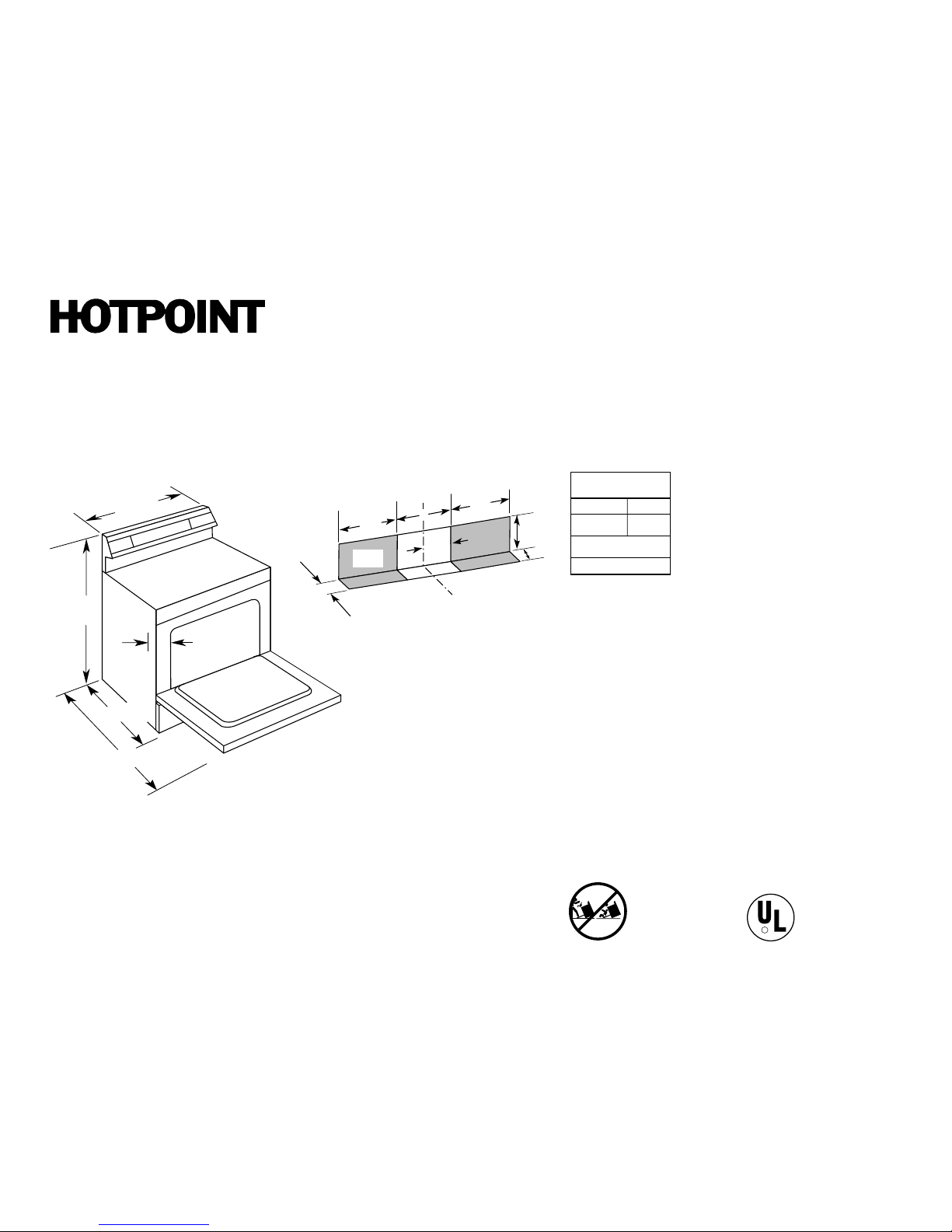

RB757WH/CH/EH – Hotpoint 30" Free-Standing Electric Range

Dimensions (in inches)

Listed by

Underwriters

Laboratories

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is

an important, required step in

the installation of the range.

26-3/8*

46-3/8

1/4†

29-7/8

46-1/2

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

25-7/16

46-1/8

1/4†

29-7/8

45-1/8

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

†Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires that new

construction (not existing) utilize a 4-conductor connection to an electric range.

Note: 30" Electric Ranges conform to U.L. requirements for 0" spacing from

walls below countertops. Allow 1-1/2" spacing from the side of the range to

adjacent vertical walls above the cooktop surface.

Receptacle Locations: Locally approved flexible service cord or conduit

must be used because terminals are not accessible after range installation.

See shaded area in drawing for location of electrical outlet box. Recommended

outlet locations allow range to be installed directly against rear wall.

Installation Information: Before installing, consult installation instructions

packed with product for current dimensional data.

KW Rating

240V 11.7

208V 8.8

Breaker Size

40 Amps†

* Dimension from wall to front of closed oven door.

Dimension from wall to the front of closed oven

door handle is 28-1/2".

†The range may be placed with

0" clearance (flush) at the back

wall and side walls if the range side

trims extend beyond the

cabinet fronts at least 1/4".

Self-Clean models only

Specification Revised 11/05

420486

RB757WH/CH/EH – Hotpoint 30" Free-Standing Electric Range

RB757WH/CH/EH

Features and Benefits

• Self-Clean Oven – Conveniently cleans the oven cavity without the need for scrubbing.

• Super-Large Oven Capacity – Provides an impressively large oven interior for cooking more

dishes and large meals at one time.

• Coil Heating Elements – Provide consistent and even heat on the cooktop with a plug-in

element that is removable for easy cleaning.

• Electronic Oven Controls – One-touch electronic pads are easy-to use and allow for simple

oven operation.

• Standard Window – Provides a convenient viewing area to check the progress of food.

• Frameless Glass Oven Door – Offers an easy-to-clean and stylish design that blends

seamlessly into existing cabinetry.

• Porcelain Upswept Cooktop – Features raised edges to help contain spills and make

clean-up easy.

• Model RB757WHWW – White on white (white glass door and white cooktop)

• Model RB757CHCC – Bisque on bisque (bisque glass door and bisque cooktop)

• Model RB757EHBB – Black on black (black glass door and black cooktop)

• Model RB757BHWH – White (black glass door and white cooktop)

• Model RB757BHCT – Bisque (black glass door and bisque cooktop)
