Hotpoint RGB532BEAWH Manuale di servizio

Specification Revised 6/00

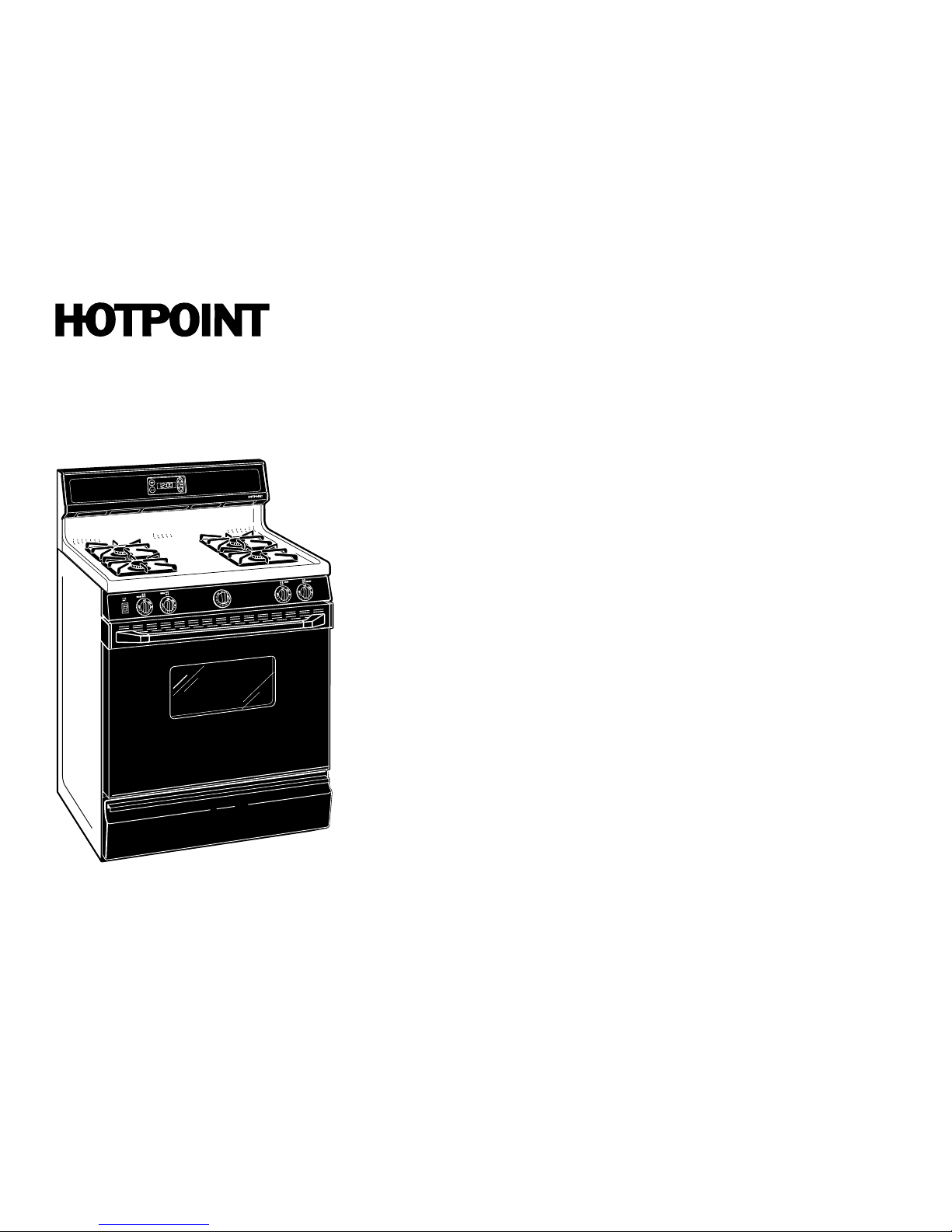

RGB532BEAWH—30" Free-Standing Gas Range

Dimensions (in inches)

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

46-1/2

26-1/4*

46-3/8

36±1/4

Installation Information:

Dimensions shown here are the

same as those shown on the

installation instructions at the

time this sheet was printed. Before

proceeding with installation, see

your Hotpoint supplier for latest

detailed preparation and installation

instructions or install from the

instructions packed with each unit.

Optional gas range

accessory drip pans:

(Available at additional cost)

To order these accessory drip pans,

call toll-free 800-626-2002.

L2-1/2

Recommended area for

thru the floor connection

of pipe stub and shut-off valve

Recommended area for

120V outlet on rear wall

and area for thru the wall

connection of pipe stub

and shut-off valve

Recommended common area

for gas outlet and electrical

outlet for GE free-standing gas

range models

CERTIFIED

*Depth including handle

Specification Revised 6/00

RGB532BEAWH—30" Free-Standing Gas Range

OVENCONTROL

Features and Benefits

• Upswept Porcelain-Enameled Cooktop

• Sealed Gas Burners

• (1) 12,000/1,000 BTU Performance Plus Burner

• (1) 5,000/600 BTU Simmer Burner

• (2) 9,500/850 BTU All-Purpose Burners

• Black Removable Square Grates

• Electronic Pilotless Ignition System

• Extra-Large Standard Cleaning Oven

• Electronic Clock and Minute Timer

• Slide Out Broiler Drawer

• 2 Oven Shelves / 6 Embossed Rack Positions

• Black Frameless Glass Oven Door with Window

• Designer-Style Handle

• LP Conversion Kit Included

• Optional Accessory One-Piece Drip Pans Available at Additional Cost

• Model RGB532BEAWH–White

• Model RGB532BEAAD–Almond
