HowayGIS T21 Series Manuale utente

T21 Series GIS Handheld

Quick Start Guide

V1.0

Table of Content

RND1. Introduction ............................................................................................................ 3

1.1. Features.................................................................................................................. 3

1.2. Keyboard ................................................................................................................ 3

1.3. LED Functions ......................................................................................................... 5

2. Getting Acquainted .................................................................................................... 6

2.1. Installing the TF card/SIM card/Battery ................................................................. 6

2.2. Charging.................................................................................................................. 7

2.3. Turning the collector on/off ................................................................................... 7

2.4. Synchronization Function....................................................................................... 7

2.5. Installing Applications .......................................................................................... 10

2.5.1. Installing Applications via ActiveSync or WMDC .............................................. 10

2.5.2. Directly Installing Applications ......................................................................... 11

2.6. GNSS status .......................................................................................................... 11

2.7. Camera ................................................................................................................. 12

2.8. U Disk Function..................................................................................................... 12

2.9. Headset Jack ......................................................................................................... 13

2.10. User Serial Port ................................................................................................. 13

2.11. Wireless Connection (Bluetooth/GPRS/WIFI) .................................................. 14

2.11.1. Standard Bluetooth....................................................................................... 14

2.11.2. Long Range Bluetooth (Optional) ................................................................. 14

2.11.3. Wi-Fi.............................................................................................................. 16

2.11.4. GPRS/3G Data connection ............................................................................ 16

3. Useful Functions....................................................................................................... 16

3.1. Screen response ................................................................................................... 16

3.2. Adjusting the backlight......................................................................................... 16

3.3. Removing programs ............................................................................................. 16

3.4. Auto power off* ................................................................................................... 17

3.5. Clean Boot ............................................................................................................ 17

3.6. PWConfig.............................................................................................................. 17

4. Accessories ............................................................................................................... 17

4.1. Standard Accessories............................................................................................ 17

4.2. Optional Accessories ............................................................................................ 18

5. Environmental Specifications................................................................................... 18

6. Warranty Terms ....................................................................................................... 18

7. Contact information ................................................................................................. 19

8. Appendix – Product Safety Warnings....................................................................... 19

1.Introduction

1.1. Features

The following section describes the general features of the T21 Handheld Controller.

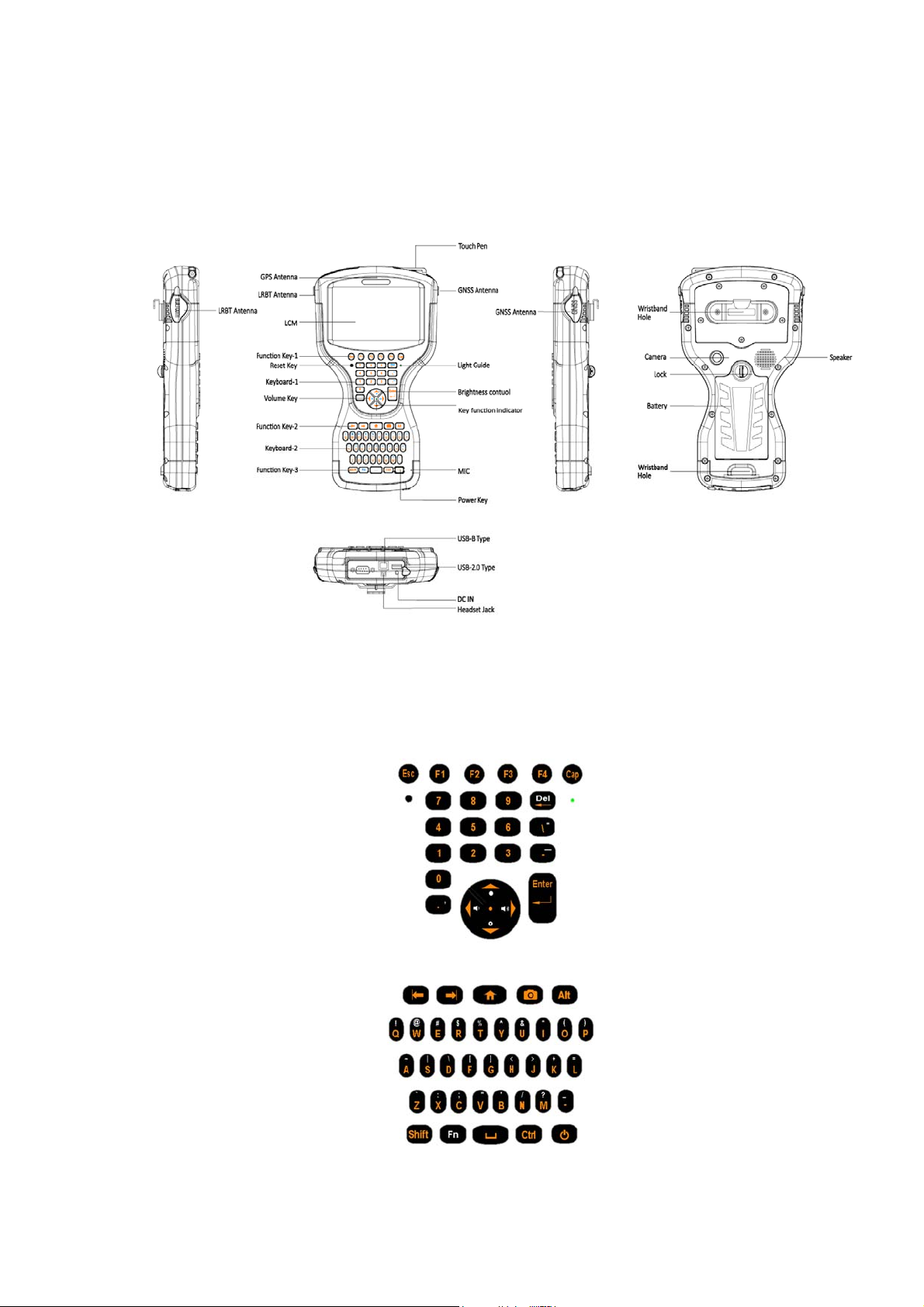

Figure 1-1: General Diagram

1.2. Keyboard

Some keys have two different silk screen colors. One is yellow, the other is white. “Fn” key is used

to switch the key’s function between the two colors. Yellow silk screen indicates the default

function. When the indicator in the center of the four arrow keys lighted, the function indicated

by white color is available.

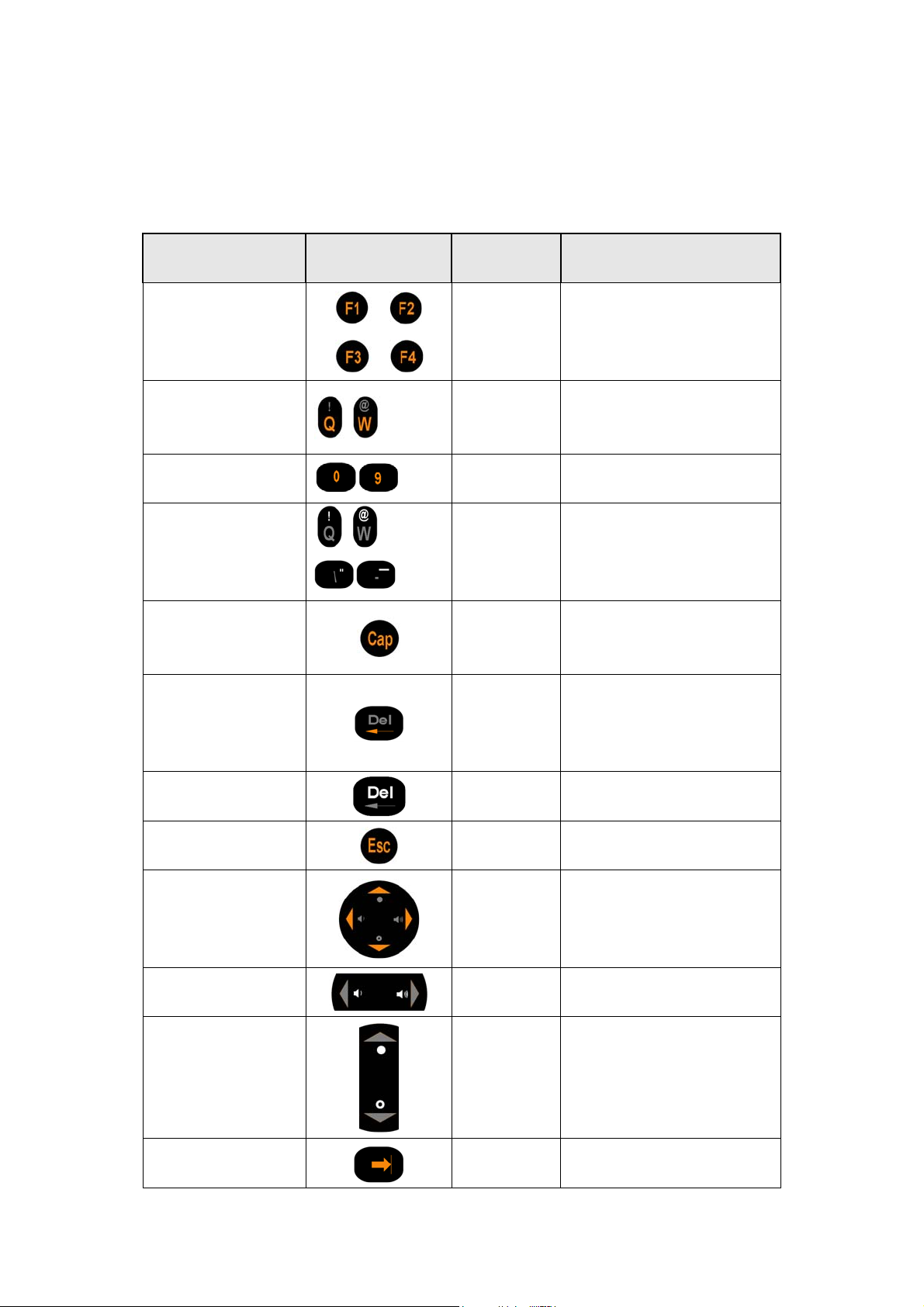

Table 1-1. Keyboard Function

Key Sample image Silk screen

Color Function

Function keys

F1-F4

Yellow User definable keys to execute

chosen commands or access

chosen screens.

Alpha keys

a~z, A~Z …

Yellow To type letters. Yellow

characters.

Numeric keys

0~9 …

Yellow To type numbers. Yellow

characters.

Punctuation and

special characters

…

White

To type punctuation and special

characters.

Caps Lock

Yellow Switches between upper case

and lower case letters, and lock

the case status.

Backspace

Yellow Clears all entry at the beginning

of user input. Clears the last

character during user input.

Yellow symbol.

Del

White Deletes character at the cursor.

Esc

Yellow Leaves the current screen

without storing any changes.

Arrow keys

Yellow

Move the focus on the screen.

Volume adjust

White Increase or decrease the

volume

Backlight adjust

White

Increase or decrease the screen

brightness

Next Tab key

Yellow To advance the cursor to the

next tab stop.

Previous Tab key

Yellow To advance the cursor to the

previous tab stop.

Home

Yellow Switches to the Windows CE7

Start Menu.

Camera Yellow Access the camera.

Alt

Yellow To change (alternate) the

function of other pressed keys.

Shift

Yellow Combine with an alpha key to

switch between upper case and

lower case letters.

White First press: switches the

functions to the white

characters indicated

Press again: switches the

functions aback to the yellow

characters indicated

Space Yellow Enters a blank.

Ctrl Yellow Combine with another key to

perform a special operation

Enter

Yellow Select the highlighted line and

leads to the next logical menu/

dialog.

Power key

Yellow If the T21X controller is already

off: Turns the field controller on

when held for 3~5s.

If the T21X controller is already

on: Turns to power off menu

when held for 3~5s.

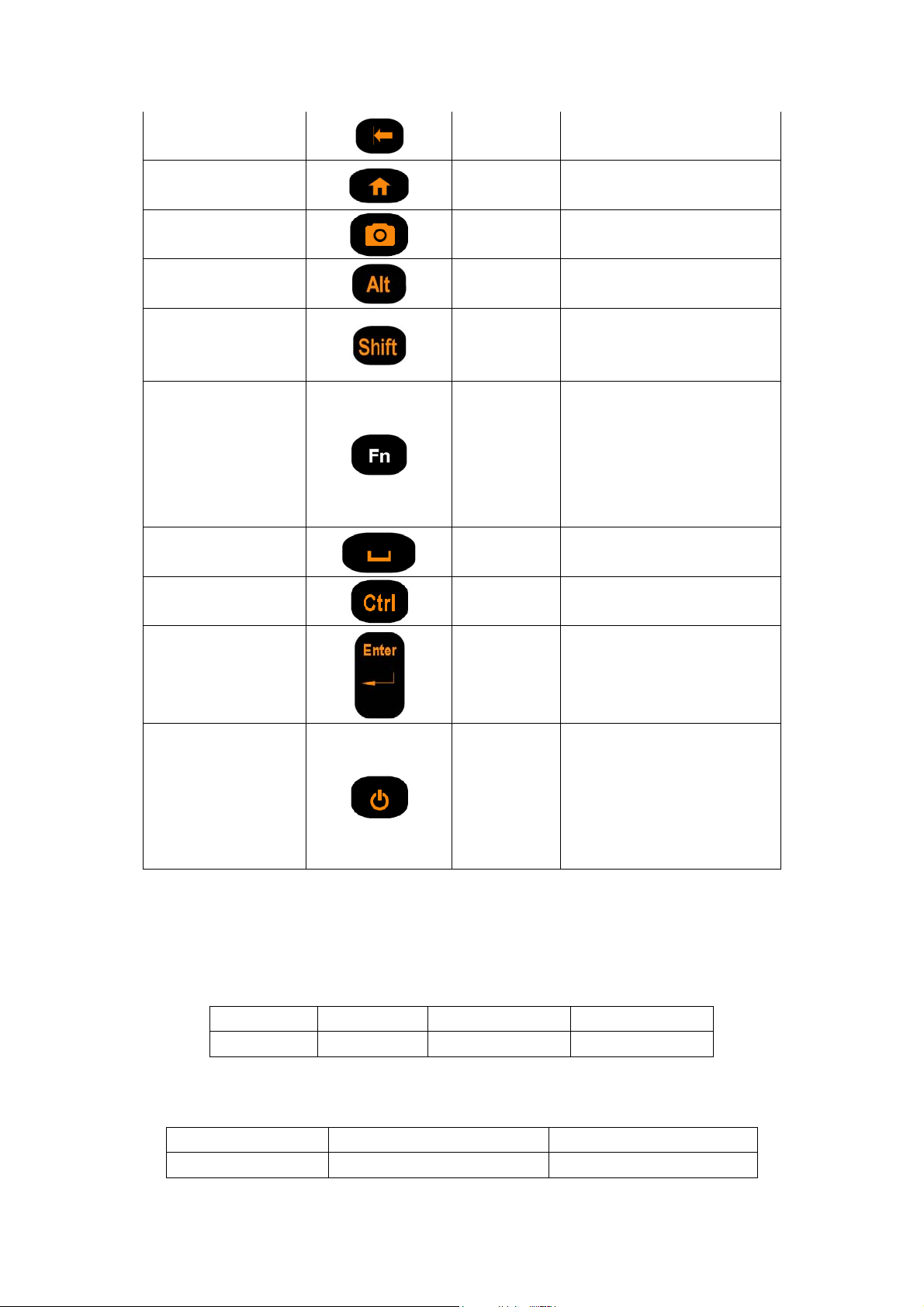

1.3. LED Functions

Table 1-2, Charging LED Functions

Table 1-3, Key function indicator

Operation Power off Charging Fully of charged

LED Status Off Red light on Off

LED Status Off On

Function of the key Yellow silk screen indicated White silk screen indicated

2. Getting Acquainted

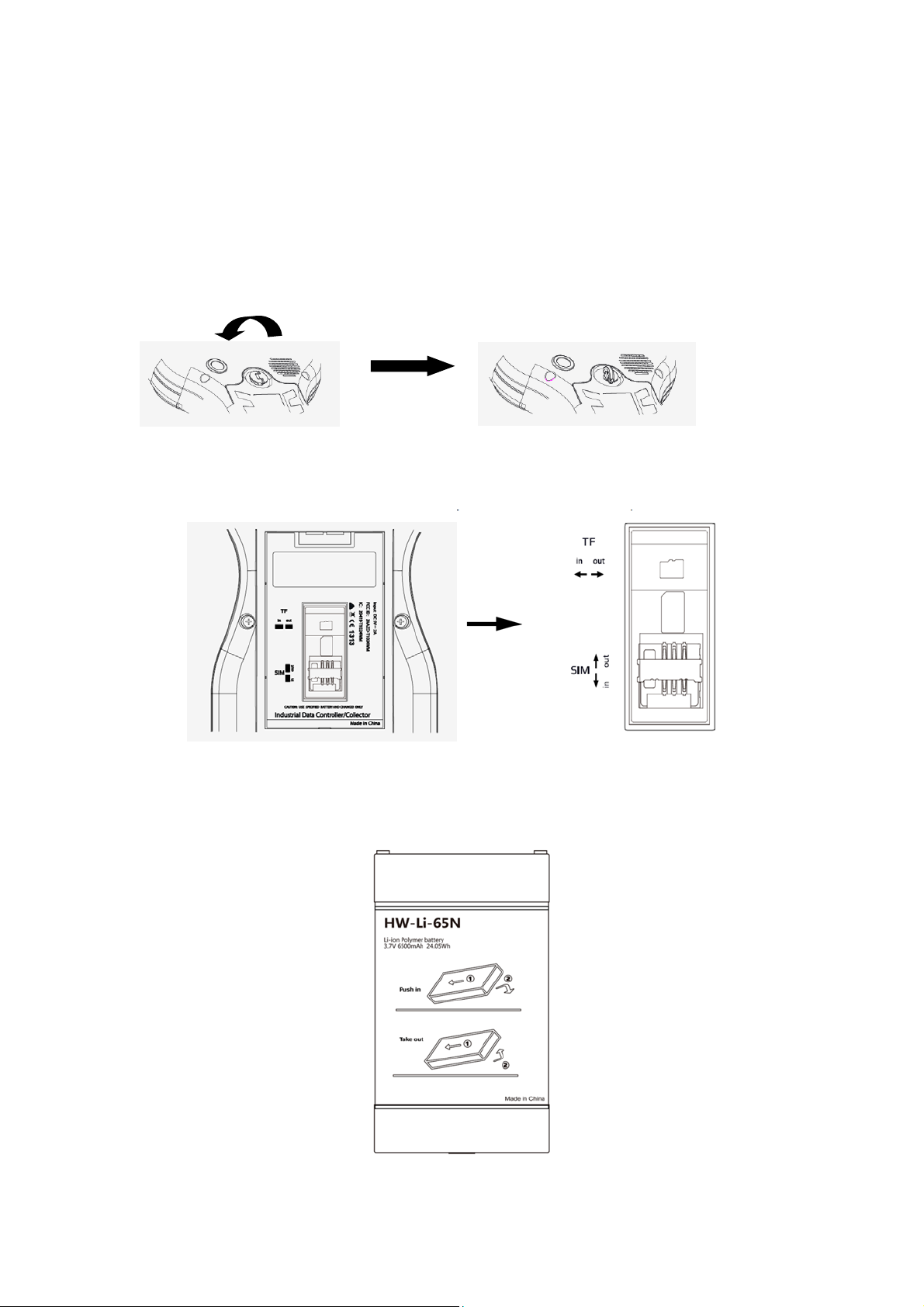

2.1. Installing the TF card/SIM card/Battery

a) Turn the back cover screw to the open position according to the instructions on a label in

the box, and take off the back cover.

Figure 2-1: Opening the Back Cover

b) Insert the SIM card and TF card according to the instructions in the battery cabin.

Figure 2-2: Inserting the SIM Card

c) Insert the battery according the instructions on the battery label( Figure 2-3).

Figure 2-3: Inserting the Battery

d) Close the back cover and turn the back cover screw to the lock position.

2.2. Charging

Open the cover at the bottom of the device, and charge with the DC adapter. Charging current

can reach 1.5A.

2.3. Turning the collector on/off

a) Make sure the battery has enough power, or connect the T21 to a DC adaptor.

b) Press power button for three (3) to five (5) seconds to turn on (until the boot screen

appears).

c) Press the power button for three (3) to five (5) seconds, and confirm to power off.

NOTE: If there are abnormal situations, such as the T21 does not operate normally, use the tip of

the stylus to press the reset key to restart the T21.

2.4. Synchronization Function

a) Make sure Windows Media Device Center (WMDC) has been already installed in PC,

formerly ActiveSync for Win-XP. If not, please download from this link below and install it.

https://www.microsoft.com/en-US/download/details.aspx?id=3182

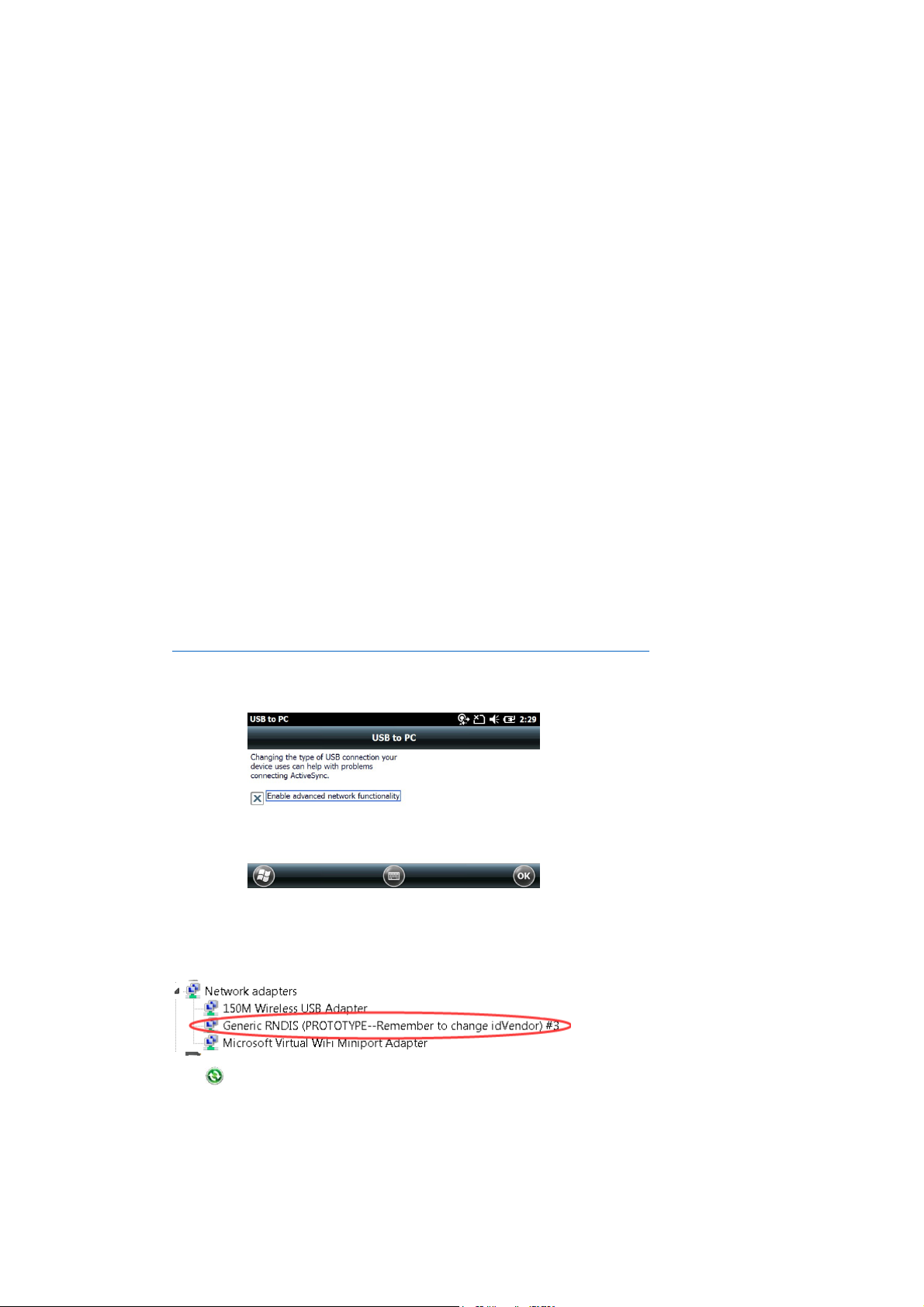

b) Choose ‘Enable advanced network functionality’ by clicking Setting->Connections->USB to

PC.

c) Connect T21 to a PC with USB cable.

d) PC will search an appropriate driver for T21 and install automatically. A similar device will be

shown in Device Manager

e) The icon will appear in the tool bar of PC then ActiveSync/WMDC will launch as follows,

f) Click Browse to check the files in the T21, and then transfer data between your PC and the

T21.

g) If WMDC doesn’t connect, follow the steps below to check its driver first.

i) Check whether a suitable driver of T21 has been installed or not by PC Device

Manger. If not, unrecognized device will be present in ‘Device Manager’

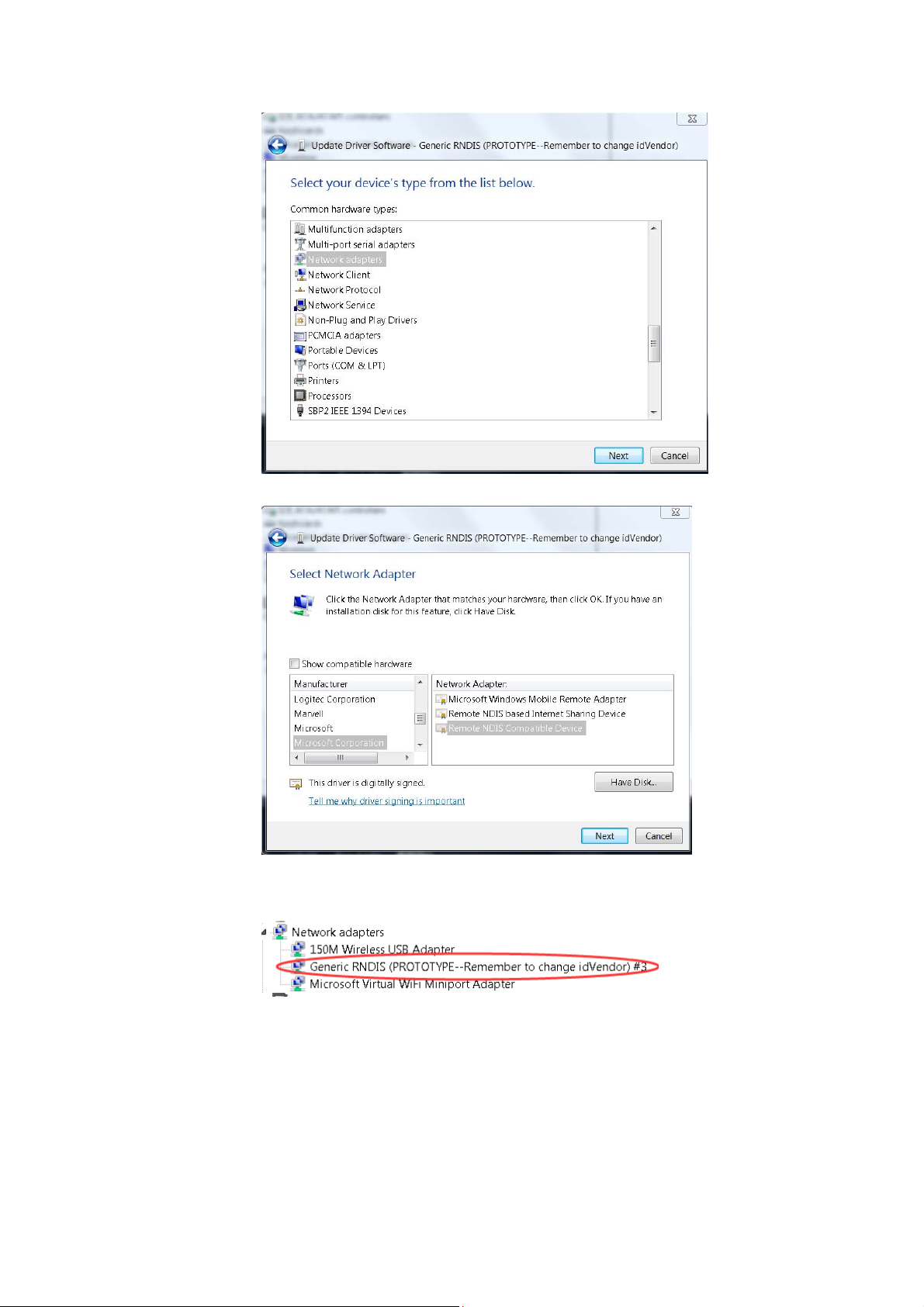

ii) Click on the ‘unrecognized device’，choose ‘update driver software’，then click

‘Let me pick from a list of device drivers……’ on the Dialog box.

iii) Choose ‘Network adapter’ as the figures shows,

iv) Choose ‘Remote NDIS Compatible Device’ , click Next as below,

v) The driver will be installed successfully. A RNDIS device like below figure will

be shown in PC Device Manger

h) If the above RNDIS device has been already shown in Device Manager, WMDC doesn’t

launch successfully yet, especially for Win10 operating system. Please run a utility called

“HWSyncTools.exe” provided by vendor.
