Hoymiles MI-600 Manuale utente

1. Accessories

*Note: Please install the microinverter at least 50 cm above the ground/roof for better communication with the Hoymiles DTU.

Step 2. Connect AC Cables of Microinverter

Item Description

AC End Cable (Female), 2 m 12 AWG Cable

M8 × 25 Screws

DC Extension Cable, 1 m

AC Female End Cap, IP67

A) Plug the AC connector of the first

microinverter into the connector of the

second microinverter to form a

continuous AC branch circuit.

B) Install the AC end cap on the open AC

connector of the last microinverter in

the AC branch circuit.

*Note: All accessories listed above are not included in the package, and need to be purchased separately. Please contact our sales representative

for pricing information. (M8 screws need to be prepared by installer-self.)

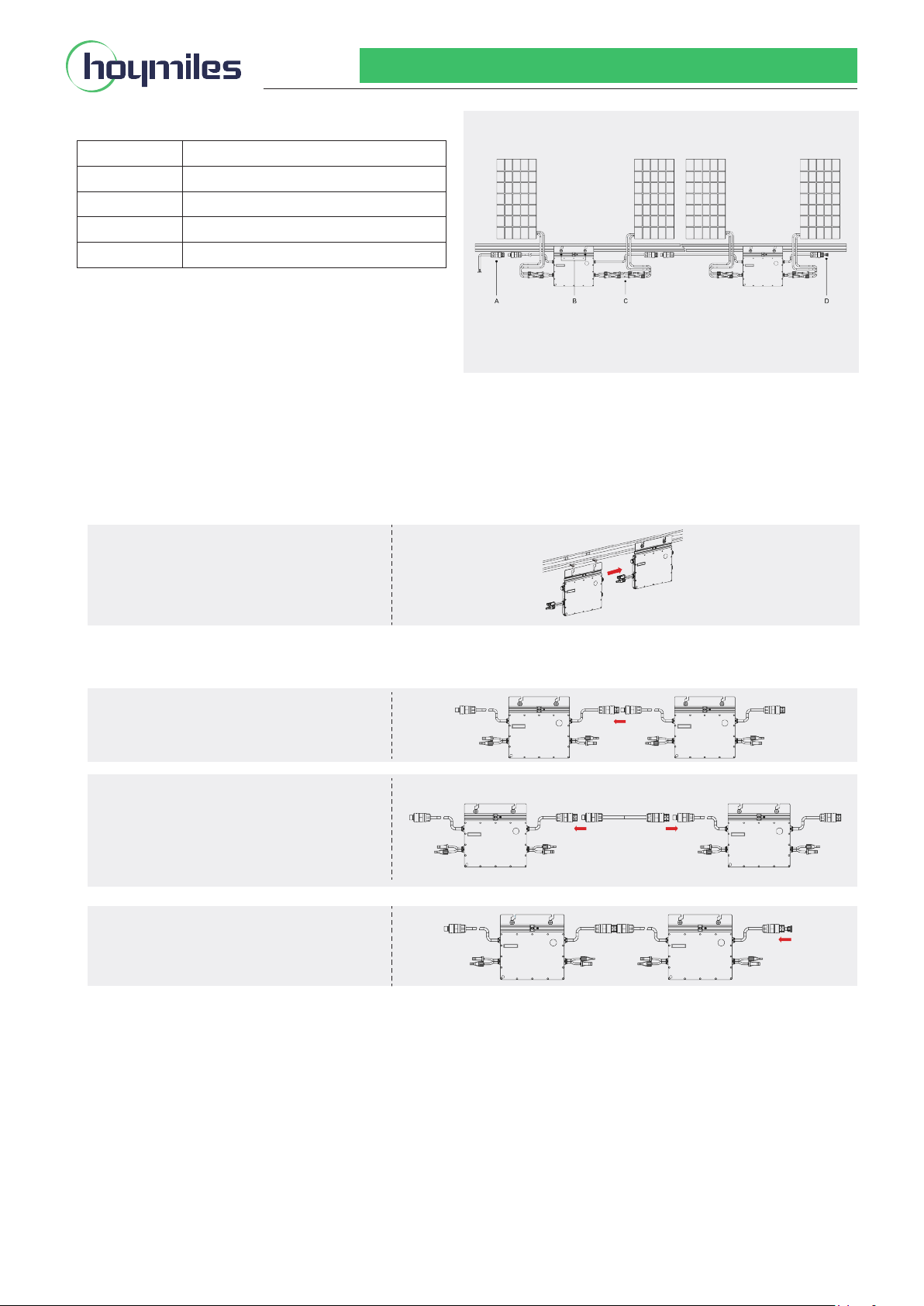

2. Installation Steps

Ensure the microinverter is installed in the required environment. (Refer to product user manual for more details.)

Step 1. Attach Microinverter on Rail

A) Mark the approximate center of each panel on the frame.

MI-600/MI-700/MI-800 Quick Installation Guide

B) Fix the screw on the rail.

C) Hang the microinverter on the screw (as

shown in the picture below), and tighten

the screw. The silver cover side of the

microinverter should be facing the panel.

*Note: The length of AC cable on

microinverter is around 2.06 m. If the

distance between two microinverters is

more than 2.04 m, please use the AC

extension cable between two inverters (as

shown in the picture below).

Step 5. Connect PV Modules

Step 6. Energize the System

A) Turn on the AC breaker of the branch circuit.

B) Turn on the main AC breaker of the house.

Your system will start to generate power

after about two minutes of waiting time.

A) Mount the PV modules above the

microinverter.

B) Connect the PV modules’ DC cables to the

DC input side of the microinverter.

Step 4. Create an Installation Map

A) Peel the removable serial number label

from each microinverter (the position of

the label is shown as below).

B) Affix the serial number label to the

respective location on the installation map.

*Note: L: Brown wire N: Blue wire G: Yellow/Green wire

Please use a 12 AWG cable as the AC end cable.

Product information is subject to change without notice. (Please download reference manuals at www.hoymiles.com.)

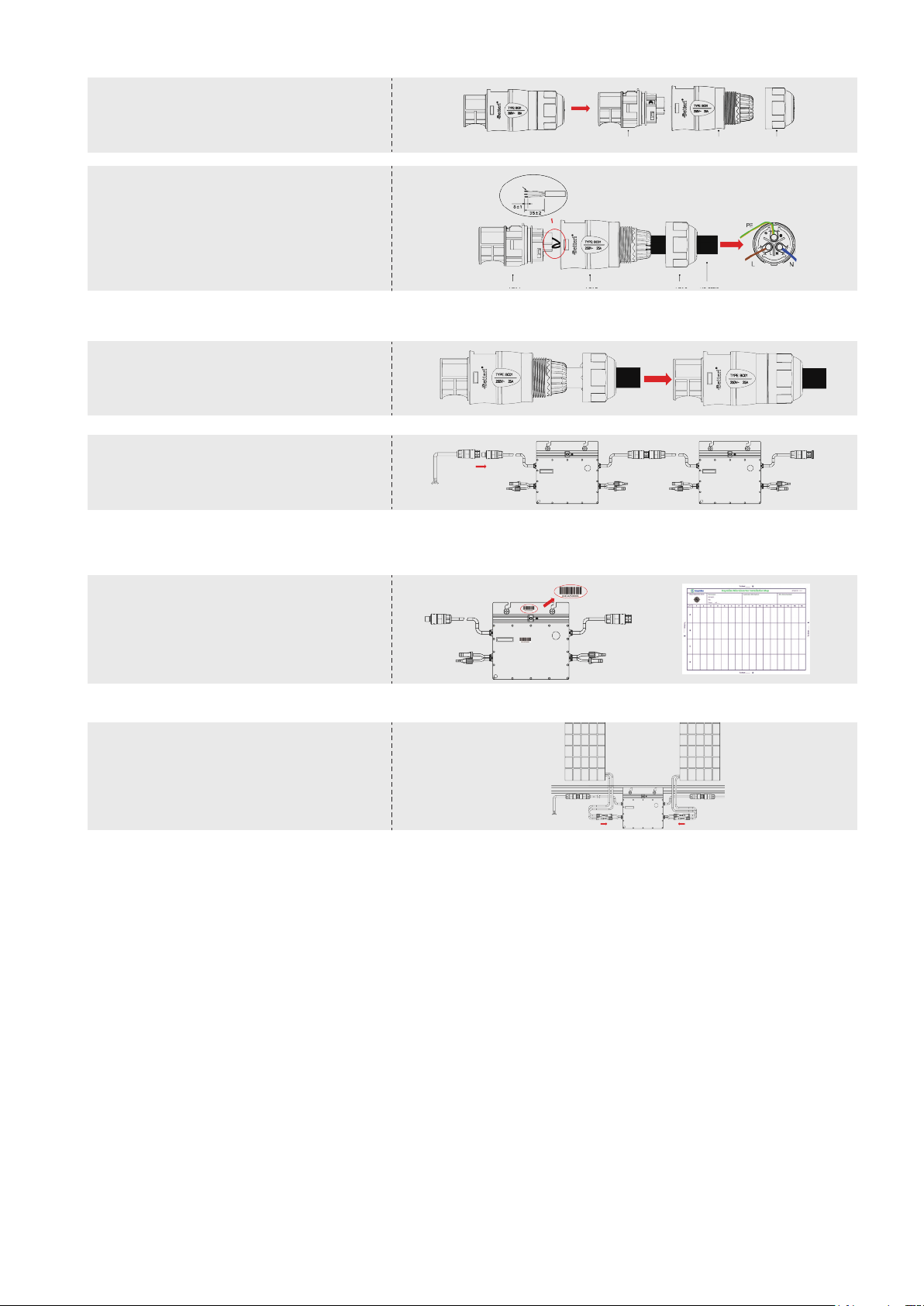

Step 3. Connect AC End Cable

Step 7. Set Up the Monitoring System

Refer to the DTU User Manual, DTU Quick Installation Guide, and

Quick Installation Guide for S-Miles Cloud (Hoymiles Monitoring

Platform) Online Registration to install the DTU and set up your

monitoring system.

A) Create the AC end cable.

1. Separate the AC port into 3 parts.

2. Insert the AC cable from Part 3 to Part 2,

and complete the wiring for the L, N and

Ground inside the Part 1 AC port

accordingly.

Coated with solder

Part 1 Part 2 Part 3 AC Cable

Part 1 Part 2

3. Plug the AC port Part 2 into Part 1 once the

wiring is complete, then screw on Part 3 to

complete the AC extension cable.

Part 3

B) Connect the AC end cable to the AC male

connector from the first microinverter to

complete the circuit.

C) Connect the other side of the AC end cable to the distribution box, and wire it to the local grid network.
