1

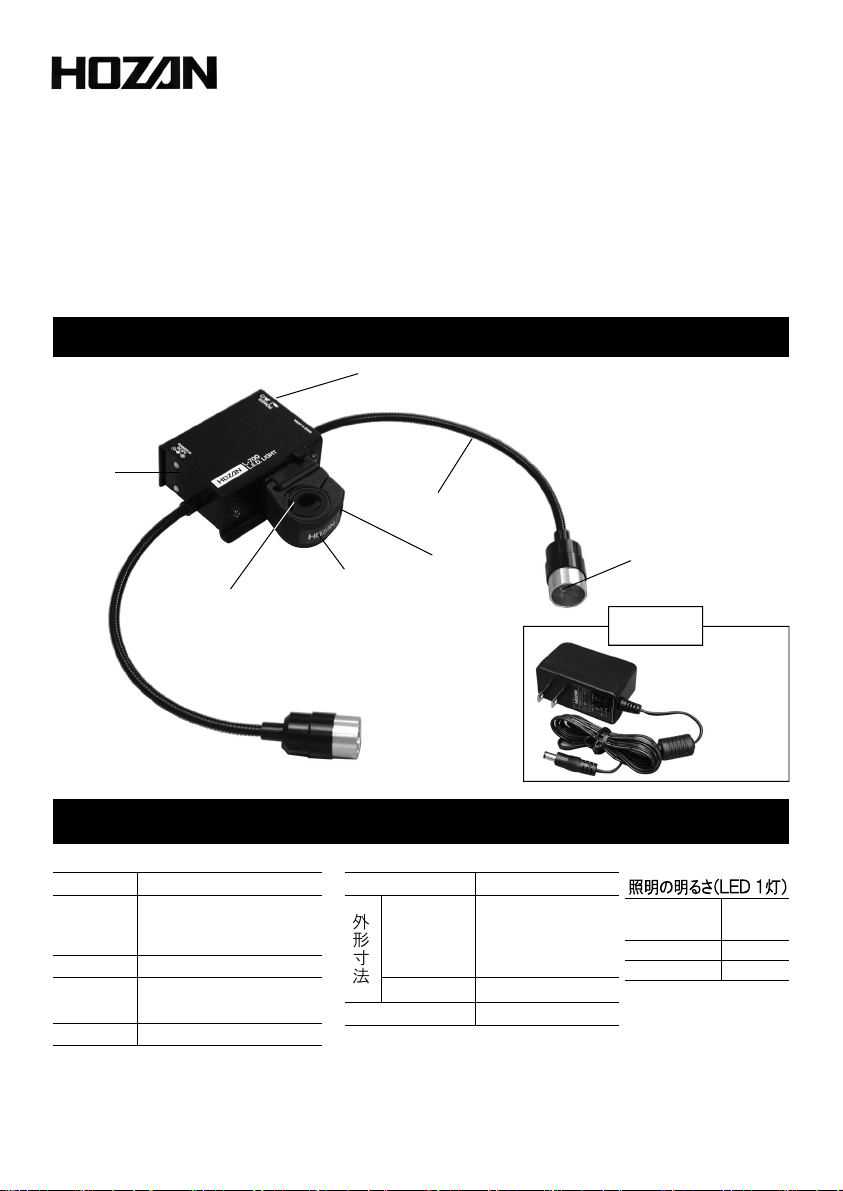

取扱説明書
L-705
LEDライト
このたびはホーザン L-705 LEDライト をお買い上げいただき、まことにありがとうございま
す。この取扱説明書をよくお読みになり、正しくお使いください。また、お読みになったあとも
大切に保管してください。
各部の名称と入組明細
仕 様
LED
LED寿命
色温度
定格電圧
消費電力
高輝度白色LED 7個×2
約10000時間
※使用環境により
異なります。
6500K
1.4W
DC12V
(ACアダプター付属)
電源スイッチ
クランプ
電源
ソケット
固定ネジ
フレキシブルアーム
ゴム板
3mm
2mm
1mm各1
LED
付属品
ACアダプター
照度
(lx)
発光部から
の距離 mm
30 34000
100 11900
※上記は参考値です。
取付支柱径 14~28mmφ
75(W)×33(H)
×58(D)mm
(取 り 付 け 金 具、
突起物含まず)
本体
アーム長
重量 340g
外形寸法
200mm

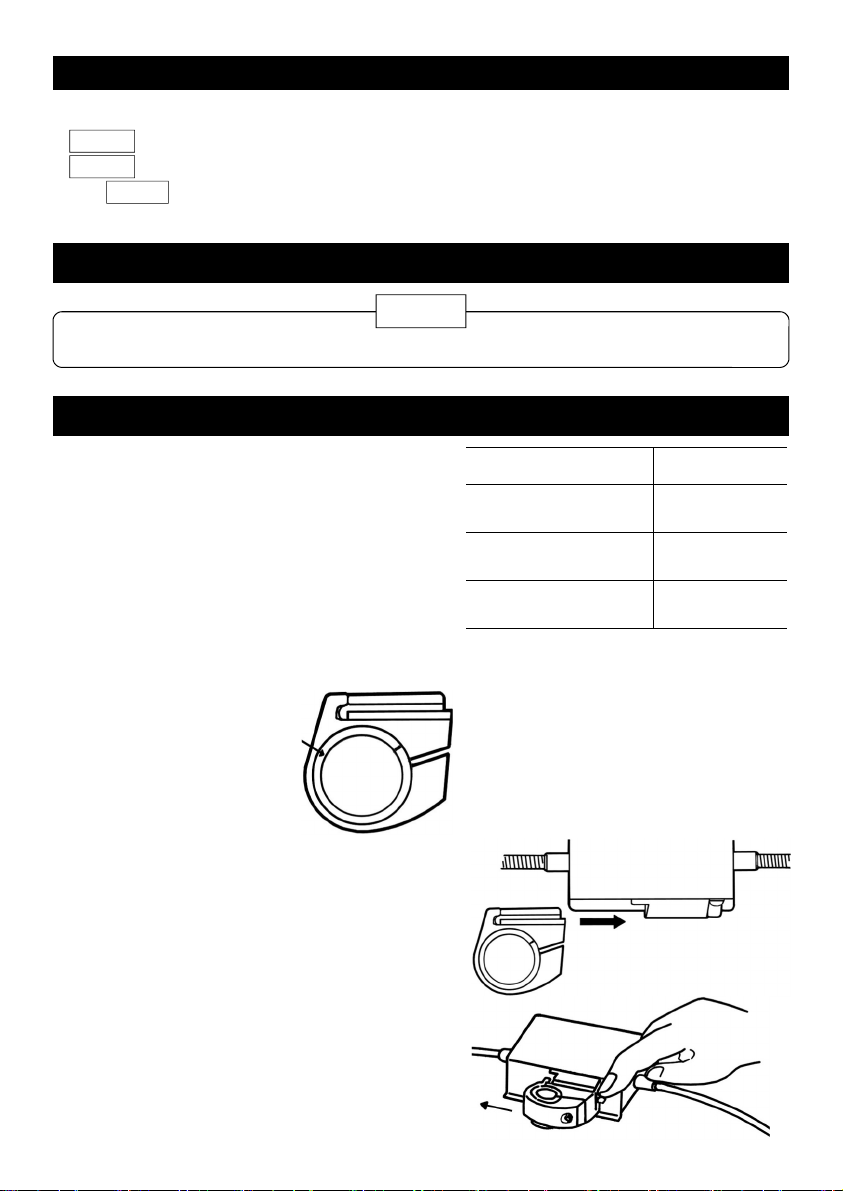

ご使用上の注意
2
ご使用方法
支柱径に適応する
よう、余分のゴム板
を抜き取ります。
2
1 本製品のクランプには異なる径の支柱に
適応するように3枚のゴム板が付属してい
ます。使用する支柱の径とゴム板の関係
をお確かめください。
クランプを本体に取り付けます。カチッと音
がして止まるまでスライドさせて固定しま
す。
3
クランプを取り外すときは、本体側シュー
(クランプ取り付け部)の突起を押し下げな
がらクランプを左にスライドさせます。
電源には必ず付属のACアダプターをご使用ください。
注意
注意文の警告マークについて
この取扱説明書ではご使用上の注意事項を次のように区別しています。
警告 …重傷をともなう重大事故の発生を想定してのご注意
注意 …傷害や物的損害を想定してのご注意
なお、注意 として記載されていても、あるいは特に記述がなくても、状況によっては重大
な結果をまねく恐れがあります。正しく安全にご使用ください。
支柱 ゴム板
Lー808
(支柱径:14mmφ)
3mm+2mm
+1mm
Lー521、Lー523
(支柱径:20mmφ) 2mm+1mm
Lー424 ※
(支柱径:26mmφ) 1mm
※ Lー424の場合は、ホルダーアーム(鏡筒
取り付け支柱)には取り付きません。

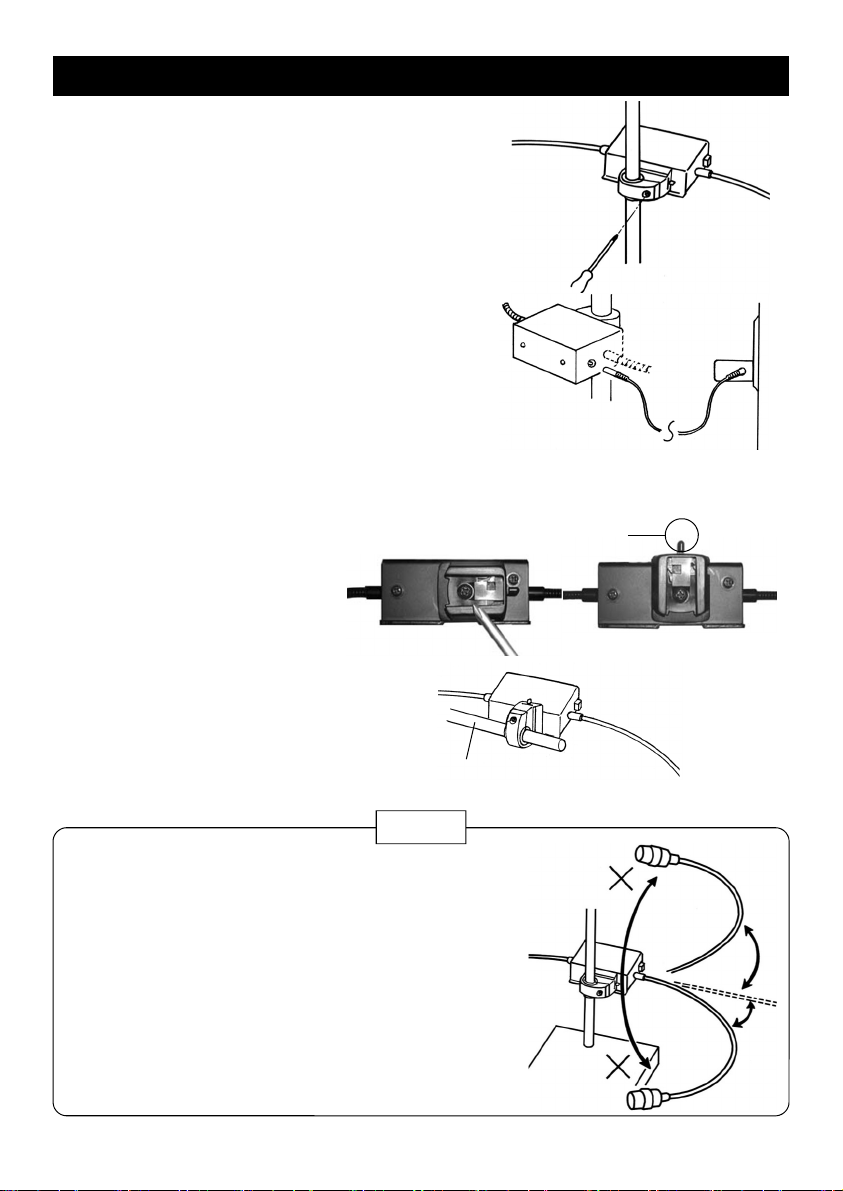

6 電源スイッチを入れ、フレキシブル
アームを操作して目標物を照射するよ
うにします。
ご使用方法
3
クランプを支柱に通し、希望の位置
でクランプのネジを締め込み固定し
ます。
4
※L-808などの細い支柱に取り付
けるときは、クランプを先に支柱に取り
付けた方が作業が容易です。
5 ACアダプターをコンセントに接続し、
ACアダプターのプラグをL-705本体
に接続します。
●
●
フレキシブルアームは巻きバネです。ねじれ方向
(巻きバネが締まる方向や緩む方向)に大きな力が
加わると破損の原因となります。引き出し角度を変
更するときは必ず一度まっすぐに伸ばし、ねじれ方
向の歪みを完全に取ってから、改めて希望の方向
に引き出してください。
フレキシブルアームを部分的に鋭く曲げると破損の
原因となります。アーム全体に大きなRがつくような
曲げ方をお勧めします。R30㎜が限界です。それ以
上小さく曲げないでください。
注意
シュー(クランプ取り付け部)中央
のネジをゆるめてシューを取り外
し、突起部分を上に向けた位置
で再び固定すると、水平方向の
支柱に取り付けることができます。
シューを取り外したとき、突起部
分に触れないでください。内部の
スプリングが飛び出し、紛失する
恐れがあります。
突起
水平支柱
水平支柱への取り付け

4 11.07A
L-701-1 LEDユニット
交換部品
L-700-2 クランプ
複数の機器で L-705をお使
いの場合、各機器にクランプ
を取り付けておくと着脱が容
易です。
6 アルミニウム製リングを時計方向にまわして元通り固定します。

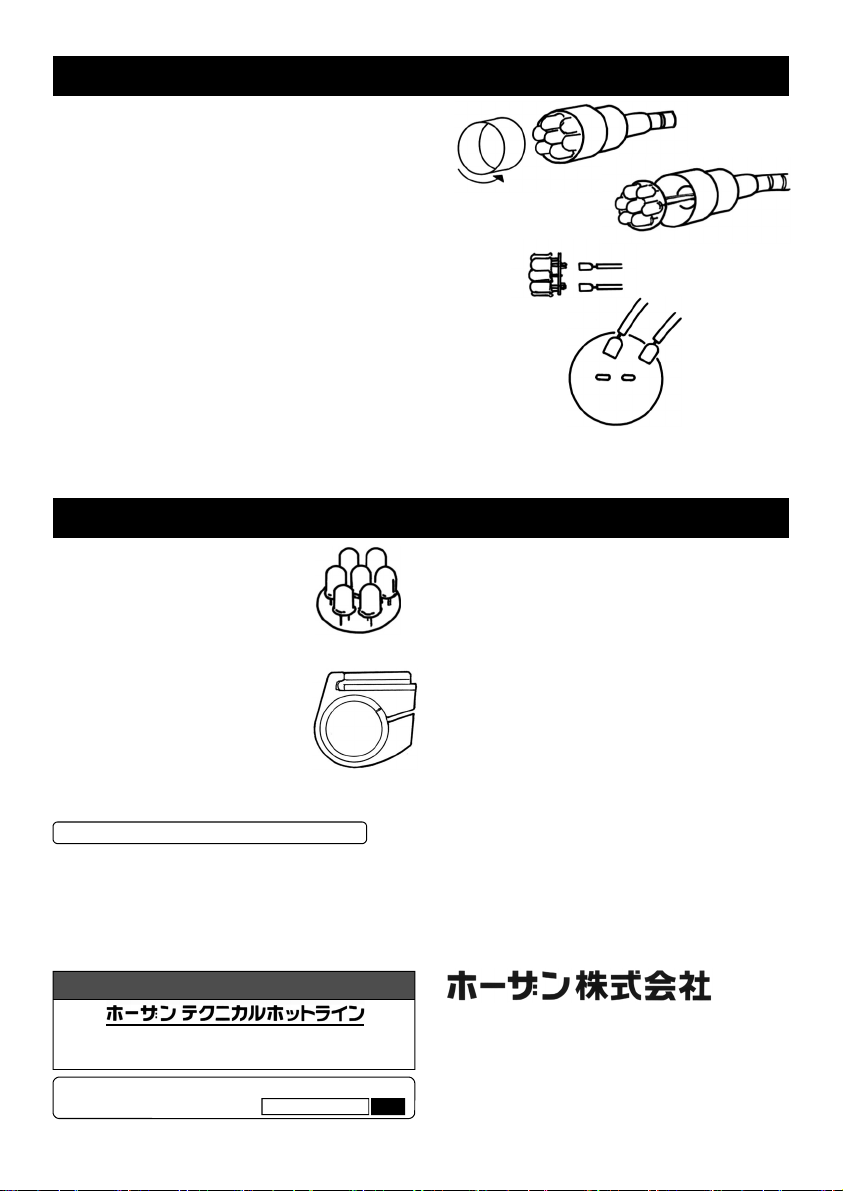

LEDユニットの交換方法
5 電源を入れてみて点灯を確認します。
4 新しいLEDユニットにコード付ソケットを差し込
みます。基板上にRと記されたピンに赤いコー
ドのソケットを、Bと記されたピンに黒いコードの
ソケットを差し込みます。
赤
黒
R
B
3 LEDユニットのリード部に差し込まれたコード付
ソケットを外します。
1 発光部先端のアルミニウム製リングを
反時計方向にまわして取り外します。
2 LEDユニットを引き出します。
本社 〒556-0021 大阪市浪速区幸町1-2-12
TEL(06)6567-3111 FAX(06)6562-0024
TEL(06)6567-3132
月曜日から金曜日(祝日を除く)の 9:15~12:00、13:00~17:00
技術的なお問い合わせ
補修部品については、web上のパーツリストをご覧ください。
ホーザン 通信販売 検索
通信販売もご利用いただけます。
部品はホーザンの通信販売でもお求めいただけます。

1

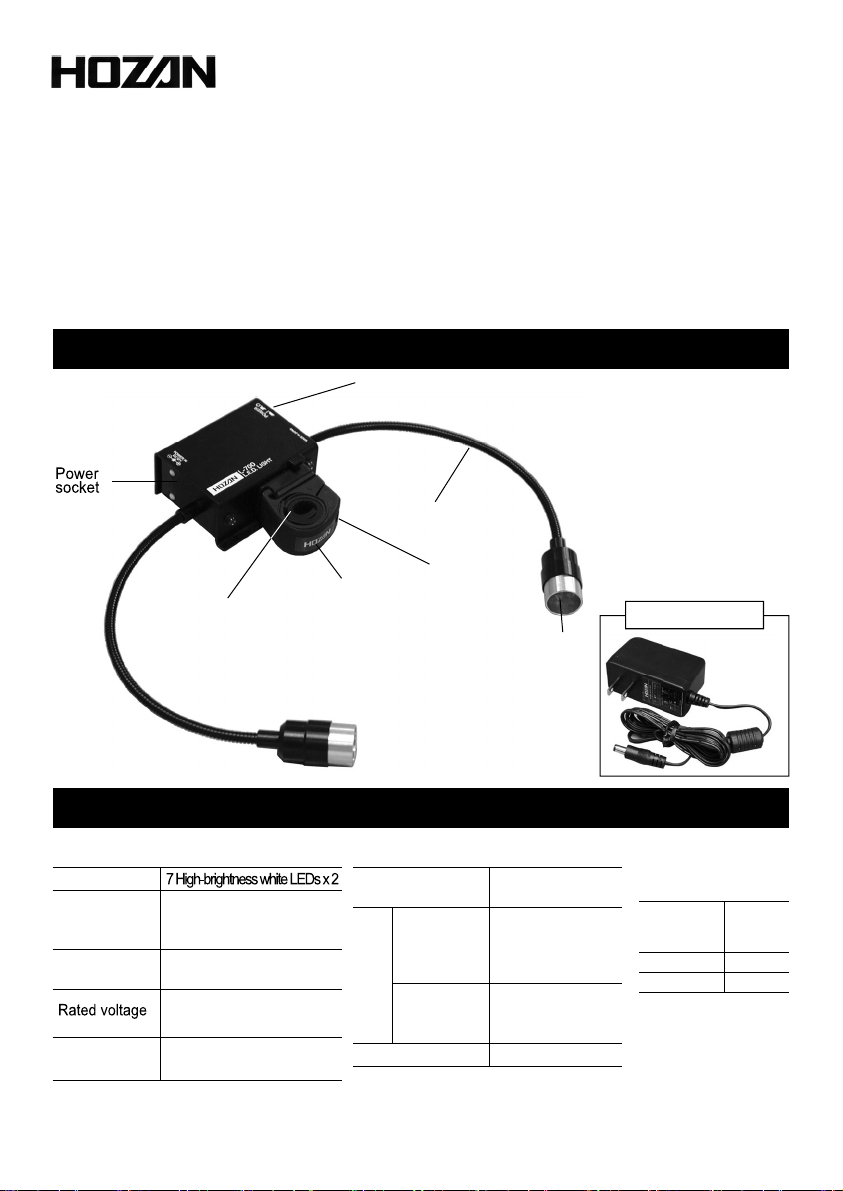

INSTRUCTION MANUAL
L-705
LED LIGHT
Thank you for purchasing the HOZAN L-705 LED LIGHT. With proper care and handling
this fine instrument will provide years of trouble-free operation. Please read this entire
instruction manual carefully before attempting to place this instrument in service. Please
keep this instruction manual available for reference.
Identification of parts
AC
adapter
Accessory
Power switch
Clamp
Set screw
Flexible arm
Rubber sheet
3mm
2mm
1mm ,1 each LED
Specifications
12 VDC
(with AC adapter)
LED
LED Life Approx. 1000 HRS
* Varies to the used
environment.
Color
temperature
6500 K
Power
consumption
1.4 W
Light brightness
(1 arm)
Illumination
lx
Distance from
light source
mm
30 34000
100 11900
*These values are for
reference.
340 g
220 mm
Weight
Mounting
post dia.
14 to 28 mmφ
75(W)×33(H)×58
(D) mm
(wo/fastener and
other projections)
Unit body
Arm length
External
dimensions

2 Remove the extra
rubber sheets.
3 Attach the clamp to the shoe (fastener
portion) on the main unit, inserting until
attached clicks.
To remove the clamp, slide the clamp
from right to left pushing down the
projection at the side of the fastener.
Operation
2

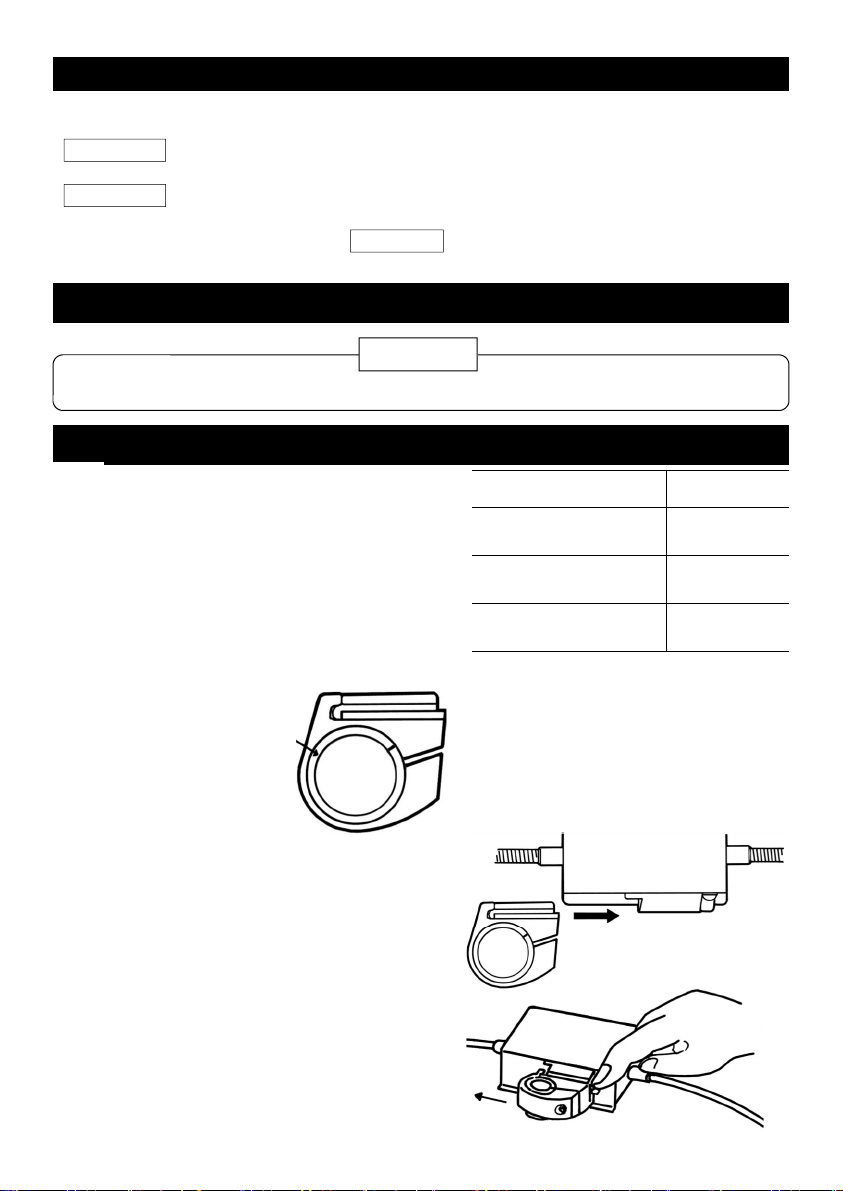

Precautions
Be sure to use the provided ac adapter for power supply.
Caution
Warning and caution symbols
These symbols are used throughout the instruction manual to alert the user to potential
safety hazards as follows :
Warning …Notice when incorrect handling could cause the user's death or serious
injury.
Caution …Notice when incorrect handling could cause injury to the user or material
damage.
Even if the instructions do not have Caution mark, there are some possibilities for a
serious situation. Follow the instructions.
1 The clamp has three rubber sheets to be
used with individual sized posts. Check
combination of the post diameter and
rubber sheet in the table.
Arm or table Rubber sheets
L-808
Post diameter:14 mmφ 3mm+2mm+
1mm
L-521, L-523
Post diameter:20 mmφ 2mm+1mm
L-424 *
Post diameter:26 mmφ 1mm
* The L-705 can not be attached on
the head arm of the L-424.

●
●
The flexible arm is made of wound spring. Applying
excessive force to the twisted
direction (tightening or loosening the wound spring)
could damage the flexible arm. When changing the
angle of the flexible arm, bend to desired angle after
stretching to eliminate distortion.
Bending the flexible arm sharply could cause damage.
We recommend bending gently throughout the flexible
arm. Allowed minimum diameter of bending is 30 mm.
Caution

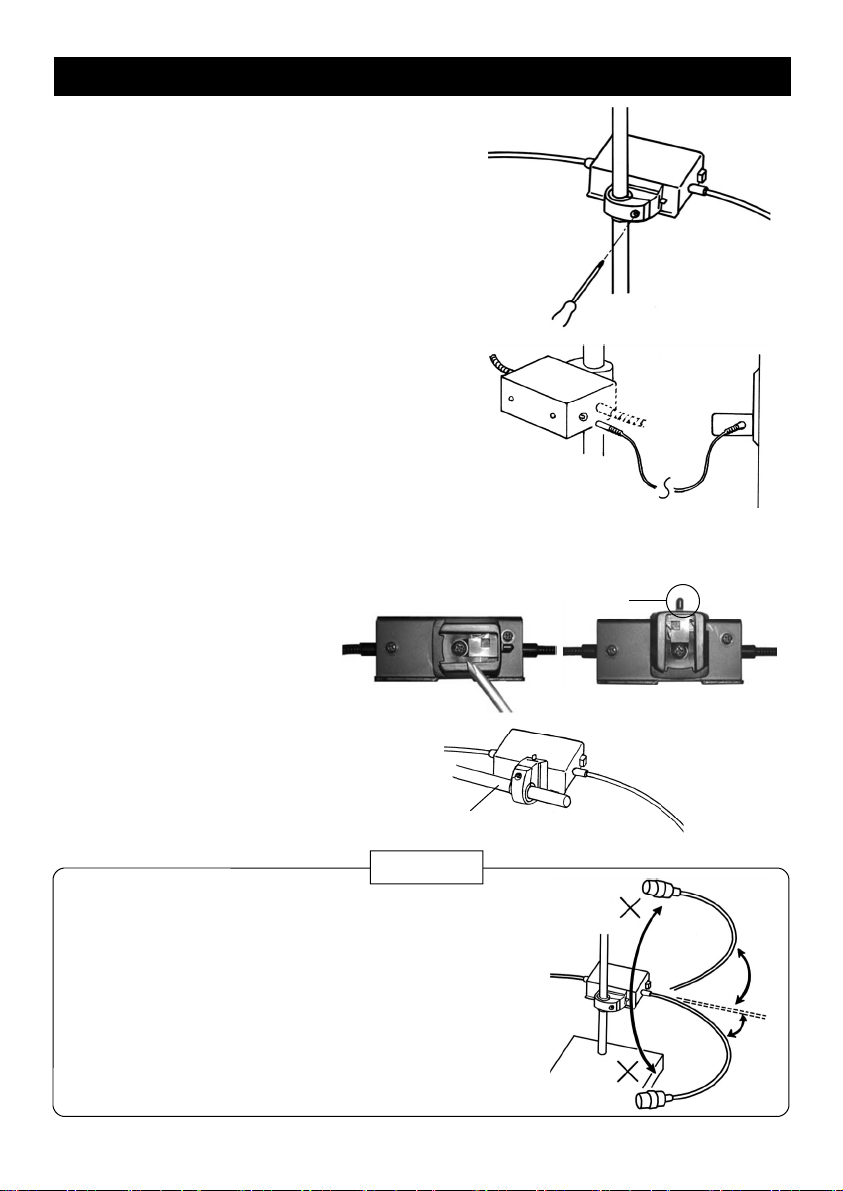

6 Turn the power switch on. Operate the
flexible arms to illuminate the subject.
3
*
Position the clamp onto the post to
desired position. Then, secure the
clamp set screw.
4
When setting on a thin post such
as the L-808’s post, setting the
clamp on the post before attaching
the clamp to the main unit is
recommended
5 Plug the ac adapter into the wall
outlet. Then, connect the socket of the
ac adapter to the L-705 main unit.
Operation
If use on a horizontal post,
remove the shoe (the part which
receives the clamp) unscrewing
the screw in the center, then
secure turning the projection of
the shoe upward.
Do not touch the projection when
removing the shoe to prevent
losing the spring in it.
projection
horizontal post
Set on a horizontal post

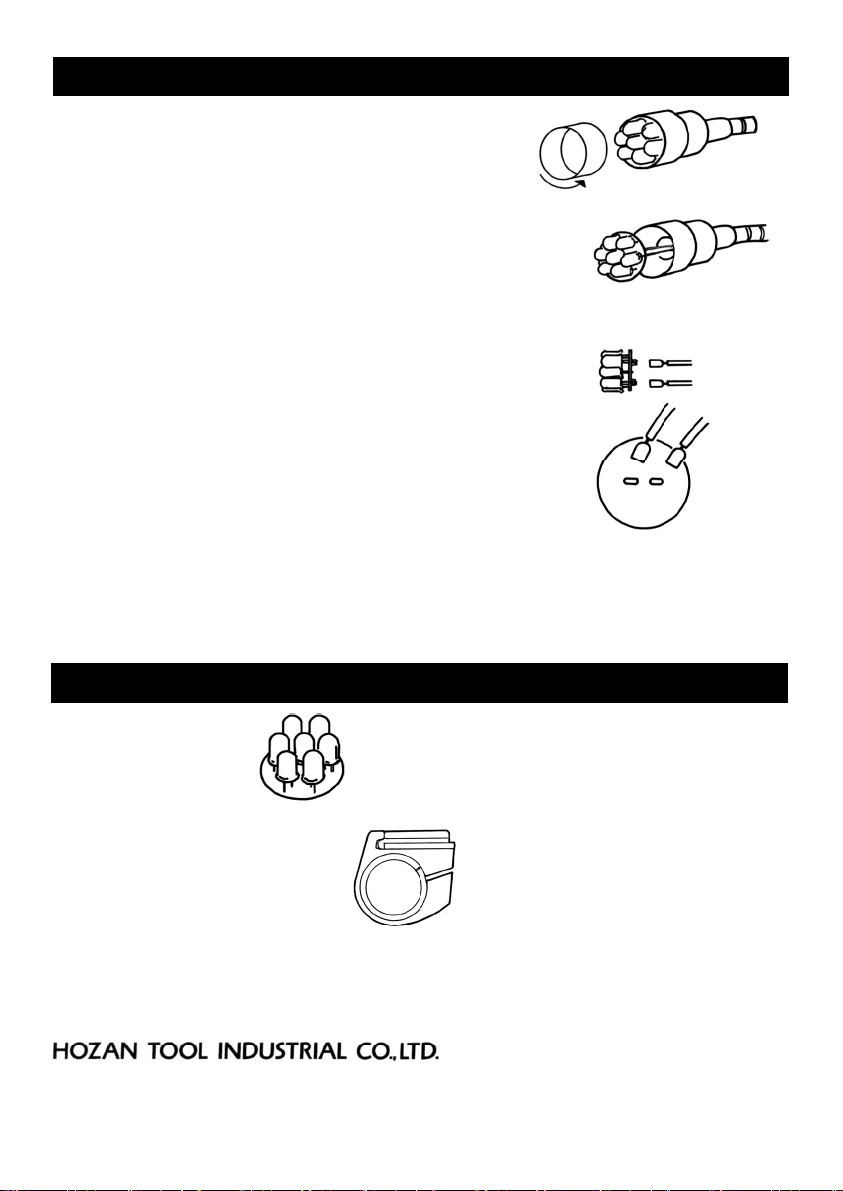

How to replace the LED unit
1 Remove the aluminum tube from the tip of the
lighting portion turning counterclockwise.
2 Draw the existing LED unit out.
3 Remove the sockets with wires from the lead
portion of the LED unit.
4 Replace with a new LED unit.
Connect the socket of the red wire to the lead
indicated “R” on the PCB, the black wire to the
lead indicated “B”.
5 Check to see if it illuminates.
6 Replace the aluminum tube screwing clockwise.
red
black
R
B
4 11.07A
Replacement parts
L-701-1 LED Unit
If use the L-705 on multiple
apparatus, connecting a clamp to
each apparatus is recommended.
L-700-2 Clamp
1-2-12 Saiwaicho, Naniwa-ku, Osaka 556-0021, Japan
Tel : 81-6-6567-3111 F ax : 81-6-6562-0024
