HP Blade bc1000 Manuale utente

Service Reference Guide

HP Blade PC bc1000 and bc1500 Series

5th Edition

This document provides information on spare parts, the removal and

replacement of all parts, as well as information on troubleshooting, POST

error messages, and diagnostic indicator lights.

Document Part Number 352971-005

Service Reference Guide

HP Blade PC bc1000 and bc1500 Series

5th Edition

Document Part Number: 352971-005

1st Edition (March 2004)

5th edition (May 2007)

May 2007

HP, Hewlett-Packard, and the Hewlett-Packard logo are trademarks of Hewlett-Packard Company in the U.S. and

other countries.

All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for

incidental or consequential damages in connection with the furnishing, performance, or use of this material. The

information in this document is provided “as is” without warranty of any kind, including, but not limited to, the

implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice.

The warranties for HP products are set forth in the express limited warranty statements accompanying such

products. Nothing herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by copyright. No part of this document may be

photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard

Company.

ÅWARNING: Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to

equipment or loss of information.

Service Reference Guide

HP Blade PC bc1000 and bc1500 Series

1st Edition (March 2004)

5th Edition (May 2007)

Document Part Number: 352971-005

Contents

1SpareParts

1.1 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

2 Removal and Replacement

2.1 Returning the Blade PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2 Removal and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2.1 Powering Down the Blade PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2.2 Removing the Blade PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

2.2.3 Replacing the Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

2.2.4 Installing the Optional Graphics Diagnostic Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5

2.2.5 Replacing the Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

2.2.6 Installing the Diagnostic Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

2.2.7 Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

3 Connectors and Passwords

3.1 Connectors and Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.2.1 Remove a Setup Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.2.2 Establish a Setup Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

4Diagnostics

4.1 Diagnostic Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2 POST (Power On Self Test) Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Service Reference Guide bc1000 and bc1500 352971-005 iv

Contents

Service Reference Guide bc1000 and bc1500 352971-005 1–1

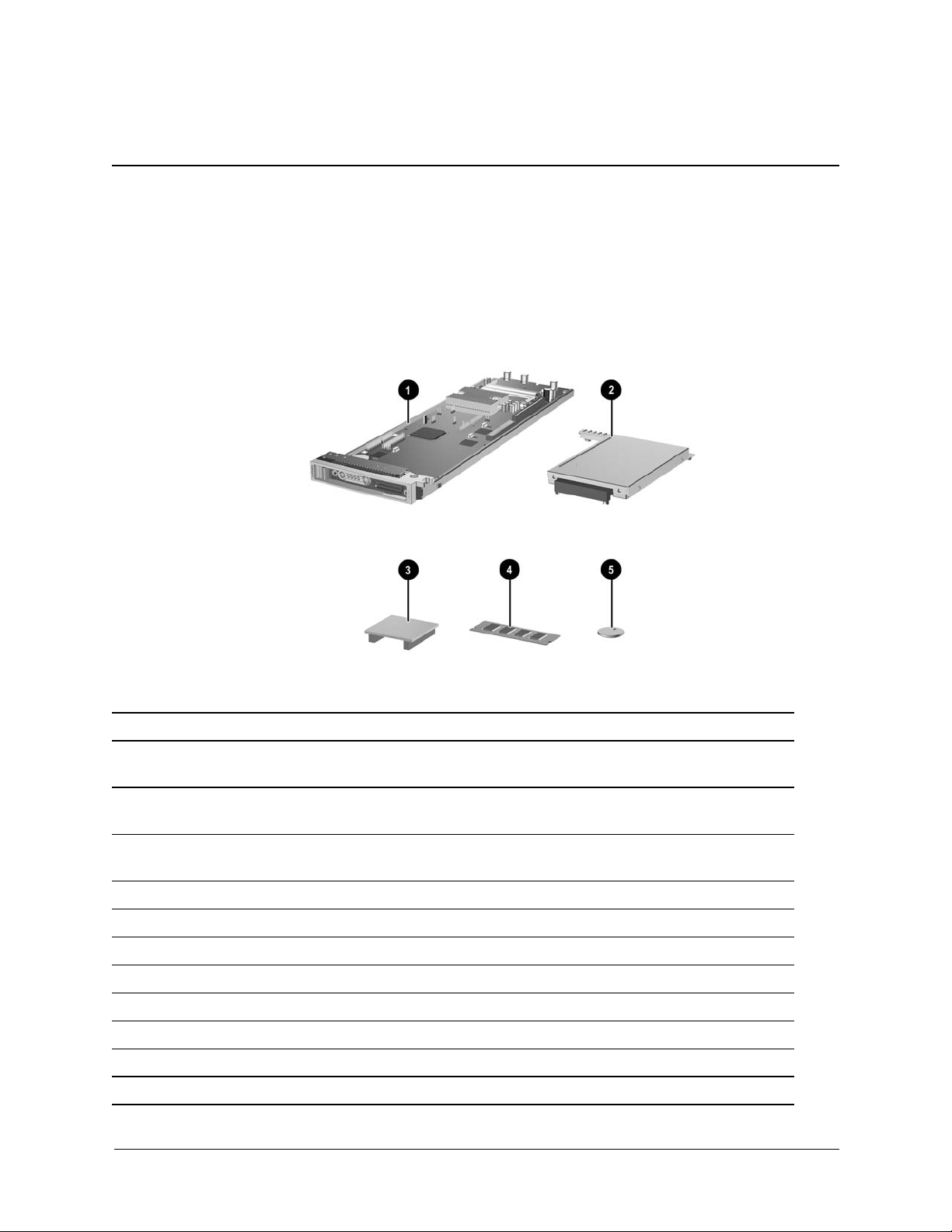

Spare Parts

1.1 S p a r e Pa r t s

Spare Parts

Item Description

bc1000 Spare

Part Number

bc1500 Spare

Part Number

1 Blade PC complete with 1 memory module 4,

hard drive 2, and RTC battery 5

404273-001 404273-001

1 Blade PC complete with 1 memory module 1,

hard drive 2, and RTC battery 3(Japan only)

N/A 407510-291

1* Blade PC with RTC battery 5but no other parts. N/A* N/A*

2* 40 GB Hard drive complete with mtg. bracket N/A* N/A*

3 Graphics diagnostic card (for debug use only) 404275-001 404275-001

4 Memory module, 256 MB SODIMM 407679-001 407679-001

Memory module, 512 MB SODIMM 407680-001 407680-001

Memory module, 1 GB SODIMM 407724-001 407724-001

5* RTC battery N/A* N/A*

*Parts available after expiration of advance exchange warranty.

1–2 352971-005 Service Reference Guide bc1000 and bc1500

Spare Parts

Service Reference Guide bc1000 and bc1500 352971-004 2–1

Removal and Replacement

✎The Blade PC may be covered under an advance exchange warranty provision. Check the

warranty documentation that came with your Blade PC for more information.

2.1 Returning the Blade PC

Before returning the Blade PC for repairs:

1. Reinstall the image on the hard drive before calling for a replacement unit. A faulty image

can act like a component failure.

2. Remove any extra memory and the graphics diagnostic card you may have installed on the

Blade PC. Only the original amount of memory will be shipped on the replacement unit

2.2 Removal and Replacement

2.2.1 Powering Down the BladeSystem PC

1. Ensure the blade PC is not active by verifying that the Health LED (Item 2) is off.

2–2 352971-004 Service Reference Guide bc1000 and bc1500

Removal and Replacement

2. If the blade is active, notify the users and stop applications as necessary.

3. Shut down the operating system. This may shut off the blade PC power.

4. If the blade PC still has power, power down the blade PC by either:

❏Using the Integrated Administrator or

❏Pressing the power button 6on the front of the blade PC above.

To perform an emergency shut down of the blade PC, press and hold the blade power button for

four seconds.

ÄCAUTION: Performing an emergency shutdown on a blade PC may result in the loss of any unsaved

data.

Item LED Status Description

1Unit

Identification

Off =

Blue =

Blue blinking =

Off

Identification of blade PC

Being emotely accessed

2Health Off =

Green =

Amber =

Red =

Red blinking =

Blade PC off

Blade PC on and good health

Blade PC degraded or power-up prohibited ny

the Integrated Administrator.

Blade PC critical

3NIC A Off =

Green=

Green blinking =

No connection

Linked to network

Linked and activity on the network

4NIC B Off =

Green=

Green blinking =

No connection

Linked to network

Linked and activity on the network

5Drive activity Off =

Green blinking =

No drive activity

Drive activity

6Power Off =

Amber=

Green =

No AC power to enclosure or blade PC

Envclosutre on and health good

Blade PC power turned on
