HP Brio BA300 Manuale del prodotto

technicalreference

manual

www.hp.com/go/briosupport

hp brio ba300

product description

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not

limited to, the implied warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are

reserved. No part of this document may be photocopied, reproduced, or translated to another

language without the prior written consent of Hewlett-Packard Company.

Adobeand Acrobat are trademarks of Adobe Systems Incorporated.

Microsoft, MS-DOS, Windows and Windows NTare U.S registered trademarks of

Microsoft Corporation.

CeleronTM is a trademark and Intel®and Pentium®are registered trademarks of Intel

Corporation.

CrystalClear™is a trademark and Crystal®is a registered trademark of Cirrus Logic

Incorporated.

HP France

Business Desktop Division

38053 Grenoble Cedex 9

France

About this Document

This document provides technical information on the hardware components and BIOS used in the HP

Brio BA300 PC.

HP Brio BA300 Documentation

The following documentation is available for the HP Brio BA300:

Technical Reference Manual

The HP Brio BA300 Technical Reference Manual (this document), is available in PDF format on the

HP Brio support web site (www.hp.com/go/briosupport).

Quick User’s Guide

The Quick User’s Guide is a paper manual that comes with your PC. It provides essential information on

setup, troubleshooting and warranty and is also available in PDF format on the HP Brio support web site

(www.hp.com/go/briosupport).

Upgrade Guide

The HP Brio BA300 Upgrade Guide is provided in PDF format on the HP Brio support web site

(www.hp.com/go/briosupport). It provides information on upgrading and replacing components in

your PC.

Troubleshooting Guide

The HP Brio BA300 Troubleshooting Guide is provided in PDF format on the HP Brio support web site

(www.hp.com/go/briosupport). It provides detailed information on troubleshooting your PC.

BA300 Bibliography

❒HP PC Service Handbook Chapter at:

www.hp.com/go/briosupport.

Data sheets can be obtained at:

❒Pentium Processors

www.intel.com/design/pentiumIII/datashts

❒HP Product Data Sheet

www.hp.com/desktops

Table of Contents

system overview

components and technical features . . . . . . . . . . . . . . . . . . 8

package features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

system features

hp ba300 system board layout . . . . . . . . . . . . . . . . . . . . 14

main memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

clear CMOS/clear password jumpers . . . . . . . . . . . . . . . . 16

mass storage devices . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

graphic interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

network interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

BIOS overview

BIOS summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

BIOS addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Order in Which POST Tests are Performed . . . . . . . . . . . 29

drivers and software

drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

BIOS updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Status

system overview

This chapter introduces the internal and external features, and lists the specifications of the

HP BA300 PC.

system overview

components and technical features

Component HP BA300 PC

Package

Description

Two front access shelves (one free)

Width: 19.0cm (7.4 in); Height: 35.8 cm (14.0 in); Depth: 38.1 cm (14.8 in).

Processor Intel Celeron 700/66, 733/66, 766/66, 800/66

Intel Pentium III 866/133, 933/133

System Board:

Chip set Intel® 810E

Integrated I/O 2 USB connectors, 1 serial port and 1 parallel port, 2 PS/2 (keyboard, mouse), 1 15-pin VGA connector, audio

ports (stereo-in, stereo-out, microphone in), 1 MIDI

Integrated IDE On ICH chip. 2 IDE Ports (Ultra ATA 66)

Integrated

graphics

Intel® 810E integrated graphics with Direct AGP and Dynamic Video Memory Technology.

Integrated audio CS4299: CrystalClear™ Sound Fusion Audio Codec ‘97

Integrated

network

interface

HP 10/100 BT PCI ethernet adapter (RJ-45 Ethernet port (10/100Base-T)

Mass storage Hard disks: 10GB IDE, 20GB IDE (5,400 rpm)

CD-ROM drive: 48X Max-speed CD-ROM

Main memory Two SDRAM sockets using: 64MB, 128MB

Input devices HP Standard Keyboard

HP Scrolling Mouse

Power supply 149W Power Supply

BIOS

Type: HP Phoenix BIOS

Version: IZ.xx.yy

Setup program: English only

BIOS error messages: English only

system overview

package features

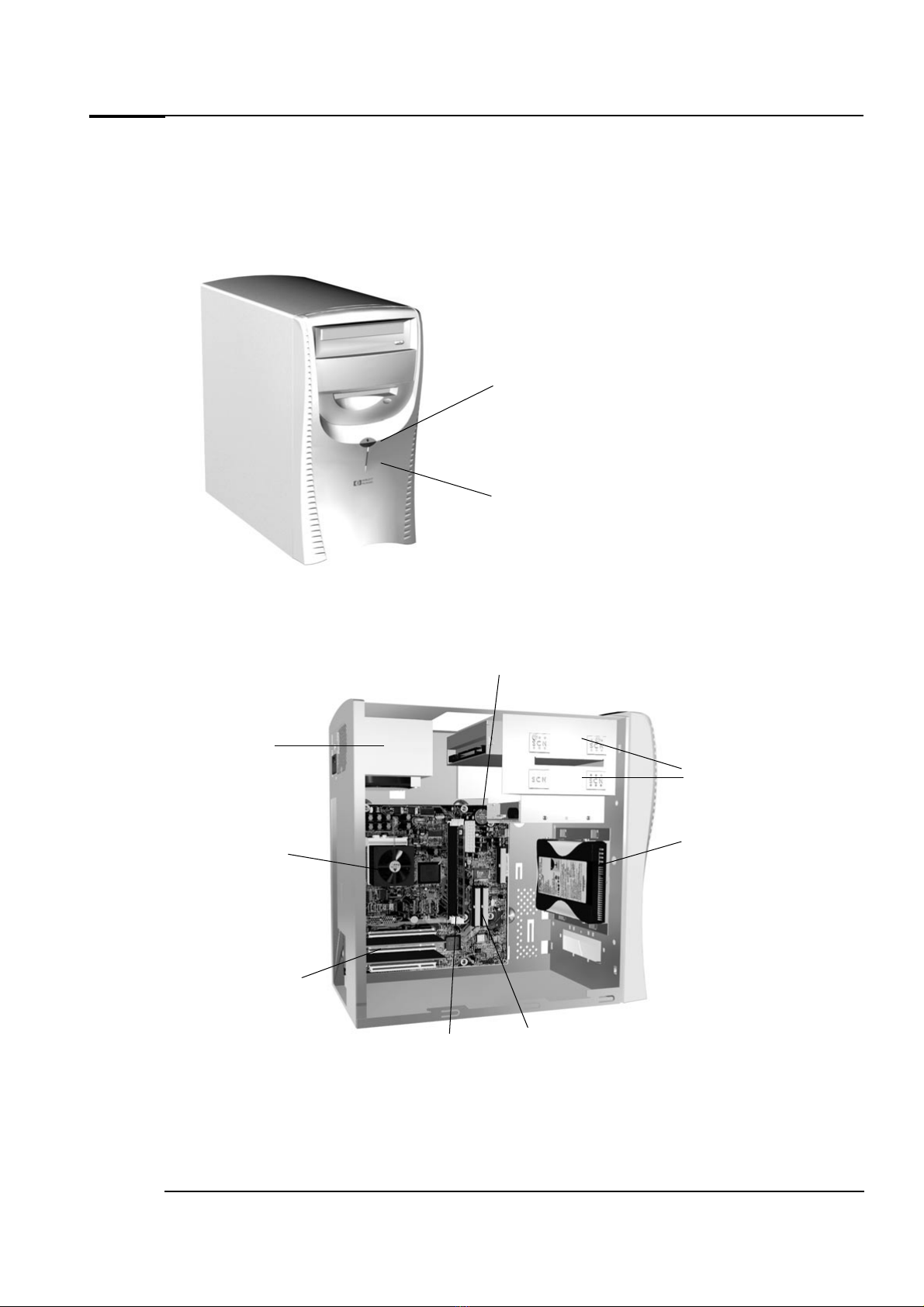

Front view

Power

On/Off

Button &

Power on

Status

Light

Hard Drive

Activity

Light

Inside view

Power

supply

Processor

Up to three

PCI slots

Tw o m a i n

memory

slots

Hard drive

2 Front-access

Device Shelves

IDE

connectors

Battery

system overview

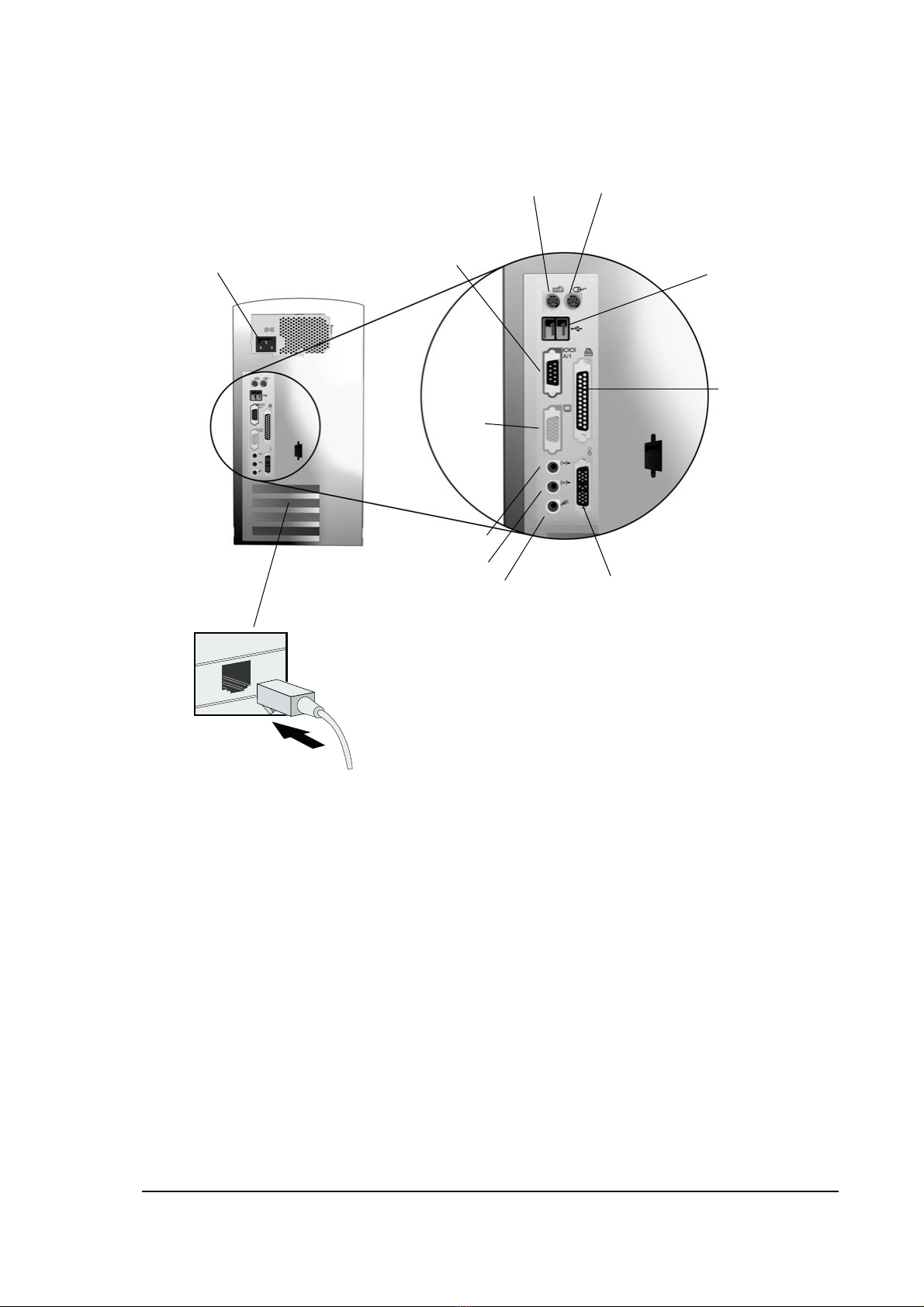

USB

Parallel Port

Keyboard

Serial

Line In

Microphone

Monitor

Mouse

10/100BT LAN Connector

Speaker Out

Power

Connector

Rear connectors

15-pin MIDI
