HP Compaq dc7900 Business PC Istruzioni utente

HP recommends

Windows Vista® Business

Ultra-slim Desktop

Rear I/O: (6) USB 2.0, (1) DisplayPort, (2) PS/2, (1) RJ-45, (1)

VGA port, (1) audio in, (1) audio out

(1) Optical disk drive (slimline)

(1) 2.5” internal hard disk drive bay

HP 2-button optical scroll mouse

Front I/O: (2) USB 2.0, headphone and microphone

HP keyboard

135W 87% efficient external power adapter

HP Monitor (sold separately)

Tower stand (sold separately)

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 1

Small Form Factor

HP Monitor (sold separately)

HP keyboard

Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45,

(1) VGA port, (1) DisplayPort, (1) audio in, (1) audio out

Optional: 2

serial port, (1) parallel port, (1) eSATA port

(1) 3.5-inch external drive bay supporting media card

reader, diskette drive, or secondary hard disk drive

(1) low profile PCI slot, (1) low profile PCI Express x1 slot, (2)

low profile PCI Express x16 slots

(

NOTE:

x16 slot has x4 connectivity.

)

(1) Optical disk drive

Front I/O: (2) USB 2.0, headphone and microphone

(1) 3.5-inch internal drive bay supporting primary hard disk

drive

HP 2-button optical scroll mouse

10.

240-watt standard efficiency power supply

Optional: 85% efficient energy saving power supply

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 2

Convertible Minitower

(2) Optical disk drives

(2) 3.5” internal hard disk drive bays

Front I/O: (2) USB 2.0, headphone and microphone

365-watt standard efficiency power supply, Active Power

Factor Correction (PFC)

Optional: 85% efficient energy saving power supply

(3) full-height PCI slots, (1) full-height PCI Express x1 slot, (2)

full-height PCI Express x16 slots

(

NOTE:

x16 slot has x4 connectivity.

)

(1) 5.25” removable media drive bay

HP 2-button optical scroll mouse

Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45,

(1) VGA, (1) DisplayPort, (1) audio in, (1) audio out

Optional: 2

serial port, (1) parallel port, (1) eSATA port

HP keyboard

Media card reader or Floppy disk drive

10.

HP Monitor (sold separately)

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 3

At A Glance

Designed for long-term deployment within commercial and institutional organizations

Guaranteed lengthy purchase lifecycles and image stability

Integrated dual monitor support via both a VGA and DisplayPort monitor interface

Optional 85% efficient power supplies

ENERGY STAR qualification for dc7900e models

Intel® Q45 Express chipset featuring Intel's Graphics Media Accelerator 4500

Software image fully compatible across all models and form factors

BIOS developed and engineered by HP for better security, manageability and software image stability

Created using industry leading Design for Environment standards

Supports industry standard management protocols including DASH, Intel Standard Manageability, and Intel Core 2 Processor

with vPro Technology (on select models)

CMT and SFF models can be configured with multiple hard disk drives in a RAID array

Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals

(

http://h10019.www1.hp.com/business-site/index.html

)

Tailored HP Factory Express deployment and lifecycle services available

(

http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx

)

Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions

and exclusions apply)

Tool-less serviceability features for easier upgrades and repairs

Choice of professional chassis form factors to accommodate the desired mix between expandability and size

* TPM module and cryptographic software disabled where use is restricted by law; for example, Russia and China.

QuickSpecs

HP Compaq dc7900 Business PC

Overview

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 4

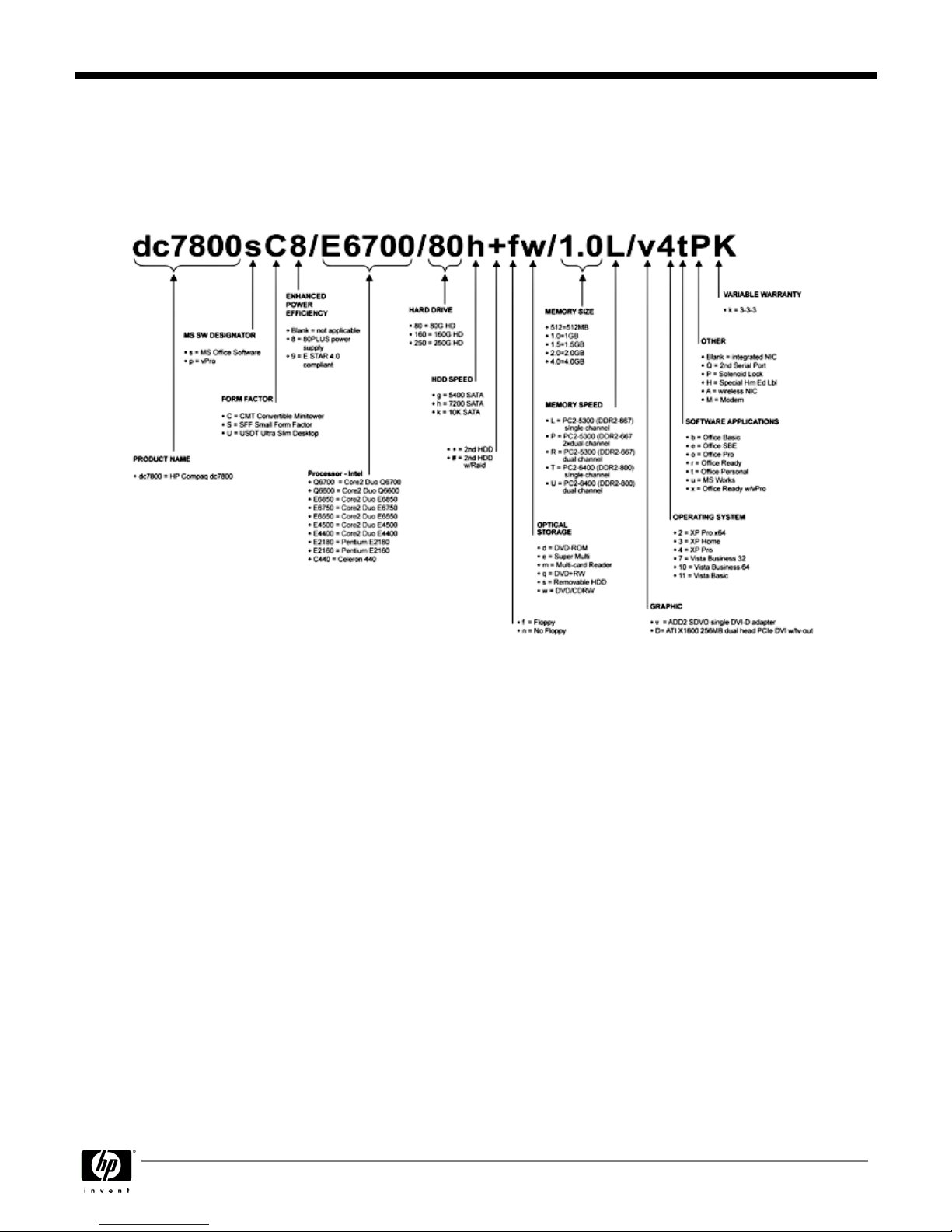

Model Key and Example

NOTE:

This diagram is an example that illustrates how to read the model number. It is not intended to give every available

configuration choice specified in the body of this document and may include references to modules that are out of date and no

longer available.

QuickSpecs

HP Compaq dc7900 Business PC

Configurable Components - Select Models (localized by Regions)

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 5

Operating System -

One of the following

Preinstalled

Genuine Windows Vista Business 32

Genuine Windows Vista Business 64

Genuine Windows Vista Home Basic 32

Genuine Windows Vista Ultimate 32

Genuine Windows Vista Business with downgrade to Windows XP

Professional custom installed

FreeDOS

†

Supported

Genuine Windows XP Home Edition

Genuine Windows XP Professional

Certified

SUSE Linux Enterprise Desktop

†

* Certain Windows Vista product features require advanced or additional hardware. See:

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

www.microsoft.com/windowsvista/getready/capable.mspx

for details. WindowsVista Upgrade Advisor

can help you determine which features of Windows Vista will run on your computer. To download the

tool, visit:

www.windowsvista.com/upgradeadvisor

+ Windows Vista Business disk may be included for future upgrade if desired. To qualify for this

downgrade an end user must be a business (including governmental or educational institutions) and is

expected to order at least 25 customer systems with the same custom image.

† The following features are not supported on Linux certified systems:

HP 22-in-1 Media Card Reader

HP 1.44-MB External USB Diskette Drive

TPM 1.2 Security Chip

Intel Pro 1000 PT PCIe x1 Gigabit NIC

Broadcom NetXtreme Gigabit Ethernet Plus PCIe NIC

HP 802.11b/g/n Wireless PCIe x1 Card

Intel WiFi Link 5100 a/b/g/n (USDT) Wireless NIC

Agere PCI 56K International SoftModem

LSI PCIe x1 56K International SoftModem

ATI Radeon 3470 256MB SH PCIe x16 graphics card

ATI Radeon HD 2400XT 256MB DH PCIe x16 graphics card

ATI Radeon HD 3650 512MB DH PCIe x16 graphics card

NVIDIA Quadro NVS 290 256MB dual head graphics adapter

HP USB Smartcard Keyboard

HP 2nd Serial Port

Parallel port adapter

eSATA port adapter

HP FireWire / IEEE 1394 PCI Card

Value-added Software

(included with all models;

not included with

FreeDOS)

HP ProtectTools Security Suite

†

HP Software Management Agent

HP Backup and Recovery Manager

PDF Complete

HP Insight Diagnostics

Computrace for Desktops (in the HP BIOS)

† Not included on models configured with less than 1 GB system memory.

* Computrace agent is in HP BIOS. For tracking and tracing services, available in select countries,

separate software and purchase of a subscription is required.

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 6

Value-added Software

(included with select

models; not included with

FreeDOS)

Computer Setup Utility

Microsoft Office 2007 Personal

McAfee Total Protection Anti-Virus

†*

Microsoft Office 2007 Professional

Sonic/Roxio Easy Media Creator 9

Roxio Business Creator 10

Microsoft Office 2007 Small Business

HP Power Manager v2.0

Microsoft Works 8.5

HP Total Care Advisor

†

Firefox-HP Virtual Browser

Microsoft Office 2007 Basic

Corel WinDVD 8

† Not included on models configured with less than 1 GB system memory.

* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to

receive updates. First update included. Subscription required for updates thereafter.

HP Client Management

Solutions

(available for free

download from the Web

http://www.hp.com/go/

easydeploy

)

HP Client Configuration Manager Basic Edition

HP Out-of-Band Management Console

(for Intel management technology enabled models)

HP Client Manager for Altiris

Altiris Out-of-Band Management Solution (for Intel

AMT enabled models)

HP SoftPaq Download Manager

HP Systems Software Manager

HP Client Catalog for Microsoft SMS

Value-added Services and

Features

HP Stable Platform Program

Factory Express Deployment and Lifecycle Services

Business-to-Business Portals

Intel Standard Manageability

HP Global Series Services

Intel Core 2 processor with vPro Technology

TPM 1.2 security module

* TPM module disabled where use is restricted by law; for example, Russia.

Service and Support

On-site Warranty and Service

: This three-year (3-3-3), limited warranty and service offering delivers three

years of parts, labor and on-site repair. Response time is next business-day

and includes free telephone

support

24 x 7. Global coverage

ensures that any product purchased in one country and transferred to

another non-restricted country will remain fully covered under the original warranty and service offering.

Some countries/regions do not offer one year onsite and labor.

Terms and conditions may vary by country. Certain restrictions and exclusions apply.

On-site service may be provided pursuant to a service contract between HP and an authorized HP third-

party provider, and is not available in certain countries. Global service response times are based on

commercially reasonable best effort and may vary by country.

Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party hardware

and software. Toll-free calling and 24 x 7 support may not be available in some countries.

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

Dimensions

Chassis Dimensions

(H x W x D)

2.60 x 9.90 x 10 in

(66.0 x 251.5 x 254 mm)

3.95 x 13.3 x 14.9 in

(100.3 x 337.8 x 378.5)

17.63 x 7.0 x 17.8 in

(447.8 x 177.8 x 452.12 mm)

Optional Tower Stand

Dimensions (H x W x D)

1.26 x 4.82 x 6.69 in

(32.0 x122.3 x 170.0 mm)

1.05 x 6.95 x 7.83 in

(26.75 x 176.46 x 198.87 mm)

N/A

System weight

7.0 lb (3.18 kg)

18.75 lb (8.50 kg) 26.2 lb (11.89 kg)

System volume

4.21 liters

13 liters 36 liters

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 7

Shipping weight

14.34 lb (6.52 kg)

26.10 lb (11.86 kg) 34.60 lb (15.72 kg)

Maximum supported weight

(desktop orientation)

77.1 lb (35 kg) 77.1 lb (35 kg) 77.1 lb (35 kg)

Shipping box dimensions

(H x W x D)

8.60 x 15.68 x 19.68 in

(218.4 x 398.3 x 499.9 mm)

9.00 x 19.68 x 23.38 in

(228.6 x 499.9 x 593.85 mm)

24.25 x 12.33 x 22.13 in

(616.0 x 313.2 x 562.1 mm)

* Configured with 1 hard drive, 1 optical drive, no diskette drive, and no PCI card.

Ultra-slim Desktop

Small Form Factor

Convertible Minitower

Standard Efficiency Power

Supply

N/A

240W active PFC 365W active PFC

Energy Efficient Power

Supply

135W active PFC

87% efficient

240W active PFC

85% efficient

365W active PFC

85% efficient

External power supply dimensions:

6.7 x 2.6 x 1.5 in

Total length of external power

supply and power cord:

12 feet 8 inches

Ports

USB 2.0

(8) Total

(2) front, (6) rear

Serial

N/A

(1) Standard

Optional 2

port available

Parallel

N/A

Optional (1)

eSATA

N/A

Optional (1)

PS/2

(1) keyboard; (1) mouse

Video

(1) VGA; (1) DisplayPort

DVI output

available via optional DisplayPort to DVI adapter

Support for Multi-Monitor

Dual monitor support standard; > 2 via optional graphics cards

Audio

Front – mic and headphone

Rear – input (supports microphone or line input), line out

NIC (RJ-45)

Integrated Intel 82567LM GbE Network Connection

Slots

Type and quantity

(1) mini PCI Express

(1) PCI

(1) PCI Express x1

(2) PCI Express x16

(3) PCI

(1) PCI Express x1

(2) PCI Express x16

Slot specifications

Accommodates low profile

cards only

Graphics slots support 35W

cards

PCIe x16 slot functions

electrically as a x4

Accommodates full height

cards

graphics slot supports

75W card; 2

graphics

slot support 35W card

PCIe x16 slot functions

electrically as a x4

USDT

SFF

CMT

Chipset

Intel Q45 Express chipset featuring Intel GMA 4500 DirectX 10 graphics

XXX

Processor and Speed

One of the following

Intel Celeron Processors:

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 8

One of the following

Intel Celeron 440 processor

2.0 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron 450 processor

2.2 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron Dual-Core Processors:

Intel Celeron dual-core E1200 processor

1.6 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron dual-core E1400 processor

2.0 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Celeron dual-core E1500 processor

2.2 GHz, 512 KB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core Processors:

Intel Pentium dual-core E2200 processor

2.2 GHz, 1 MB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core E2220 processor

2.4 GHz, 1 MB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core E5200 processor

2.5 GHz, 2 MB L2 cache, 800 MHz FSB

XXX

Intel Pentium dual-core E5300 processor

2.6 GHz, 2 MB L2 cache, 800 MHz FSB

XXX

Intel Core 2 Duo Processors:

Intel Core 2 Duo E7200 processor

2.53 GHz, 3 MB L2 cache, 1066 MHz FSB

XXX

Intel Core 2 Duo E7300 processor

2.66 GHz, 3 MB L2 cache, 1066 MHz FSB

XXX

Intel Core 2 Duo E7400 processor

2.80 GHz, 3 MB L2 cache, 1066 MHz FSB

XXX

Intel Core 2 Duo E8300 processor

2.83 GHz, 6 MB L2 cache, 1333 MHz FSB

XXX

Intel Core 2 Duo E8400 processor

3.0 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

XXX

Intel Core 2 Duo E8500 processor

3.16 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

XXX

Intel Core 2 Duo E8600 processor

3.33 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

XXX

Intel Core 2 Quad Processors:

Intel Core 2 Quad Q8200 processor

2.33 GHz, 4 MB L2 cache, 1333 MHz FSB

X X

Intel Core 2 Quad Q8300 processor

2.50 GHz, 4 MB L2 cache, 1333 MHz FSB

X X

Intel Core 2 Quad Q9400 processor

2.66 GHz, 6 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

X X

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 9

Intel Core 2 Quad Q9550 processor

2.83 GHz, 12 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

X X

Intel Core 2 Quad Q9650 processor

3.0 GHz, 12 MB L2 cache, 1333 MHz FSB

Featuring Core 2 Processor with vPro Technology

X X

Intel Core 2 Processor

with vPro Technology

All dc7900 Series models featuring this technology include processors which are

part of the Intel 2008 Stable Image Platform Program (SIPP) designed to ensure the

stability promise inherent in the value proposition of the HP Compaq dc7900

Series business desktop, thus making these model the most stable, secure, and

manageable platforms available to enterprises today.

The 2008 SIPP processors are:

Core 2 Duo E8400, E8500, E8600

Core 2 Quad Q9400, Q9550, Q9650

Intel's Core 2 Processor with vPro Technology suite of features includes:

Intel Active Management Technology

an advanced set of remote management features and functionality which

provides network administrators the latest and most effective tools to remotely

discover, heal, and protect networked client systems regardless of the

system's health or power state. Intel Active Management Technology

includes all features described as part of Intel Standard Manageability plus

the following advanced management functions:

Fast Call for Help

– a client inside or outside the firewall may initiate

a call for help via BIOS screen, periodic connections, or alert

triggered connection

Remote Scheduled Maintenance

– pre-schedule when the PC

connects to the IT or service provider console for maintenance.

Remote PCs can get required patches, be inventoried, etc by

connecting to their IT console or Service Provider when it's convenient

Remote Alerts

– automatically alert IT or service provider if issues arise

Access Monitor

– Provides oversight into Intel® AMT actions to

support security requirements

Microsoft NAP Support

Allows Intel Active Management Technology to gain access to a Microsoft

NAP enabled 802.1x network OOB to enable OOB SW updates,

inventories, remote diagnostics, etc. NAP is a new platform and solution that

controls access to network resources based on a client computer's identity

and compliance with corporate governance policy. NAP allows network

administrators to define granular levels of network access based on who a

client is, the groups to which the client belongs, and the degree to which

that client is compliant with corporate governance policy. If a client is not

compliant, NAP provides a mechanism to automatically bring the client back

into compliance and then dynamically increase its level of network access.

When a client attempts to access the network or communicate on the

network, it must present its system health state or proof of health compliance.

XXX

QuickSpecs

HP Compaq dc7900 Business PC

Standard Features and Configurable Components

DA - 13029 Worldwide QuickSpecs — Version 9 — 1.9.2009

Page 10

Altri manuali per Compaq dc7900 Business PC

Indice

Altri manuali HP Scrivania

HP Pavilion w1100 - Desktop PC Come usare

HP DC7600 - HP Manuale utente

HP Pro 2110 Guida all'installazione

HP Presario SR5500 - Desktop PC Manuale utente

HP A320m - Pavilion - 256 MB RAM Istruzioni per l'installazione

HP EliteDesk 705 G2 Desktop Mini Manuale operativo e di manutenzione

HP 512n - Pavilion - 128 MB RAM Manuale utente

HP Pavilion t280 Manuale utente

HP Vectra VL800 Manuale del prodotto

HP Vectra VA 6 Series Manuale

HP Vectra VL410 Manuale utente

HP m9650f - Pavilion - Elite Come usare

HP Elite 7300 Microtower Guida all'installazione

HP RP9 G1 9015 Istruzioni per l'installazione

HP Pro 3330 Guida all'installazione

HP Z220 SFF Series Manuale

HP Multimedia Computer Manuale utente

HP Workstation x2000 Manuale utente

HP Xw6400 - Workstation - 4 GB RAM Istruzioni utente

HP Vectra XA 6 Series Manuale

HP A524x - Pavilion - 512 MB RAM Manuale di istruzioni

HP Media Center m1100 - Desktop PC Manuale utente

HP Brio 8413 Manuale utente

HP Compaq Pro 6305 Manuale

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
