At A Glance

AMD Athlon™ 64 X2 Dual-Core, Athlon 64, and Sempron™ processors with HyperTransport™ technology

ATI Radeon Xpress 1150 chipset featuring integrated ATI graphics

PCI Express I/O bus

Integrated SATA 3.0-Gb/s controller

Integrated Realtek RTL8139/810x Family Fast Ethernet (10/100) Network Connection

Choice of hard drives and optical drives

DDR2 SDRAM system memory

Protected by HP Services. Certain restrictions and exclusions apply.

QuickSpecs

HP Compaq dx2250 Microtower Business PC

Overview

DA - 12605 Canada — Version 19 — March 24, 2008

Page 1

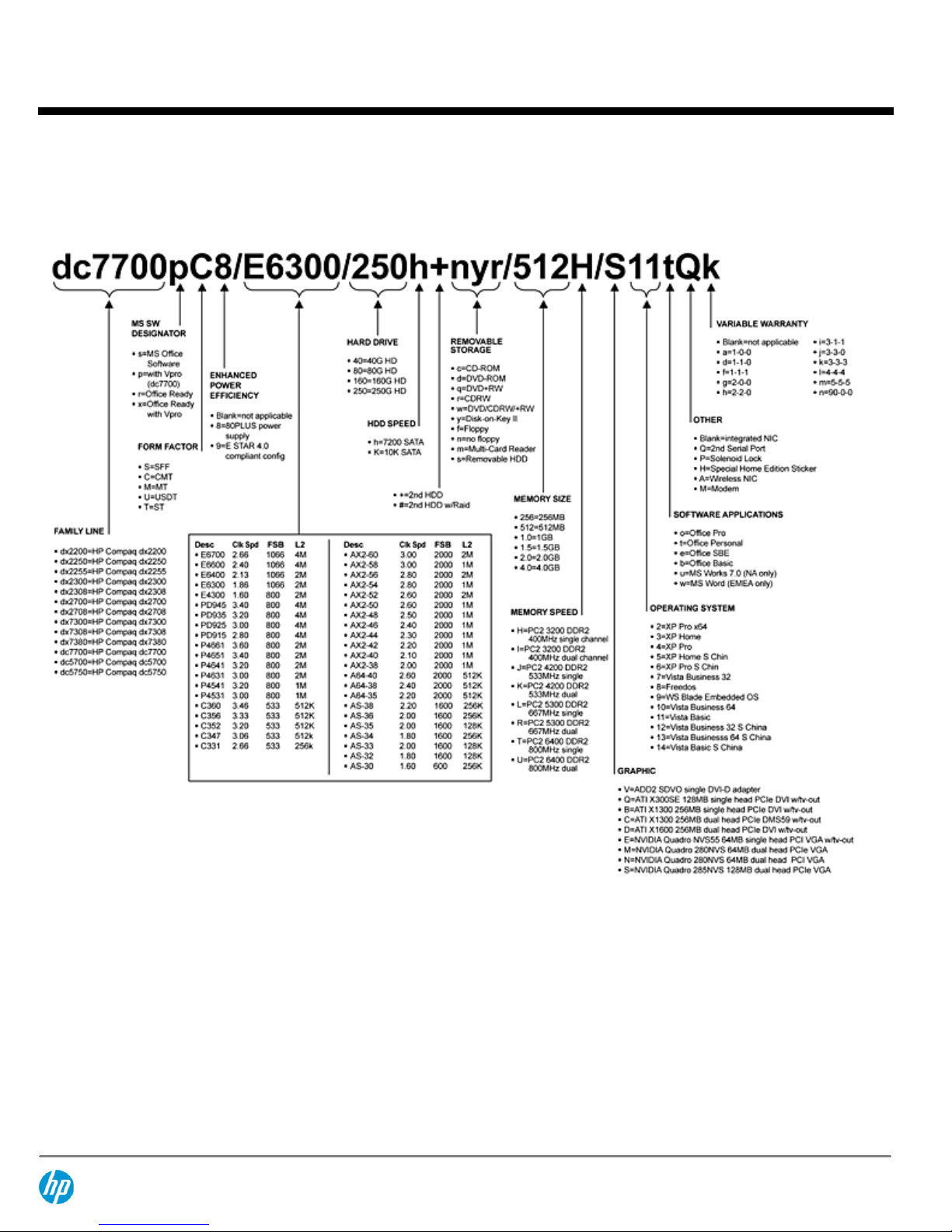

Model Key and Example

NOTE:

This diagram is an example that illustrates how to read the model number. It is not intended to give every available configuration

choice specified in the body of this document and may include references to modules that are out of date and no longer available.

QuickSpecs

HP Compaq dx2250 Microtower Business PC

Standard Features - Select Models

DA - 12605 Canada — Version 19 — March 24, 2008

Page 2

Processor and Speed

One of the following

AMD Sempron Processors with HyperTransport Technology:

AMD Sempron 3000+ Processor (1.6-GHz, 256K L2 cache, 1600-MHz FSB)

AMD Sempron 3200+ Processor (1.8-GHz, 128K L2 cache, 1600-MHz FSB)

AMD Sempron 3400+ Processor (1.8-GHz, 256K L2 cache, 1600-MHz FSB)

AMD Sempron 3500+ Processor (2.0-GHz, 128K L2 cache, 1600-MHz FSB)

AMD Sempron 3600+ Processor (2.0-GHz, 256K L2 cache, 1600-MHz FSB)

AMD Sempron 3800+ Processor (2.2-GHz, 256K L2 cache, 1600-MHz FSB)

AMD Sempron LE-1200 Processor (2.1-GHz, 512K L2 cache, 800-MHz FSB)

AMD Sempron LE-1250 Processor (2.2-GHz, 512K L2 cache, 800-MHz FSB)

AMD Athlon 64 Processors with HyperTransport Technology:

Athlon 64 3500+ Processor (2.2-GHz, 512K L2 cache, 2000-MHz FSB)

Athlon 64 3800+ Processor (2.4-GHz, 512K L2 cache, 2000-MHz FSB)

Athlon 64 4000+ Processor (2.6-GHz, 512K L2 cache, 2000-MHz FSB)

AMD Athlon X2 Dual-Core Processors with HyperTransport Technology:

Athlon X2 BE-2300 Processor (1.9-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon X2 BE-2350 Processor (2.1-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon X2 BE-2400 Processor (2.3-GHz, 2x512K L2 cache, 2000-MHz FSB)

AMD Athlon 64 X2 Dual-Core Processors with HyperTransport Technology:

Athlon 64 X2 Dual-Core 3800+ Processor (2.0-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 4000+ Processor (2.1-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 4400+ Processor (2.3-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 4800+ Processor (2.5-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 5000+ Processor (2.6-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 5200+ Processor (2.6-GHz, 2x1MB L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 5400+ Processor (2.8-GHz, 2x512K L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 5600+ Processor (2.8-GHz, 2x1MB L2 cache, 2000-MHz FSB)

Athlon 64 X2 Dual-Core 6000+ Processor (3.0-GHz, 2x1MB L2 cache, 2000-MHz FSB)

QuickSpecs

HP Compaq dx2250 Microtower Business PC

Standard Features and Configurable Components

DA - 12605 Canada — Version 19 — March 24, 2008

Page 3

Operating System

–

One of the following

Preinstalled

Genuine Windows Vista Business 32*

Genuine Windows XP Professional SP2

Genuine Windows XP Home SP2

Red Flag Linux (China Only)

Free DOS (not available in China)

* Certain Windows Vista product features require advanced or additional hardware. See

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To download

the tool, visit

http://www.windowsvista.com/upgradeadvisor

NOTE:

Drivers for Windows Vista are continually being made available for download from

http://www.hp.com

. Windows Vista support for all hardware and software features of this product is

planned by April 1, 2007.

Application Software

(availability varies by

region)

Microsoft Office 2003 Basic

Microsoft Office 2003 Small Business

Microsoft Office 2003 Professional

Microsoft Office 2007 Basic

Microsoft Office 2007 SBE

Microsoft Office 2007 Professional

Microsoft Works

HP Backup and Recovery Manager

Roxio DigitalMedia Plus (by SONIC)*

Intervideo WinDVD*

Symantec Antivirus 2005 with 60 day Live Update Subscription (availability varies by region)

Sun Java Runtime Environment

Google Toolbar

* Supporting software available with certain optical drive configurations

Hard Drives

80-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)

160-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)

250-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)

System Memory

256-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 256-MB)

512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 512-MB)

512-MB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 256-MB)

1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 1-GB)

1-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 512-MB)

2-GB DDR2 Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 1-GB)

QuickSpecs

HP Compaq dx2250 Microtower Business PC

Standard Features and Configurable Components

DA - 12605 Canada — Version 19 — March 24, 2008

Page 4

Storage

–

One or more of the

following (see Storage

section below)

Diskette Drive

1.44-MB Diskette Drive

Media Reader

HP 16-in-1 Media Reader and additional USB 2.0 port

Optical Drives (Serial ATA)

PATA DVD-ROM Drive

PATA CD-RW/DVD-ROM Combo Drive (not supported by Windows Vista)

PATA DVD+/-RW (DL/DF) LightScribe Drive

Keyboard -

One of the following

HP PS/2 Standard Keyboard

HP USB Standard Keyboard

Mouse -

One of the following

PS/2 2-Button Scroll Mouse

PS/2 2-Button Optical Scroll Mouse

USB 2-Button Optical Scroll Mouse

USB 2-Button Scroll Mouse

Audio

Realtek High Definition audio codec

Internal PC speaker

Communication

Integrated Realtek RTL8139/810x Family Fast Ethernet (10/100) Network Connection

Intel PRO/1000 PT PCIe Gigabit Ethernet NIC

Agere 56K PCI Modem

Graphics

Integrated ATI graphics processor (provided by the Radeon Xpress 1150 chipset)

ATI RADEON X1300 (256MB DH) PCIe Graphics Card

ATI RADEON X1300 (256MB SH) PCIe Graphics Card

Miscellaneous

HP Firewire / IEEE 1394 PCI Card (full height)

QuickSpecs

HP Compaq dx2250 Microtower Business PC

Standard Features and Configurable Components

DA - 12605 Canada — Version 19 — March 24, 2008

Page 5

Base Unit

Micro ATX microtower chassis, including power supply and front bezel

Five (5) drive bays and four expansion slots

Microsoft operating system CD

Active type heatsink

92 x 92 x 25 mm chassis fan

System board with ATI Radeon Xpress 1150 chipset, integrated Realtek RTL8139/810x Family Fast

Ethernet (10/100) Network Connection, integrated graphics and audio, 2 PCI slots, 1 PCI Express x1

slot, 1 PCI Express x16 slot, 2 DDR2 DIMM memory slots

(4) Serial ATA data connectors

(2) Serial ATA data cables

(1) Parallel ATA data connector (no PATA data cables are included)

Product documentation on CD

Power cord

Slots

PCI

Two (2) full-height PCI 2.3 slots on PCA

One (1) full-height PCI Express x1 slot on PCA

One (1) full-height PCI Express x16 slot on PCA (for graphic cards)

Memory Expansion

Two (2) DIMM slots (2 GB maximum memory support)

Bays

Internal

Two (2) 3.50"

External

Two (2) 5.25”

One (1) 3.50”

USB Support

EHCI high-speed USB 2.0 controller

Two (2) front ports; Four (4) rear ports, Two (2) internal ports on motherboard

Interfaces

(Legacy)

One (1) parallel port

One (1) serial port

One (1) PS/2 keyboard port

One (1) PS/2 mouse port

One (1) analog VGA video port

One (1) line in; one (1) line out; one (1) mic in

One (1) RJ45 network port

Weight and Dimensions

Chassis Dimensions

(H x W x D)

13.90 x 6.89 x 16.38 in (353 x 175 x 416 mm)

Packaged Dimensions

(L x W x H)

22.25 x 19.63 x 16.31 in (565.15 x 498.5 x 414.3 mm) (NA)

21.10 x 19.53 x 15.008 in (536.0 x 496.0 x 383.0 mm) (EMEA)

System Weight

21.16 lb (9.6 kg)

Shipping Weight

30.86 lb (14.0 kg)

QuickSpecs

HP Compaq dx2250 Microtower Business PC

System Details

DA - 12605 Canada — Version 19 — March 24, 2008

Page 6

Technology and Features

Memory Type

PC2-5300 DDR2 SDRAM (667-MHz) non-ECC

2 GB maximum system memory

Hard Drive Interfaces

Supported

Serial ATA 3.0-Gb/s hard drives are supported

Chassis

Front Panel

Power button

Power On LED

HDD Activity LED

Cooling Solutions

Supported

Power Supply Fan (variable speed)

Aluminum active heatsink (variable speed)

Chassis fan (variable speed)

Slots Supported

Four (4) full-height expansion slots

Front I/O

Two (2) USB 2.0 ports

Rear I/O

Standard Micro ATX I/O connectors, including four (4) USB 2.0 ports

Drive Bays

Two (2) 5-1/4” external

One (1) 3-1/2” external

Two (2) 3-1/2” internal

Internal Speaker

Standard

Security

Padlock loop

Power Supply

250-watt ATX Power Supply – PFC/non-PFC with a 115v/230v line switch

(varies by country/region)

Unit Environment and

Operating Conditions

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and

cold, to ensure that unit is operated within the specified operating range.

Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required airflow.

Never restrict airflow into the computer by blocking any vents or air intakes.

Do not stack computers on top of each other or place computers so near each other that they are

subject to each other's re-circulated or preheated air.

Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint,

dust and other foreign matter can block the vents and limit the airflow.

If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must

be provided on the enclosure, and the same operating guidelines listed above will still apply.

Temperature Range

Operating: 50° to 95° F (10° to 35° C)

Non-operating: –22° to 140° F (–30° to 60° C)

Relative Humidity

Operating: 10% to 90% (non-condensing at ambient)

Non-operating: 5% to 95% (non-condensing at ambient)

Maximum Altitude

(unpressurized)

Operating: 10,000 ft (3048 m)

Non-operating: 30,000 ft (9000 m)

NOTE:

Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m) above sea

level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited

by the type and number of options installed.

System Board

Processor

Socket AM2 industry standard Micro ATX form factor

QuickSpecs

HP Compaq dx2250 Microtower Business PC

System Details

DA - 12605 Canada — Version 19 — March 24, 2008

Page 7

Support single AMD Athlon 64 X2 Dual-Core, Athlon 64, or Sempron

processor

PWM

Intersil 6566 VRM 10.1

Chipset

ATI Radeon Xpress 1150

ATI RS485 (Northbridge), ATI SB600 (Southbridge)

Super I/O

W83627EHG

Front Side Bus Frequency

533/800 MHz

Memory

DDR2 SDRAM

2 x DIMM slots

Clock Generator

ICS 951412GLFT

Integrated Graphics

Built-in ATI graphics processor

provided by the ATI Radeon Xpress 1150 chipset

Audio

Realtek High Definition (HD) audio codec

LOM

Realtek RTL8139/810x Family Fast Ethernet (10/100)

IDE

Support all PIO modes

1 x IDE ports support up to 2 devices

Support Ultra ATA 33/66/100

Serial

Four Serial ATA interfaces support data transfer rates up to 3.0 Gb/s

Expansion Slots

2 x PCI 2.3 slots

1 x PCI Express x1 slot

1 x PCI Express x16 slot

BIOS

LPC EEPROM

Industrial Standard

PCI 2.3 compliant

USB 2.0

Rear Side I/O Ports

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0 ports

1 x RJ-45 10/100 port

1 x serial port

1 x parallel port

1 x DB 15 pin analog VGA port

3 x audio ports

On Board I/O Interfaces

1 x ATX power connector

1 x +12V power connector

1 x Floppy connector

1 x Front panel connector, Switch, LED (ON/Flash/OFF)

2 x Fan headers for CPU, chassis, with voltage/fan speed control

1 x ATAPI headers-CD IN

1 x header to support 2 USB 2.0 ports at front side

1 x header to support USB media reader

Board Size

Micro-ATX, PCB Size: 9.6 x 9.0 in (24.38 x 22.86 cm)

4-layer PCB with green colour

QuickSpecs

HP Compaq dx2250 Microtower Business PC

System Details

DA - 12605 Canada — Version 19 — March 24, 2008

Page 8

Additional Features

Bootable without keyboard, mouse or monitor

Keyboard/mouse/USB wake up

Support S3, S4 and S5

ACPI status

Hardware monitor capability

CPU fan speed control

Network Interface

Integrated Realtek RTL8139/810x Fast Ethernet Network Controller

Hardware Highlights

PCI interfaces

Features

10-Mbps and 100-Mbps operation

Intel PRO/1000 PT PCIe Gigabit NIC

Hardware Highlights

PCI interfaces

Features

10-Mbps, 100-Mbps and 1000-Mbps operation

Wireless

Wireless A+G PCI Card (full height bracket)

Power Supply

ATX Power Supply – Passive PFC/non-PFC with a 115v/230v line switch

Passive Power Factor Correction (PFC) – with line switch set to 230V – No PFC in 115V line switch

position

90 to 140VAC, or 180 to 264VAC operating voltage range

100 to 127VAC, or 200 to 240VAC rated voltage range

50–60 Hz rated line frequency

47–63 Hz operating line frequency range

250 watt maximum rated power

80-mm power supply fan – variable speed for optimum acoustics

(2) PATA device power connectors

(4) SATA device power connectors

Power Conservation

‘Energy Saver‘

APM 1.2 support

Screen blanking

Hard drive 'Idle' mode

System Idle mode

~2 watt power consumption in ES mode – suspend to RAM (S3) (instantly available PC)

Processor/Cache memory power-down (S3)

QuickSpecs

HP Compaq dx2250 Microtower Business PC

System Details

DA - 12605 Canada — Version 19 — March 24, 2008

Page 9

System Environmental

Specs

Values are subject to change without notification and are for reference only.

Performance of system, options, and ancillary equipment will vary depending on the system

configuration.

Levels presented do not account for non-HP/Compaq installed hardware.

Ambient Air Temperature

Operating

50° to 95°F (10° to 35°C) at sea level with an

altitude de-rating of 1.0°C per every 1000 ft (300

m) above sea level to a maximum of 8000 ft

(2500 m), no direct sustained sunlight. Maximum

rate of change is 77°F/Hr (25°C/Hr). The upper

limit may be limited by the type and number of

options installed.

Storage

–22° to 140°F (–30° to 60°C) –

Maximum rate of change: 410°F/Hr (210°C/Hr).

Humidity

Operating

10% to 90% relative humidity (Rh), 86°F (30°C)

maximum wet bulb temperature, non-condensing

Storage

10% to 95% relative humidity (Rh), 101.66°F

(38.7°C) maximum wet bulb temperature, non-

condensing

Altitude

Operating

0 to 10,000 feet (0 to 3048 metres) – This value

may be limited by the type and number of options

installed. Maximum allowable altitude change

rate is 1,000 ft/min (304.8 m/min).

Non-Operating

0 to 30,000 feet (0 to 9,144 metres) – Maximum

allowable altitude change rate is 1200 ft/min

(365.76 m/min).

Shock

Listed are the levels of shock the product can withstand with NO damage

being incurred. The values represent peak input acceleration during an 2~3 ms

half-sine shock pulse, 11 ms trapezoidal shock pulse.

Non-Operating

40 g (Half-sine Shock)

40 g (Trapezoidal Shock)

Vibration

Listed are the levels of vibration the product can withstand with NO damage

being incurred. The values represent a flat random vibration input

acceleration profile across the given frequency range.

Operating

Random vibration at [email protected]²/Hz,

[email protected]²/Hz, [email protected]²/Hz,

[email protected]²/Hz

5Hz to 300Hz, (0.25G's nominal).

Non-Operating

Random vibration at 0.008G²/Hz,

10Hz to 500Hz, (2 Grms nominal).

QuickSpecs

HP Compaq dx2250 Microtower Business PC

System Details

DA - 12605 Canada — Version 19 — March 24, 2008

Page 10

Altri manuali per Compaq dx2250

Indice

Altri manuali HP Scrivania

HP Pavilion t3000 - Desktop PC Istruzioni per l'installazione

HP Compaq Elite 8000 CMT Manuale utente

HP RP9 G1 9118 Istruzioni per l'installazione

HP Compaq Presario Istruzioni per l'installazione

HP VH677UA#ABA - Pavilion Dv6-1244sb... Scheda tecnica

HP 742n - Pavilion - 512 MB RAM Manuale utente

HP P6240f - Pavilion - 8 GB RAM Manuale utente

HP Z200 - Small Form Factor Workstation Guida di riferimento

HP XM600 - Kayak - 128 MB RAM Manuale del prodotto

HP Model 745 - VME Workstation Guida di riferimento

HP Xw6600 - Workstation - 2 GB RAM Manuale per l'uso e la cura

HP ProOne 600 G5 Istruzioni per l'installazione

HP pavilion x360 Manuale utente

HP pavilion 761n Manuale utente

HP HP 402 G1 Manuale operativo e di manutenzione

HP Pavilion Slimline s5310f Manuale utente

HP dc7700 - Convertible Minitower PC Manuale per l'uso e la cura

HP dx7400 - Microtower PC Manuale utente

HP 300-1020 - TouchSmart - Desktop PC Guida

HP Compaq Presario Manuale utente

HP X09 Manuale utente

HP DF300A - Portable Digital Picture Frame Manuale utente

HP Pavilion Media Center m7300 - Desktop PC Scheda tecnica

HP Compaq 8200 Elite Series Istruzioni per il montaggio

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
