HP Compaq Presario Manuale

3-48

Volume Two

Presario 4100/4400

System Boards (w/o

processor) Assembly Spare Part System

Sys Bd, 8MB, Trio64V 006210-101 238209-001 4120, 22, 26, 28, 30;

4400

Sys Bd, 8MB, Virge 005400-101 237706-001 4120, 22, 26, 28, 30

Sys Bd, 8MB, Trio64V+,

Full Audio, w/ I/O Port 268817-001 4102, 04ES, 08, 10,

12; 4406ES

Sys Bd, 8MB, Trio64V+,

Reduced Audio, w/ I/O Port 268817-002 4108, 4110

Sys Bd, 8MB, Trio64V+,

Full Audio 285459-001 4160, 62, 70, 70ES,

Sys Bd, 8MB, Trio64V+,

Full Audio w/ Cache

Connect (EMEA)

285474-001 4160, 62, 74

Sys Bd, Alpine Trio, 1MB 271408-001 4180, 64, 72;

4460ES

Sys Bd, Alpine Virge, 2 MB 271407-001 4182, 84, 90

Sys Bd, Proc, 586 271407-001 4184ES

Configuration Jumper Settings

Jumper Pins Function

P7 Replacement battery connector

P8 Bus Speed Select 1 – 2

2 – 3

3 – 4

4 – 5

50MHz CPU External Bus Frequency

60MHz CPU External Bus Frequency

66MHz CPU External Bus Frequency

55MHz CPU External Bus Frequency

P9 CPU Clock Multiplier A1-A2

B1-B2

A2-A3

B1-B2

A2-A3

B2-B3

A1-A2

B2-B3

1.5x

2.0X

2.5X

3.0X

P11 CMOS Clear 1 – 2*

Open Secure CMOS Power

Remove Jumper for 10 sec, reinstall to clear

*Default.

Microprocessors Spare Part System

P54C100/60 w/o Heat Sink 213113-001 4400

P54C120/60 w/o Heat Sink 213125-001 4400; 4102, 08, 10, 12

P54C133/66 w/o Heat Sink 223311-001 4100, 04ES, 60, 62, 84, 64;

4400

P54C150/60 w/o Heat Sink 235228-001 4100, 60, 62

P54C166/66 w/o Heat Sink 235229-001 4170, 70ES, 74

P55C166/66MMX 240181-001 4180, 82, 72, 60ES,

P55C200/66MMX 240181-002 4190

586/200 240181-002 4184ES

586/200/66 288459-001 4184ES

Heat Sink 238427-001 4180, 82, 84, 90, 64, 72,

4460ES

Heat Sink w/ Clip, Thermal Pad,

Grommet 285448-001 4160, 62, 70ES, 70, 74

Volume Two

3-49

Presario 4100/4400

Memory Assembly Spare Part System

4 MB SIMM, EDO, 60ns,

Tin/Lead Contacts 185173-002 236512-001 All

8 MB SIMM, EDO, 60ns,

Tin/Lead Contacts 185172-002 236513-001 All

8 MB DIMM 271107-002 271116-001 4180, 64, 72, 84ES,

4460ES

16 MB DIMM 271108-002 271117-001 4182, 90

1 MB Video Memory 004827-001 213859-001 4120, 22, 26, 28, 30

1 MB Video Memory 210257-003 271462-001 4180, 84, 64, 72;

4460ES

256k Cache 237716-001 243117-001 4100; 4400

Miscellaneous Assembly Spare Part System

Keyboard, U.S./Can. Eng. 237743-301 237835-301 All

Mouse, Ivory 149998-004 199181-401 All

Speaker (pair) 239508-001 238207-001 4100, 02, 04ES, 12, 60,

70, 70ES, 74

Speaker (1) 288839-001 4108, 10, 62, 74

Speaker 304241-001 4184ES

Riser Card 005448-001 237708-001 4100; 4400 ex 4460ES

Riser Card 006018-001 237725-001 4460ES

Riser Card 268821-001 4102, 4104ES, 08, 10,

12, 60, 62, 70, 70ES,

74, 84ES

Remote Control w/ Batteries 237773-001 238199-001 4400

Gamepad 237776-001 238246-001 4126

Video Phone 186590-001 4122, 26, 28, 30; 4402

MPEG Controller, Option 213857-001 4160, 62, 70, 70ES, 74

Video Capture Board 297146-001 3042393-

001 4170ES, 4184ES

Multi-Port Comm Board 193819-001 271632-001 4170ES

PCI, 10/100 NIC 169849-001 4406ES, 60ES;

4104ES, 70ES, 84ES

Hard Drives Spare Part System

1.2 GB, IDE 244669-001 4100

1.2 GB, IDE 237859-001 4400

1.6 GB, IDE 288840-001

213990-001 4100, 10, 12

4104ES

1.6 GB, IDE 247411-001 4400; 4120, 22, 26, 28,

2.1 GB, IDE 271374-001 4160, 62, 70, 70ES,

74, 84, 64, 72, 4460ES

2.1GB, IDE 3.5” 285448-001 4160, 62, 70ES, 70, 74

2.5 GB, IDE 247412-001 4120, 4122, 4126,

4128, 4130

3.2 GB, IDE 3.5 286538-001 4184ES

4.3 GB 271119-001 4180, 82, 90

CD-ROM Drive Assembly Spare Part System

CD-ROM, IDE, 4-spd, Ivory 184778-401 172864-401 4100, 02, 08

CD-ROM, IDE, 6-spd, Ivory 185114-402 185116-401 4100, 04ES, 12, 10;

4406ES

CD-ROM, IDE, 8-spd, Ivory 185634-401 185674-401 4100, 10, 12, 60, 62,

70, 70ES, 74, 80, 64,

72; 4400,4460ES

CD-ROM 16X 270932-404 271138-001 4182, 84ES, 90

3-50

Volume Two

Presario 4100/4400

Diskette Drives Spare Part System

1.44 MB, 3.5” 239612-401 All

36.6k-bps Modem

+FDSP+TAM ISA Assembly Spare Part Cable Spare Part*

Australia 005671-003 225258-011 165224-012

Austria 005671-002 225258-341 165224-341

Belgium 005671-004 225258-181 165224-181

Denmark 005671-004 225258-081 165224-081

Euro 005671-001 225258-031 165224-032

Finland 005671-004 225258-351 165224-352

France 005671-005 225258-051 165224-051

Germany 005671-003 225258-041 165224-041

Italy 005671-002 225258-061 165224-062

Korea 005671-001 225258-AD1 165224-AD1

Latin Amer. 221500-001 221506-001 165224-001

Netherlands 005671-004 225258-331 165224-331

New Zealand 005671-001 225258-API 165224-032

JPN

APD

221500-001 221506-001

221506-191

221506-371

165224-001

Norway 005671-004 225258-091 165224-091

Portugal 005671-002 225258-131 165224-131

Spain 005671-002 225258-071 165224-071

Sweden 005671-003 225258-101 165224-101

Switzerland 005671-006 225258-111 165224-111

U Kingdom 005671-001 225258-031 165224-032

* Use only the cable specified for each modem to ensure telephony features and

agency compliance.

Cables Spare Part System

Cable Kit, CD, HD, Audio, Disk 237883-001 4100; 4400

Cable Kit, CD, HD, Audio, Disk 268820-001 4102, 4104ES, 08, 10,

12, 60, 62, 70, 70ES, 74

Cable, Serial Port 238406-001 4100, 60, 62, 70ES, 70,

74; 4400

Cable, Video Phone 162279-001 4122, 26, 28, 30; 4402

Cable Assembly, Monitor, Mike 268244-001 4160, 62, 70, 70ES, 74

Cable Kit, B/CB/CP 238184-001 4184ES

ROM Information Spare Part System

System ROMPaq 148218-001 4100; 4400

System ROMPaq 285461-001 4160, 62, 70, 70ES, 74

Power Supply/Battery Spare Part System

Power Supply, 145W 238007-001 4120, 22, 26, 28, 30,

84ES

Power Supply, 145W 288818-001 4102, 4104ES,12, 60,

62, 70ES, 70

Power Supply, 145W PCF, EMEA 271128-001 4160, 62, 74

Power Supply, 145W PCF 238009-001 4120, 22, 26, 28, 30,

84ES

Power Supply, 145W PCF * 288819-001 4108, 10

Power Supply 237856-001 4400

Power Supply, 145W PCF * 237857-001 4400

Power Supply/MMX Connector 271461-001 4460ES

Real-Time Clock Battery (4.5 v alkaline) 160274-001 All

* For European SKUs only.

Volume Two

3-51

Presario 4100/4400

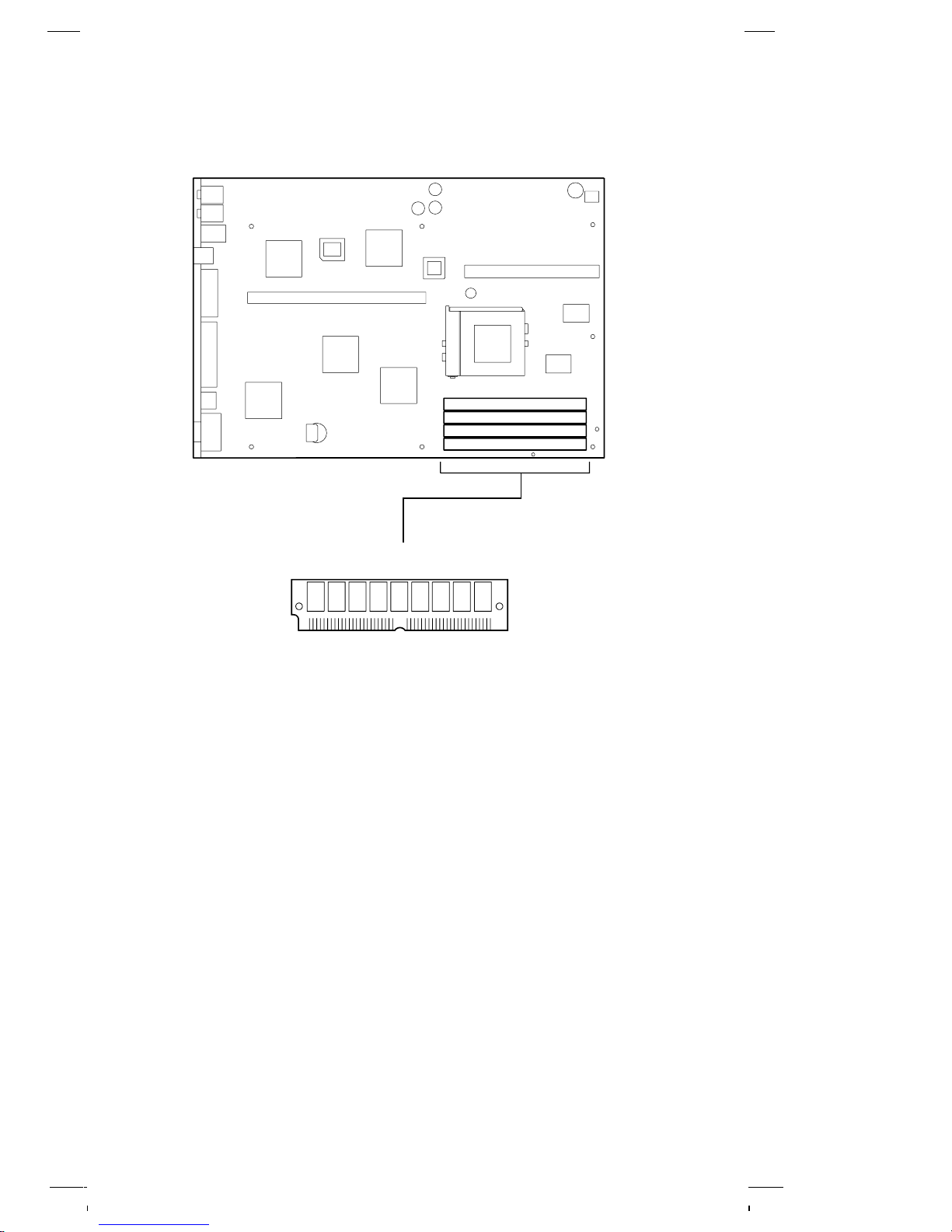

MEMORY UPGRADE CHART

MODELS

4102, 4104ES, 4108, 4110, 4112

(8 MB)

MAXIMUM SYSTEM MEMORY IS 76 MEGABYTES

MEMORY OPTIONS ARE NOT AVAILABLE FOR THE PRESARIO 4100/4400

Memory upgrade SIMMs must be installed in pairs.

Use SIMMs with tin/lead contacts only.

EDO SIMMs are recommended for all s

stem boards.

3-52

Volume Two

Presario 4100/4400

MEMORY UPGRADE CHART

SYSTEM BOARDS

005400, 006210

(8 MB)

MAXIMUM SYSTEM MEMORY IS 128 MEGABYTES

MEMORY OPTIONS ARE NOT AVAILABLE FOR THE PRESARIO 4100/4400

Memory upgrade SIMMs must be installed in pairs.

Use SIMMs with tin/lead contacts only.

EDO SIMMs are recommended for all system boards.
