Presario 5600

Processor Boards Assembly Spare Part System

Board, w/o Processor 007950-101 327582-001 5600, 10, 12, 20, 30,

35, 40, 42, 60, 65, 70,

Board, USB, Full 334549-001 327764-001 5600, 40, 60, 65, 70,

Board, USB, Blank 334549-002 334648-001 5600, 40, 60, 65, 70,

Board, w/o Processor,

USB EMEA Only 007950-102 334776-001 5600, 10, 12, 20, 30,

35, 40, 60, 65, 70, 80

Board, Processor w/

TUT/1394 009755-101 388107-001 5670, 73, 90, 95

Board, Processor 10/100

w/o 1394 009755-102 388107-002 5650, 76, 77, 90, 93,

Board, Processor w/ 1394,

Bezel 009755-201 388231-201 5673

Memory Assembly Spare Part System

DIMM, 64S 278031-002 278067-001 5612

DIMM, 64 PC100 323012-001 179190-001 5610, 20, 40, 42, 50,

60, 70, 80

DIMM, 128 PC100 332016-001 166966-001 5670, 73, 76, 77, 90,

93, 95, 97

Memory Module, 48 278030-002 320673-001 5600

Memory Module, 48 323010-001 166969-001 5600

Video, 4 MB SG, Optional 314025-001 327591-001 5610, 30, 35, 40, 60,

65, 70

Microprocessors Assembly Spare Part System

System Board, PII/333

(512) w/ Processor 278308-002 308872-001 5600

System Board, PII/350

(512) w/ Processor 278309-001 327583-001 5610, 12, 42

System Board, PII/400

(512) w/ Processor 278309-002 308873-001 5620, 30, 35, 40, 50,

60, 65

System Board, PII/450

(512) w/ Processor 278309-003 327585-001 5660, 70, 73, 76, 77

KAT/500 (512) 352772-002 388109-001 5690, 93, 95, 97

Configuration

Code Assembly System Board

Spare Part Model

BS23 007950-101 327582-001 5642

BS24 007950-101 327582-001 5612

BS25 007950-101 327582-001 5612

BS26 007950-101 327582-001 5610

BXQ3 007950-101 327582-001 5640

BXQ4 007950-101 327582-001 5640

BXQ7 007950-101 327582-001 5620

BX82 007950-101

007950-102 327582-001

334776-001 5660

BX83 007950-101 327582-001 5665

BX84 007950-101 327582-001 5670

Continued

3-78

Volume Two

Presario 5600

Configuration

Code Assembly System Board

Spare Part Model

CF52 009755-101 388107-001 5650

CF53 009755-102 388107-002 5676

CF54 009755-101 388107-001 5673

CF55 009755-101 388107-001 5670

CF56 009755-102 388107-002 5677

CF62 009755-102 388107-002 5693

CF62 009755-101 388107-001 5695

CF63 009755-101 388107-001 5690

CF64 009755-102 388107-002 5690

CF65 009755-102 388107-002 5697

CGH2 007950-101 327582-001 5680

Hard Drives Assembly Spare Part System

8.0 GB, IDE 286123-001 298464-001 5600, 10, 12, 20, 40

8.4 GB, IDE 341734-001

334180-002 334719-001 5640

5650

8.6 GB, IDE EMEA only 334180-001 309087-001 5640, 60

10.0 GB, IDE 356038-001

178548-001 320662-001 5630, 40, 42, 60, 70

5676, 90

12.0 GB, IDE 286391-001 298465-001 5610, 30, 35, 60, 65

13.5 GB, IDE 178546-001 334807-001 5680

13.5 GB, IDE 330684-001 388509-001 5670, 73, 77

19.2 GB, IDE 320880-001 334788-001 5690, 93, 95, 97

CD-ROM Drives Assembly Spare Part System

DVD2 286466-605 317213-001 5610, 12, 20, 30, 35

DVD3 320716-401 327446-001 5640, 42, 50, 60, 65,

70, 73, 76, 90, 93, 95,

CD-ROM, IDE, 32X 298520-005 317212-001 5600

Diskette Drives Assembly Spare Part System

Zip, IDE, Internal 270988-002 270946-001 5610, 30

Zip, ATAPI 2.0 270928-003 328934-001 5610, 12, 20, 30, 70,

73, 76, 77, 90, 93, 95,

1.44 MB 239612-401 304235-001 5600, 10, 12, 20, 30,

35, 40, 42, 50, 60, 65,

70, 73, 76, 77, 80, 90,

93, 95, 97

Modem – PCI, DSL/V.90

Country Assembly Spare Part System

Belgium 352374-001 387518-001 5650, 76, 90

Denmark 352374-001 387518-001 5650, 76, 90

France 352374-001 387518-001 5650, 76, 90

Netherlands 352374-001 387518-001 5650, 76, 90

Norway 352374-001 387518-001 5650, 76, 90

Sweden 352374-001 387518-001 5650, 76, 90

Switzerland 352374-001 387518-001 5650, 76, 90

UK 352374-001 387518-001 5676, 90

Volume Two

3-79

Presario 5600

56 Kb/s Modem

Country Assembly Spare Part Cable

Spare Part System

Controllerless,

DSVD +

Speaker

292256-002 292269-002 5640, 60, 70

Brazil 292256-003 292269-003 5620

Canada 292256-003 292269-003 5610, 30, 40, 60

Caribbean 292256-003 292269-003 5620

L. America 292256-003 292269-003 165224-001 5610, 20, 40

Puerto Rico 292256-003 292269-003 165224-012 5640

Spain 292256-003 292269-003 304398-071 5640

U. S. 292256-003 292269-003 5600, 10, 12, 35,

U. S. 337550-001 337559-001 5635, 42, 70

Z-56 Kb/s Modem

Country Assembly Spare Part Cable

Spare Part System

Belgium 007201-003 317296-001 304398-181 5640, 60

Brazil 292256-003 317297-001 5610, 20, 40

Caribbean 292256-003 317297-001 5610, 20, 40

Denmark 292256-003 317297-001 304398-081 5640, 60

Finland 007201-003 317296-001 304398-351 5640, 60

France 007201-003 317296-001 304398-051 5640, 60

Germany 007201-003 317296-001 5640, 60

Italy 165224-062 5660

L. America 292256-003

337550-001 317297-001

337559-001 5610, 20, 40

5693

LA Span./Braz.

mfg. 292256-003

337550-001 317297-001

337559-001 5610, 40

5673, 93

Netherlands 007201-003 317296-001 304398-331 5640, 60

Norway 007201-003 317296-001 304398-091 5640, 60

Puerto Rico 292256-003 317297-001 5610, 40

Sweden 007201-003 317296-001 304398-101 5640, 60

Switzerland 292256-003 317297-001 304398-111 5640, 60

U. Kingdom 007201-003 317296-001 165224-033 5640, 60

U.S. Retail 292256-003 317297-001 5600, 10, 12, 30,

35, 40, 60, 65

Cable Information Assembly Spare Part System

Cable Kit, Misc. 238079-001

171891-002

238477-003

238078-003

238406-004

327573-001

327770-001 5600, 10, 12, 20,

30, 35, 40, 42,

50, 60, 65, 70,

73, 76, 77, 80,

90, 93, 95, 97

Modem/Adapter Cable –

France 112666-005 304398-051 5650, 76, 90

Modem/Adapter Cable –

Denmark 112666-005 304398-081 5650, 76, 90

Modem/Adapter Cable –

Norway 112666-005 304398-091 5650, 76

Modem/Adapter Cable –

Sweden 112666-005 304398-101 5650, 76, 90

Modem/Adapter Cable –

Switzerland 112666-005 304398-111 5650, 76, 90

Modem/Adapter Cable –

Belgium 112666-005 304398-181 5650, 76, 90

Modem/Adapter Cable –

Netherlands 112666-005 304398-331 5650, 76, 90

Continued

3-80

Volume Two

Presario 5600

Cable Information Assembly Spare Part System

Modem/Adapter Cable -

Finland 112666-005 304398-351 5650, 76

Modem Cable - NA 112666-003 137256-001 5670, 77, 90, 95, 97

Modem Cable - LA 112666-003 165224-001 5673, 93

Modem Cable - Germany 112666-005 290663-001 5650, 76

Modem Cable - Spain 112666-005 304398-071 5673, 76

Modem Cable - UK 165227-033 165224-033 5650, 76, 90

Modem Cable - Italy 165227-062 165224-062 5650

Miscellaneous Assembly Spare Part System

Keyboard, US 340740-003 340869-003 5600, 10, 12, 20, 30,

35, 40, 42, 60, 65,

70, 80

Keyboard, US Retail 340740-005 340869-003 5670, 90, 95

Mouse, Ivory 149998-006 199181-401 5600, 10, 12, 20, 30,

35, 40, 42, 60, 65,

70, 80

Mouse, Ivory 334684-001 334689-001 5650, 70, 73, 76, 77,

90, 93, 95, 97

Hardware Kit 334510-001

334538-001

334527-001

334517-001

327765-001 All

Fan, 92MM w/ Baffle 326978-001 327769-001 5600, 10, 12, 20, 30,

35, 40, 50, 60, 65,

70, 73, 76, 77, 80,

90, 93, 95, 97

Logo Kit * 334631-001 5600, 10, 12, 20, 30,

35, 40, 42, 60, 65

Daughter Card, PCA,

Homenet 350718-001 388106-001 5670, 90, 95

Video Card ATI LTPRO 350744-001 388108-001 5650, 70, 73, 76, 77,

90, 93, 95, 97

Board, USB, Full 350765-001 400885-001 5650, 70, 73, 76, 77,

90, 93, 95, 97

Board, USB, Blank 350765-002 400886-001 5650, 70, 73, 76, 77,

90, 93, 95, 97

* Order when the monitor is replaced.

Controller Boards Assembly Spare Part

PCI, NIC, 10/100 TX, OEM CTO Only 317607-001 317606-001

Power Supply/Battery Assembly Spare Part System

Power Supply, 110W 334540-001 334543-001 5600, 10, 12, 20, 30,

35, 40, 42, 60, 65,

Power Supply, 145W 334540-001 334543-001 5600, 40, 50, 60, 65,

70, 73, 76, 77, 80,

90, 93, 95, 97

Volume Two

3-81

Presario 5600

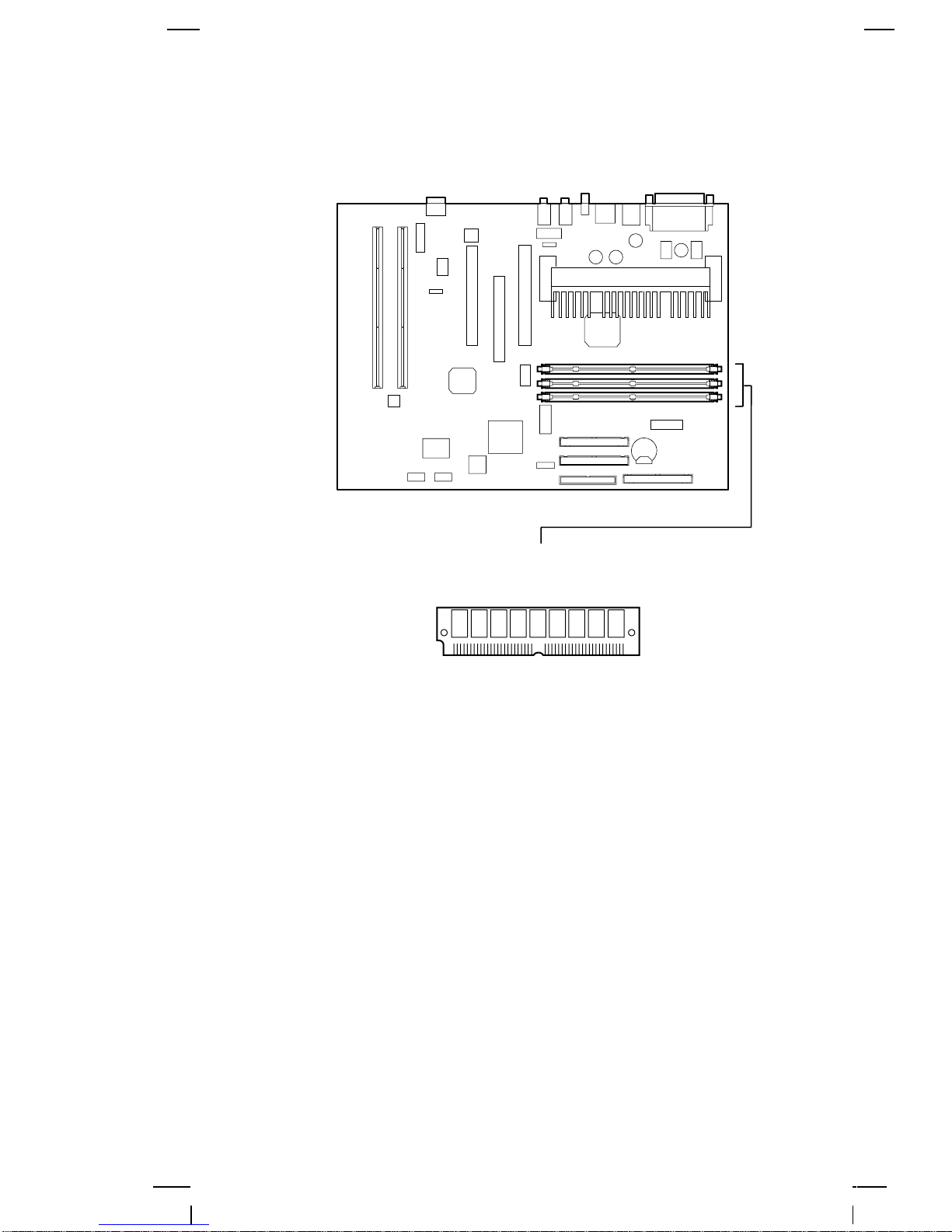

Memory Upgrade Chart

A MAXIMUM OF 384 MB TOTAL MEMORY

MEMORY OPTIONS ARE NOT AVAILABE

FOR THE PRESARIO 5600 SERIES

PROCESSOR BOARD

007950-001
