PRESARIO 600 FAMILY

System

Boards Assembly Spare Part System Cnfig Code

486SX/25 003431-001

003431-002 160018-001 Presario 625

Presario CDS HGS

HGT

486SX/33 003434-001

003434-002 160420-001 Presario 633,

Presario CDS HGU, HJD

HHY, HJD

486SX2/66 003876-001 164912-001 Presario 660 HJE

486SX2/50 003858-001 164857-001 Presario 650 HKN

Jumper Settings (System Board 003431, 003434, 003858, 003876)

Jumper Function Pins Function

P5, P6 On-board Video Select 1,2 * Enabled

No jumpers Disabled

P7 Processor Select 1,2 Nonsocketed Enabled

2,3 Nonsocketed Disabled

No header Socketed

P8 Processor Speed 1,2 33-MHz Processor Bus

Select 2,3 25-MHz Processor Bus

P9 1, 2 Processor Configuration 1,2 486DX/DX2, 486SX

(nonsocketed),

487SX/OD, 486SX2

2,3 486SX (socketed)

P10 1, 2 Processor Configuration 1,2 486SX (nonsocketed)

and 486SX(socketed)

2,3 486DX/DX2,

487SX/OD, and

486SX2

P11 2 Processor Configuration 1,2 486DX/DX2,

486SX2

2,3 487SX/OD

3,4 486SX (nonsocketed)

and 486SX(socketed)

P13 Configuration

Resistors of Super I/O Chip 1,2 *

No jumper 26Eh/26Fh

398h/399h

P14 Clear CMOS 1,2 Remove jumper for 10

seconds to clear setup

* Default.

1 Headers not installed on 486/33 models.

2 Headers not installed on 486/50 and 486/66 models. Configuration set by

0-ohm resistors.

Microprocessors Spare Part System

486DX2/50 163661-001 Option

486DX2/66 194395-001 Option

Memory Boards Assembly Spare Part System

1 MB Memory Module 118666-004 141752-001 Option

2 MB Memory Module 118667-004 141753-001 Option

4 MB Memory Module 137854-002 141754-001 Option

8 MB Memory Module 137853-002 141755-001 Option

16 MB Memory Module 137143-003 149947-001 Option

Miscellaneous Internal Assembly Spare Part System

Backplane (4-slot) 002927 143342-001 All

PRESARIO 600 FAMILY

Controller Boards Assembly Spare Part System

Fax/Data Modem ** 141605-001 141607-001 All except Presario

650, 660, 633 CDS

Serial/Parallel Interface * 000990 106886-001 Option

Ethernet 16 TP Controller 003086 147220-001 Option

Token Ring Controller 160782-001 142836-001 Option

6260 SCSI-2 Controller * 004004 146993-001 Option

QVision 1024/i Controller * 002948 148866-001 Option

QVision 1280/i Controller * 002951 139182-001 Option

Data/Fax/Voice Modem 003697 164423-001 Presario 650, 660,

633 CDS

Sound Board, PAS-16 * 160921-001 160919-001 Presario 625, CDS

Sound Board, SB-16 * 197492-001 197493-001 Presario 633, CDS

* See Volume 2 Appendix, Multiproduct Boards, for settings.

** See Volume 2 Appendix, Modem Configuration Information.

Hard Drives

Size Type Inter-

leave Inte-

grated Spare Part System

120 MB, IDE 50 1:1 Y143316-001 Model 120

200 MB, IDE 51 1:1 Y160702-001 Model 200

240 MB, IDE 11:1 Y143332-001 Model 240

270 MB, IDE 65/66 1:1 Y197441-001 Option

340 MB, IDE 65 1:1 Y171923-001 Model 340

525 MB, IDE 42 1:1 Y197014-001 Option

550 GB

SCSI-2 N/A 142038-001 Option

1.05 GB

SCSI-2 N/A 192799-001 Option

CD-ROM Drives Spare Part System

CD-ROM - LMSI 160917-001 Presario 625 CDS

CD-ROM - Tray Load

Internal 142223-001 Presario 633 CDS

CD-ROM - Tray Load

External 199430-001 Option

Diskette Drives Spare Part System

1.44 MB (Light Grey) 160788-201 All

1.2 MB 141367-201 Option

Cables Used With Spare Part

Diskette Drive Cable Diskette Drive 141186-001

CD-ROM Data CD-ROM Drive - Tray Load 197842-001

CD-ROM Audio CD-ROM Drive - Tray Load 199493-001

LED Cable System 141346-001

Hard Drive Cable Hard Drive 141187-001

CD-ROM Cable CD-ROM Drive LMSI 160929-001

Telephone Fax/Modem 127949-001

PRESARIO 600 FAMILY

ROM Information Spare Part

486 C2 06/13/94 160192-001

Power Supply/Battery Spare Part

Power Supply

Date Code < 401

Date Code 401

141337-001 (145 Watt/230 VAC)

137633-001 (145 Watt/115 VAC)

194352-001 (145 Watt Energy Star)

Real-Time Clock Battery (4.5 v Alkaline) 160274-001

PRESARIO 600 FAMILY

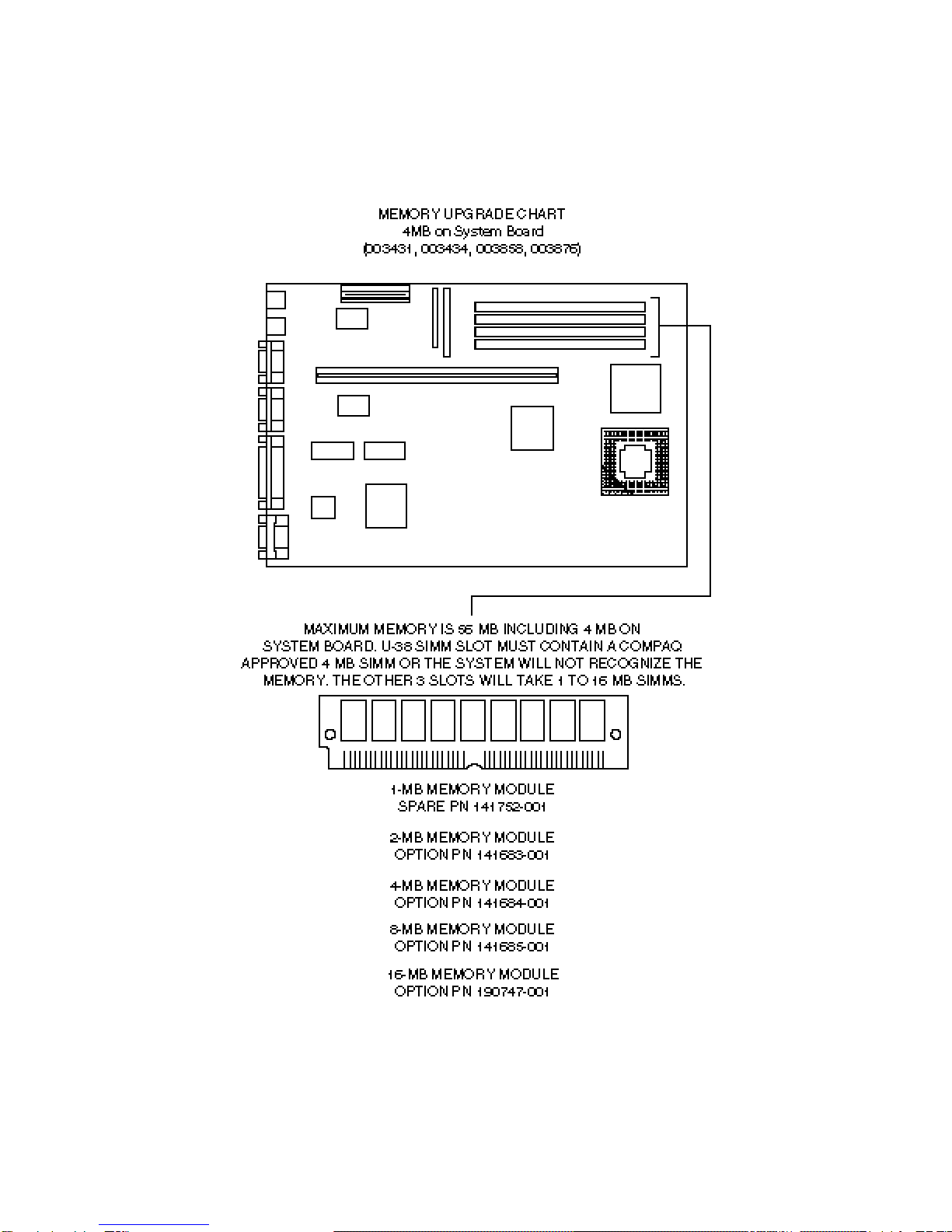

MEMORY UPGRADE CHART
