HP Compaq Presario Manuale utente

User’s Guide

Compaq Restore Solution

Document Part Number: 278004-001

February 2002

278004-001.book Page 1 Thursday, February 7, 2002 2:37 PM

Compaq, the Compaq logo, Armada, Deskpro, iPAQ, Evo, and Presario are trademarks of

Compaq Information Technologies Group, L.P. in the U.S. and other countries.

Microsoft, MS-DOS, Windows, Windows NT, and Works are trademarks of Microsoft

Corporation in the U.S. and other countries.

All other product names mentioned herein may be trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The

information in this document is provided “as is” without warranty of any kind and is subject to

change without notice. The warranties for Compaq products are set forth in the express limited

warranty statements accompanying such products. Nothing herein should be construed as

constituting an additional warranty.

Printed in the U.S.A.

User’s Guide

Compaq Restore Solution

First Edition (February 2002)

Document Part Number: 278004-001

ÄCAUTION: Text set off in this manner indicates that failure to

follow directions could result in damage to equipment or loss

of information.

278004-001.book Page 2 Thursday, February 7, 2002 2:37 PM

User’s Guide 1

The Compaq Restore Solution

The Compaq Restore Solution contains everything you need to fully

restore all of the software that was preinstalled at the factory.

You may need to fully restore all of the software that was preinstalled

at the factory if:

■The computer will not start from the primary hard drive

■You have just replaced the primary hard drive

■You are instructed to do so by Compaq Customer Support

Read these instructions carefully before using the Compaq Restore

Solution.

278004-001.book Page 1 Thursday, February 7, 2002 2:37 PM

2User’s Guide

What You Will Need

Compaq

Restore Plus! CD

White

Used with the other CDs in

the Compaq Restore

Solution, the Compaq

Restore Plus! CD reformats

the hard drive, erasing all of

the files on it, and then

restores the software that

was preinstalled on the

computer at the factory.

Compaq

Operating System CD

Red

This CD contains the

operating system that was

preinstalled on the computer

at the factory.

278004-001.book Page 2 Thursday, February 7, 2002 2:37 PM

User’s Guide 3

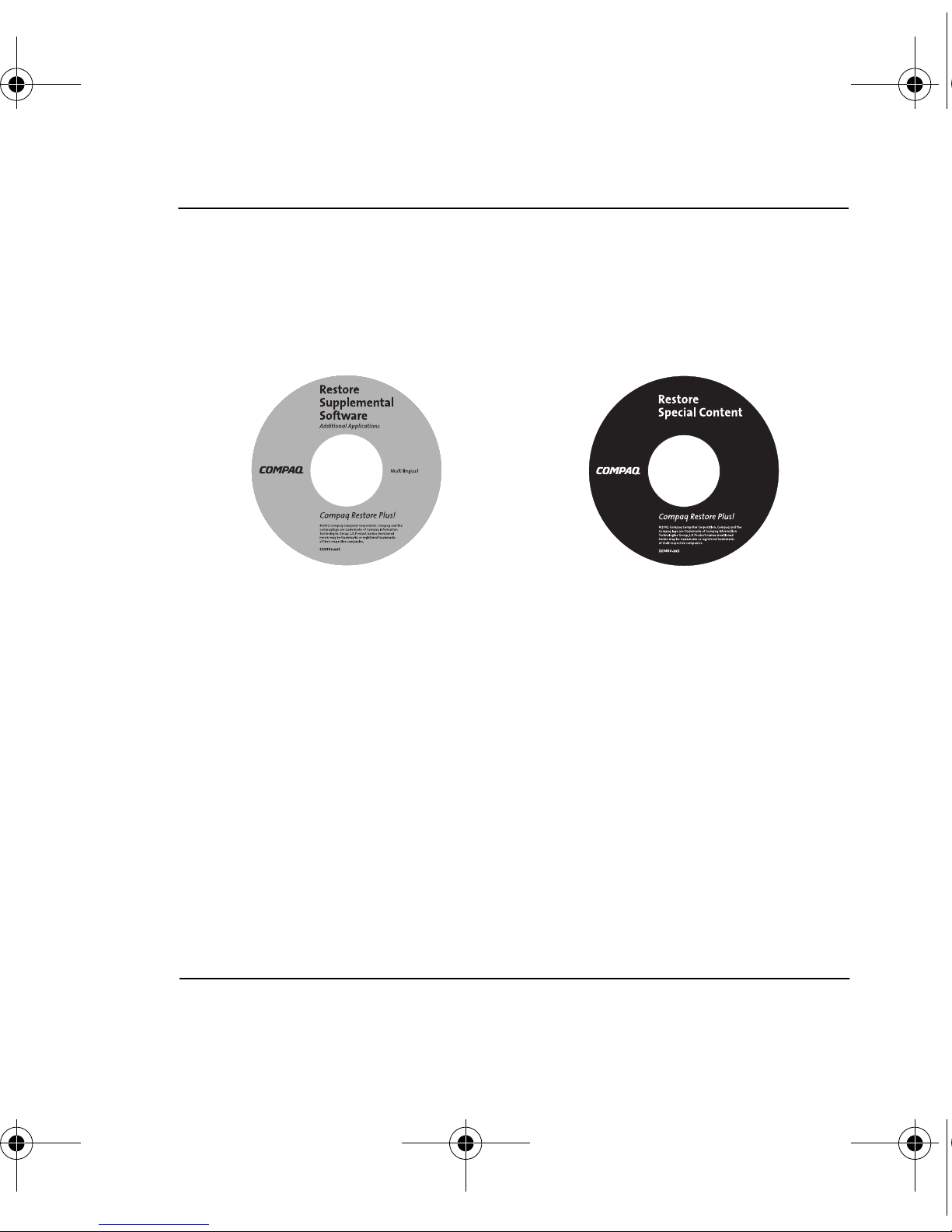

Gray

This CD or set of CDs

contains copies of additional

software applications that

were preinstalled on the

computer, depending on the

model.

Compaq

Restore Supplemental

Software CD

Compaq

Restore Special Content CD

Black

This CD contains copies of

special software

applications, such as

customized screensavers,

that are preinstalled only on

select models of the

computer.

✎Compaq Restore Supplemental Software CDs (gray) and Compaq

Restore Special Content CDs (black) are model-specific and are

available only on select models.

✎Any additional CDs that came with the computer will also be

needed to complete the restore process.

278004-001.book Page 3 Thursday, February 7, 2002 2:37 PM

4User’s Guide

How to Fully Restore the Computer

A full restore reformats the hard drive and restores the

Compaq-provided operating system, software drivers, and certain

other software applications that were preinstalled at the factory by

Compaq. Depending on the operating system and the size of the hard

drive, this may take 40 minutes or more. It is normal for the progress

indicator or status bar to move slowly or appear to stop while copying

large files.

Before You Begin

If possible, you should try to back up any personal data files you

created and any files or software applications that were not

preinstalled by Compaq (onto a network drive or onto removable

media such as a diskette or compact disc).

How to Use the Compaq Restore Solution

1. Insert the Compaq Restore Plus! CD (white) into the primary

CD-ROM, CD-RW, or DVD-ROM, or DVD-R/RW drive.

2. Restart the computer.

ÄCAUTION: Reformatting the hard drive erases all files and

does not restore any personal data files or software

applications not provided by Compaq. If you do not have a

backup, these files cannot be restored once they have been

erased.

278004-001.book Page 4 Thursday, February 7, 2002 2:37 PM

User’s Guide 5

3. When prompted, choose the language to be displayed by the

Compaq Restore Plus! utility.

✎Not all languages are available.

4. Carefully read the information that appears on the screen. Click

Begin when you are ready to start the restore process.

5. When prompted, choose the name of the operating system that

was preinstalled at the factory on this computer, and choose the

same language and country that were originally specified. Click

Next.

6. When prompted, confirm the choices you made. To make a

change, click Back to return to the previous screen. To continue,

click Next.

7. You will see the following reminder:

Warning: Hard Drive Data Will Be Erased

To continue, click Next. To exit Compaq Restore Plus! click

Exit.

ÄCAUTION: The operating system and language chosen

must match what is on the

Compaq Operating System

(red) that was included in the Compaq Restore Solution, or

the restore process will not work.

278004-001.book Page 5 Thursday, February 7, 2002 2:37 PM

6User’s Guide

8. When prompted, insert the Compaq Operating System CD (red),

and click Next.

9. If you are prompted to insert a Compaq Restore Supplemental

CD (gray), either insert the CD into the drive and click Next to

continue or click Skip if

❏You do not have any Compaq Restore Supplemental CDs.

❏You have already loaded all of the Compaq Restore

Supplemental CDs that came with the computer.

❏You do not want to restore the files from the Compaq

Restore Supplemental CD(s). (Advanced users only.)

✎Compaq Restore Supplemental Software CDs (gray) and

Compaq Restore Special Content CDs (black) are

model-specific and are available only on select models.

10. If you are prompted to insert a Compaq Restore Special Content

CD (black), insert the CD into the drive and click Next to

continue. Click Skip if you do not have a Compaq Restore

Special Content CD or if you do not want to restore these files.

11. When prompted, click Begin Setup. This will begin the

installation and setup of all the files copied to the hard drive

during previous steps. This step may take 20 minutes or more.

278004-001.book Page 6 Thursday, February 7, 2002 2:37 PM

User’s Guide 7

12. When prompted, restart the computer. When the restore process

is completed, the Windows Welcome screen will be displayed.

13. Install software provided on any additional CDs that came with

the computer. Some of these CDs are required for proper

functioning of hardware such as graphics cards, audio cards,

and CD-RW drives.

After Completing a Full Restore

After completing a full restore, you may want to do the following:

■Install software drivers for hardware options you installed after

the computer was first set up.

■Install software applications that did not come with the computer.

■Restore your personal data files from backups.

■Check for the latest driver and software updates for this

computer.

❏For Home & Small Office Products, visit

http://www.compaq.com/consumersupport

❏For Corporate Access Products, visit

http://www.compaq.com/support

Or, outside the United States, find support on the local Compaq

Web site.

278004-001.book Page 7 Thursday, February 7, 2002 2:37 PM

8User’s Guide

278004-001.book Page 8 Thursday, February 7, 2002 2:37 PM
