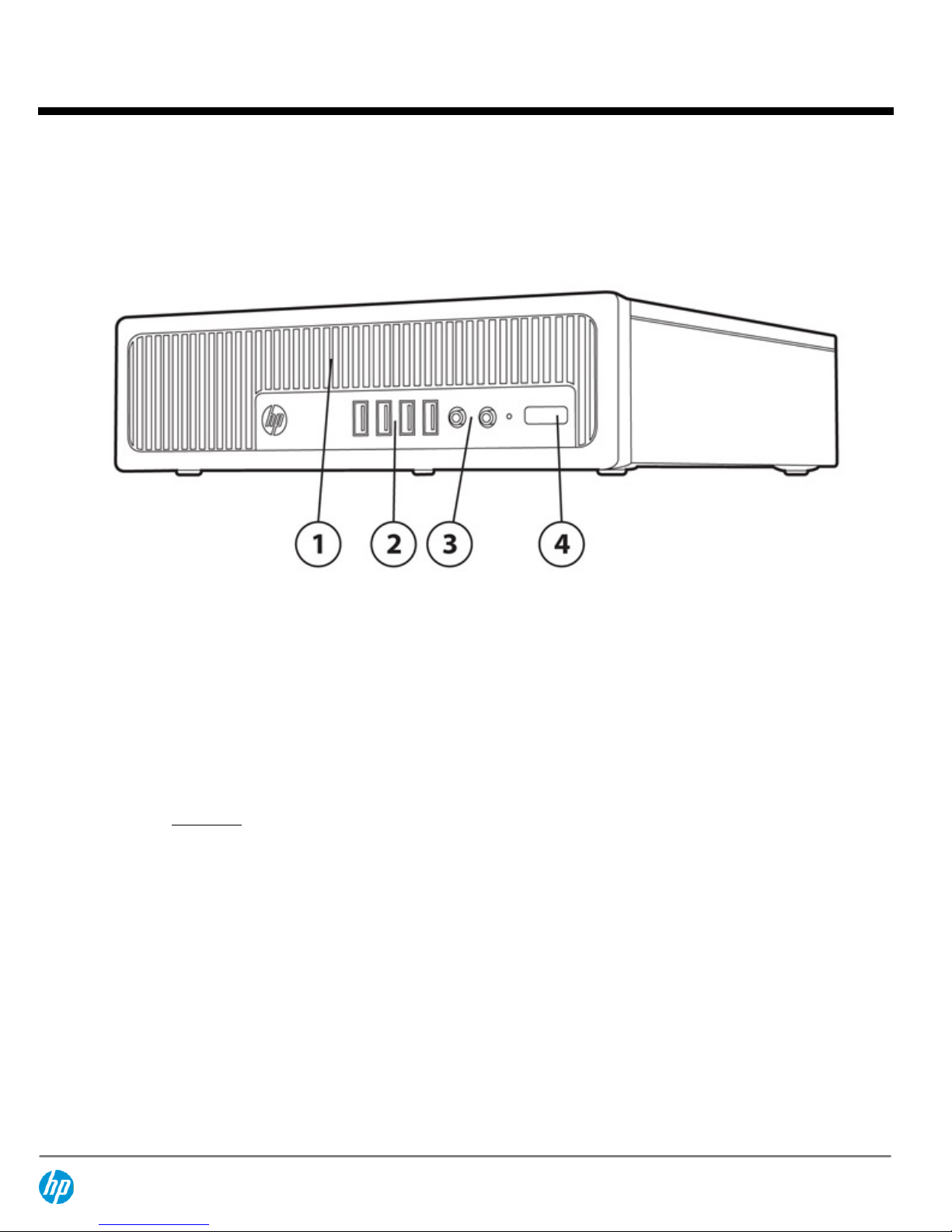

HP EliteDesk 800 G1 Ultra-slim Desktop Business PC
1.
Slimline drive bay supporting an optical disk drive (located behind removable bezel)
2.
(2) USB 3.0 ports, (2) USB 2.0 ports
3.
3.5mm headphone output and microphone jacks
4.
Power button and PC status LED
Not Shown
Slots
(1) internal mSATA connector
(1) internal PCI Express mini-card connector
(1) MXM graphics connector
Bays
(1) 2.5" internal storage drive bay
Rear I/O
(2) USB 3.0 ports; (4) USB 2.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
3.5mm audio in/out jacks
PS/2 keyboard and mouse ports
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
DA - 14653 North America — Version 5 — July 18, 2013
Page 1

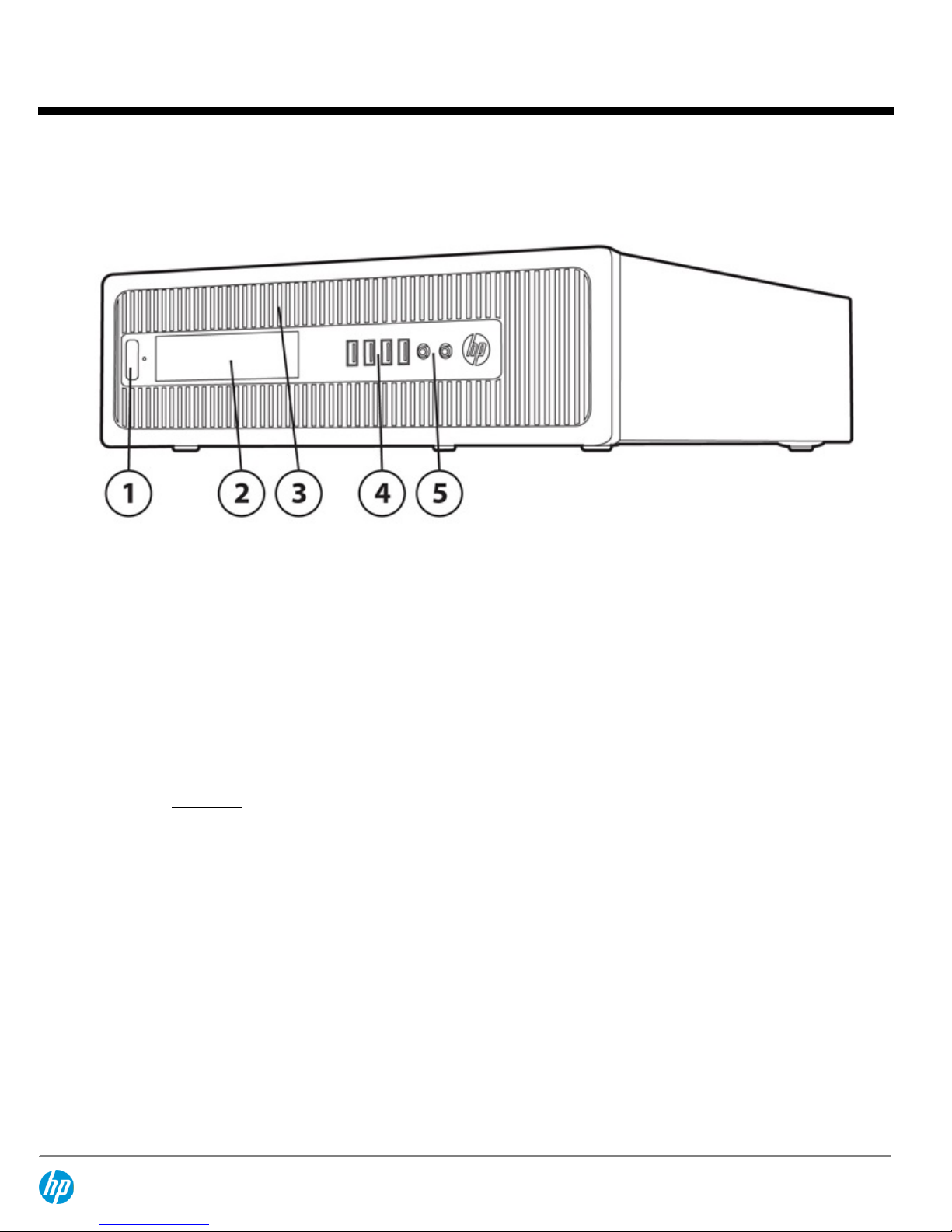

HP EliteDesk 800 G1 Small Form Factor Desktop Business PC
1.
Power button and PC status LED
2.
3.5" external drive bay
3.
Slimline drive bay supporting an optical disk drive (located behind removable bezel)
4.
(2) USB 3.0 ports, (2) USB 2.0 ports
5.
3.5mm headphone output and microphone jack
Not Shown
Slots
(2) PCI Express x16 graphics connectors
(2) PCI Express x1 accessory connectors
Bays
(1) 2.5" internal storage drive bay
(1) 3.5" internal storage drive bay\
Rear I/O
(2) USB 3.0 ports; (4) USB 2.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
(1) RS-232 serial port
3.5mm audio in/out jacks
PS/2 keyboard and mouse ports
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
DA - 14653 North America — Version 5 — July 18, 2013
Page 2

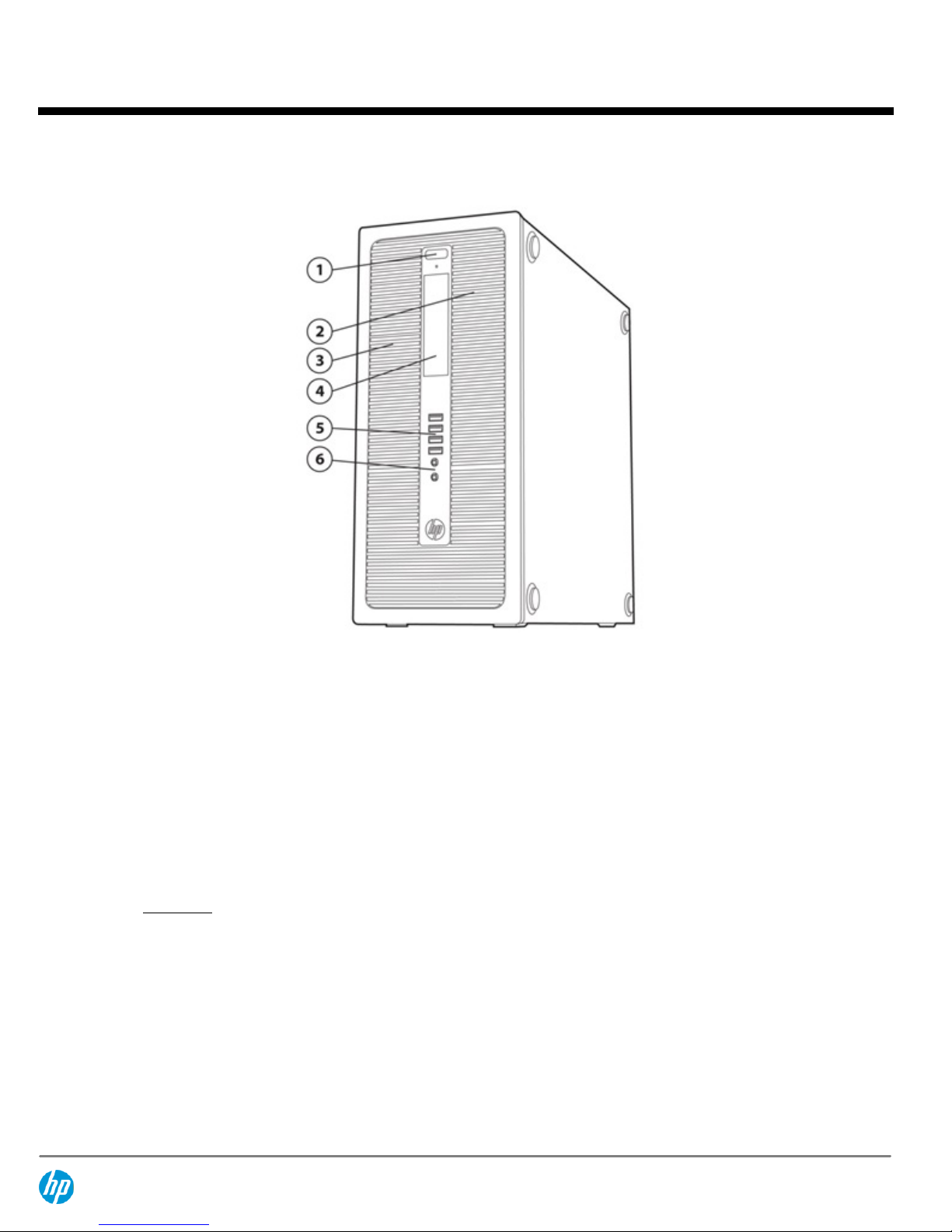

HP EliteDesk 800 G1 Tower Business PC
1.
Power button and PC status LED
2.
Slimline drive bay supporting an optical disk drive (located behind removable bezel)
3.
5.25" half height external drive bay (located behind removable bezel)
4.
3.5" external drive bay
5.
(2) USB 3.0 ports, (2) USB 2.0 ports
6.
3.5mm headphone output and microphone jack
Not Shown
Slots
(2) PCI Express x16 graphics connectors
(2) PCI Express x1 accessory connectors
(1) PCI accessory connector (optional)
Bays
(1) 2.5" internal storage drive bay
(2) 3.5" internal storage drive bays
Rear I/O
(2) USB 3.0 ports; (4) USB 2.0 ports
(1) VGA video port; (2) DisplayPort with multi-stream video ports
(1) RJ-45 network connector
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
DA - 14653 North America — Version 5 — July 18, 2013
Page 3
(1) RS-232 serial port
3.5mm audio in/out jacks
PS/2 keyboard and mouse ports
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
DA - 14653 North America — Version 5 — July 18, 2013
Page 4
At A Glance
Choice of three chassis form factors: Ultra-slim Desktop, Small Form Factor and Tower
PC chassis and all internal components and modules are manufactured with low halogen content
HP developed and engineered UEFI BIOS for better security, manageability and software image stability
Intel® Q87 chipset supporting Intel 4th generation Core processors, featuring integrated Intel HD Graphics and Intel® vProTM
Technology (available with select processors)
Intel® Ethernet Connection I217L GbE LOM integrated network connection
DDR3 Synchronous Dynamic Random Access Memory (SDRAM)
Multi-independent monitor support via VGA and dual digital DisplayPort video interfaces with multi-stream
Discrete graphics options available for all platforms, including the USDT
DTS Sound audio management software
Standard and high efficiency energy saving power supply options
ENERGY STAR qualified models certified EPEAT Gold
SFF and TWR models can be configured with multiple data drives in a RAID array
Optional Intel Smart Response Technology disk cache modules*
Guaranteed lengthy purchase lifecycles and image stability
* Not available at launch
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Overview
DA - 14653 North America — Version 5 — July 18, 2013
Page 5
OPERATING SYSTEMS
Preinstalled
Windows 8 Pro (64-bit)*
Windows 8 (64-bit)*
Windows 7 Ultimate (32-bit)** (LAR only)
Windows 7 Ultimate (64-bit)**
Windows 7 Professional (32-bit)**
Windows 7 Professional (64-bit)**
Windows 7 Professional (32-bit) (available through downgrade rights from Windows 8 Pro)***
Windows 7 Professional (64-bit) (available through downgrade rights from Windows 8 Pro)***
Windows 7 Home Premium (32-bit)** (LAR only)
Windows 7 Home Premium (64-bit)**
FreeDOS 2.0
Novell SUSE Linux Enterprise Desktop 11
*Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8 functionality. See
http://www.microsoft.com
.
**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/
for details.
***This system is preinstalled with Windows 7 Pro software and also comes with a license and media for Windows 8 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating
systems to avoid loss of your data.
CHIPSET
USDT
SFF/TWR
Intel® Q87 Express
X X
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
DA - 14653 North America — Version 5 — July 18, 2013
Page 6
PROCESSOR
USDT
SFF/TWR
Intel® 4th Generation Core™ i7 Processors
Intel® Core™ i7-4770 Processor
Up to 3.9 GHz Max. Turbo Frequency (3.4 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® Core™ i7-4770S Processor
Up to 3.9 GHz Max. Turbo Frequency (3.1 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® 4th Generation Core™ i5 Processors
Intel® Core™ i5-4570 Processor
Up to 3.6 GHz Max. Turbo Frequency (3.2 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® Core™ i5-4570S Processor
Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® Core™ i5-4670 Processor
Up to 3.8 GHz Max. Turbo Frequency (3.4 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
Intel® Core™ i5-4670S Processor
Up to 3.8 GHz Max. Turbo Frequency (3.1 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)
X
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
DA - 14653 North America — Version 5 — July 18, 2013
Page 7
GRAPHICS
USDT
SFF/TWR
Intel integrated HD Graphics on all models (depends on processor)
X X
Optional Discrete Graphics Solutions
AMD Radeon HD 7650A (MXM)
NOTE:
When this MXM graphics card is installed in the USDT all three monitor ports are active. The discrete
ATI graphics will operate the top DisplayPort while the Intel integrated graphics will operate the bottom
Multi-Stream DisplayPort and the VGA output.
X
AMD Radeon HD 8350 (1GB) PCIe x16
X
NVIDIA NVS 310 (512 MB) PCIe x16
X
NVIDIA NVS 315 (1GB) PCIe x 16
X
NVIDIA GeForce GT630 (2 GB) FH PCIe x16
TWR only
Adapters and Cables
USDT
SFF/TWR
HP DMS-59 to Dual DisplayPort Cable
X
HP DMS-59 to Dual DVI Cable
X
HP DMS-59 to Dual VGA Cable
X
HP DisplayPort to DisplayPort Cable
X
HP DisplayPort to DVI-D Adapter
X X
HP DisplayPort to HDMI Adapter
X X
HP DisplayPort to VGA Adapter
X X
HP Serial Port Adapter
X X
HP Parallel Port Adapter
X
STORAGE
USDT
SFF/TWR
SATA Hard Drive
320 GB, 7.2K rpm, SATA 6.0 Gb/s, SMART IV, 2.5"
X
500 GB, 7200 rpm rpm, SATA 6.0 Gb/s, SMART IV, 3.5"
X
500 GB, 10K rpm, SATA, 6.0 Gb/s, SMART IV, 3.5"
X
1 TB, 7200 rpm rpm, SATA 6.0 Gb/s, SMART IV, 3.5"
X
1 TB, 10K rpm, SATA 6.0 Gb/s, SMART IV, 3.5"
X
Hybrid Drives
1
500 GB SATA 6G 2.5 (8GB cache) SSHD Drive
X X
500 GB SATA 6G 2.5 2nd Drive (8 GB cache)
(with 3.5" adapter when install in SFF/TWR)
X
1 TB SATA 6G 2.5 (8 GB cache) SSHD Drive
X X
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
DA - 14653 North America — Version 5 — July 18, 2013
Page 8
1 TB SATA 6G 2.5 2nd Drive (8 GB cache)
(with 3.5" adapter when install in SFF/TWR)
X
1
Solid State Hybrid Drives are planned to be available in October 2013.
SATA Solid State Drive
120 GB SATA 6G 2.5 SSD
(with 3.5" adapter when installed in SFF/TWR)
X X
128 GB SATA 6G 2.5 SSD
(with 3.5" adapter when installed in SFF/TWR)
X X
160 GB SATA 6G 2.5 SSD
(with 3.5" adapter when installed in SFF/TWR)
X X
SATA Self-encrypting Solid State Drive
256 GB SATA 2.5" Self-Encrypting (SED) Solid State Drive
(with 3.5" adapter when installed in SFF/TWR)
X X
Optical Disc Drive
Slim DVD-ROM
X X
Slim BDXL Blu-ray Writer
X X
Slim SuperMulti DVD Writer
X X
MEMORY
Form Factor
Type
Maximum
# of Slots
Ultra Slim Desktop
DDR3 non-ECC
Up to 1600 MT/s
16 GB
2 SODIMM
Small Form Factor
DDR3 non-ECC
Up to 1600 MT/s
32 GB
4 DIMM
Tower
DDR3 non-ECC
Up to 1600 MT/s
32 GB
4 DIMM
NOTE:
For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available
due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
Memory modules support data transfer rates up to 1600 MT/s; actual data rate is determined by the system's configured
processor. See processor specifications for supported memory data rate.
PERFORMANCE
Intel® Smart Response Technology Disk Cache Modules*
USDT
SFF/TWR
32GB SATA Solid State Disk Cache
X
32GB mSATA Solid State Disk Cache
X
* Not available at launch
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
DA - 14653 North America — Version 5 — July 18, 2013
Page 9
NETWORKING/COMMUNICATIONS
USDT
SFF/TWR
Ethernet (RJ-45)
Intel I217LM Gigabit Network Connection (standard)
X X
Wireless
Intel Centrino Advanced-N 6205 802.11 a/b/g/n PCI Express x1 Network Interface Card (optional)
X
Intel Centrino Advanced-N 6205 802.11 a/b/g/n PCI Express Mini Card Wireless Network Connection
(optional)
X
NOTE:
Either the integrated network connection or the Intel Centrino wireless NIC is required to support Intel vPro Technology
features.
AUDIO/MULTIMEDIA
USDT
SFF/TWR
HD audio with Realtek ALC221 codec (all ports are stereo)
X X
DTS Studio Sound audio management technology
X X
Microphone* and headphone front ports (3.5mm)
X X
Line-out and Line-In rear Ports* (3.5mm)
X X
Multi-streaming capable*
X X
Internal speaker (standard)
X X
* The front microphone port is re-taskable as a Line-in, Microphone-in or Headphone-out port. Rear audio input ports are re-
taskable as a Line-in or Microphone-in port. External speakers must be powered externally. Multi-streaming can be enabled in the
Realtek control panel to allow independent audio streams to be sent to/from the front and rear jacks. This allows for different
audio applications to use separate audio ports on the system. For example, the front jacks could be used with a headset for a
communications application while the rear jacks are being used with external speakers and a multimedia application.
KEYBOARDS AND POINTING DEVICES
USDT
SFF/TWR
Keyboard
HP PS/2 Keyboard
X X
HP USB Keyboard
X X
USB Smart Card (CCID) Keyboard
X X
HP USB and PS/2 Washable Keyboard
X X
HP Wireless Keyboard and Mouse Combo
X X
Mice
HP PS/2 Mouse
X X
HP USB Mouse
X X
HP USB 1000dpi Laser Mouse
X X
HP USB and PS/2 Washable Mouse
X X
QuickSpecs
HP EliteDesk 800 G1 Series Business Desktop
Standard Features and Configurable Components (availability may vary by country)
DA - 14653 North America — Version 5 — July 18, 2013
Page 10
Altri manuali per EliteDesk 800 G1 series
4
Questo manuale è adatto per i seguenti modelli
3
Indice
Altri manuali HP Scrivania
HP
HP ProDesk 480 G7 PCI Istruzioni per l'installazione
HP
HP LSI MegaRAID SAS 9260-8i Manuale utente
HP
HP A7L26UT#ABA Manuale utente
HP
HP d325 ST Manuale operativo e di manutenzione
HP
HP OMEN Obelisk 873 Istruzioni per l'installazione
HP
HP Z4 G4 Manuale
HP
HP dx2250 - Microtower PC Manuale utente
HP
HP Media Center m1100 - Desktop PC Scheda tecnica
HP
HP Brio 81XX Manuale utente
HP
HP Pavilion t338d Manuale utente
HP
HP Compaq Presario Manuale
HP
HP Xw9300 - Workstation - 1 GB RAM Manuale di riferimento
HP
HP Compaq Presario Manuale
HP
HP 280 G2 Small Form Factor Business Istruzioni per il montaggio
HP
HP Pavilion t200 - Desktop PC Istruzioni per l'installazione
HP
HP Pavilion w1000 - Desktop PC Manuale utente
HP
HP Presario SG3400 - Desktop PC Manuale utente
HP
HP 8000f - Elite Ultra-slim Desktop PC Manuale operativo e di manutenzione
HP
HP ProOne 600 G1 Manuale utente
HP
HP Kayak XA Manuale utente
