HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

Using HP MaxiLife to Diagnose Problems

2English

Using HP MaxiLife to Diagnose Problems

Your HP LCD can help you to diagnose problems with your PC

Workstation, even when you are unable to get your system and monitor

working properly.

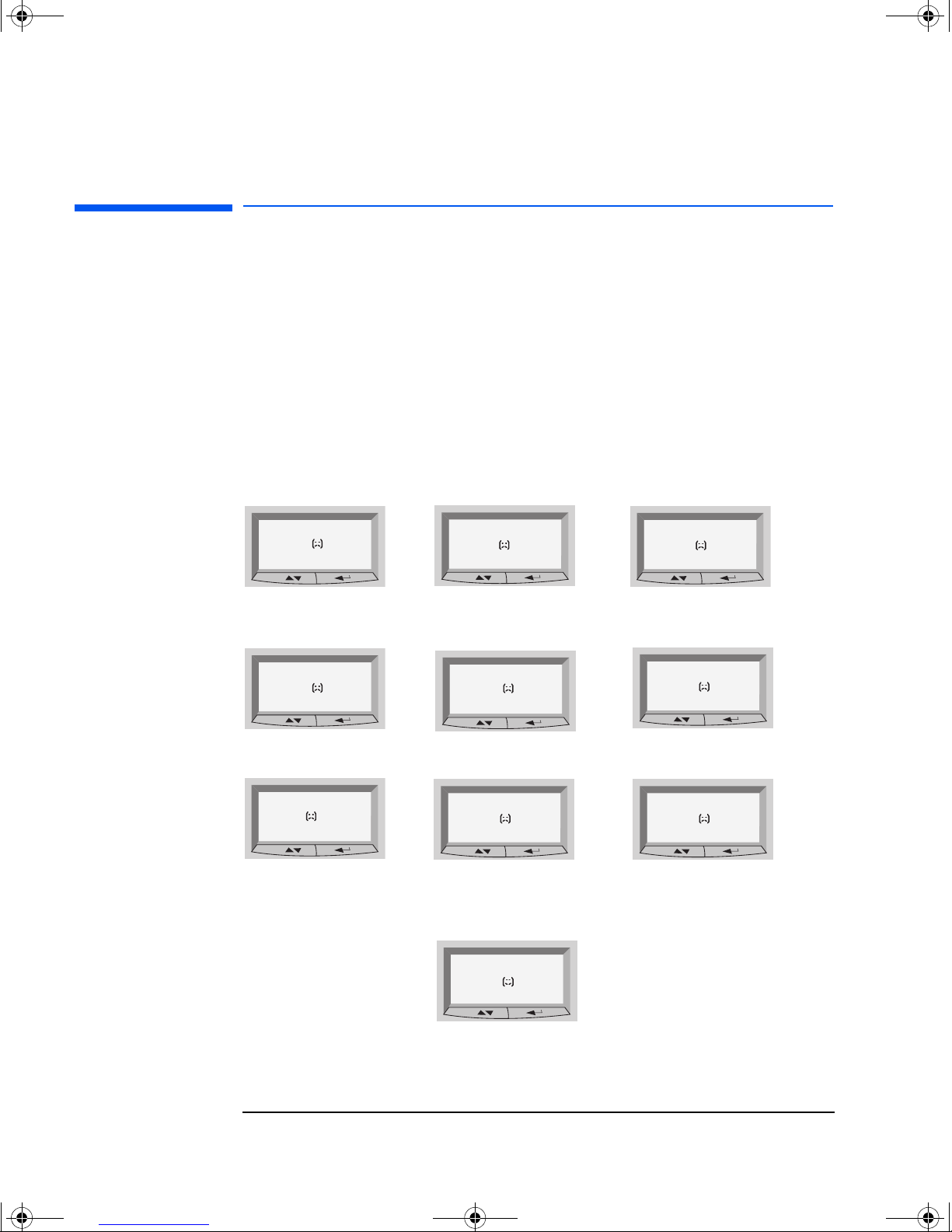

Pre-Boot Checks When you press your PC Workstation’s on/off button, HP MaxiLife will

check your system before it initiates the start-up sequence. You will see

one of the following screens on the LCD as these checks progress:

HP KAYAK XA

Error!

Power supply

Check memory installation Check system board.

Flash new BIOS or start

system using crisis switch

(system board switch 10).

Check processor installation.

Check that processor is correctly

inserted in CPU slot.

Check power supply and

power cable connections.

Error!

Power CPU

Error!

Board PLL

Error!

BIOS

Error!

No RAM

No errors occurred during pre-

boot. POST is initiated.

Error!

CPU Socket

Error!

RAM type

Error!

No Video

Check that RAM types

installed are compatible.

Check that graphics card

is installed correctly.

Check that power supply is

properly connected.

Error!

CPU Socket

Asdt-tr.fm Page 2 Friday, February 26, 1999 3:54 PM

English 3

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

Using HP MaxiLife to Diagnose Problems

POST Phase Following these checks, the POST (Power-On Self Test) sequence is

initiated. One of the following screens will appear in this phase:

Other Features

HP MaxiLife can also be configured to:

•Display the configuration details of your PC Workstation required to

obtain support (System info).

•Indicate POST (Power-On Self Test) steps during the power-on

phase (Boot steps).

•Perform diagnostic tests on your PC Workstation’s various hardware

components and display the results (Diags).

To configure your HP LCD:

1Ensure that your PC Workstation’s power cord is connected to a

grounded outlet.

In this state, your PC Workstation’s hardware management chip is

active, even if your system is not powered on.

2Press one of the LCD control buttons. The following menu is

displayed.

3Use to scroll down through the menu items and to select the

required menu item.

HP KAYAK XA

No errors occurred. A POST error occurred.

Error!

POST XXXX

System info

Boot steps

Next Go

Diags

Exit

Next Go

Asdt-tr.fm Page 3 Friday, February 26, 1999 3:54 PM

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

Using HP MaxiLife to Diagnose Problems

4English

System Info System information is displayed on the LCD one screen at a time and

should detail the following:

To view these details, use the button to scroll through the

information screens.

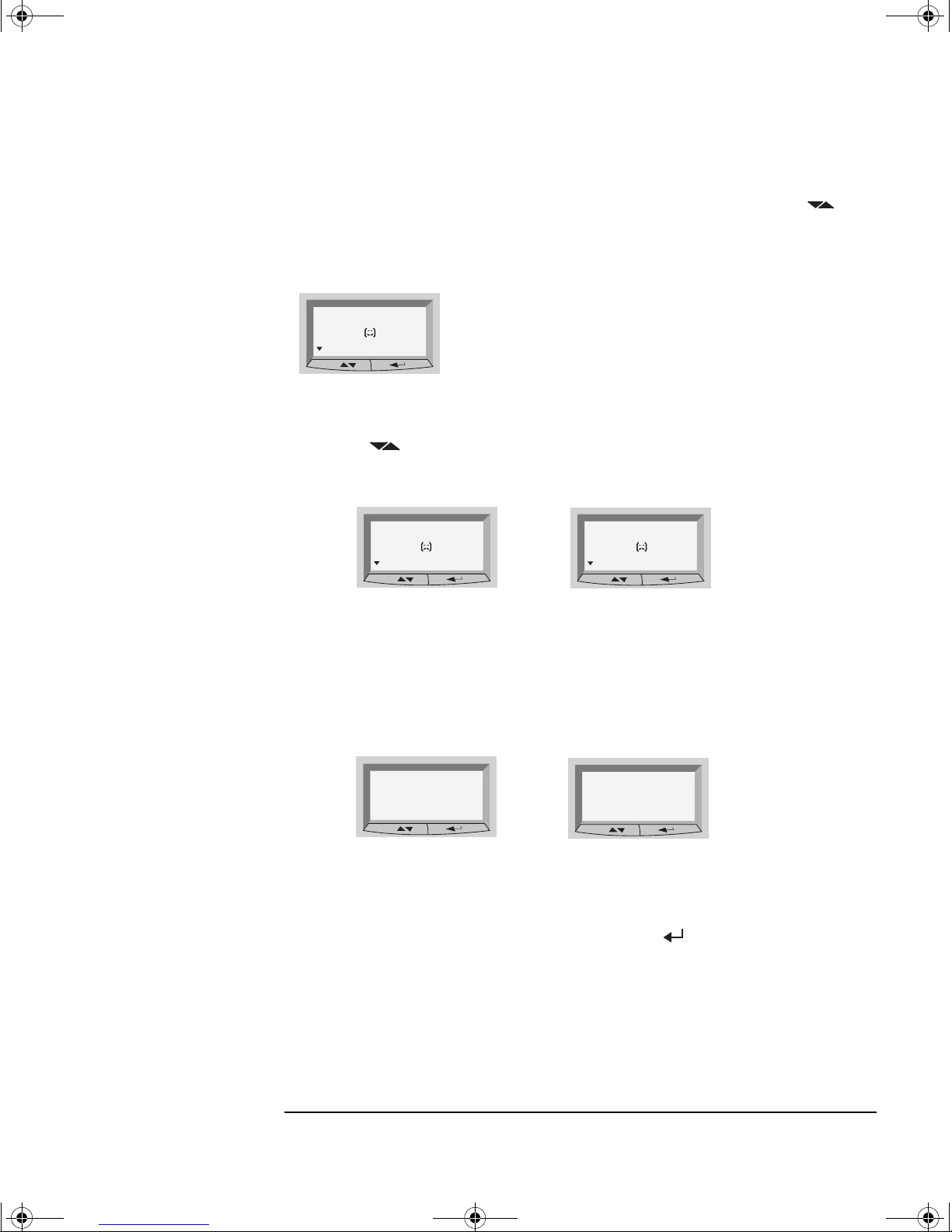

Boot Steps Where available, the Boot steps option will display all POST steps the

next time your PC Workstation is powered on. For support purposes,

POST steps are shown as POST codes and displayed on the LCD

as follows:

Diags If your PC Workstation is powered off when Diags is selected, the LCD

displays a second menu. To perform the diagnostics tests, select Power

on from this menu to enable the hardware management chip to assess

the status of your system’s components.

If your PC Workstation is already powered on, the diagnostic tests will

be performed as soon as you select Diags from the LCD’s main menu.

Tests are carried out on the following:

•CPU Socket

•Power

•Power CPU

•Board PLL

•DIMM Found

•Product name

•BIOS version

•Serial Number

•Type & speed of processor

•Number and capacity of memory

modules installed

HP KAYAK XA

POST Code 24

Post steps will be displayed on the

LCD the next time your PC

Workstation is powered on.

Asdt-tr.fm Page 4 Friday, February 26, 1999 3:54 PM

English 5

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

Using HP MaxiLife to Diagnose Problems

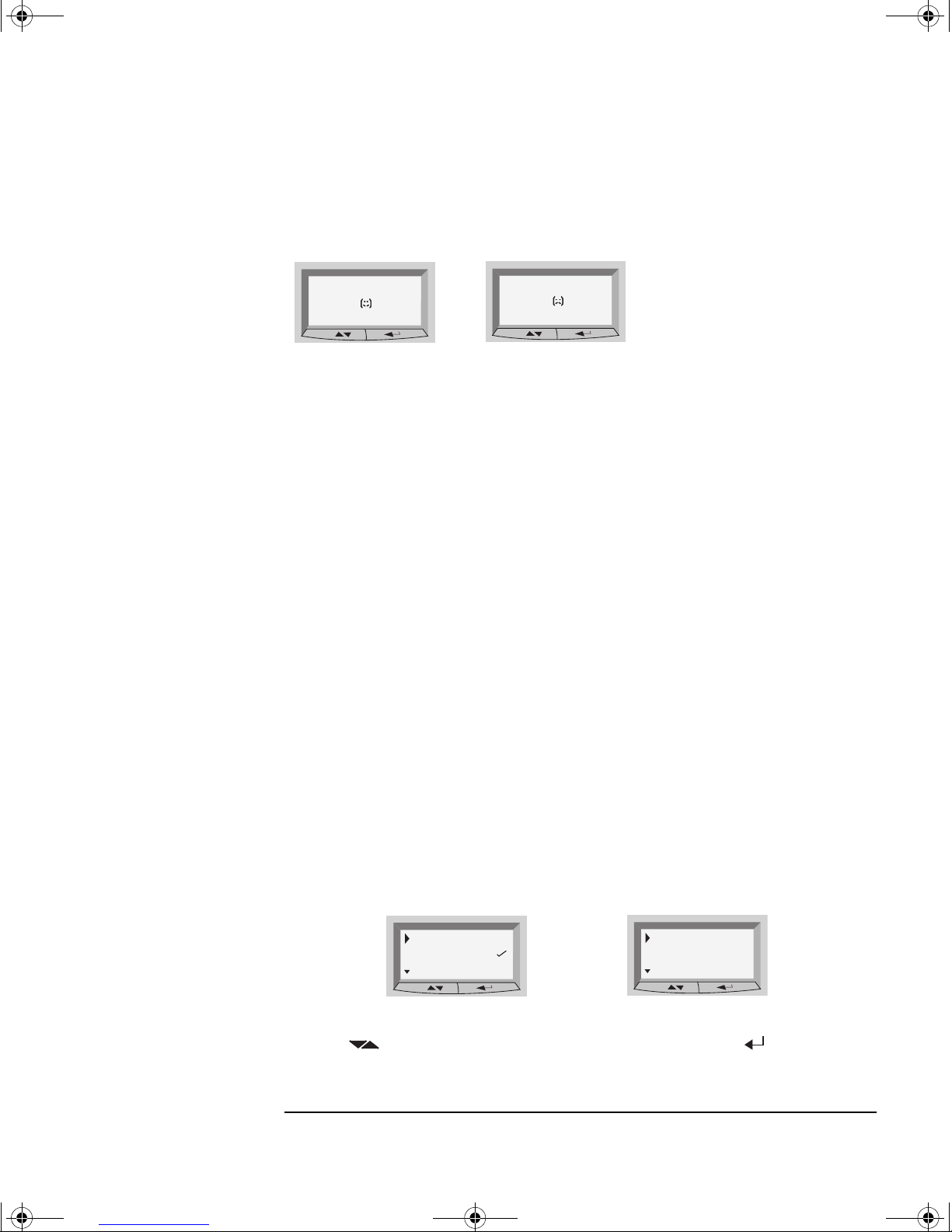

To view the test results for each system component, press the

control button.

If no component errors are detected, the following screen will appear.

If an error is detected, an error screen appears indicating the problem.

To continue viewing the test results of the other system components,

press the control button.

When the diagnostic tests are complete, one of the following screens is

displayed.

You can exit the test session by pressing the button.

COMPONENT

No errors were detected.

CPU Socket

COMPONENT

For example, if the processor is not correctly inserted the

following error screen will appear. For more information, refer to

“Check Internal Items” on page 8.

Diagnostics:

Done FAIL

Exit

Diagnostics:

Done OK

Exit

No errors were detected.

System errors were

detected.

Asdt-tr.fm Page 5 Friday, February 26, 1999 3:54 PM

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

HP DiagTools

6English

HP DiagTools

DiagTools helps you to diagnose hardware-related problems on HP PCs

and PC Workstations. It is designed to help you to:

•Check the configuration of your system and verify that it is

functioning correctly.

•Diagnose hardware-related problems.

•Provide precise information to HP-dedicated Support Agents so that

they can solve any problems quickly and effectively.

Installing this Utility PC users must first install the latest version of this utility and then

ensure it is ready for use.

For more information about how and where to install this utility, refer to

the Vectra\Kayak Hardware Diagnostics User's Guide, available on

the HP World Wide Web Site in PDF (Adobe Acrobat) format.

It is important that you use the latest version of this utility to diagnose

hardware-related problems. If you do not, HP-dedicated Support

Agents may request that you do so before offering support.

The latest version of this utility can be obtained from HP Electronic

Information Services, available 24 hours per day, 7 days per week.

To access these services you should connect to the HP World Wide Web

Site at http://www.hp.com./go/kayaksupport/.

Asdt-tr.fm Page 6 Friday, February 26, 1999 3:54 PM

English 7

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

HP DiagTools

Starting This

Diagnostics Utility

To start the Hardware Diagnostics utility:

1Quit all applications, shut down the operating system and restart

your PC.

aIf you are going to run this utility from a diskette, insert it into the

floppy disk drive before you restart the PC. On restarting, this

utility will run automatically, displaying the Welcome screen.

bIf you are going to run this utility from your hard disk drive, the

PC will restart with the option to choose between your usual

operating system and this utility. Select the Vectra\Kayak

Hardware Diagnostics option and it will start automatically,

displaying the Welcome screen.

2Press to continue and follow the instructions on-screen to carry

out the diagnostic tests.

This utility will automatically detect the complete hardware

configuration of your system before any tests can be performed.

Basic System Tests To verify the correct operation of your system's hardware, you will need

to carry out the Basic System Tests.

Advanced System Tests To perform more in-depth testing of your system’s individual

components, you will need to carry out the Advanced System Tests.

NOTE The advanced test phase of this utility is suitable for intermediate

and advanced users only.

Support Ticket To produce a complete record of your system’s configuration and test

results, you will need to create a Support Ticket. This can then be sent,

via email or fax, to your local or HP-dedicated Support Agent.

For more information on how to use this utility, refer to the Vectra\

Kayak Hardware Diagnostics User's Guide, available on the HP World

Wide Web Site, at http://www.hp.com/go/kayaksupport/.

Asdt-tr.fm Page 7 Friday, February 26, 1999 3:54 PM

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

If Your PC Workstation Does Not Start Properly

8English

If Your PC Workstation Does Not Start Properly

Use this section if your PC Workstation does not start properly when

you turn it on, and you experience one of the following symptoms:

•Your PC Workstation’s display is blank and there are no error

messages.

•You cannot change any values in the Setup program.

•A POST error message is displayed.

•An error message and icon appears on the LCD screen (refer to

“Using HP MaxiLife to Diagnose Problems” on page 2).

Display is Blank and There Are No Error Messages

If your display is blank and there are no error messages when you turn

on your PC Workstation, follow this procedure:

1Check the LCD screen.

2Check external items.

3Check internal items.

4Rebuild your PC Workstation’s components (refer to page 9).

Check External Items Be sure the following external items are functioning properly:

•Check that the computer and display are turned on. (The power light

should be illuminated.)

•Check the display’s contrast and brightness settings.

•Make sure that all cables and power cords are firmly plugged in.

•Make sure the power outlet is working.

Check Internal Items If the PC Workstation still does not start properly, follow this procedure

to check the internal items:

1Turn off the display, the computer, and all external devices.

2Unplug all power cords and cables, noting their positions. Disconnect

the PC Workstation from any telecommunications network.

Asdt-tr.fm Page 8 Friday, February 26, 1999 3:54 PM

English 9

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

If Your PC Workstation Does Not Start Properly

3Remove the cover and check the following items:

4Replace the cover.

5Reconnect all cables and power cords.

6Turn on the display and computer.

Rebuild Your PC

Workstation’s

Components

If your PC Workstation still does not start properly, remove all boards

and accessories, except the hard disk drive and video board. Start the

PC Workstation. If the PC Workstation now works, add the boards and

accessories one at a time to determine which one is causing the

problem.

LCD Error

Messages Action

- a) Check all internal cables.

b) Ensure they are correctly attached and firmly in place.

- a) Check that the status panel is correctly connected to the system board.

b) Ensure that both connectors are correctly attached and firmly in place.

Power CPU a) Check that the processor is correctly installed.

b) Ensure it is firmly in place.

CPU error a) Reset the PC Workstation or power-off the LAN.

b) Refer to your PC User’s Guide for more information.

No RAM, RAM type Check that the memory modules are correctly installed.

- Check that accessory boards are firmly seated in their slots.

- a) Verify that any switches and jumpers on the accessory boards are

properly set.

b) Refer to the manuals that came with each board.

- Check that the switches on the system board are properly set.

Temp disk, Temp CPU,

Temp IO slot

Check fans and that air flow guide is not blocked.

Fan CPU, Fan IO slot Check that fans are installed correctly.

Power/Power supply Check that power supply is properly connected.

No video a) Check that the video card is properly installed.

b) Refer to the manual that came with the video card.

Asdt-tr.fm Page 9 Friday, February 26, 1999 3:54 PM

HP Kayak XA 05xx PC Workstation —Troubleshooting Your HP PC Workstation

If Your PC Workstation Does Not Start Properly

10 English

If you are Unable to Change any Values in Setup

Ensure that you are using the correct password.

If a POST Error Message is Displayed

The Power-On-Self-Test (POST) can detect both an error and a change

to the configuration. In either case, an error code and short description

is displayed. Depending on the kind of error, you will have one or more

of these choices available on screen:

•Press F1 to ignore the message and continue.

•Press F2 to run Setup and correct a system configuration error. HP

recommends that you correct the error before proceeding, even if

the PC Workstation appears to start successfully.

•Press F4 to accept (validate) the change and update Setup’s

configuration information.

•Press Enter to see more details about the message. After viewing

these details, you will be returned to the original POST display

screen. If the message is actually a change to the configuration you

have made (for example, you have just removed some memory), you

can then press F4 to accept the change and update Setup’s

configuration information. Otherwise, press F1 to ignore the

message and continue, or press F2 to run Setup and correct a system

configuration error. (The number of choices you will have available

are dependent on the kind of error.)

Clearing the

PC Workstation’s

Configuration Memory

If the PC Workstation then starts, but POST still persists in reporting an

error, clear the current configuration memory values and reinstall the

built-in default values:

1Turn off the PC Workstation, disconnect the power cables, and

remove the cover. Disconnect the PC Workstation from any

telecommunications network.

aSet the system board switch 6 (CLEAR CMOS) DOWN to clear

the configuration.

bReplace the cover, and reconnect only the power cable.

Asdt-tr.fm Page 10 Friday, February 26, 1999 3:54 PM

Altri manuali per Kayak XA 05xx

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Scrivania

HP Model 715/100XC - Workstation Manuale utente

HP Compaq Presario Manuale

HP Pavilion E h8-1200 Manuale d'uso e manutenzione

HP Z5000 Series Istruzioni per l'installazione

HP Xw4300 - Workstation - 2 GB RAM Istruzioni utente

HP Compaq Presario Manuale utente

HP Kayak XA-s 02xx Manuale

HP Deskpro 300 Scheda tecnica

HP ProDesk 400 G3 MT Manuale operativo e di manutenzione

HP Vectra XA 6/xxx Manuale utente

HP TouchSmart IQ840 - Desktop PC Manuale utente

HP D530 - Compaq Business Desktop Manuale operativo e di manutenzione

HP m8080 Manuale utente

HP Z400 - Workstation Manuale utente

HP dc5100 - Microtower PC Manuale utente

HP TouchSmart 420-1100 Manuale utente

HP EliteOne 1000 G2 Istruzioni per l'installazione

HP Compaq dc7800 Series Manuale operativo e di manutenzione

HP Deskpro AP250 Scheda tecnica

HP dc5700 - Microtower PC Guida all'installazione

HP Pavilion t300 - Desktop PC Manuale utente

HP Xw6200 - Workstation - 2 GB RAM Guida all'installazione

HP Net PC 20 Manuale utente

HP Presario SR1200 - Desktop PC Manuale utente

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
