PC Workstations HP Kayak XU PC Workstation 1-1

HP Kayak XU PC Workstation

Models and Accessories

NOTE: All models are supplied with a 1.44 MB Flexible Disk

Drive, an integrated Ultra Wide 16-bit SCSI controller,

and an integrated IDE controller.

Product

Number

Processors Std.

RAM

Hard

Drive

Video Controller Multi-

media

LAN

Kayak XU 6/xxx PC Workstation

HP Kayak XU 6/350 MHz Series 0301 (CPL: 7/98 )

D5680N Single

Pentium II

with 512 KB

of L2 cache

memory

64 MB

SDRAM

ECC

4.5 GB

10k rpm,

SCSI

Matrox

Millennium II

AGP, 8 MB on

board,

upgradeable to

16 MB

32✕IDE

CD-ROM.

Audio chip

(AD1816) is

integrated

on the

system

board.

10BT/

100TX

HP Kayak XU 6/400 MHz Series 0301 (CPL: 6/98 )

D5682N Single

Pentium II

with 512 KB

of L2 cache

memory

64 MB

SDRAM

ECC

4.5 GB

10k rpm

SCSI

Matrox

Millennium II

AGP, 8 MB on

board,

upgradeable to

16 MB

32✕IDE

CD-ROM.

Audio chip

(AD1816) is

integrated

on the

system

board.

10BT/

100TX

D5683N Single

Pentium II

with 512 KB

of L2 cache

memory

2 ✕

4.5 GB

10k rpm

SCSI

with HP

FastRAID

D5684N Dual

Pentium II

with 512 KB

of L2 cache

memory

128 MB

SDRAM

ECC

9.1 GB

10k rpm

SCSI

HP Kayak XU PC Workstation

1-2 HP Kayak XU PC Workstation Mini-Tower

PC Workstations

1Supported Accessories

1. Not compatible with unbuffered ECC DIMMs.

2. Dual Processor Kits include: processor, voltage regulator module and heatsink.

SDRAM 32MB 72bit 100MHz main memory (non-buffered ECC) D6521A

SDRAM 64MB 72bit 100MHz main memory (non-buffered ECC) D6522A

SDRAM 128MB 72bit 100MHz main memory (non-buffered ECC) D6523A

SDRAM 256MB 72bit 100MHz main memory (registered ECC)1D6524A

4 MB memory upgrade for Matrox Millennium II AGP video controller D5487A

8 MB memory upgrade for Matrox Millennium II AGP video controller Available

from Matrox

HP FastRAID2 Accessory Kit D6690A

User’s Guide Manual D5699A

Dual Processor Kits2

Pentium II 350 MHz containing 512 KB internal L2 cache D6527A

Pentium II 400 MHz containing 512 KB internal L2 cache D6528A

Input Devices

HP mouse C3751B

HP SmartCard keyboard C4737A

Video Displays

All current HP Displays (see the HP Kayak Accessory Service Handbook)

Mass Storage

4.5 GB UW-SCSI hard disk 7.2k rpm D5368B

4.5 GB UW-SCSI hard disk 10k rpm D5481A

9.1 GB UW-SCSI hard disk 10k rpm D6520A

Flexible disk 3.5-inch 1.44 MB (1-inch high) D2035B

IDE 32✕CD-ROM drive D4384A

HP Kayak XU PC Workstation

Mini-Tower

PC Workstations HP Kayak XU PC Workstation 1-3

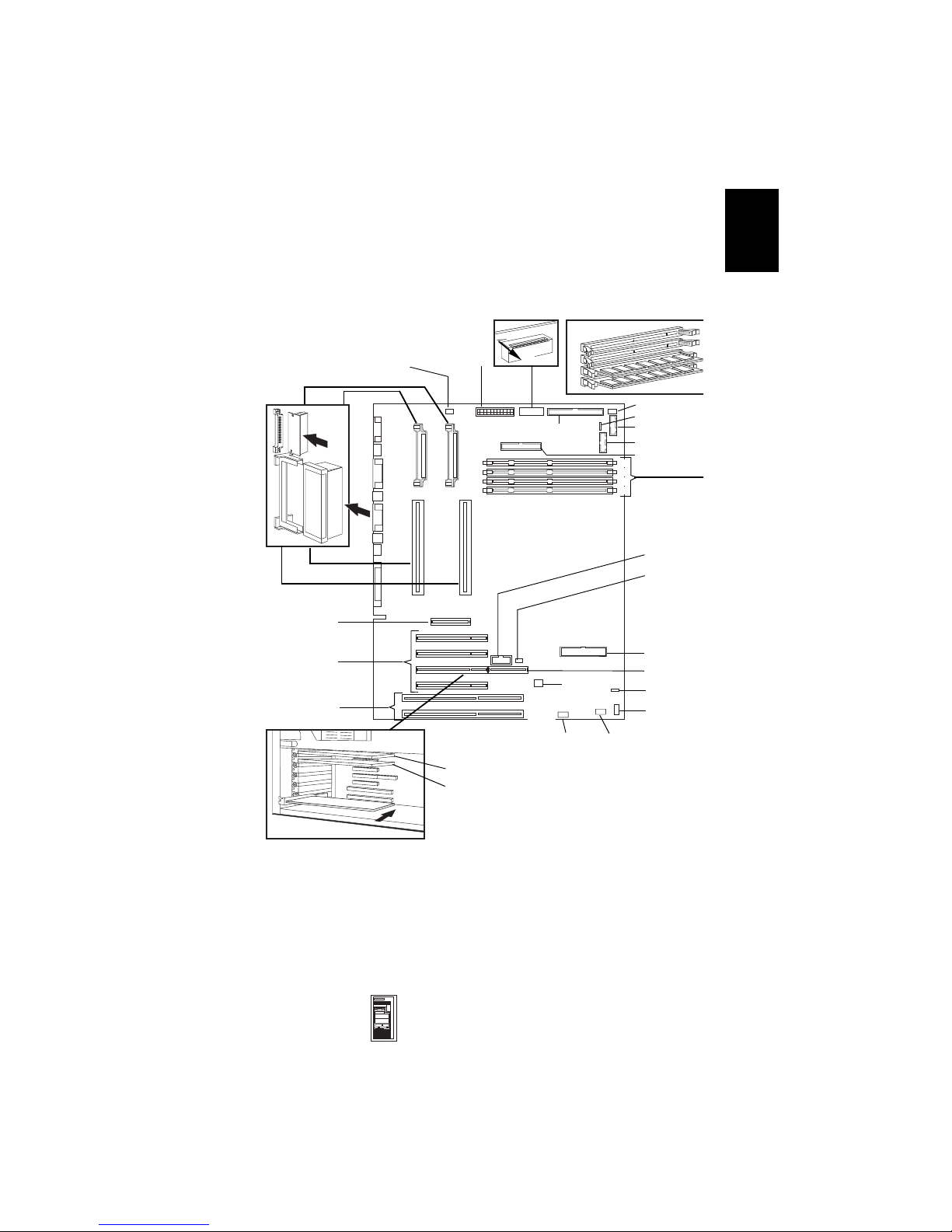

System Board, BIOS and Memory

Internal speak

Mic In

16-bit SCSI

Processor 1

Processor 2

AGP Slot

PCI Slots RAIDport

I/O Fan

Status Panel

Power

Disk Drive Fan

Switches

FDD

VRM 2 VRM 1

Memory Modules

ISA Slots

Processor Fan

Video Board

LAN + SCSI Board

External Battery

LCD Panel

CD In Audio

Aux In Audio

IDE 1 Connect

Wake On LAN

External Start

HP Kayak XU PC Workstation

1-4 HP Kayak XU PC Workstation Mini-Tower

PC Workstations

1System Board Switches

Setup and BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site. The BIOS is in the form HK11xxx.FUL, where xx is the

version number.

1. UP=OFF, DOWN=ON (refer to the diagram on page 3 of this chapter for switch positioning).

2. Refer to “Recovery Boot Active Procedure” in Appendix B for the detailed recovery procedure.

1. PCI Bus Frequency is 33 MHz

ISA Bus Frequency is 8.25 MHz

2. UP=OFF, DOWN=ON (refer to the diagram on page 3 of this chapter for switch

positioning).

Switch Function Default

1-5 — Processor frequency, see following table —

6UP

1Retain configuration in EEPROM, normal position UP

DOWN Clears EEPROM

7 UP Enables User and Administrator passwords UP

DOWN Clears User and Administrator passwords

8UP Disables power on using keyboard DOWN

DOWN Enables keyboard power on

9 UP Minitower package UP

DOWN Desktop package

10 UP Normal operation UP

DOWN Recovery boot active (force BIOS flashing)2

Processor

Frequency1

Local Bus

(FSB)

Frequency

Switch

12345

233 MHz 66 MHz UP2UP UP DOWN DOWN

266 MHz 66 MHz UP UP DOWN UP UP

300 MHz 66 MHz UP UP DOWN UP DOWN

333 MHz 66 MHz UP UP DOWN DOWN UP

350 MHz 100 MHz UP UP UP DOWN DOWN

400 MHz 100 MHz UP UP DOWN UP UP

450 MHz 100 MHz UP UP DOWN UP DOWN

500 MHz 100 MHz UP UP DOWN DOWN UP

http://www.hp.com/go/kayaksupport

HP Kayak XU PC Workstation

Mini-Tower

PC Workstations HP Kayak XU PC Workstation 1-5

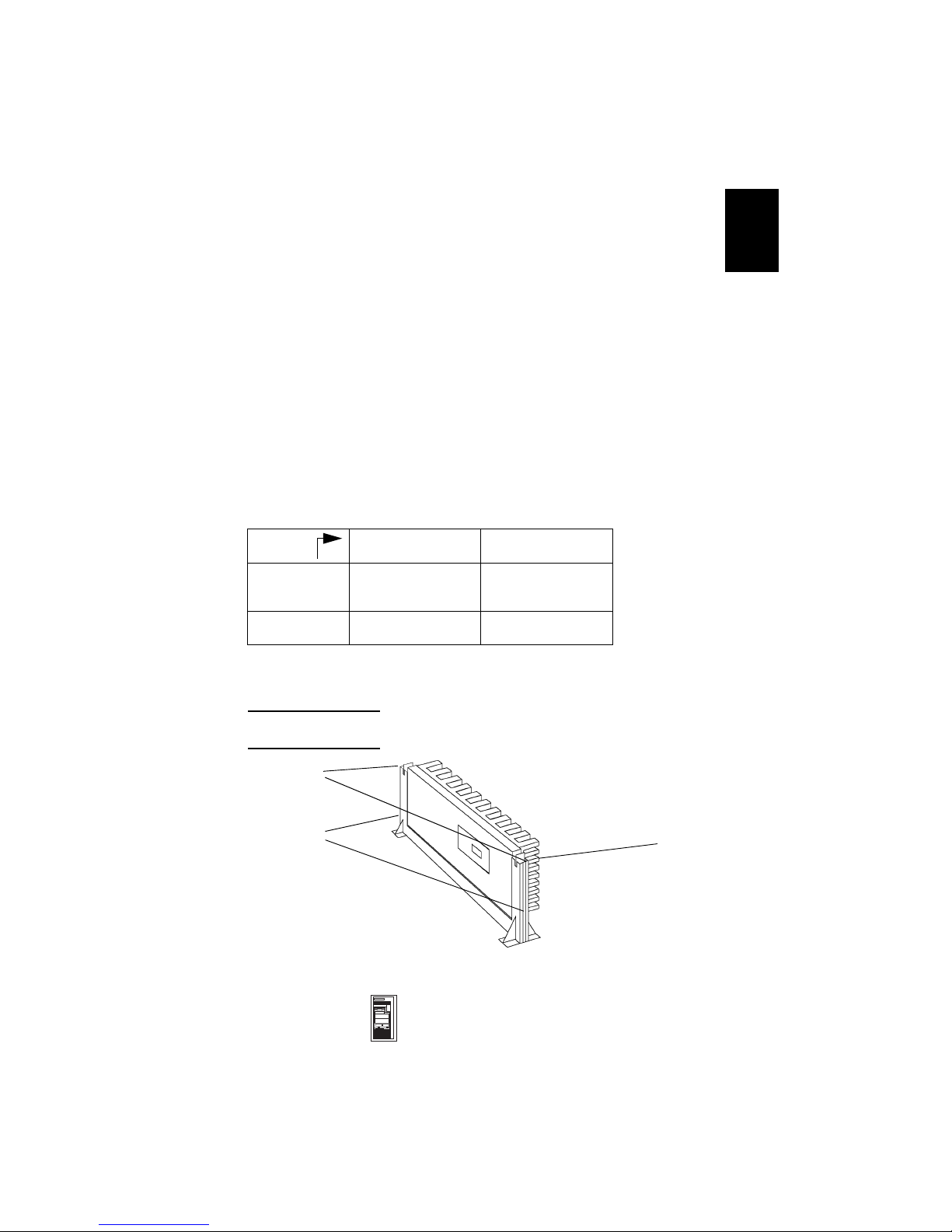

Installing a Dual Processor / Replacing a Processor

HP Kayak XU PC Workstations are supplied with dual processor slots and either

one or two processors installed. Single processor models can be upgraded to

dual processor systems by installing the second processor accessory in the

vacant slot.

The second processor must be a Pentium II processor of the same speed and

level-2 cache memory capacity as the first. It is installed by gently sliding the

processor into the vacant processor connector slot until the two plastic clips at

the sides engage to lock the processor into place.

Every processor that is installed, or replaced, must be accompanied by the

voltage regulator module (VRM) that was supplied with it. Each VRM is specific

to the processor with which it was supplied, and should only be used with that

processor.

The following table explains how to perform supported processor upgrades.

NOTE: After installation of a second processor, the operating

system must be reinstalled.

1. Switch settings must be changed. Ensure that the latest BIOS version

has been installed.

2. Supplied processor must be removed.

Upgrade

2 ✕

350MHz

2 ✕

400M Hz

1 ✕

350MHz

Add D6527A1Remove 350MHz

processor2

Add 2 ✕D6528A1

1✕

400MHz

Add D6528A1

Plastic clips

Heat-sink

Bracket pillars

HP Kayak XU PC Workstation

1-6 HP Kayak XU PC Workstation Mini-Tower

PC Workstations

1Cache Memory

512 KB of level-two cache memory is integrated in the Pentium II processor

package.

Main Memory

The PC Workstation has four DIMM slots on the system board for installing

main memory; slots 1, 2, 3 and 4. Models are supplied with 64 MB or 128 MB of

main memory. If additional memory is required, up to 1 GB may be installed.

Memory upgrades are available in single 64 MB, 128 MB or 256 MB ECC SDRAM

modules. A serial EEPROM on each DIMM contains data on the memory speed.

This information is read at each power on, and access time settings are set

accordingly.

NOTE: 256 MB registered ECC SDRAM modules are not

compatible with non-buffered ECC SDRAM modules

(64 MB, or 128 MB). Therefore, memory can be

upgraded to a maximum of 1 GB using multiples of

256 MB registered ECC SDRAM modules, or up to

512 MB using any combination of 64 MB or 128 MB

modules.

Video Memory

There is 8 MB of video memory already supplied on the graphics controller

board. Memory may be upgraded to a maximum of 16 MB by installing a

memory module of 4 MB, or 8 MB onto the board. No switch or jumper settings

need to be changed (all jumpers should be left in the positions in which they

were set by the manufacturer).

HP Kayak XU PC Workstation

Mini-Tower

PC Workstations HP Kayak XU PC Workstation 1-7

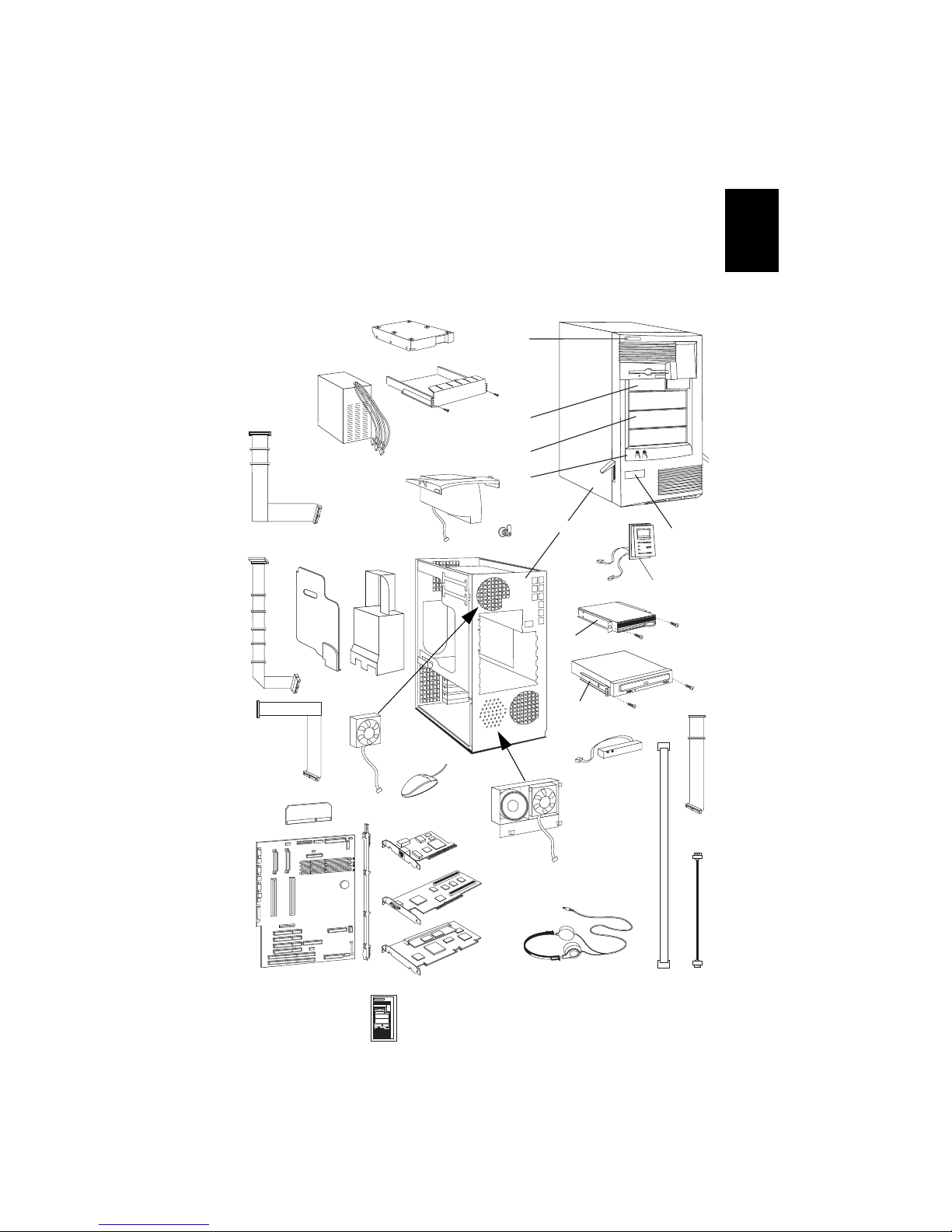

Part Numbers

20a

20b

20c

HP Kayak XU PC Workstation

1-8 HP Kayak XU PC Workstation Mini-Tower

PC Workstations

Parts List for HP Kayak XU PC Workstation

Item Description Repl.

Part Number

Exchange

Part Number

1 Box assembly:

a I/O Guide + Fan + Speaker assembly

b Cover lock assembly

c LCD status panel kit

d Multimedia control panel

e Hard disk drive tray (5.25-inch)

f Filler panel 3.5-inch

g Filler panel 5.25-inch

h Multimedia bezel

i Hard drive fan

j Processor airflow guide

k Processor retainer airflow guide

l SCSI holder protection

Not shown:

Bumper foot

5064-3665

5064-6055

5062-5590

5064-3683

5064-3383

5002-1946

5042-1405

5042-1178

5042-1873

5064-6054

5064-3674

5042-3013

5042-3014

5042-2479

—

2 a Logo HP Kayak XU PC Workstation

b Logo HP

5042-3021

5042-3030

—

3 UW-SCSI Hard disk drive (standard)1:

4.5 GB, 10k rpm

9.1 GB, 10k rpm

D4625-63001

D6451-63001

D4625-69001

D6451-69001

4 Power supply unit 0950-2772 —

5 Flexible disk drive (bezel-less) D2035-60172 —

6 CD-ROM drive (standard):

32✕IDE D4384-63001 D4384-69001

7 Rail kit (3.5-inch and 5.25-inch) 5063-7922

8 Internal IDE cable2(for CD-ROM) 5183-2713 —

9 CD-ROM to audio cable 5182-1857 —

10 Internal LAN cable 5183-2786 —

11 Headset 5064-2673 —

12 HP 10/100 BT SCSI/PCI LAN Board 5064-3616 D5755-69001

13 Graphics board

Millennium II AGP (8 MB) 5064-6062 D5680-69501

14 FastRAID2 (Adaptec ARO2) card with

SIMM 16 MB memory

5064-3668 D6690-69001

15 2-button mouse with scrolling wheel C4736-60101 —

16 CPU holder 5042-1162 —

17 System board See system board parts list

18 Processor terminator 5064-6722

19 Flexible disk cable 5183-0746 —

HP Kayak XU PC Workstation

Mini-Tower

PC Workstations HP Kayak XU PC Workstation 1-9

1. For optional disk drive information, refer to the Accessories section of this Service

Handbook.

2. This is a specific IDE cable with the master connector on one end and the slave connector

in the middle of the IDE cable.

3. Adapter is connected between the end of the 8-bit SCSI cable and the add-on LAN/SCSI

board.

4. Where “xx” is the code for your national keyboard (refer to the Accessories section of this

Service Handbook.

20 SCSI cables

a) 16-bit SCSI

b) 8-bit SCSI

c) Wide to narrow3 SCSI adapter

5183-6019

5183-2179

1252-8186

—

Not

Shown

Keyboards:

Enhanced keyboard C4734-602xx4—

Power cable (European 220V) 8120-1689

I/O blank panel 45935-00004 —

Screw mach 6 x 32 2680-0311

Parts List for HP Kayak XU PC Workstation

Item Description Repl.

Part Number

Exchange

Part Number

HP Kayak XU PC Workstation

1-10 HP Kayak XU PC Workstation Mini-Tower

PC Workstations

1. Heat-sink is integrated in the Pentium II processor package.

2. Accessory only.

System Board Parts List for HP Kayak XU PC Workstation

Description Repl.

Part Number

Exchange

Part Number

System board: D5680-63001 D5680-69001

Processors1:

Intel Pentium II 350 MHz, 512 KB cache D6527-63001 D6527-69001

Intel Pentium II 400 MHz, 512 KB cache D6528-63001 D6528-69001

Voltage regulator module (VRM) 0950-2837 —

Main memory modules 100 MHz):

1 ✕32 MB main memory ECC SDRAM2

1 ✕64 MB main memory ECC SDRAM

1 ✕128 MB main memory ECC SDRAM

1 ✕256 MB main memory Registered ECC

D6521-63001

D6522-63001

D6523-63001

D6524-63001

—

D6522-69001

D6523-69001

D6524-69002

Manuals and Documentation for HP Kayak XU PC Workstation

User’s Guide D5699-90001 and

electronic file

Familiarization Guide electronic file -

D5699-90901

Technical Reference Manual electronic file only

Software for HP Kayak XU PC Workstation

Kayak XU & XW Drivers and documentation CD-ROM 5011-5270

Altri manuali per Kayak XA

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Scrivania

HP TouchSmart 9300 Manuale operativo e di manutenzione

HP Desktop Computer Manuale utente

HP Pavilion u600 - Desktop PC Manuale utente

HP dc72 - Blade Workstation Client Manuale utente

HP EliteDesk 800 G6 Istruzioni per il montaggio

HP Vectra VE5 2 Manuale utente

HP Brio BA300 Manuale del prodotto

HP Presario SR1000 - Desktop PC Manuale operativo

HP ProOne 400 G1 Manuale utente

HP 7855 - Pavilion - 128 MB RAM Manuale tecnico

HP Pavilion d4000 - Desktop PC Istruzioni per l'installazione

HP Workstation x2100 Manuale utente

HP Xw8400 - Workstation - 4 GB RAM Manuale utente

HP Vectra VEi 7 Manuale

HP 205 G2 AiO Business Istruzioni per il montaggio

HP Compaq dx2200 MT Series Manuale utente

HP Pavilion v400 - Desktop PC Manuale utente

HP Kayak XA Manuale del prodotto

HP dx2040 - Microtower PC Manuale utente

HP Xw4400 - Workstation - 2 GB RAM Guida di riferimento rapido

HP Pavilion t400 - Desktop PC Istruzioni per l'installazione

HP Kayak XA-s 02xx Manuale utente

HP T1000 Manuale utente

HP Vectra VLi 8SF Manuale

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
