HP Kayak XA Manuale

Mini-Tower

PC Workstations

HP Kayak XA 6/xxx MT PC Workstation 10-1

HP Kayak XA 6/xxx MT

PC Workstation

Models and Accessories

Product

Number

Cache

Memory

Hard

Drive

Video

Controller

Std.

RAM

Multi-media LAN OS

HP Kayak XA PC Workstation

HP Kayak XA 6/233 PC Workstation (CPL: 10/97 )

D4806N 512 KB 2.5 GB

IDE

Integrated

Cirrus AGP

4 MB video

memory

32 MB

SDRAM

24 X Max IDE

CD-ROM.

Audio chip on

system board.

10BT/

100TX

4.0

HP XA 6/266 PC Workstation (CPL: 10/97 )

D4808N 512 KB 4.3 GB

IDE

Integrated

Cirrus AGP

4 MB video

memory

32 MB

SDRAM

24 X Max IDE

CD-ROM.

Audio chip on

system board.

10BT/

100TX

4.0

D4799N 4.5 GB

SCSI

HP XA 6/300 PC Workstation (CPL: 10/97 )

D4801N 512 KB 4.3 GB

IDE

Integrated

Cirrus AGP

4 MB video

memory

64 MB

SDRAM

24 X Max IDE

CD-ROM.

Audio chip on

system board.

10BT/

100TX

4.0

D4803N 4.5 GB

SCSI

D4803S Matrox

Millennium II

PCI, 4 MB

WRAM

ka_sh_1.bk : xa6mt-k.fb4 Page 1 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

10-2 HP Kayak XA 6/xxx MT PC Workstation Mini-Tower

PC Workstations

HP XA 6/333 PC Workstation (CPL: 03/98 )

D6493N 512 KB 6.4 GB

IDE

Integrated

Cirrus AGP

4 MB video

memory fitted

64 MB

SDRAM

24 X Max IDE

CD-ROM.

Audio chip on

system board.

10BT/

100TX

4.0

D6493S Matrox

Millennium II

PCI, 4 MB

WRAM

D6494N 4.5 GB

SCSI

Integrated

Cirrus AGP

4 MB video

memory fitted

Product

Number

Cache

Memory

Hard

Drive

Video

Controller

Std.

RAM

Multi-media LAN OS

ka_sh_1.bk : xa6mt-k.fb4 Page 2 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

Mini-Tower

PC Workstations

HP Kayak XA 6/xxx MT PC Workstation 10-3

Supported Accessories

SDRAM 16MB 64bit main memory (non-ECC) D5361A

SDRAM 32MB 64bit main memory (non-ECC) D5362A

SDRAM 32MB 64bit main memory (ECC) D5365A

SDRAM 64MB 64bit main memory (non-ECC) D5363A

SDRAM 64MB 64bit main memory (ECC) D5366A

SDRAM 128MB 64bit main memory (ECC) D5367A

Documentation

User’s Guide Manual Kit D4800A

Input Devices

HP mouse C3751B

HP keyboard for Windows® 95 C4725A

Video Displays

All current HP PC Displays (refer to the Displays section of the Vectra

Accessory Service Handbook)

Mass Storage

1.6-GB IDE hard disk D2679A

2.5-GB IDE hard disk D2678A

4.3-GB IDE hard disk D2677A

4.5 GB UW-SCSI hard disk 7.2k rpm D5368A/B

24✕Max IDE CD-ROM drive D4383A

ZIP drive 100 MB D4390A

ka_sh_1.bk : xa6mt-k.fb4 Page 3 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

10-4 HP Kayak XA 6/xxx MT PC Workstation Mini-Tower

PC Workstations

System Board, BIOS, and Memory

Processor:

Pentium II MMX

module with integrated

heatsink, level-1 and

level-2 cache memory.

Main Memory:

3 sockets giving a

maximum of 384 MB.

Video Memory:

2 MB onboard and 2 MB

in a module, or 4 MB on-

board.

System Board

Switches:

See the table on the

next page.

ka_sh_1.bk : xa6mt-k.fb4 Page 4 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

Mini-Tower

PC Workstations

HP Kayak XA 6/xxx MT PC Workstation 10-5

System Board Switches

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site. The BIOS is in the form HC.11.xx.

1. Refer to “Recovery Boot Active Procedure” in Appendix B for the detailed recovery

procedure.

Switch Function Default

1Open

Reserved Open

2-5 - Processor frequency, see the following table -

6Open Normal operation Open

Closed Clears CMOS (to reload the Setup program defaults)

7Open Normal operation Open

Closed Clears User and Administrator passwords

8Open Disables keyboard power-on Closed

Closed Normal operation

9Open Normal operation Open

Closed Recovery boot active1

10 Open Reserved Open

Processor

Frequency

Switch

Local Bus

Frequency

Switch Frequency

Ratio

Processor :

Local Bus

2345

233 MHz Open 66 MHz Open Closed Closed 3.5 : 1

266 MHz Open 66 MHz Closed Open Open 4 : 1

300 MHz Open 66 MHz Closed Open Closed 4.5 : 1

333 MHz Open 66 MHz Closed Closed Open 5 : 1

http://www.hp.com/go/kayaksupport

ka_sh_1.bk : xa6mt-k.fb4 Page 5 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

10-6 HP Kayak XA 6/xxx MT PC Workstation Mini-Tower

PC Workstations

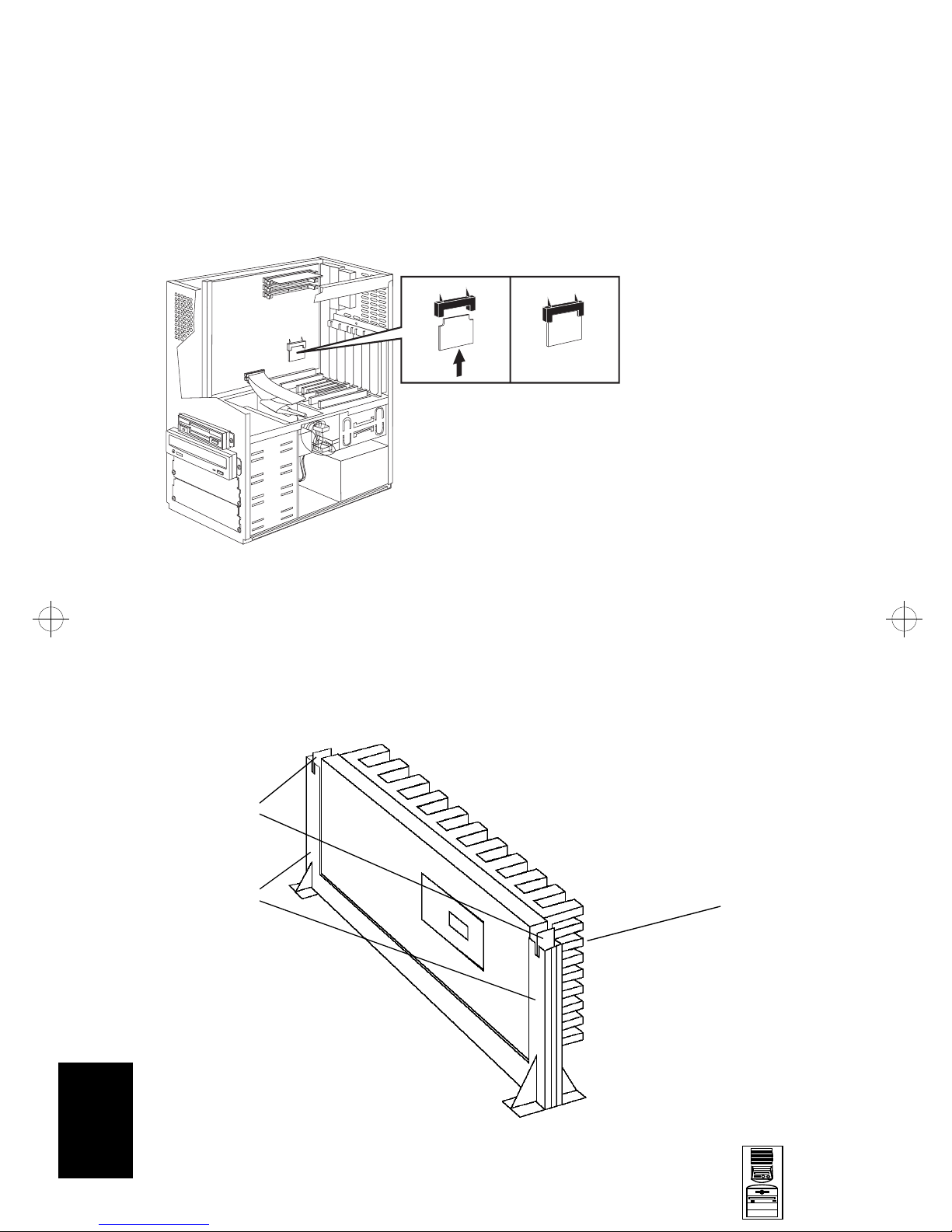

Video Memory

Some models are supplied with 2 MB of video memory soldered on the system

board, and a further 2 MB in a module, giving 4 MB in total. Other models are

supplied with 4 MB of video memory soldered on the system board.

Changing the Processor

The Pentium II MMX processor is contained on a module which is installed in a

socket on the system board. It is held in place by a bracket. To remove the

processor, press the two plastic clips towards each other and pull the processor

out of its connector.

Plastic clips

Heat-sink

Bracket pillars

ka_sh_1.bk : xa6mt-k.fb4 Page 6 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

Mini-Tower

PC Workstations

HP Kayak XA 6/xxx MT PC Workstation 10-7

Part Numbers

10 6

ka_sh_1.bk : xa6mt-k.fb4 Page 7 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

10-8 HP Kayak XA 6/xxx MT PC Workstation Mini-Tower

PC Workstations

Parts List for HP XA 6/xxx PC Workstation

Item Description Repl.

Part Number

Exchange

Part Number

1 Box assembly:

a Cover lock assembly

b I/O panel blank

c Filler panel 5.25 inch

5064-3623

5062-5590

45935-00004

5042-2471

—

2 Logo HP Kayak XA PC Workstation 5042-2492 —

3Front bezel assembly 5064-3635 —

4 Ultra ATA hard disk drive (standard) 1

6.4 GB D5191-63001 D5191-69001

4.3 GB D2677-63001 D2677-69001

2.5 GB D2678-63001 D2676-69001

Ultra Wide SCSI hard disk drive (standard)1

4.5 GB 7.2k rpm D5095-63001 D5095-69001

Tray HDD 5002-1946 —

5 Ultra ATA HDD cable 5183-6055 —

6 IDE CD-ROM cable 5183-2104 —

7 SCSI cable 5183-2781 —

8 Rail kit (3.5 inch/ 5.25 inch) 5063-7961 —

Rails for CD-ROM 5002-1930 —

9 Flexible disk drive (bezel-less) D2035-60172 —

10 Flexible disk drive cable 5182-3509 —

11 24✕Max IDE CD-ROM drive D4383-63001 D4383-69001

12 Power supply Unit 0950-2694 —

13 3 V external battery 1420-0552 —

14 Airflow guide and fan assembly 5064-1886 —

16 Backplane board 5064-6733 —

17 System board See PC’s system board parts list

18 CD-ROM to audio board cable 5182-1857 —

19 SCSI and 10BT/100TX LAN board 5064-1895 D4798-69001

10BT/100TX PCI LAN board 5064-1897 D3999-69001

20 Headset 5064-2673 —

21 Speaker assembly 5063-4559 —

22 Status panel (multimedia) 5064-6085 —

23 Mouse C3751-60201 —

ka_sh_1.bk : xa6mt-k.fb4 Page 8 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

Mini-Tower

PC Workstations

HP Kayak XA 6/xxx MT PC Workstation 10-9

1. For optional disk drive information, refer to the Accessories section of this Service

Handbook.

2. Where “xx” is the code for your national keyboard (refer to the Accessories section of this

Service Handbook).

Not

Shown

Enhanced Keyboard C4734-602xx2—

Japanese Keyboard C4729-60224 —

Serial number label 5182-0030 —

Internal SCSI/LAN to CPU cable 5183-2117 —

Internal LAN to CPU cable 5183-0758 —

Screw 6-32 2360-0565 —

Screw 6-32 2680-0311 —

Window/smoke 5042-2457 —

Matrox Millennium II PCI video board,

4 MB (D4796S only)

D3568-63013 D3568-69013

System Board Parts List for HP Kayak XA 6/xxx PC Workstation

Description Repl.

Part Number

Exchange

Part Number

System board:

XA 6/xxx system board D6490-60001 D4791-69002

Processors:

Intel Pentium II 233/512 5064-2651 —

Intel Pentium II 266/512 5064-2652 —

Intel Pentium II 300/512 5064-3330 —

Intel Pentium II 333/512 5064-3697 —

Main memory modules:

SDRAM 32MB 64bit D5362-63001 —

SDRAM 64MB 64bit D5363-63001 —

Video memory module:

2 MB standard module 5064-3359 —

Parts List for HP XA 6/xxx PC Workstation

Item Description Repl.

Part Number

Exchange

Part Number

ka_sh_1.bk : xa6mt-k.fb4 Page 9 Tuesday, June 23, 1998 11:54 AM

HP Kayak XA 6/xxx MT PC Workstation

10-10 HP Kayak XA 6/xxx MT PC Workstation Mini-Tower

PC Workstations

Notes: _____________________________________________________________

____________________________________________________________________

1. Electronic file only.

Manuals and Documentation for HP Kayak XA 6/xxx PC Workstation

Description Repl.

Part Number

Exchange

Part Number

User’s Guide D4800-90001 —

Familiarization Guide D4790-909011—

Technical Reference Manual: hardware and

BIOS no number1—

Software & Utilities CD-ROM 5011-5271 —

Recovery CD-ROM (English) 5011-5218-US —

Recovery CD-ROM (German) 5011-5218-GR —

Recovery CD-ROM (Spanish) 5011-5218-SP —

Recovery CD-ROM (French) 5011-5218-FR —

ka_sh_1.bk : xa6mt-k.fb4 Page 10 Tuesday, June 23, 1998 11:54 AM
