HP Net Vectra n30 Manuale

Desktop

Vectras

HP Net Vectra N30 1-1

HP Net Vectra N30

Models and Accessories

All models have an integrated ATI Rage LT Pro AGP video controller, 4 MB of

integrated video SGRAM, an integrated 16-bit audio controller, and an integrated

Intel 82558 or 82559 10/100BT LAN interface.

Product

Number

Cache

Memory

Hard Drive Std. RAM CD-ROM Floppy

Disk Drive

OS1

HP Net Vectra N30

HP Net Vectra N30 Celeron/366 (CPL: 03/99; discontinued 08/99)

D8053A 128 KB 4.3 GB IDE 32 MB SDRAM no yes Win 95

D8053N 64 MB SDRAM Win NT 4.0

D8870A yes Win 95

D8880N

D8881A Win 98

HP Net Vectra N30 Celeron/400 (CPL: 07/99; discontinued 09/99)

D8877A 128 KB 4.3 GB IDE 64 MB SDRAM yes yes Win 98

D8882A 6.4 GB Win 95

D8883A Win 98

D9046A 32 MB SDRAM no Win 95

D9046N 64 MB SDRAM Win NT 4.0

D9050A yes Win 95

netPC30.fm Page 1 Thursday, December 9, 1999 4:05 PM

HP Net Vectra N30

1-2 HP Net Vectra N30 Desktop

Vectras

HP Net Vectra N30 Pentium II/400 (CPL: 04/99; discontinued 09/99)

D8042N 512 KB 4.3 GB IDE 64 MB SDRAM no yes Win NT 4.0

D8042N

#G01

IBM-DOS

D8042N

#G02

128 MB SDRAM

D8051A 32 MB SDRAM Win 95

D8051N 64 MB SDRAM Win NT 4.0

D8874A yes Win 95

D8875N 8.4 GB IDE Win NT 4.0

D8884A 4.3 GB IDE Win 95

D8885A Win 98

HP Net Vectra N30 Pentium III/450 (CPL: 07/99; discontinued 01/00)

D8876A 512 KB 4.3 GB IDE 64 MB SDRAM yes yes Win 98

D8887A Win 95

D8888A Win 98

D8888N Win NT 4.0

D9048A 4.3 GB IDE 32 MB SDRAM no Win 95

D9048N 8.4 GB IDE 64 MB SDRAM Win NT 4.0

D9051A 4.3 GB IDE yes Win 95

D9052N Win NT 4.0

HP Net Vectra N30 Pentium III/500 (CPL: 07/99 )

D9053A 512 KB 8.4 GB IDE 64 MB SDRAM yes yes Win 95

D9054N Win NT 4.0

D9055A 32 MB SDRAM no Win 95

D9055N 64 MB SDRAM Win NT 4.0

D9056A yes DOS

D9057A Win 95

D9058A Win 98

D9058N Win NT 4.0

1. Operating system preloaded on these models, as indicated in the table.

Product

Number

Cache

Memory

Hard Drive Std. RAM CD-ROM Floppy

Disk Drive

OS1

netPC30.fm Page 2 Thursday, December 9, 1999 4:05 PM

HP Net Vectra N30

Desktop

Vectras

HP Net Vectra N30 1-3

Note

All models have an integrated PCI audio controller.

Supported Accessories

Support Documentation

Support documentation is available from the HP Web site at:

http://www.hp.com/go/vectrasupport/

Multimedia

HP Slim CD-ROM Drive and Cable D6889A

Other

Underdesk Socket for HP Net Vectra Products D7694A

netPC30.fm Page 3 Thursday, December 9, 1999 4:05 PM

HP Net Vectra N30

1-4 HP Net Vectra N30 Desktop

Vectras

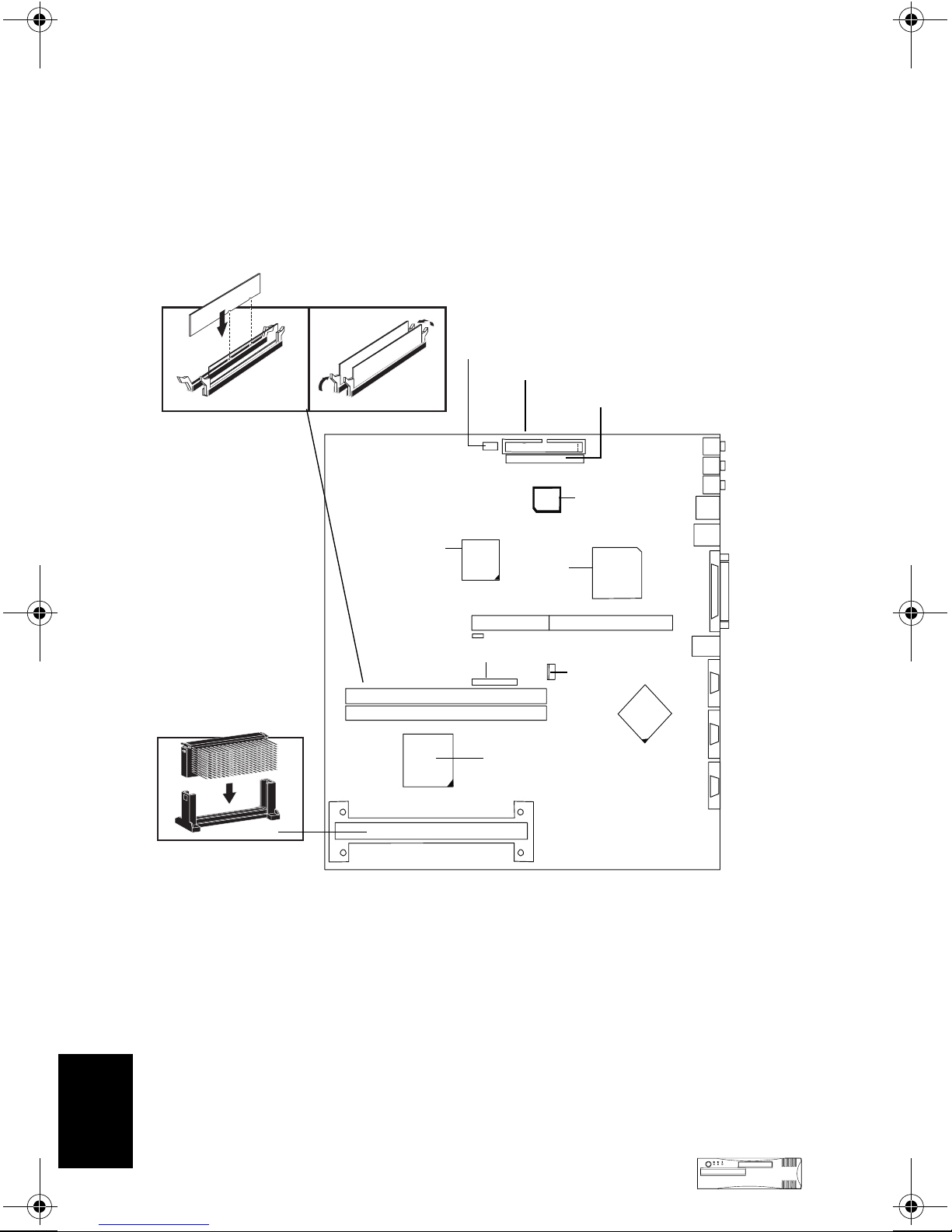

System Board, BIOS, and Memory

DIMM1

DIMM2

SLOT 1

Processor:

Intel Pentium II or

Intel Celeron module.

Main Memory:

Two DIMM sockets which support up to

256 MB of memory.

Install 32 MB, 64 MB, or 128 MB SDRAM

modules.

System Board Switches:

See the table on the next page.

AGPset

Rear Panel Connectors

Backplane Slot

PCI set

LAN chip

82558/9

ROM BIOS

CD-ROM Drive Connector

Primary IDE Connector

Floppy Disk Drive Connector

Wake On LAN Connector

ATI Rage LT

PRO AGP

System Board Switches

netPC30.fm Page 4 Thursday, December 9, 1999 4:05 PM

HP Net Vectra N30

Desktop

Vectras

HP Net Vectra N30 1-5

System Board Switches

If SW5 and SW6 are set to ON and the PC is restarted, this will initiate the Boot Recovery

mode. Boot Recovery mode forces booting in the BIOS boot block area.

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

Switch Function Default

1-4 — Processor frequency, see the following table —

5On Clears CMOS (to reload the Setup program defaults) Off

Off Normal operation

6On Clears User and Administrator passwords Off

Off Normal operation

System Frequency1

1. System frequency is automatically determined by the type of processor.

Switch

Bus 100 MHz Bus 66 MHz 1234

350 MHz2

2. These options are not yet available in any model at the time of printing. This information is

provided for completeness only.

2332MHz On On Off Off

400 MHz 2662MHz On Off On On

450 MHz 3002MHz On Off On Off

500 MHz 3332MHz On Off Off On

Reserved 366 MHz On Off Off Off

Reserved 400 MHz Off On On On

http://www.hp.com/go/vectrasupport/

netPC30.fm Page 5 Thursday, December 9, 1999 4:05 PM

HP Net Vectra N30

1-6 HP Net Vectra N30 Desktop

Vectras

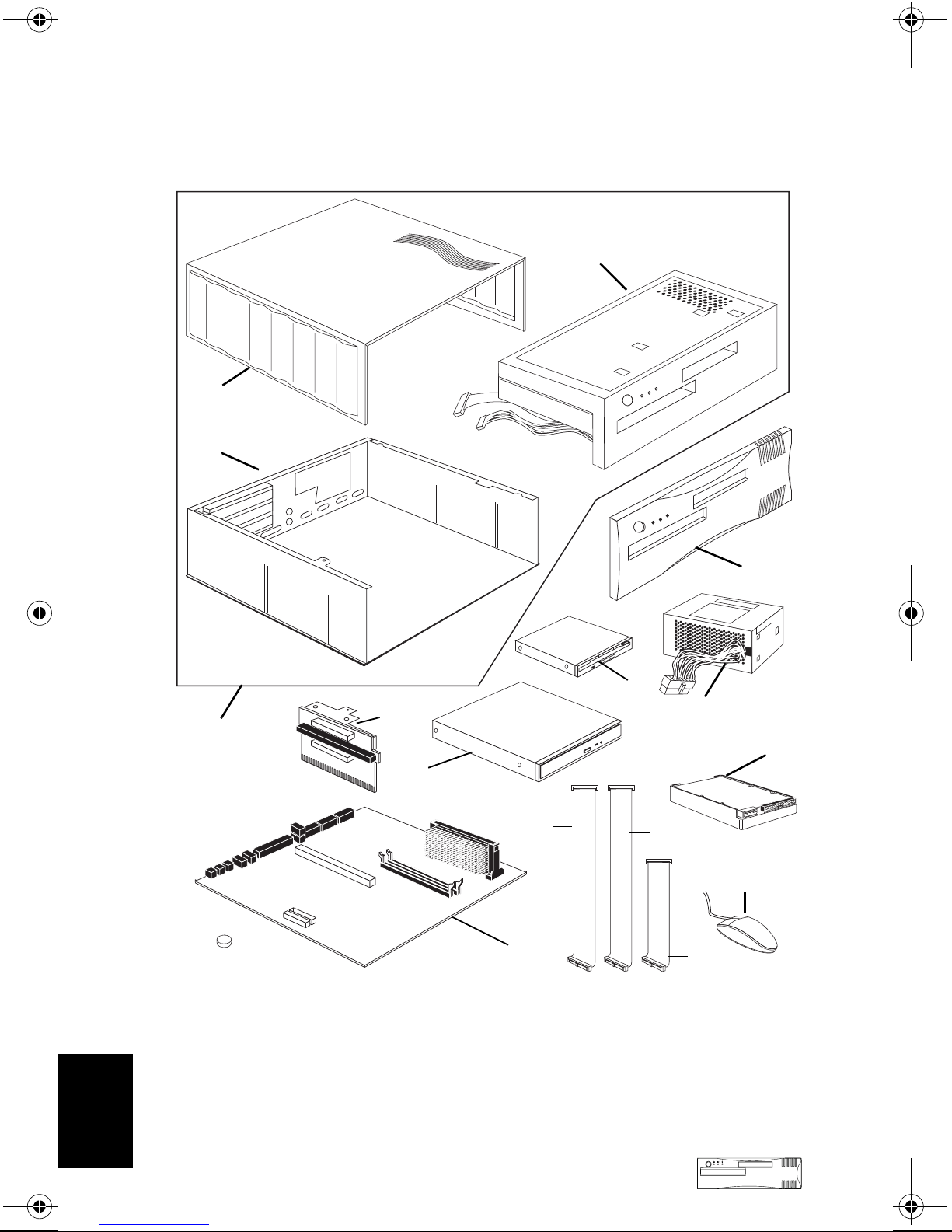

Part Numbers

netPC30.fm Page 6 Thursday, December 9, 1999 4:05 PM

HP Net Vectra N30

Desktop

Vectras

HP Net Vectra N30 1-7

Parts List

Item Description Repl.

Part Number

Exchange

Part Number

1 Box Assembly:

a Chassis Top Cover

b Front Panel Chassis

c Main Chassis

Not shown Plastic top cover and plastic base

5064-9755

5064-9181

—

2 Front bezel (with knobs and lens)

Front bezel (with knobs and lens) for floppy-

less models

Front bezel (with knobs and lens) for Unisys

5064-9199

5064-9198

5064-9731

—

3 System Board

Also refer to PC’s system board parts list

—D8041-69002

4 Power supply unit 0950-3500 —

5 Internal Cables Kit:

a FDD cable

b HDD cable

c CD-ROM cable and adapter

d Not shown: HDD power cable

5064-7443

Not

Shown

HDD cables (power and data cable) 5065-1248 —

CD-ROM cable and screws kit 5064-9734

6Slim 24✕Max CD-ROM drive 5064-7444 —

7Slim floppy disk drive 5064-7445 —

8 HP Small PC 30 Backplane with metal adapter 5064-9701 —

9 Hard Disk Drives:

4.3 GB

4.3 GB1

6.4 GB

8.4 GB

8.4 GB1

1. Used on D8042N #G01 and D8042 #G02 only.

—

D8303-69001

D8304-69002

D8306-69001

D8304-69001

D8307-69001

D8305-69002

10 HP Mouse C3751-60201 —

11 Battery (type: CR2032) 1420-0356 —

Not

Shown

Status Panel with LEDs 5064-7442 —

Standard HP Keyboard C4735-603xx2

2. Where “xx” is the code for your national keyboard.

—

Standard HP Keyboard (Japan) C4732-60324 —

HP Recovery CD-ROM 5011-6649 —

Plastic foot stands (2✕)5042-3069 —

Rubber feet and screws kit 5064-9182 —

netPC30.fm Page 7 Thursday, December 9, 1999 4:05 PM

HP Net Vectra N30

1-8 HP Net Vectra N30 Desktop

Vectras

Notes: ______________________________________________________________

_____________________________________________________________________

System Board Parts List

Description Repl.

Part Number

Exchange

Part Number

Processors:

Intel Celeron 366/66 with heat sink

Intel Celeron 400/66 with heat sink

Intel Pentium II 400/100 with heat sink

Intel Pentium III 450/100 with heat sink

Intel Pentium III 500/100 with heat sink

Fan for Intel Pentium II and III processor

5064-9705

5064-9800

—

5065-0403

D8041-63104

5064-9706

—

D8041-69102

—

Main memory modules:

1 ✕32-MB main memory 60-ns SDRAM D6501-63101 —

1 ✕64-MB main memory 60-ns SDRAM D6502-63101 —

1 ✕128-MB main memory 60-ns SDRAM — D6503-69101

Manuals and Documentation1

1. Go to HP’s Support Web Site at http://www.hp.com/go/vectraupport/.

User’s Guide D8041-90001

Troubleshooting Guide no number2

2. Electronic file only.

Accessories Guide no number2

netPC30.fm Page 8 Thursday, December 9, 1999 4:05 PM
