HP Pavilion xl900 - Desktop PC Manuale utente

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 1 of 70 Printed: 04/26/01 11:33 AM

English

upgrading and

servicing the pc

English

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 2 of 70 Printed: 04/26/01 11:33 AM

The information in this document is subject to change without notice.

Hewlett-Packard®Company makes no warranty of any kind with

regard to this material, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose.

HP shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing,

performance, or use of this material.

HP assumes no responsibility for the use or reliability of its software

on equipment that is not furnished by HP.

This document contains proprietary information that is protected by

photocopied, reproduced, or translated to another language

without the prior written consent of HP.

Hewlett-Packard Company

Home Products Division

P.O. Box 4010

Cupertino, CA 95015-4010

USA

Hewlett-Packard is a registered trademark of Hewlett-Packard

Company in the United States of America and other countries.

Other brand or product names are trademarks of their respective

holders.

upgrading and servicing the pc iii

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 3 of 70 Printed: 04/26/01 11:33 AM

English

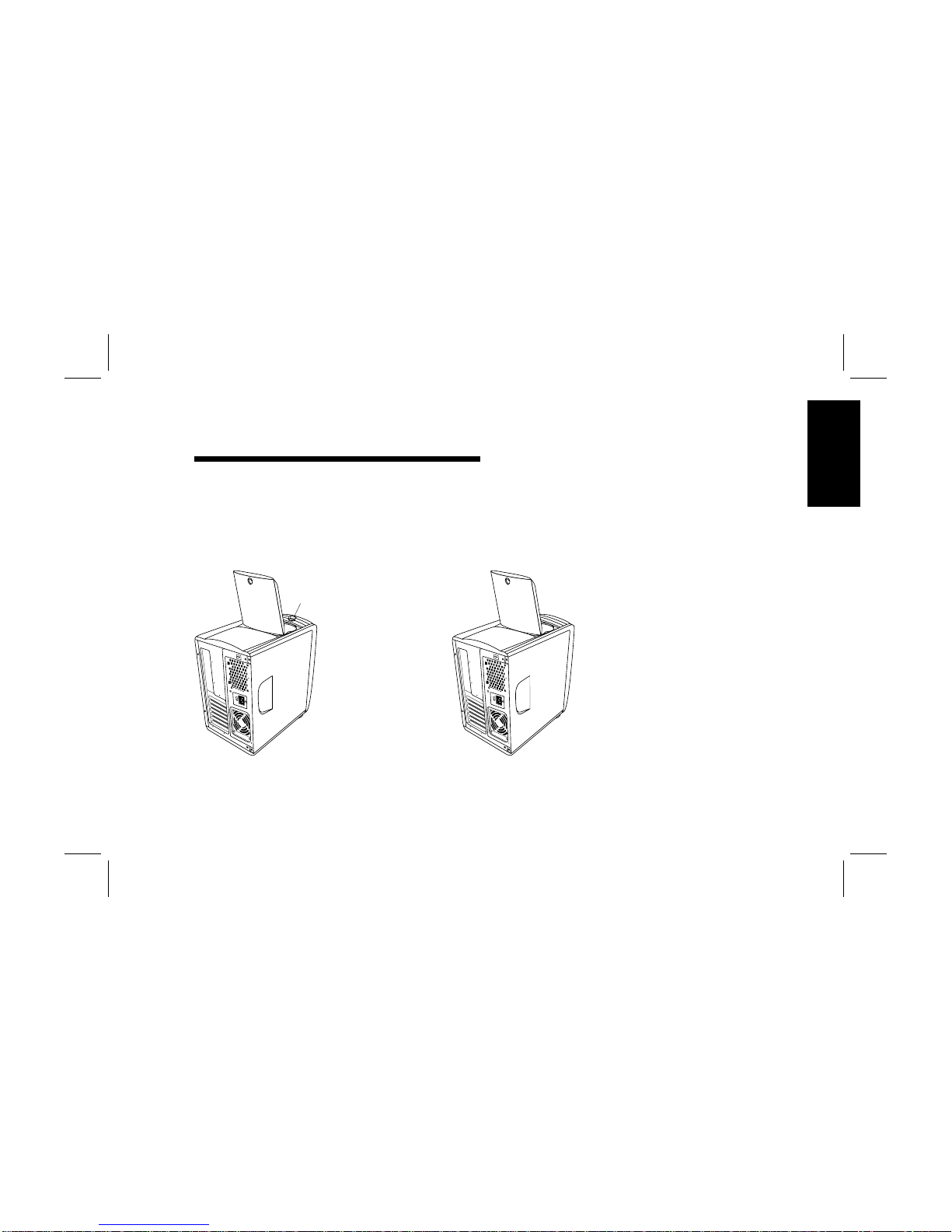

Depending on the internal design of your PC, different instructions for upgrading and servicing your

computer are applicable. To determine which instructions are appropriate for your computer, open the

door on top of the chassis, and compare the inside with the two drawings below. If you see a hole inside,

refer to page 1. If you do not see a hole, refer to page 29.

Hole

Upgrading and Servicing the PC

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 4 of 70 Printed: 04/26/01 11:33 AM

upgrading and servicing the pc 1

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 201 Page: 1 of 70 Printed: 04/26/01 01:58 PM

English

Features of the HP Pavilion home PC .... 3

Opening the Computer......................... 4

Before You Begin ............................................. 5

Removing the Front Drive Cover......................... 6

Removing the Side Panel................................... 7

Sliding the Drive Cage In and Out ..................... 8

Opening the Back Panel Door ......................... 10

Adding Memory ................................ 11

Installing a DIMM .......................................... 12

Removing a DIMM......................................... 14

Installing Add-In Cards ...................... 15

What Is Plug and Play?................................... 17

If the New Card or Device Isn’t Working........... 17

Adding and Removing Drives .............18

Removing the Hard Drive ................................18

Replacing the Diskette Drive.............................20

Replacing an Optical Drive..............................22

Replacing the Battery .........................24

Closing the Computer .........................25

Replacing the Front Drive Cover .......................25

Replacing the Side Panel................................. 27

Regulatory and Safety Information.....55

ENERGY STAR Compliance .............................58

Operating Specifications................................. 65

Contents

2hp pavilion home pc

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 2 of 70 Printed: 04/26/01 11:33 AM

upgrading and servicing the pc 3

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 3 of 70 Printed: 04/26/01 11:33 AM

English

Features of the

HP Pavilion home PC

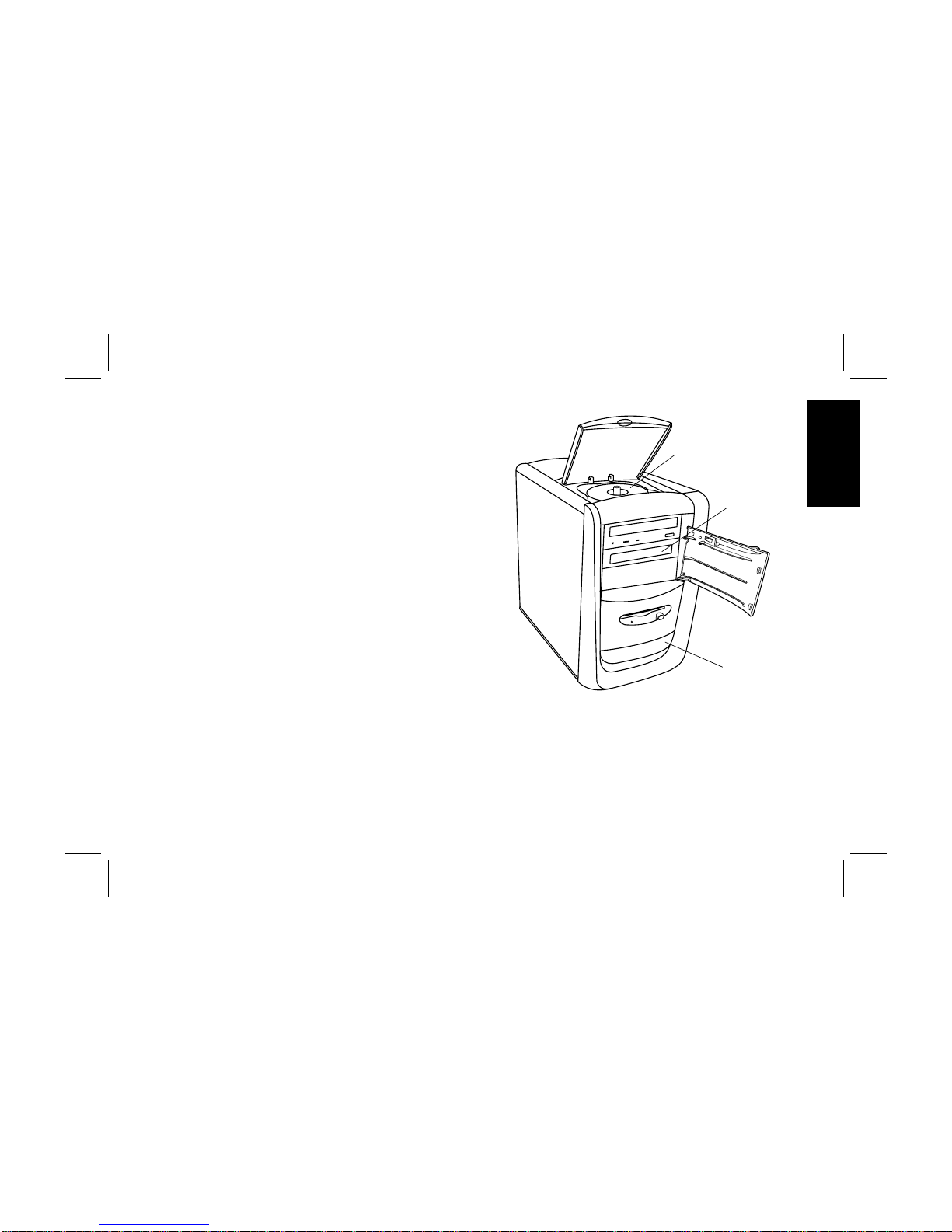

On the top of the chassis is a CD holder (A).

You can store the CDs that came with the

HP Pavilion inside this compartment. If you ever

need to reinstall any of the system applications,

you will be able to quickly locate the CDs.

The door located below the CD-ROM drive

covers two drive slots (B). The Zip or CD-Writer

drive, if included with the system, is behind

this door.

To connect components to the front of the PC, flip

up the port cover (C) and plug the cables into the

available connectors. For example, the serial port

(used for a digital camera) is located here.

4hp pavilion home pc

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 4 of 70 Printed: 04/26/01 11:33 AM

Opening the Computer

Warning: The HP Pavilion is heavy; be

sure to use ergonomically correct lifting

procedures when moving the computer.

Avertissement : L’ordinateur

HP Pavilion est lourd ; suivez des

procédures ergonomiques lorsque vous le

déplacez.

Warning: Electrostatic discharge (ESD)

can damage disk drives, add-in cards,

and other components. If an ESD station is

not available, wear a wrist strap attache

to a metal part of the computer. Place

cards on a conductive foam pad or inside

the conductive wrapper they came in; do

not place the cards on top of the wrapper.

Avertissement : Des décharges

électrostatiques peuvent endommager les

unités de disque, cartes d’extension et

autres composants. Si vous ne disposez

pas d’une station de protection contre les

décharges électrostatiques, portez un

bracelet antistatique relié à une partie

métallique de l’ordinateur. Placez les

cartes sur un tapis en mousse conducteur

ou dans leur emballage, mais ne les

posez jamais sur leur emballage.

Warning: Do not operate the system

with the cover removed. Always replace

the cover before turning on the system.

Avertissement : N’utilisez pas le

système lorsque son capot est ouvert.

Remettez toujours le capot en place avant

de mettre le système sous tension.

upgrading and servicing the pc 5

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 5 of 70 Printed: 04/26/01 11:33 AM

English

Before You Begin

Read the following items before attempting to

upgrade or service the computer:

These procedures assume familiarity with the

general terminology associated with personal

computers and with the safety practices and

regulatory compliance required for using and

modifying electronic equipment.

Set up an equipment log to record the system

model and serial numbers, all installed

options, and other information about the

system. If you need this information, it will be

easier to consult the log than to open up and

examine the system.

You need a #2 Phillips screwdriver and a

medium flat-blade screwdriver. HP

recommends that you use an antistatic wrist

strap and a conductive foam pad when

working on the system.

Disconnect the system from any

telecommunications links, networks,

or modems, and then disconnect the system

power source before performing any of the

procedures described in this guide. Failure to

do so before you open the system or do any

procedures can result in personal injury or

equipment damage.

To gain access to the inside of the computer, you

need to remove the side panel. For some tasks,

you might also need to remove the front drive

cover, slide out the drive cage, or open the back

panel door.

6hp pavilion home pc

Filename: ma1rwsc.doc Title: HP-Print2k.dot

Template: HP-Print2K.dot Author: Ann Schmidt Last Saved By: Jerry C. Stogsdill

Revision #: 198 Page: 6 of 70 Printed: 04/26/01 11:33 AM

Removing the Front Drive Cover

The front of the computer has a removable and

replaceable cosmetic cover. You must remove the

cover in order to install a new front cover, slide

out the drive cage, or add a new internal drive.

1Turn off the computer and all peripherals.

2Disconnect the modem/phone cable.

3Disconnect the power cord and all other

attached cables (such as the keyboard, mouse,

and monitor).

4Open the door on the CD holder (on the top of

the chassis).

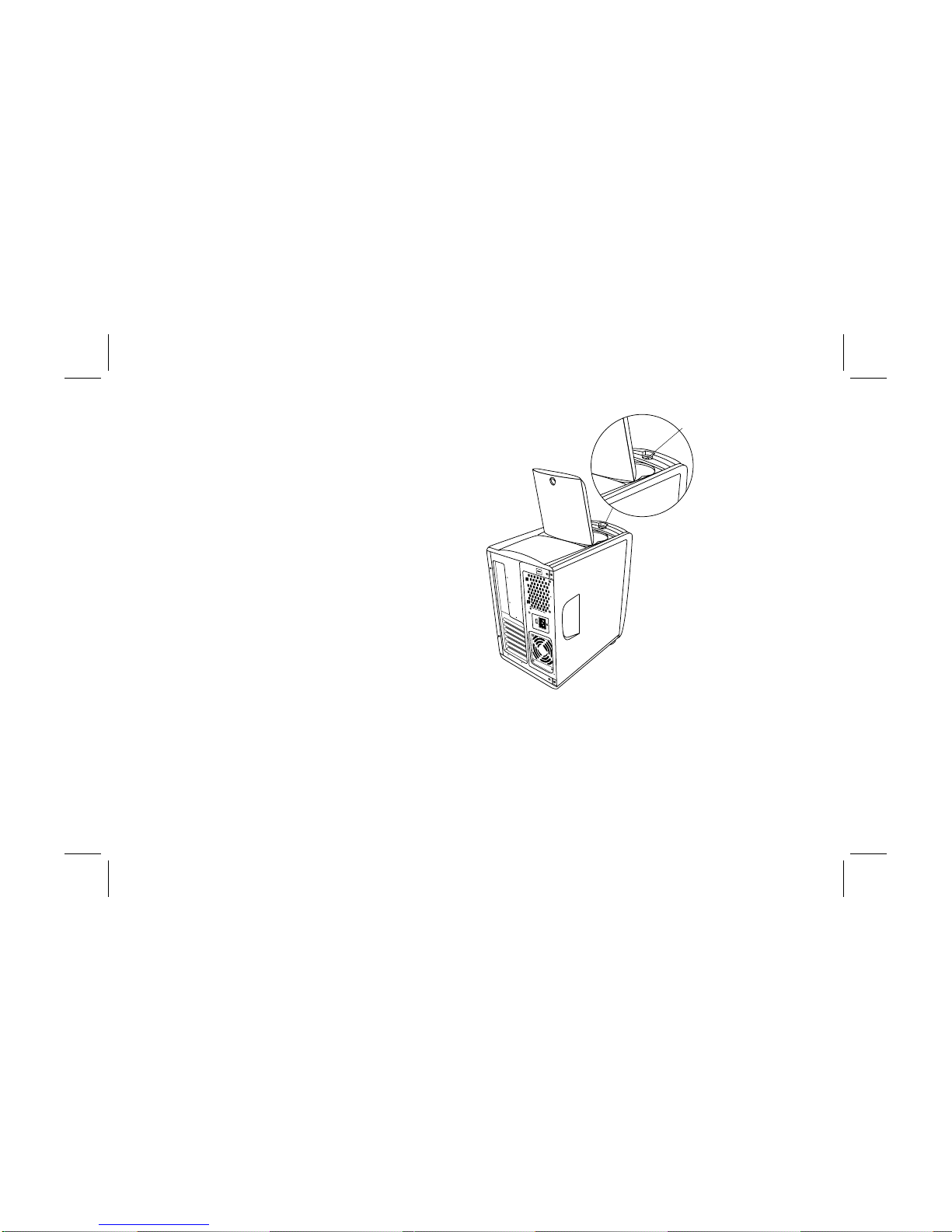

5In the hole on top of the chassis (A), insert a

pointed object (such as a paper clip or pen).

The drive cover pops open.
