HP Spectre x360 Convertible PC

Maintenance and Service Guide

IMPORTANT! This document is intended for

HP authorized service providers only.

Company, L.P.

Bluetooth is a trademark owned by its

proprietor and used by HP Inc. under license.

Intel and Core are trademarks of Intel

Corporation in the U.S. and other countries.

Windows is either a registered trademark or

trademark of Microsoft Corporation in the

United States and/or other countries. SD Logo

is a trademark of its proprietor.

The information contained herein is subject to

change without notice. The only warranties for

HP products and services are set forth

in the express warranty statements

accompanying such products and services.

Nothing herein should be construed as

constituting an additional warranty. HP shall

not be liable for technical or editorial errors or

omissions contained herein.

Second Edition: August 2017

First Edition: December 2016

Document Part Number: 912979-002

Product notice

This user guide describes features that are

common to most models. Some features may

not be available on your computer.

In accordance with Microsoft’s support policy,

HP does not support the Windows® 8 or

Windows 7 operating system on products

congured with Intel and AMD 7th generation

and forward processors or provide any

Windows 8 or Windows 7 drivers on

http://www.support.hp.com.

Not all features are available in all editions of

Windows. This computer may require upgraded

and/or separately purchased hardware, drivers

and/or software to take full advantage of

Windows functionality. Go to

http://www.microsoft.com for details.

Software terms

By installing, copying, downloading, or

otherwise using any software product

preinstalled on this computer, you agree to be

bound by the terms of the HP End User License

Agreement (EULA). If you do not accept these

license terms, your sole remedy is to return the

entire unused product (hardware and software)

within 14 days for a full refund subject to the

refund policy of your seller.

For any further information or to request a full

refund of the price of the computer, please

contact your seller.

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not

place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, at

surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as

pillows or rugs or clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft

surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply

with the user-accessible surface temperature limits dened by the International Standard for Safety

of Information Technology Equipment (IEC 60950-1).

iii

iv Safety warning notice

Table of contents

1 Product description ....................................................................................................................................... 1

2 Getting to know your computer ...................................................................................................................... 4

Right side ............................................................................................................................................................... 4

Left side ................................................................................................................................................................. 5

Display .................................................................................................................................................................... 7

Keyboard area ........................................................................................................................................................ 8

TouchPad ............................................................................................................................................. 8

Lights ................................................................................................................................................... 9

Speakers ............................................................................................................................................ 10

Special keys ....................................................................................................................................... 11

Bottom ................................................................................................................................................................. 12

Labels ................................................................................................................................................................... 13

3 Illustrated parts catalog .............................................................................................................................. 14

Computer major components .............................................................................................................................. 14

Miscellaneous parts ............................................................................................................................................. 16

4 Removal and replacement preliminary requirements ..................................................................................... 17

Tools required ...................................................................................................................................................... 17

Service considerations ......................................................................................................................................... 17

Plastic parts ....................................................................................................................................... 17

Cables and connectors ...................................................................................................................... 17

Grounding guidelines ........................................................................................................................................... 18

Electrostatic discharge damage ........................................................................................................ 18

5 Removal and replacement procedures ........................................................................................................... 21

Bottom cover ....................................................................................................................................................... 22

Battery ................................................................................................................................................................. 23

Memory modules ................................................................................................................................................. 25

WLAN module ...................................................................................................................................................... 27

Fans, left and right ............................................................................................................................................... 29

Heat sink .............................................................................................................................................................. 31

Speakers .............................................................................................................................................................. 33

USB/audio/power connector board ..................................................................................................................... 36

Solid-state drive .................................................................................................................................................. 39

RTC battery .......................................................................................................................................................... 40

TouchPad .............................................................................................................................................................. 41

Volume board ....................................................................................................................................................... 43

Card reader board ................................................................................................................................................ 45

Display assembly ................................................................................................................................................. 47

System board ....................................................................................................................................................... 49

Top cover/keyboard ............................................................................................................................................. 52

6 Using Setup Utility (BIOS) ............................................................................................................................. 53

Starting Setup Utility (BIOS) ................................................................................................................................ 53

Updating Setup Utility (BIOS) .............................................................................................................................. 53

Determining the BIOS version ........................................................................................................... 53

Downloading a BIOS update .............................................................................................................. 54

7 Using HP PC Hardware Diagnostics (UEFI) ....................................................................................................... 55

Downloading HP PC Hardware Diagnostics (UEFI) to a USB device .................................................................... 55

8 Backing up, restoring, and recovering ........................................................................................................... 57

Creating recovery media and backups ................................................................................................................ 57

Creating HP Recovery media (select products only) ......................................................................... 57

Using Windows tools ........................................................................................................................................... 58

Restore and recovery ........................................................................................................................................... 59

Recovering using HP Recovery Manager ........................................................................................... 59

9 Specications .............................................................................................................................................. 62

10 Power cord set requirements ...................................................................................................................... 63

Requirements for all countries ............................................................................................................................ 63

Requirements for specic countries and regions ................................................................................................ 63

11 Recycling .................................................................................................................................................. 65

Index ............................................................................................................................................................. 66

1 Product description

Category Description 15-bl100 –

15-bl199,

15t-bl100

15-bl000 –

15-bl099,

15t-bl000

Product

Name

HP Spectre x360 Convertible PC √ √

Model numbers: 15-bl100 – 15-bl199, 15t-bl100 √

Model numbers: 15-bl000 – 15-bl099, 15t-bl000 √

Processor 8th generation Intel™ Core® processor

Intel Core i7-8550U 1.8-GHz, max turbo 4.0-GHz, 8 GB Intel Smart Cache, 15 W)

√

7th generation Intel Core processor

Intel Core i7-7500U 2.7-GHz, max turbo 3.5-GHz, 4 GB Intel Smart Cache, 15 W)

√

Graphics Internal graphics √ √

Intel UHD Graphics 620 √

Intel HD Graphics 620 √

Discrete graphics √ √

NVIDIA N17S-GTR-S (GeForce MX150) with 2048 MB of dedicated video memory √

NVIDIA N16S-GTR-S (GeForce 940MX) with 2048 MB of dedicated video memory √

Panel Touch screen; multi touch enabled; 16:9 ultra-wide aspect ratio; typical

brightness: 340 nits

√ √

39.6 cm (15.6-in), UWVA (3840×2160), BrightView, ultra high-denition (UHD), white-

light emitting (WLED), eDP, uslim-at 2.6-mm, narrow bezel

√ √

Flush glass panel cover support √ √

Supports active stylus √ √

Windows lnk certication √ √

Memory Two SODIMM slots - not customer accessible/upgradeable √ √

Support for DDR4-2400 dual channel √

Support for DDR4-2133 dual channel (DDR4-2400 bridge to DDR4-2133) √

Supports up to 16 GB maximum system memory in the following congurations √ √

●16 GB (8 GB × 2) √ √

●12 GB (8 GB + 4 GB) √ √

●8 GB (4 GB × 2) √ √

Primary

storage

PCIe, NVMe, TLC, M.2 SSD conguration as storage √ √

Support for single M.2 solid-state drive conguration as storage

in the following congurations:

√ √

Category Description 15-bl100 –

15-bl199,

15t-bl100

15-bl000 –

15-bl099,

15t-bl000

●2 TB √

●1 TB √ √

●512 GB √ √

●360 GB √ √

●256 GB √ √

Audio

and video

BANG & OLUFSEN √ √

Dual speakers √ √

Supports HP Audio Boost √ √

Cortana Certication √ √

Webcam and

microphone

HP TrueVision Full HD IR camera with activity light, (2) IR lights, USB 2.0, FHD, BSI

sensor

√ √

1080p by 30 frames per second √ √

Supports Windows Help √ √

Supports Voice Recognition √ √

Dual array digital microphones with appropriate beam-forming, echo-cancellation,

noise-suppression software

√ √

HP Noise Cancellation enabled √ √

Sensors Accelerometer √ √

Gyroscope √ √

Digital Compass √ √

Wireless Integrated Wireless options with dual antennas (M.2): √ √

Two built-in WLAN antennas (in display assembly) √ √

Support for Miracast-certied devices (Windows 10 only) √ √

Support for Intel WiDi (Intel 8265NV) √ √

WiFi SAR enabled in BIOS (Intel WLAN only) √ √

Support for the following WLAN modul:

●Intel Dual Band Wireless-AC 8265 802.11 ac 2×2 WiFi + Bluetooth 4.2

Combo Adapter

√ √

External

media cards

HP Multi-Format Digital Media Card Reader √ √

Supports SD/SDHC/SDXC √ √

Push-push insertion/removal √ √

Internal card

expansion

One M.2 Slot for WLAN √ √

One M.2 Slot for SSD √ √

Ports USB 3.0 Type-A port √ √

2 Chapter 1 Product description

Category Description 15-bl100 –

15-bl199,

15t-bl100

15-bl000 –

15-bl099,

15t-bl000

USB 3.1 Gen 1 port √ √

USB 3.0 Type-C ports √ √

USB 3.1 Gen 2 port with Thunderbolt™ Gen 3 technology √ √

USB 3.1 Gen 1 port √ √

All ports support data transfer, power delivery, and: √ √

DisplayPort 1.2 supporting up to 3840×2160 @ 60 Hz √ √

HDMI v2.0 output support up to 3840×2160 at 60 Hz with HDCP 2.2 √ √

Headphone output and microphone input combo jack (stereo) √ √

AC adapter through Type-C port √ √

All ports support HP USB Boost √ √

Keyboard/

pointing

devices

Full-size, Dura Coat, backlight, island-style keyboard √ √

Touchpad requirements √ √

●Multi-touch gestures enabled √ √

●Taps enabled as default √ √

●Support for Windows modern TouchPad gestures √ √

●ClickPad with image sensor √ √

Power

requirements

AC adapter √ √

USB Type-C, 90-W with power cords √ √

Power cord √ √

1 meter power cord with tag label √ √

Battery √ √

6-cell, 79.2-WHr, 3.43-AH, Li-ion battery √ √

Security Trusted Platform Module (TPM) 2.0 support √ √

Operating

system

Preinstalled √ √

Windows 10 √ √

Windows 10 Pro √ √

For Developed Markets (ML): √ √

Windows 10 Home Plus ML √ √

For Emerging Markets (EM): √ √

Windows 10 Home Plus EM/SL √ √

SEAP Windows 10 Home Plus √

Serviceability End user replaceable part: AC adapter √ √

2 Getting to know your computer

Your computer features top-rated components. This chapter provides details about your components, where

they're located, and how they work.

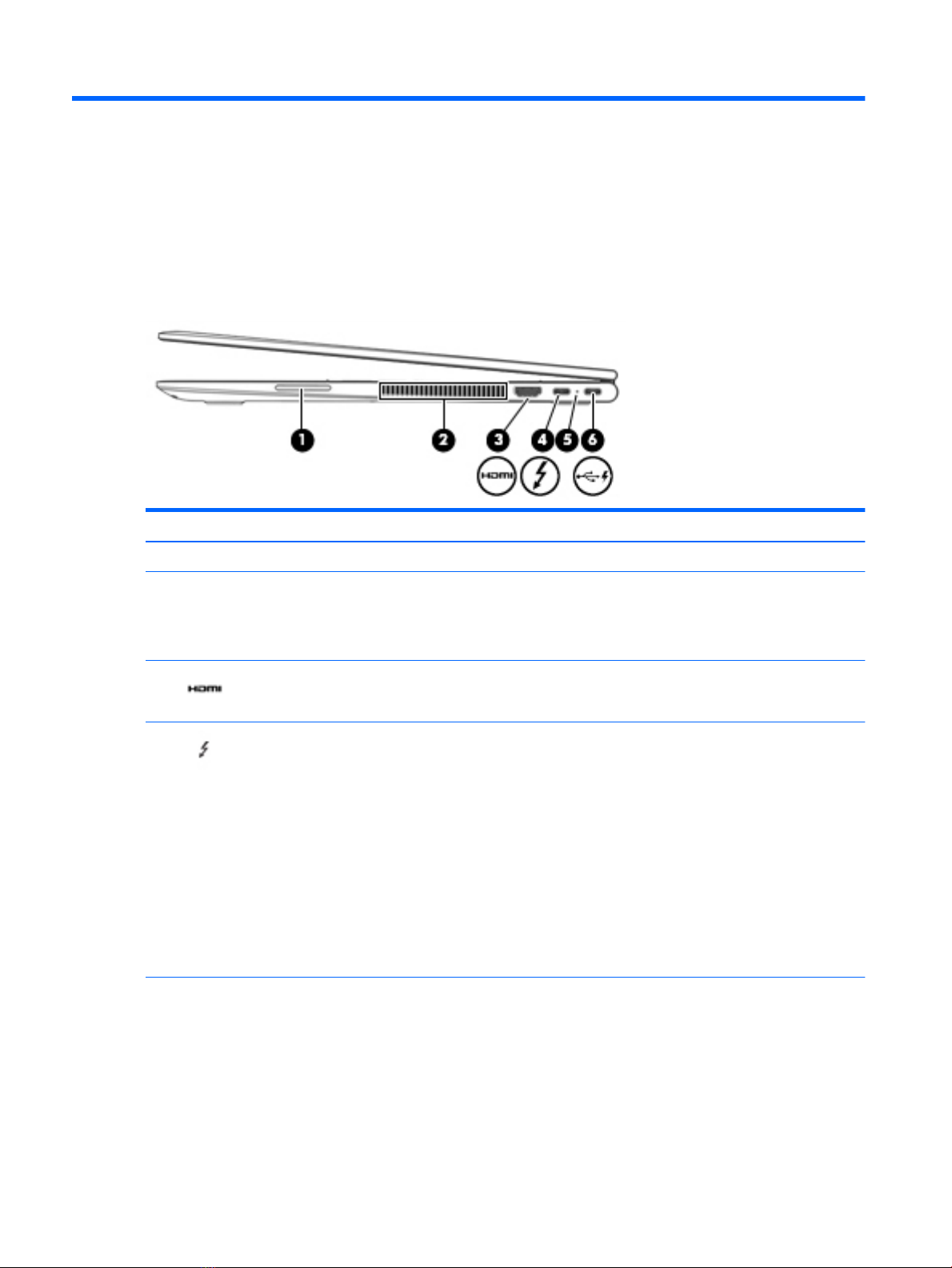

Right side

Component Description

(1) Volume button Controls speaker volume on the computer.

(2) Vent Enables airow to cool internal components.

NOTE: The computer fan starts up automatically to cool internal components

and prevent overheating. It is normal for the internal fan to cycle on and o

during routine operation.

(3) HDMI port Connects an optional video or audio device, such as a high-denition television,

any compatible digital or audio component, or a high-speed High-Denition

Multimedia Interface (HDMI) device.

(4) USB Type-C power connector and

Thunderbolt port with HP Sleep and

Charge

Connects an AC adapter that has a USB Type-C connector, supplying power to

the computer and, if needed, charging the computer battery.

– and –

Connects and charges most USB devices that have a Type-C connector, such as a

cell phone, camera, activity tracker, or smartwatch, and provides high-speed

data transfer.

NOTE: Cables and/or adapters (purchased separately) may be required.

– and –

Connects a display device that has a USB Type-C connector, providing

DisplayPort output.

NOTE: Your computer may also support a Thunderbolt docking station.

(5) AC adapter and battery light ●White: The AC adapter is connected and the battery is fully charged.

●Blinking white: The AC adapter is disconnected and the battery has

reached a low battery level.

●Amber: The AC adapter is connected and the battery is charging.

4 Chapter 2 Getting to know your computer

Altri manuali per Spectre x360

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Scrivania

HP Workstation xw6000 Guida di riferimento rapido

HP Elite Slice Manuale utente

HP Compaq d330 ST Manuale operativo e di manutenzione

HP dc7700 - Convertible Minitower PC Manuale utente

HP Pavilion v600 - Desktop PC Manuale utente

HP EliteDesk 800 G4 Manuale

HP Compaq 6000 Pro SFF Manuale operativo e di manutenzione

HP 280 Pro G2 Small Form Factor Istruzioni per il montaggio

HP Visualize c3600 Guida rapida

HP -380467-003 - COMPAQ PRESARIO C300 C500 C700 F500 F700 LAPTOP... Manuale utente

HP XW9600 Manuale utente

HP ZBook 17 G5 Manuale

HP Pavilion a6000 Manuale utente

HP Z200 - Small Form Factor Workstation Manuale utente

HP XM600 - Kayak - 128 MB RAM Manuale utente

HP Model 720 - Workstation Manuale utente

HP EliteDesk 705 G1 Manuale operativo e di manutenzione

HP 288 Pro G4 Istruzioni per l'installazione

HP Pavilion a600 - Desktop PC Manuale utente

HP dc72 - Blade Workstation Client Guida di riferimento rapido

HP Z400 - Workstation Guida di riferimento

HP Compaq 6000 Istruzioni utente

HP MultiSeat ms6000 Manuale

HP EliteDesk 800 G1 series Manuale utente

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
