HP Vectra E-Vectra Manuale

HP Corporate PCs

HP e-Vectra

www.hp.com/go/vectrasupport

PC Service Handbook

Chapter

evec.book Page 1 Friday, March 31, 2000 4:15 PM

Notice

Information contained in this document is subject to change without notice.

llle

-P

d m

s n

o w

arr

rrrr

rra

y o

f a

y k

iiin

d w

iiit

h r

reg

egeg

ega

d t

o t

iiis

s m

iiia

lll,

iiin

lllu

iiin

, b

t n

t li

lili

lim

iiit

d t

, t

e i

iiim

pli

lili

lie

d w

iiie

s o

f m

iiil

llli

iiit

y a

and

ndnd

iiit

ess

ssss

ss f

r a

a p

iiic

llla

r p

... Hewlett-Packard shall not be liable for errors

contained herein or for incidental or consequential damages in connection with

the furnishing, performance, or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its

software on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated into another language without the prior written

consent of Hewlett-Packard Company.

Intel, Celeron, and Pentium are either registered trademarks or trademarks of Intel.

Microsoft, MS, MS-DOS, Windows and Windows NT are either registered trademarks or

trademarks of Microsoft Corp. in the United States and/or other countries.

Contents

This chapter provides:

❒Product model numbers

❒Supported Accessories

❒System Board, BIOS, and memory information

❒Part numbers

Replacement and Exchange Parts

The difference between a replacement and an exchange part is that when using

an exchange part you should return the replaced part to HP.

Replacement and exchange parts listed in this manual are subject to change.

However, updated part numbers are automatically cross-referenced to the old

number. This means that you will receive the correct part using the numbers

listed in this manual (even if the part’s actual number has been updated).

Ordering Parts

Contact your local HP Customer Care Center to get parts. Diagnostic is required

prior to any shipments. For HP Customer Care Centers

www.hp.com/go/vectrasupport and select ASSISTANCE

evec.book Page 2 Friday, March 31, 2000 4:15 PM

HP e-Vectra 2-1

HP e-Vectra

Models and Accessories

Note

All models have:

❒Direct AGP video controller integrated in Intel chipset

❒Integrated Crystal CS4299 Audio Codec ‘97 2.1 compatible stereo audio codec

❒Integrated 3Com 3C905C-TX network controller.

Product

Number

Hard Drive Std. RAM Multimedia OS1

1. Operating system preloaded on these models, as indicated in the table.

HP e-Vectra

Models with Intel Pentium III Processor,

133 MHz System Bus Speed, and 256 KB Level 2 Cache Memory

HP e-Vectra 600/133-256 (CPL: 04/2000 )

D9478A 8.4 GB IDE 128 MB

SDRAM

24 ✕Max Slim IDE

CD-ROM

W98

D9898A/T Win 2000

HP e-Vectra 667/133-256 (CPL: 04/2000 )

D9899A/T 8.4 GB IDE 256 MB

SDRAM

24 ✕Max Slim IDE

CD-ROM

Win 2000

HP e-Vectra

Models with Intel Celeron Processor,

66 MHz System Bus Speed, and 128 KB Level 2 Cache Memory

HP e-Vectra 500/66-128 (CPL: 04/2000 )

D9477A 8.4 GB IDE 64 MB

SDRAM

24 ✕Max Slim IDE

CD-ROM

W98

D9896A/T no

HP e-Vectra 533/66-128 (CPL: 04/2000 )

D9897A/T 8.4 GB IDE 128 MB

SDRAM

24 ✕Max Slim IDE

CD-ROM

W98

evec.book Page 1 Friday, March 31, 2000 4:15 PM

HP e-Vectra

2-2 HP e-Vectra

Supported Accessories

Documentation

HP Information CD-ROM

To order your HP Information CD-ROM from HP’s Web:

1Gotowww.hp.com/go/vectrasupport, then select Manuals

2 Select your product, then select HP Information CD-ROM

5011-8109

Input Devices

HP Standard Keyboard C4735A

HP Multimedia Keyboard C4742A

HP 2-button Mouse C3751B

HP Scrolling Mouse C4736A

HP Cordless Scrolling Mouse C4740A

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Mass Storage

HP USB Floppy Drive D9510A

Multimedia

HP Amplified Speakers - by Labtec 10WRMS D4545A

HP Amplified Speakers - by Labtec 4WRMS D6861A

HP Standard Headset D8387A

Data Communications and LAN Adapter Boards

HP 56K V90 USB External Modem D8384B

Security

HP Master Pass Key System Kit D6655B

HP Spare Master Pass Key D6658B

HP ProtectTools Smart Card Reader Kit D8436B

Kensington Lock F1645A

I/O Interfaces

HP USB Hub Accessory Kit D6840A

Others

Monitor Stand F1453A

evec.book Page 2 Friday, March 31, 2000 4:15 PM

HP e-Vectra

e-PCs HP e-Vectra 2-3

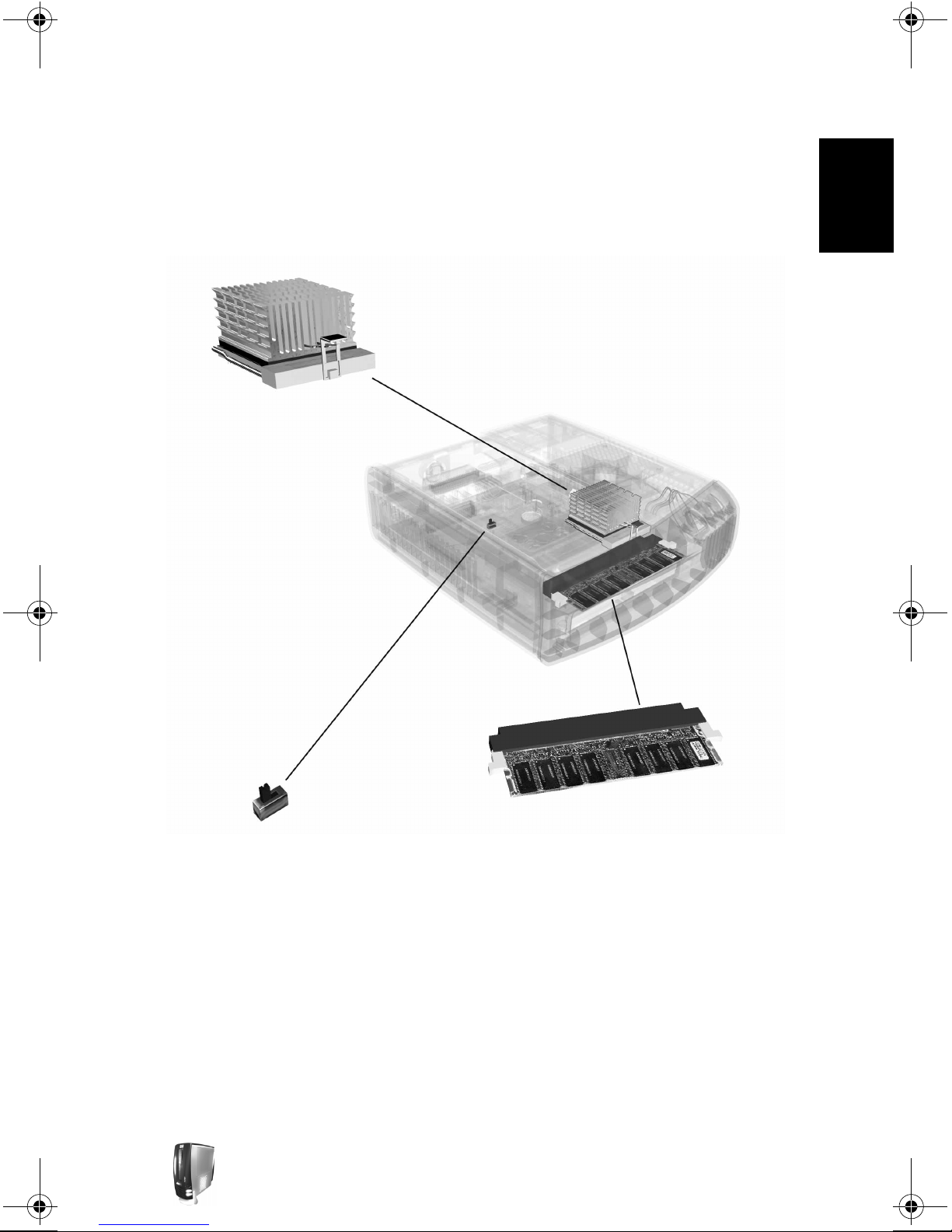

System Board, BIOS, and Memory

System Board Switch:

See the table on the next page.

Processor: Intel Pentium III

or Intel Celeron PPGA

package with Zero Insertion

Force (ZIF) socket.

SW1 Main Memory:

One DIMM socket which supports up

to a maximum of 256 MB.

Install one 64 MB, 128 MB or 256 MB

SDRAM module.

evec.book Page 3 Friday, March 31, 2000 4:15 PM

HP e-Vectra

2-4 HP e-Vectra

System Board Switches

SW1

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

Switch Function Default

On Clears CMOS (to reload the Setup program defaults) and

passwords Off

Off Normal operation

http://www.hp.com/go/vectrasupport/

evec.book Page 4 Friday, March 31, 2000 4:15 PM

HP e-Vectra

e-PCs HP e-Vectra 2-5

Part Numbers

a1b

evec.book Page 5 Friday, March 31, 2000 4:15 PM

HP e-Vectra

2-6 HP e-Vectra

“Return to HP” Repair Parts List for HP e-Vectra

Item Description Repl.

Part Number

Exchange

Part Number

1a Box assembly: includes cover assembly,

chassis assembly, HDD tray assembly, HDD

compartment cover, LED holder assembly)

5065-2512 —

2 Cable kit: includes HDD data cable, HDD

power cable and CD-ROM (data+power)

cable

5065-2513 —

3 Plastic parts kit: includes cover, HDD

compartment cover, stand foot, rubber feet

(not shown), port control system, blank

serial number label (not shown) and flyer

(not shown)

5065-2560 —

4 Status panel, fan and airflow guide 5065-2511 —

5 CD-ROM blank bezel and RFI shield (used

on models without CD-ROM drive)

5065-2561 —

6 Power supply 0950-37961

1. Replace both the power supply and the power cord.

—

7Power cord 8120-xxxx1,2

2. Where “xxxx” is the code for your national power cord. See the localization matrix below.

—

8 IDE hard disk drive3(includes HDD tray)

8.4 GB

15 GB

3. For optional disk drive information, see the Accessory Service Handbook.

—

D9618-69001

D9616-69001

924✕Max IDE slim CD-ROM drive + tray

assembly

6✕ Max IDE slim DVD-ROM drive + tray

assembly

D9912-63001

D9913-63001

—

10 Enhanced mouse with scroll/zoom wheel C4736-60101 —

Standard keyboard C4739-601xx4

4. Where “xx” is the code for your national keyboard. See the localization matrix below.

—

11 HP lock 5064-2645 —

12 Battery type CR2032 1420-0356 —

13 System board —D9497-69001

not

shown

Sealing tape tbd —

evec.book Page 6 Friday, March 31, 2000 4:15 PM

HP e-Vectra

e-PCs HP e-Vectra 2-7

“On-site” Repair Parts List for HP e-Vectra

Item Description Repl.

Part Number

Exchange

Part Number

1b Box assembly: includes system board,

cable kit, chassis assembly, HDD insulator,

stiffener, CD-ROM drive support, stand off

fix, stand off, RFI shields, lock, left panel

assembly, rear bezel connector label, LED

holder assembly

—D9619-69001

2 Cable kit: includes HDD data cable, HDD

power cable and CD-ROM (data+power)

cable

5065-2513 —

3 Plastic parts kit: includes cover, HDD

compartment cover, stand foot, rubber feet

(not shown), port control system, blank

serial number label (not shown) and flyer

(not shown)

5065-2560 —

4 Status panel, fan and airflow guide 5065-2511 —

5 CD-ROM blank bezel and RFI shield (used

on models without CD-ROM drive)

5065-2561 —

6 Power supply 0950-37961

1. Replace both the power supply and the power cord.

—

7Power cord 8120-xxxx1,2

2. Where “xxxx” is the code for your national power cord. See the localization matrix below.

—

8 IDE hard disk drive3(includes HDD tray)

8.4 GB

15 GB

3. For optional disk drive information, see the Accessory Service Handbook.

—

D9618-69001

D9616-69001

924✕Max IDE slim CD-ROM drive + tray

assembly

6✕ Max IDE slim DVD-ROM drive + tray

assembly

D9912-63001

D9913-63001

—

10 Enhanced mouse with scroll/zoom wheel C4736-60101 —

Standard keyboard C4739-601xx4

4. Where “xx” is the code for your national keyboard. See the localization matrix below.

—

11 HP lock 5064-2645 —

12 Battery type CR2032 1420-0356 —

evec.book Page 7 Friday, March 31, 2000 4:15 PM

HP e-Vectra

2-8 HP e-Vectra

Localization Matrix for HP e-Vectra

Localization Country Keyboard Power Cord

#AB4 Singapore C4739-60101 8120-8699

#ABA USA 8120-6313

#ABC Canada C4739-60102

#ABD Germany C4739-60103 8120-6314

#ABF France C4739-60105

#ABG Australia - New Zealand C4739-60101 8120-6312

#ABJ Japan C4739-60124 8120-6316

#ABU United Kingdom C4739-60113 8120-8699

System Board Parts List for HP e-Vectra

Description Repl.

Part Number

Exchange

Part Number

Processors (PPGA package):

Intel Celeron 500/66 128KB L2 cache 5065-0477 —

Heatsink and clip for Intel Celeron 500 5184-3838 —

Intel Celeron 533/66 128KB L2 cache D8748-63001 —

Intel Celeron 566/66 128KB L2 cache D9903-63001 —

Intel Pentium III 600EB/133 256KB L2 cache — D9918-69001

Intel Pentium III 667B/133 256KB L2 cache — D9905-69001

Intel Pentium III 733B/133 256KB L2 cache — D9906-69001

Heatsink and clip for Celeron 533, 566 and

Pentium III processors

5184-3837 —

Main memory modules:

1 ✕64-MB non-ECC SDRAM D6502-63001 —

1 ✕128-MB non-ECC SDRAM D6503-63001 —

1 ✕256-MB non-ECC SDRAM D9525-63001 —

Software Recovery CD-ROMs

HP Image Creation & Recovery CD-ROM for Windows 2000/NT 5011-2558-xx1

1. Where “xx” is the code for your language: EN=English, FR=French, GR=German,

JP=Japanese.

HP Image Creation & Recovery CD-ROM for Windows 98 5011-2559-xx1

evec.book Page 8 Friday, March 31, 2000 4:15 PM

Altri manuali per Vectra E-Vectra

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HP Scrivania

HP Omni Pro 110 Istruzioni per l'installazione

HP Net PC 20 Istruzioni per l'installazione

HP Pavilion Slimline s5310f Manuale utente

HP Presario V5000 Series Istruzioni per l'installazione

HP Pro 6000 Istruzioni per l'installazione

HP Kayak XU700 Manuale utente

HP m9650f - Pavilion - Elite Come usare

HP Net Vectra n30 Manuale

HP TouchSmart 320-1030 Manuale utente

HP E-PC C10 Manuale utente

HP Compaq d538 SFF Manuale

HP Vectra SERIES Manuale di istruzioni

HP ENVY 23-c000 Manuale utente

HP End-of-Life Istruzioni per l'installazione

HP ProDesk 405 G1 Manuale utente

HP Compaq Presario Scheda tecnica

HP Pavilion v600 - Desktop PC Manuale utente

HP Pavilion a400 - Desktop PC Manuale utente

HP Pavilion a700 - Desktop PC Manuale utente

HP Xw6600 - Workstation - 2 GB RAM Manuale utente

HP Xw4200 - Workstation - 1 GB RAM Manuale utente

HP Pavilion t400 - Desktop PC Istruzioni per l'installazione

HP dc5000 - Microtower PC Manuale operativo e di manutenzione

HP ProOne 600 G3 Istruzioni per l'installazione

Manuali Scrivania popolari di altre marche

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

Everex

Everex eXplora Manuale utente

Lenovo

Lenovo ThinkCentre M75e Manuale utente

Dell

Dell Alienware Area-51 R4 Manuale utente
