HP Vectra VE5 4 Manuale
Familiarization Guide
HP Vectra VE
5/xxx Series 4 PC
HP Vectra VE PC
This guide is for experienced technicians who have
already completed the HP Vectra PC family training
course. It is a self-paced training guide designed to train
you to repair the PC. It contains information specific only
to the repair of these PCs. For information on the
installation of accessories, see the User’s Guide and the
Online documents that are supplied with the PC.
1book.bk : 1bookf.fb4 Page 1 Friday, September 5, 1997 11:33 AM
Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Hewlett-Packard shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use
of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated to another language without the prior written consent
of Hewlett-Packard Company.
Microsoft®, Windows® and MS-DOS® are registered trademarks of Microsoft
Corporation.
MMXTM is a trademark of Intel Corporation.
Pentium® is a registered trademark of Intel Corporation.
Hewlett-Packard France
Commercial Desktop Computing Division
38053 Grenoble Cedex 9
France
1997 Hewlett-Packard Company
1book.bk : 1bookf.fb4 Page 2 Friday, September 5, 1997 11:33 AM
3
Vectra Product Overview
Vectra Product Overview
Component HP Vectra VE 5/xxx Series 4 PC
Microprocessor Pentium 166 MHz or 200 MHz or 233 MHz processor with MMX technology
256 KB of level-2 cache memory integrated on system board
(not upgradeable)
VRM Voltage regulator integrated on the system board
Main memory 32 MB or 16 MB (standard), 192 MB (maximum).
100 MHz SDRAM (Synchronous DRAM). Three DIMM sockets.
Graphics controller S3 Trio 64 V2 integrated on the system board, with 2 MB video memory, not
upgradeable
Communications
ports
2 USB connectors (with ACPI support),
and the legacy I/O ports (1 serial port, parallel port, keyboard, mouse)
Mass storage Ultra ATA/33 IDE controller to support the 3.2 or 2.1 GB Ultra ATA or
1GB
Fast-ATA drives
2 internal shelves for hard disk drives, 2 front access shelves
Accessory board
slots
5 slots
(1 PCI full-length, 1 PCI half-length, 1 ISA half-length, 2 full-length
combination PCI/ISA)
CD-ROM drive 24✕Max IDE
Operating system Windows 95 SR 2.1
Power supply Auto-ranging 100/240 VAC, 150 W input, 120 W output,
(with ACPI support)
Power saving 115 V, 60 Hz: 21 W in suspend mode, 27 W in standby mode
230 V, 50 Hz: 25 W in suspend mode, 30 W in standby mode
1book.bk : 1ch01.fb4 Page 3 Friday, September 5, 1997 11:33 AM
4

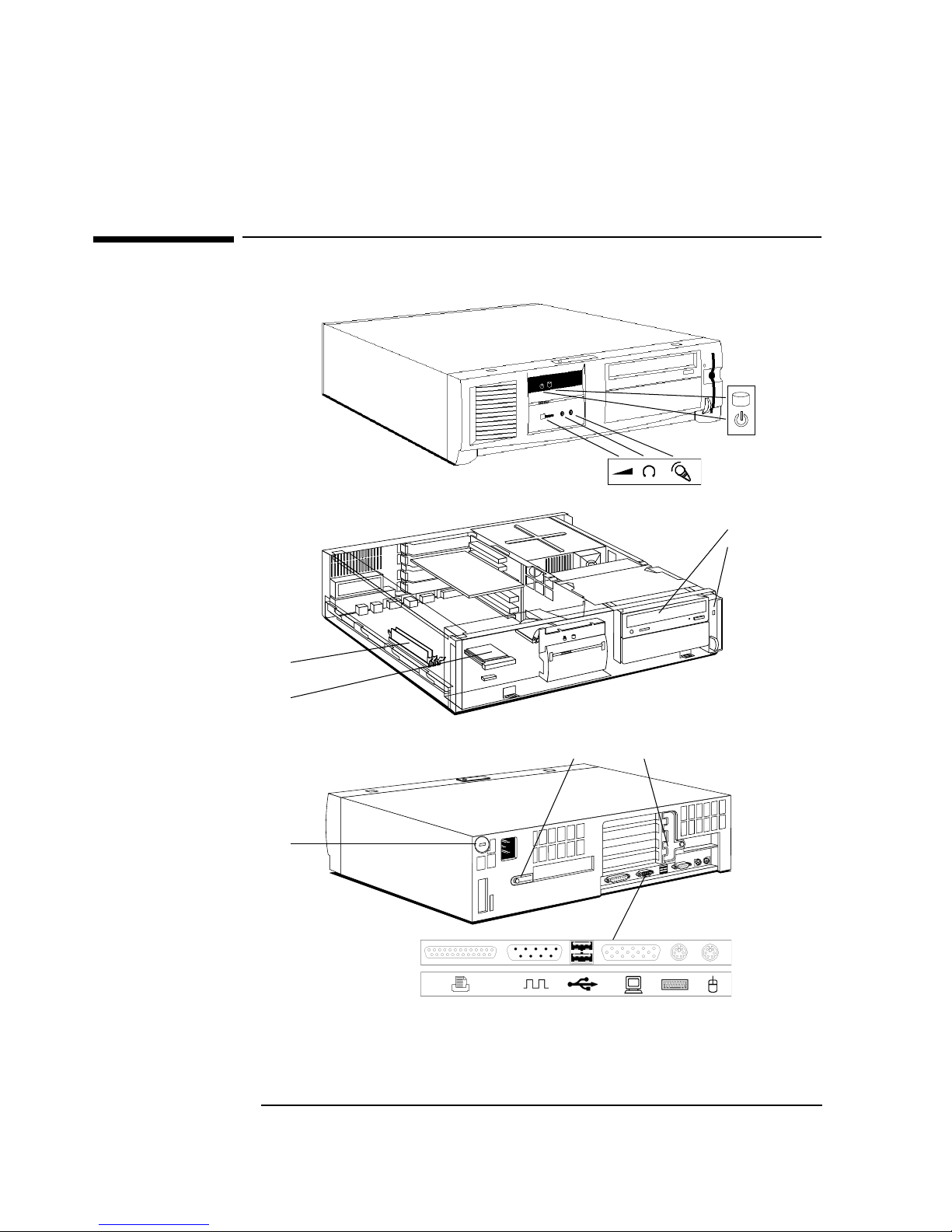

Package
Package
(All icons shown here are for information, and do not necessarily appear on
the PC).
(Multimedia models only)
activity light
status light
Front view
Processor
Main memory
24✕CD-ROM drive
Flexible disk drive
Front view with cover
removed
Rear view Retaining brackets
Security lock hole
USB
Serial
Parallel Mouse
Keyboard
Display
1book.bk : 1ch01.fb4 Page 4 Friday, September 5, 1997 11:33 AM
5

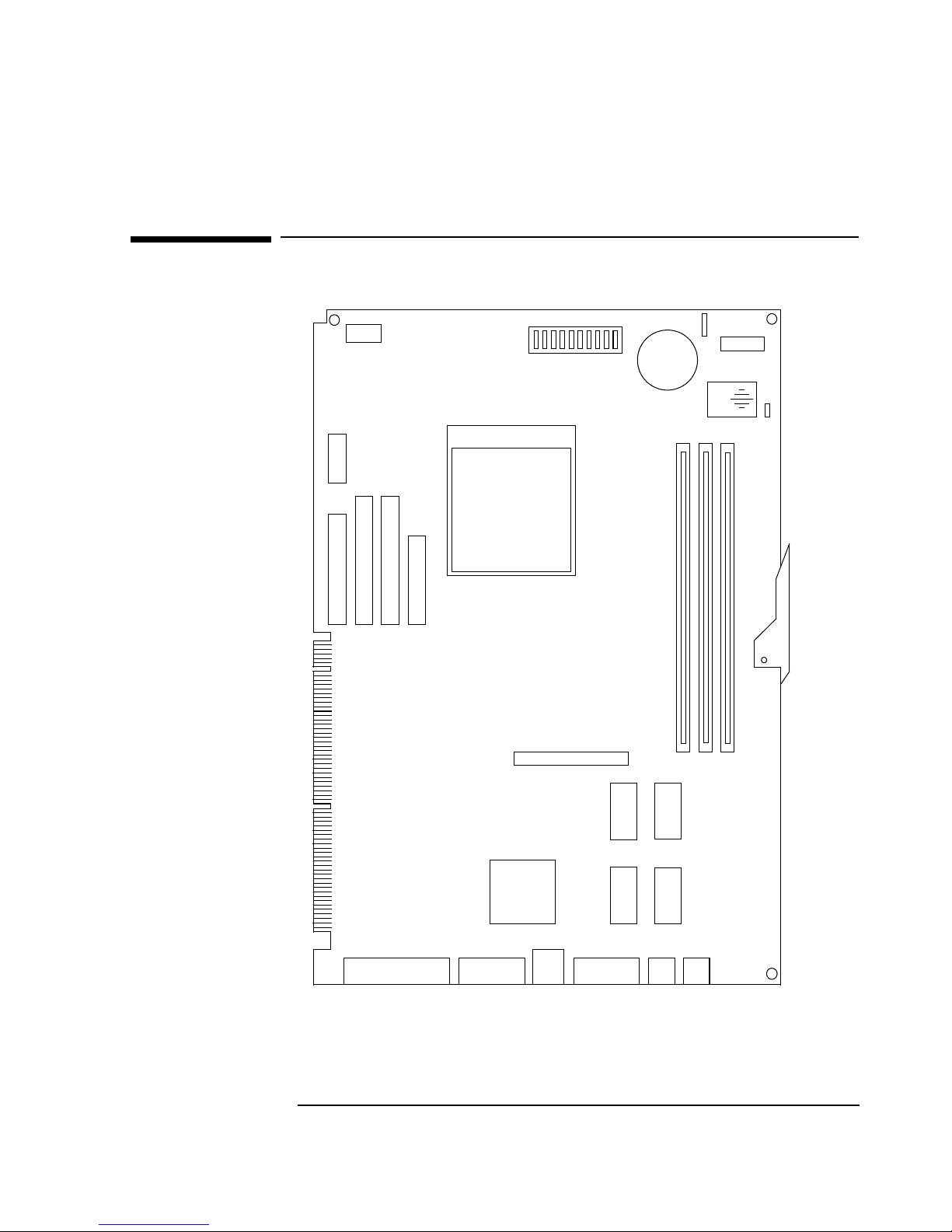

System Board
System Board
CBA
DIMM Memory Slots
Flexible Disk Connector
Hard Disk Connector
Secondary IDE Connector
Power Connector
Status Panel
System Board Switches
Video Memory
Parallel Port Serial Port Display Kbd Mou
VESA Connector
Graphics
Controller
Chip
Ext. Start
External Speaker Connector
Internal Speaker
3.3 V Conn
2✕
USB
1 2 3 4 5 6 7 8 9 10
Connector
Pentium Processor
Socket 7
CR2032
Ext. Batt.
1book.bk : 1ch01.fb4 Page 5 Friday, September 5, 1997 11:33 AM
6

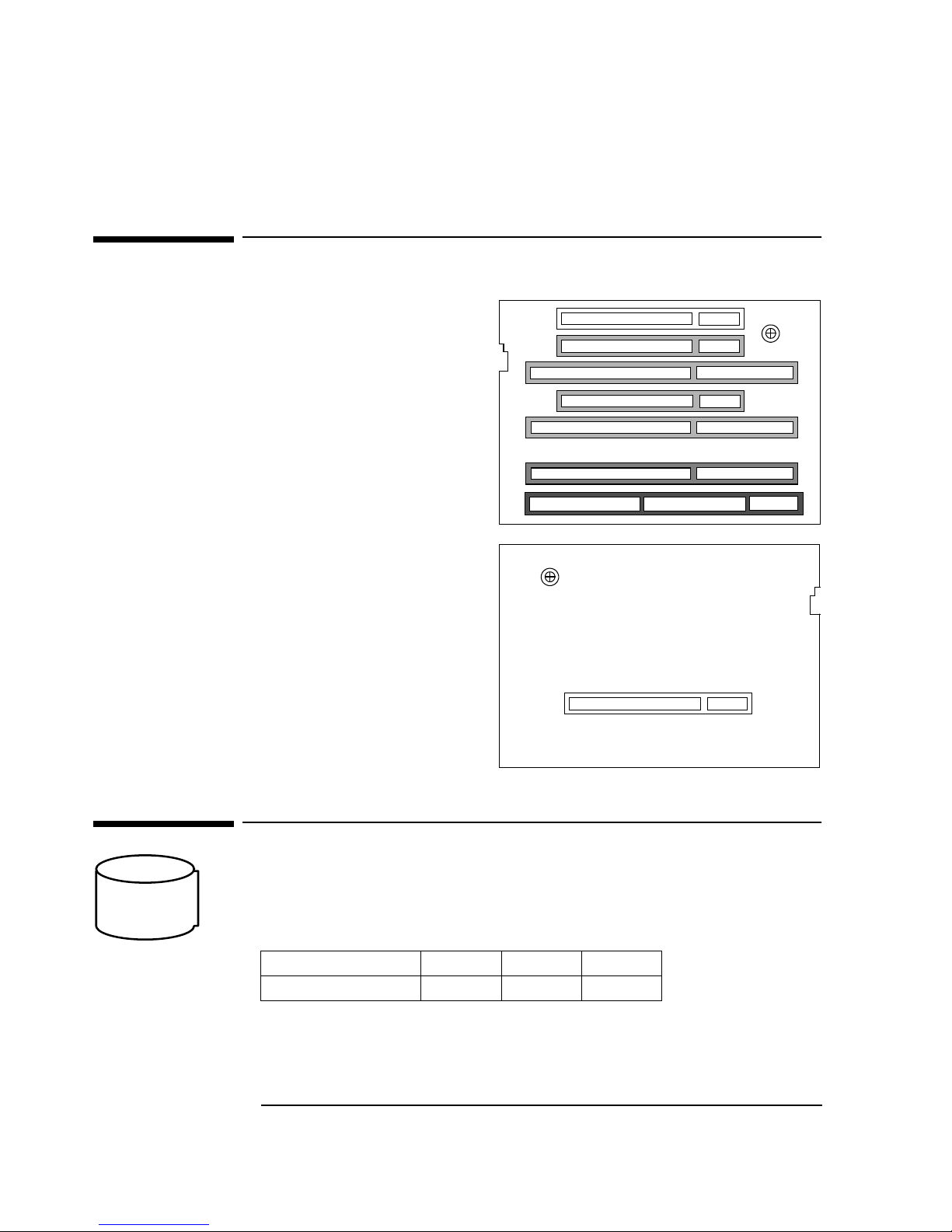

Backplane Board
Backplane Board
Hard Disk
The three Ultra ATA/33 modes (also known as Ultra DMA/33) support the
following transfer rates:
Ultra ATA/33 Mode 0 1 2
Transfer rate (MB/s) 13.9 26.7 33.3
Front view 1 ✕PCI slot (shown in white)
2 ✕ISA/PCI combination slot
(shown in light grey)
1 ✕ISA slot (shown in grey)
1 ✕system board slot (shown
in dark grey)
Rear view
1 ✕PCI slot (shown in white)
Ultra ATA
33 MB/s
1book.bk : 1ch01.fb4 Page 6 Friday, September 5, 1997 11:33 AM
7
Flashing the Latest Version of the System BIOS
Flashing the Latest Version of the System BIOS
The latest BIOS can be obtained from HP World Wide Web site (http://
www.hp.com/go/vectrasupport). The file can be downloaded to the system
administrator’s PC and then to the target PC. The BIOS files can be copied to
a system diskette, and the BIOS can be flashed by running the PHLASH.EXE
program once the target PC has re-booted from its flexible disk drive. Full
details of the procedure are given in the associated README.TXT file.
If the flashing process goes wrong, close the “clear password” and “clear
CMOS” switches (SW-7 and SW-8) on the system board, reconnect the PC
and turn it on. This forces the PC to re-boot from the flexible disk drive.
Once the recovery program has completed, the BIOS can be flashed by run-
ning the PHLASH.EXE program. Once completed, return the system board
switches to their original positions.
1book.bk : 1ch01.fb4 Page 7 Friday, September 5, 1997 11:33 AM
8
Complete the Questionnaire to Check Your Understanding
Complete the Questionnaire to Check Your Understanding
Draw a circle around each letter that corresponds with a correct answer.
(There may be more than one correct answer to each question).
1How can you recover from the corruption of your operating system?
aSet SW-7 and SW-8 together to the closed position.
bConnect across to the remote server, and use the dynamic host config-
uration protocol (DHCP) to restore the user’s profile of the operating
system.
cRun the Windows 95 Setup program from the masters directory.
2What do you do to upgrade the system BIOS?
aDownload the BIOS to a bootable flexible diskette, and flash it directly
on the PC.
bDownload the BIOS to the hard disk, and execute the BIOS flasher
within the Windows 95 operating system.
cDownload the BIOS to another PC, and execute the BIOS flasher so
that it flashes the BIOS across the local area network to the target PC.
3How can you recover from the corruption of your System BIOS?
aSet SW-7 and SW-8 together to the closed position.
bConnect across to the remote server, and use the dynamic host config-
uration protocol (DHCP).
cRun the Windows 95 Setup program from the masters directory.
4How do you install a CD-ROM drive in a model without CD-ROM drive?
aThe CD-ROM drive cannot be installed.
bThe CD-ROM drive can be connected to the second connector on the
IDE cable to the hard disk drive.
cThe CD-ROM drive can be connected to the secondary IDE cable that
is supplied with the PC.
dThe CD-ROM drive can be connected to the secondary IDE cable that
is supplied with the CD-ROM drive.
1book.bk : 1ch01.fb4 Page 8 Friday, September 5, 1997 11:33 AM
9
Answers and Explanations
Answers and Explanations
1How can you recover from the corruption of your operating system?
b Connect across to the remote server, and use the dynamic host
configuration protocol (DHCP) to restore the user’s profile of the
operating system.
c Run the Windows 95 Setup program from the masters directory.
Setting the two system board switches together is for recovery from a
BIOS upgrade failure, not for recovery from a corrupted operating
system.
2What do you do to upgrade the system BIOS?
a Download the BIOS to a bootable flexible diskette, and flash it
directly on the PC.
c Download the BIOS to another PC, and execute the BIOS flasher so
that it flashes the BIOS across the local area network to the target PC.
Response (c) makes use of the OpenView, TopTools utility.
3How can you recover from the corruption of your System BIOS?
a Set SW-7 and SW-8 together to the closed position.
If the BIOS is corrupted, the PC will be unusable. These two switches
force the PC to boot from the flexible disk drive (from whence the BIOS
can be re-flashed).
4How do you install a CD-ROM drive in a model without CD-ROM drive?
c The CD-ROM drive can be connected to the secondary IDE cable that
is supplied with the PC.
1book.bk : 1ch01.fb4 Page 9 Friday, September 5, 1997 11:33 AM
Paper not bleached with chlorine.
Manual Part Number D5570-90901
Printed in France - 09/97
50%
1book.bk : 1bookb.fb4 Page xi Friday, September 5, 1997 11:33 AM
