HP Vectra VEi 8 Manuale

Medium-Profile

Desktop Vectras HP Vectra VEi 8 PC 16-1

HP Vectra VEi 8 PC

Models and Accessories

Product

Number Hard

Drive Video

Controller Std.

RAM Multi-media LAN OS1

Vectra VEi 8 PC

Models with Intel Pentium II Processor,

100 MHz System Bus Speed, and 512 KB Level 2 Cache Memory

HP Vectra VEi 8 PC 400 (CPL: 04/99 )

D8151A/T 4.3 GB

IDE Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

32 MB

SDRAM

100 MHz

no no W95

D8152N/T 64 MB

SDRAM

100 MHz

3COM

3C905B-

4.0

D8153A/T 8.4 GB

IDE 32 ✕Max IDE

CD-ROM no W95

D8155A 4.3 GB

IDE 32 MB

SDRAM

100 MHz

no W95

Word

Vectra VEi 8 PC

Models with Intel Pentium III Processor,

100 MHz System Bus Speed, and 512 KB Level 2 Cache Memory

HP Vectra VEi 8 PC 450 (CPL: 04/99 )

D8171A/T 4.3 GB

IDE Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

32 MB

SDRAM

100 MHz

no no W95

D8172N/T 64 MB

SDRAM

100 MHz

3COM

3C905B-

4.0

D8173A/T 8.4 GB

IDE 32 ✕Max IDE

CD-ROM no W95

D8174A W98

D8175T NT

4.0

HP Vectra VEi 8 PC

16-2 HP Vectra VEi 8 PC Medium-Profile

Desktop Vectras

16 Note

All models have an integrated full-duplex PCI audio controller.

Supported Accessories

1. Operating system preloaded on these models, as indicated in the table.

2. Channel Assembly Program (CAP) models: Processor speed, hard disk size, and memory is

user defined.

HP Vectra VEi 8 PC 500 (CPL: 04/99 )

D8183A 8.4 GB

IDE Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

64 MB

SDRAM

100 MHz

32 ✕Max IDE

CD-ROM no W95

Vectra VEi 8 PC

Models with User Defined Processor, Main Memory, and Hard Disk

HP Vectra VEi 8 PC xxx2(CPL: 04/99 )

D8160E User

defined Integrated

Matrox

MGA-G200 AGP

(8 MB SGRAM

fitted, not

upgradeable)

User

defined User defined User

defined None

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6501A/T

32-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20) D6504A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module D6502A/T

64-MB kit 32-bit SDRAM, 100 MHz non-ECC main memory module

(pack of 20) D6505A/T

128-MB, 32-bit SDRAM, 100 MHz non-ECC main memory module D6503A/T

256-MB, 32-bit SDRAM, 100 MHz ECC main memory module D6743A/T

Documentation

User’s Guide Manual Kit D8110A

Product

Number Hard

Drive Video

Controller Std.

RAM Multi-media LAN OS1

HP Vectra VEi 8 PC

Medium-Profile

Desktop Vectras HP Vectra VEi 8 PC 16-3

Input Devices

HP Standard Keyboard C4735A

HP Standard Mouse C3751A

HP Scrolling Mouse C4736A

Video Displays

All current HP Displays (see the HP Vectra Accessory Service Handbook)

Mass Storage

4.3-GB IDE hard disk D8371A

6.4-GB IDE hard disk D8372A

8.4-GB IDE hard disk D8373A

HP 100 MB Atapi II Iomega ZIP drive D6650A

HP 100 MB Atapi II Iomega ZIP drive (pack of 10) D6651A

Multimedia

32✕Max IDE CD-ROM drive (pack of 10) D6656A

32✕Max IDE CD-ROM drive D4384A

Multimedia sound accessory kit (16-bit audio board, cables, and software) -

pack of 10 D5183A

Multimedia sound accessory kit (32✕Max CD-ROM drive, 16-bit audio

board, headphones, cables, and software) D6657A

Data Communications and LAN Adapter Boards

HP 56K V90 PCI Fax Modem D7808A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card D7504A

HP 10/100 3Com 3C905B-TX, 10/100BT Ethernet card (pack of 10) D7505A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter D7506A

HP 10/100 Intel PRO/100+, 10/100BT Management adapter (pack of 10) D7507A

Security

HP Master Pass Key System Kit D6655A

HP Master Pass Key D6658A

HP Locks for Master Pass Key System (pack of 50) D6659A

I/O Interfaces

HP Adaptec 2940 UW SCSI board D6951A

HP Serial interface card D8388A

HP Vectra VEi 8 PC

16-4 HP Vectra VEi 8 PC Medium-Profile

Desktop Vectras

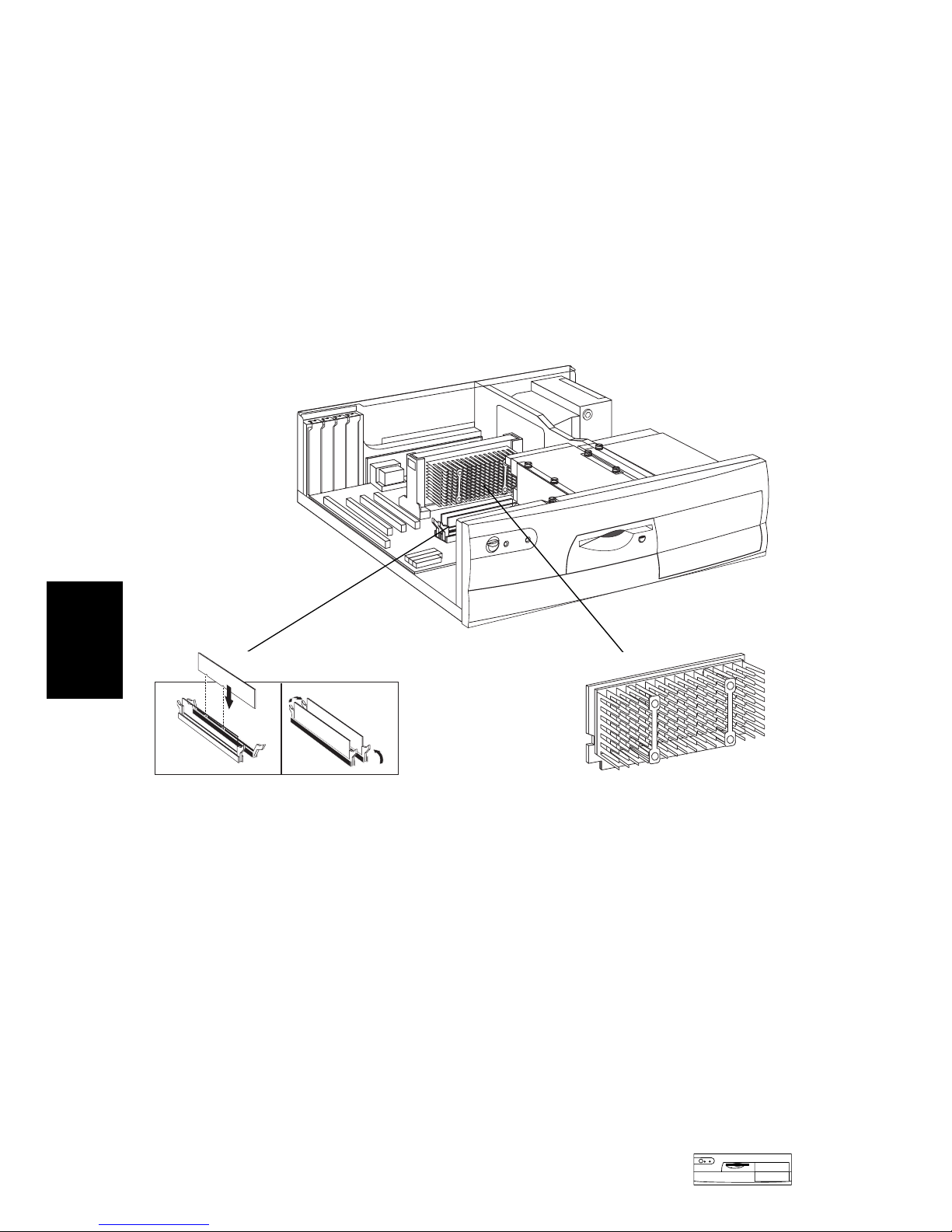

System Board, BIOS, and Memory

Processor: Pentium II

or Pentium III SECC2

package with integrated

heatsink and level-2

cache memory.

Main Memory:

Two DIMM sockets which support

up to a maximum of 512 MB.

Install 32 MB, 64 MB, 128 MB or 256

MB 100 MHz SDRAM modules.

System Board Jumpers:

See the diagram on the next page.

HP Vectra VEi 8 PC

Medium-Profile

Desktop Vectras HP Vectra VEi 8 PC 16-5

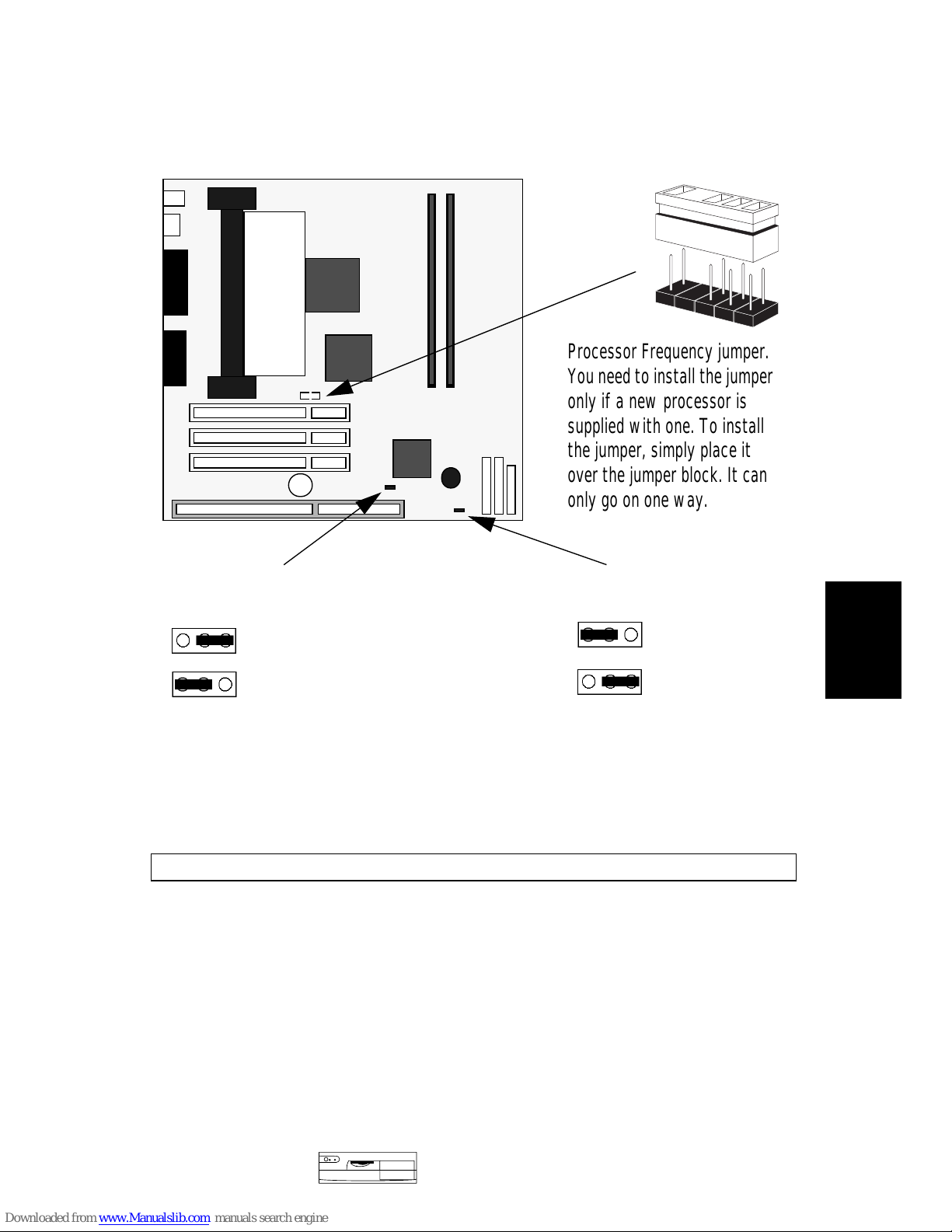

System Board Jumpers

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

http://www.hp.com/go/vectrasupport/

Clear CMOS jumper

Defaultposition

Clear CMOS

Clear Password jumper

Defaultposition

Clear Passwords























Processor Frequency jumper.

Youneedtoinstallthejumper

only if a new processor is

supplied with one. To install

the jumper, simply place it

over the jumper block. It can

only go on one way.

HP Vectra VEi 8 PC

16-6 HP Vectra VEi 8 PC Medium-Profile

Desktop Vectras

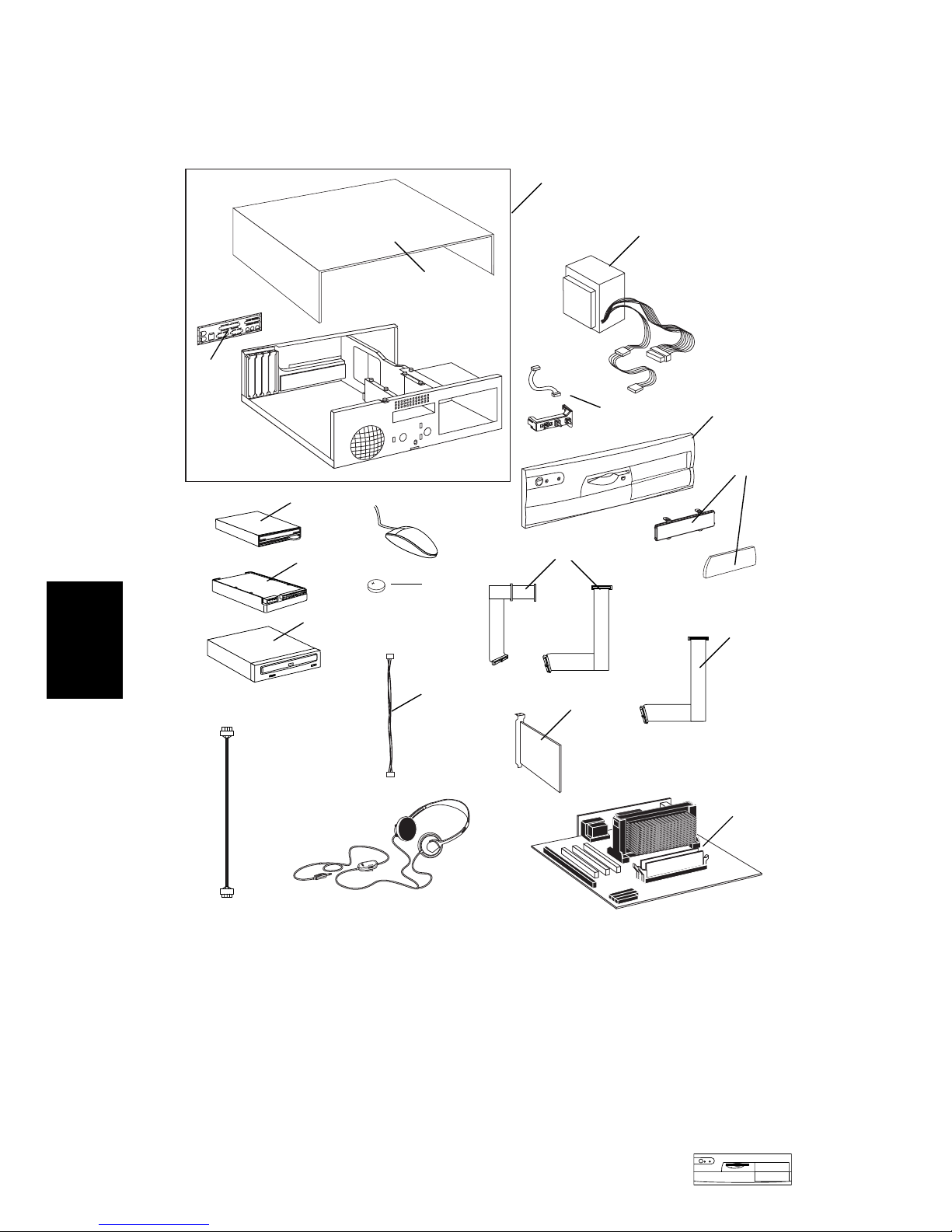

Part Numbers

HP Vectra VEi 8 PC

Medium-Profile

Desktop Vectras HP Vectra VEi 8 PC 16-7

1. Includes front bezel, two 5.25 inch fillers, one 3.5 inch filler and name plate.

2. For optional disk drive information, see the Accessory Service Handbook.

3. Where “xx” is the code for your national keyboard (see the Accessory Service Handbook).

Parts List for HP Vectra VEi 7 PC

Item Description Repl.

Part Number Exchange

Part Number

1Chassisassembly:

a Top cover assembly

b Rear bezel

5064-9121

5064-9140

5064-7437

—

2 Status panel assembly 5064-9150 —

3 Front bezel assembly15064-9116 —

4 Power supply 0950-3423 —

5 FDD filler kit (RFI plate +filler) 5064-9142 —

6 HDD and FDD cable kit 5064-9141 —

7 CD-ROM cable 5183-8063 —

8 Floppy disk drive (bezel-less) D2035-60391 —

9IDE hard disk drive 2

4.3 GB

8.4 GB —

—D7528-69001

D7530-69001

10 32 ✕Max IDE CD-ROM drive —D4385-69001

11 CD-ROM to audio connector cable 5182-1857 —

12 Headphones 5182-3552 —

13 Standard mouse C3751-60201 —

Standard keyboard C4739-601xx3—

14 Battery type CR2032 1420-0356 —

15 3COM Wake on LAN Cable 5183-2769 —

16 3Com 3C905B-TX LAN board 5064-6787 —

or Intel PRO/100+ LAN board 5064-7434 —

17 System board See PC’s system board parts list

HP Vectra VEi 8 PC

16-8 HP Vectra VEi 8 PC Medium-Profile

Desktop Vectras

16 Notes:

____________________________________________________________________

1. Electronic file available on HP’s Web site.

System Board Parts List for HP Vectra VEi 8 PC

Description Repl.

Part Number Exchange

Part Number

System board:

Vectra VEi 8 system board with Matrox

MGA-G200 video controller — D8155-69001

Processors:

Intel Pentium II 400/100 512KB L2 cache — D7945-69001

Intel Pentium III 450/100 512KB L2 cache — D7946-69001

Intel Pentium III 500/100 512KB L2 cache — D7947-69001

Main memory modules:

1 ✕32-MB, 100 MHz non-ECC SDRAM D6501-63001 —

1 ✕64-MB, 100 MHz non-ECC SDRAM D6502-63001 —

Manuals and Documentation for HP Vectra VEi 8 PC

User’s Guide D8110A

Troubleshooting and Upgrade Guide no number1

Technical Reference Manual: hardware and BIOS no number1

English 23

3 Replacing Hardware Components

Removing and Replacing the Cover and Front Panel

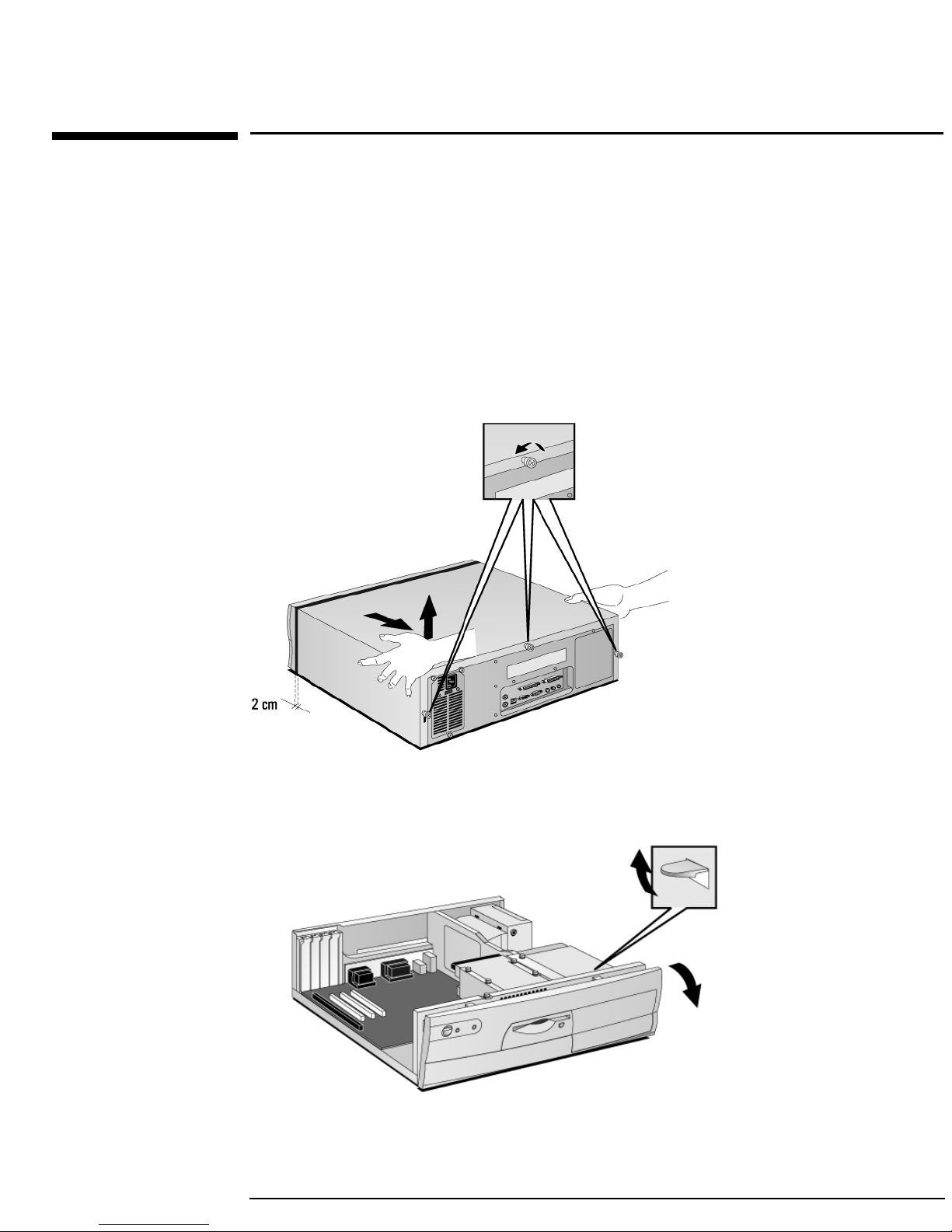

Removing the Cover Before removing the cover, switch off the monitor and PC, disconnect

all power cords and any telecommunication cables. If necessary, unlock

the cover at the rear of the PC.

1Undo the three thumb screws at the back of the PC and remove the

cover by sliding it towards you by about 2 cm (0.8 inches) and then

lifting it off.

2Ifrequired, remove thefront panel.To removethe panel,lift thetwo

retaining catches, then tilt the panel forwards and lift it off.

3 Replacing Hardware Components

Removing and Replacing the Cover and Front Panel

24 English

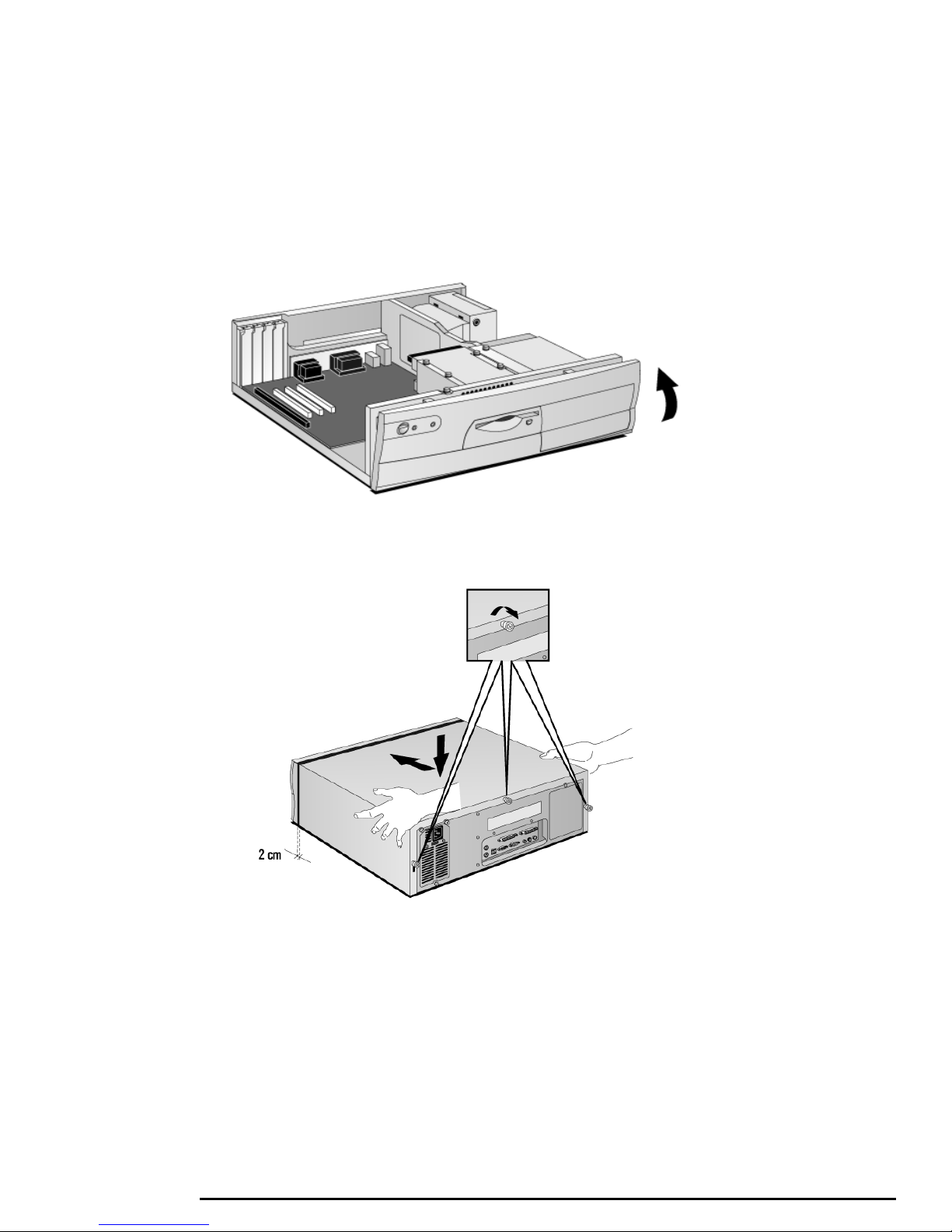

Replacing the Cover Before replacing the cover, ensure that all internal cables are properly

connected and safely routed.

1If necessary, replace the front panel. To do this, insert the three

plastic tabs into the holes in the front of the PC chassis and snap the

panel in place.

2Lower the cover and slide it into position.

3Tighten the three thumbscrews at the rear of the PC.

4If required, lock the cover with the key at the rear of the PC.
